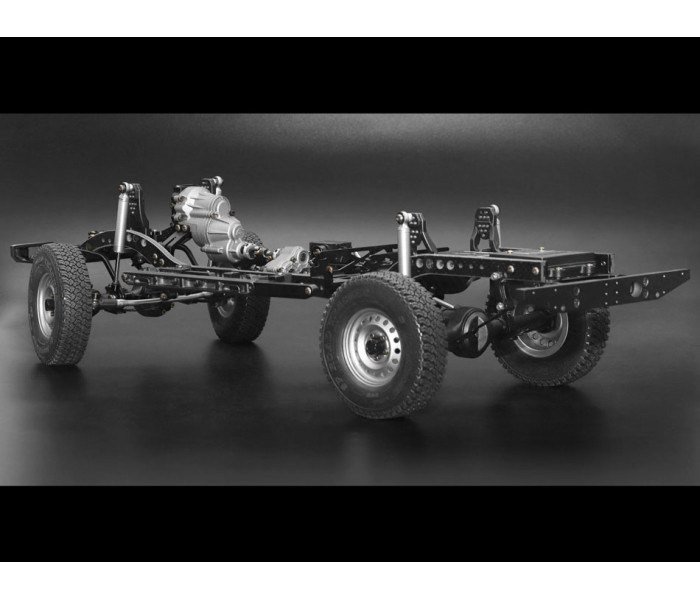

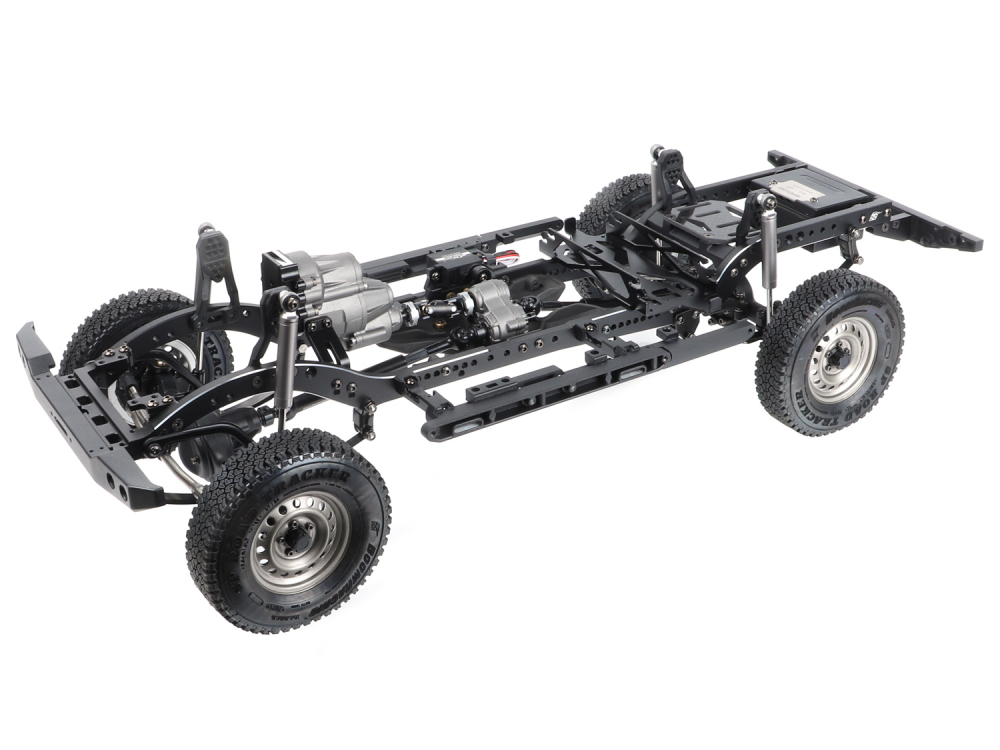

1/10 4WD Scale Performance Chassis Kit Leaf Spring Version For Team Raffee Co. D110

USD $635.00

Part #: BR8005

1/10 4WD Scale Performance Chassis Kit Leaf Spring Version For Team Raffee Co. D110

USD $635.00

Part #: BR8005

Select Body:
*Interior comes pre-cut for BRX02, and includes new lighter weight plastic seats
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit. Spend $100 on parts for free shipping on each extra car kit.

PRODUCT DESCRIPTION

*Update: all BRX02 Link chassis now come with 6mm aluminum rails instead of carbon fiber rails*

The Scale Performance Continues

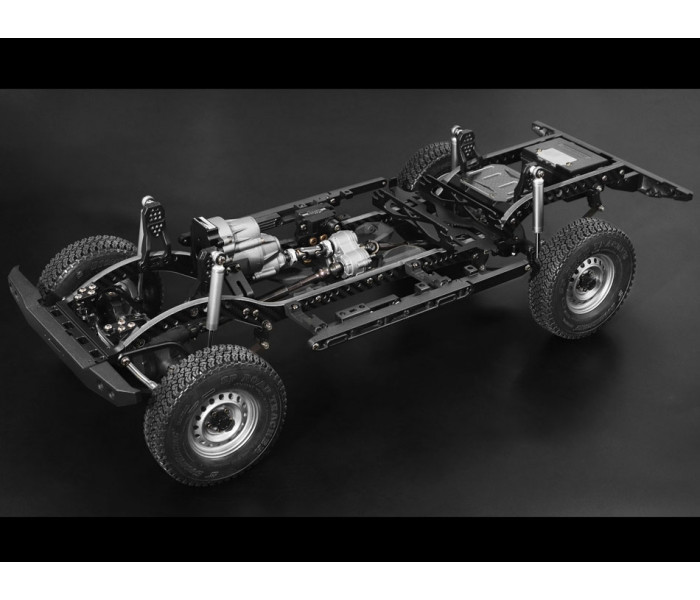

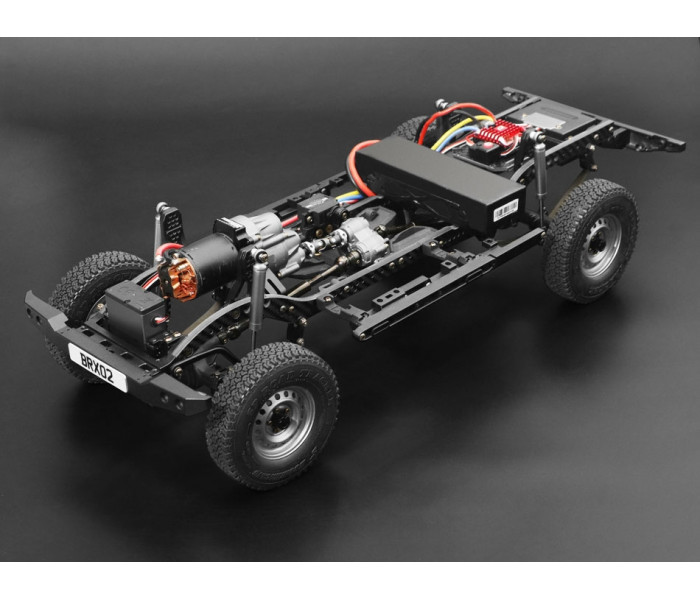

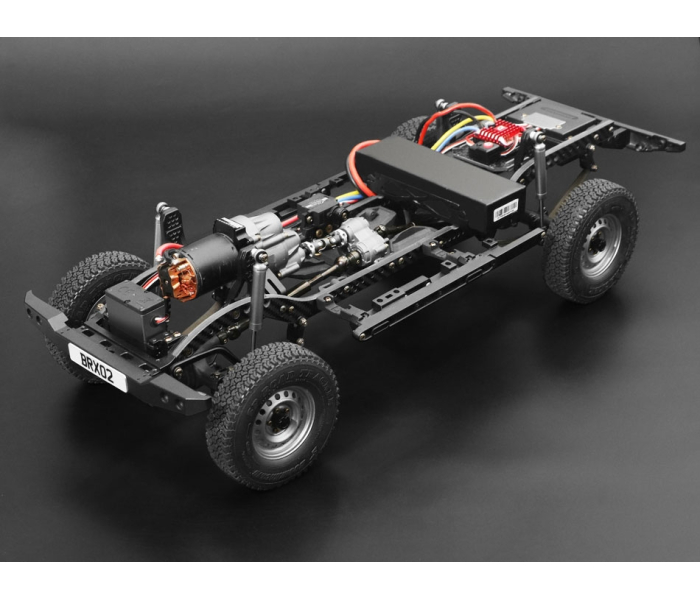

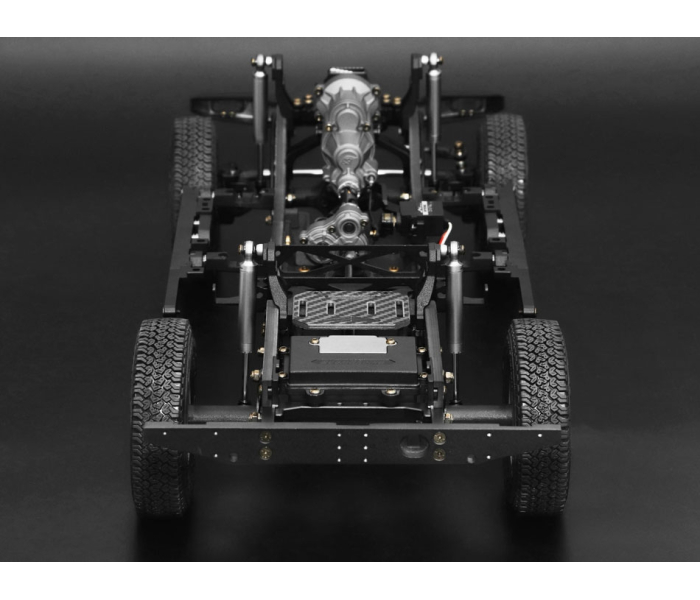

The BRX02 is Boom Racing's latest top-of-the-line scale performance off-road chassis. It is the result of continuous development and improvement of the highly-rated BRX01, developed in close collaboration with many scale hobbyists around the world. With the BRX02, you can expect to build an ultra-realistic R/C model vehicle that gives you great performance straight out of the box.

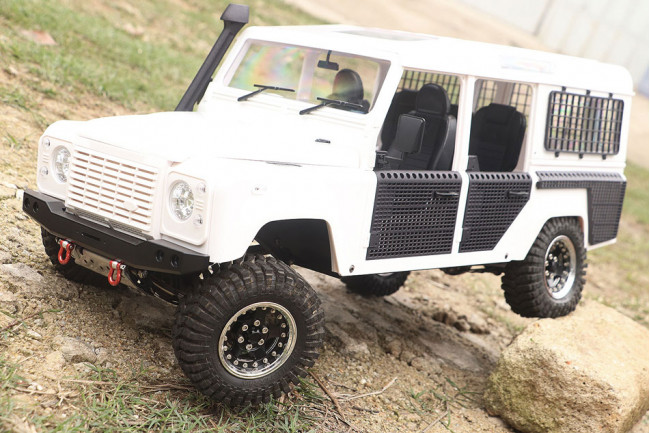

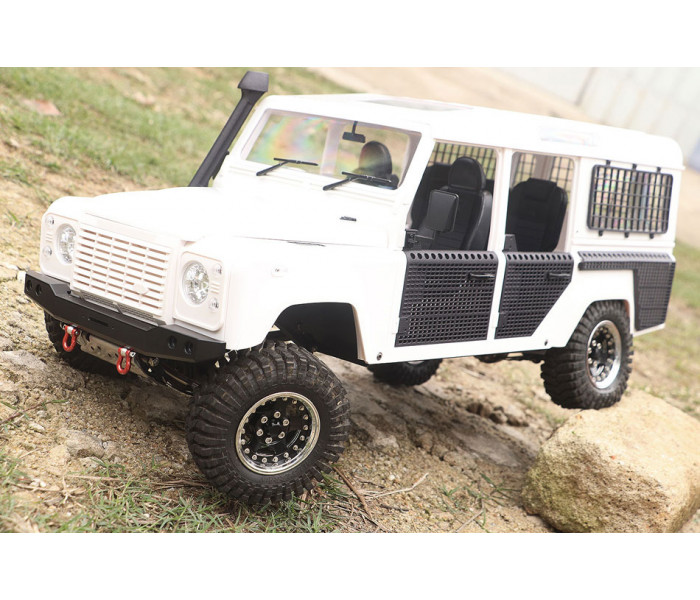

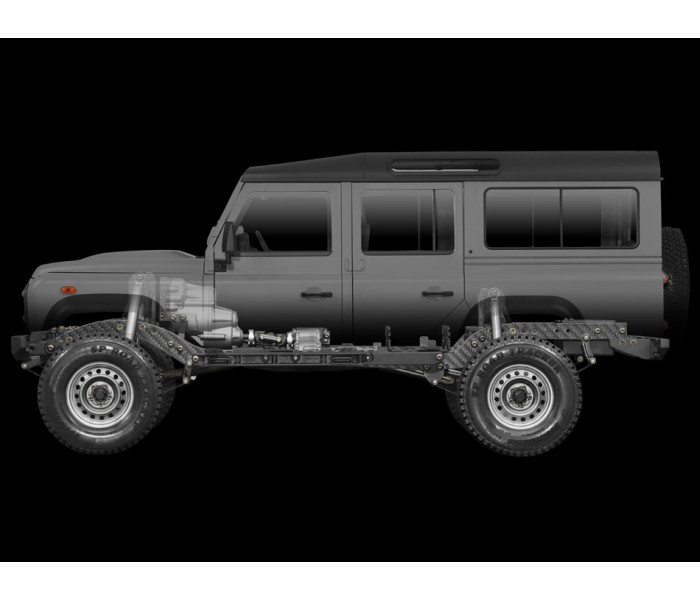

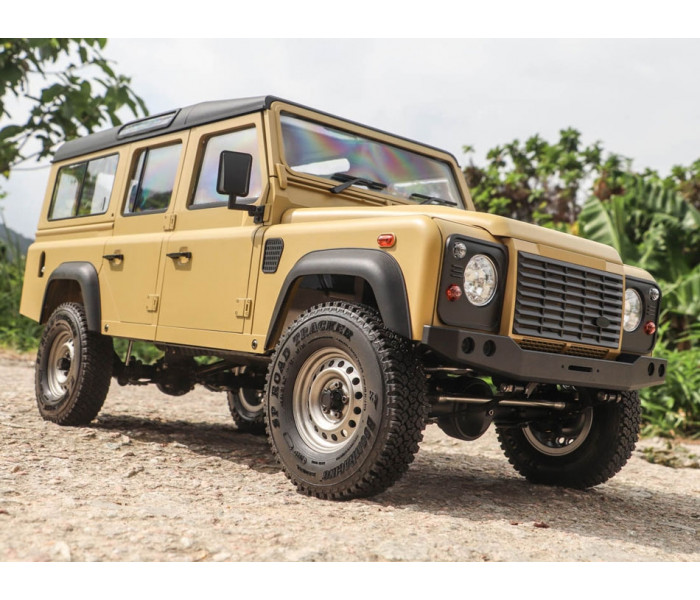

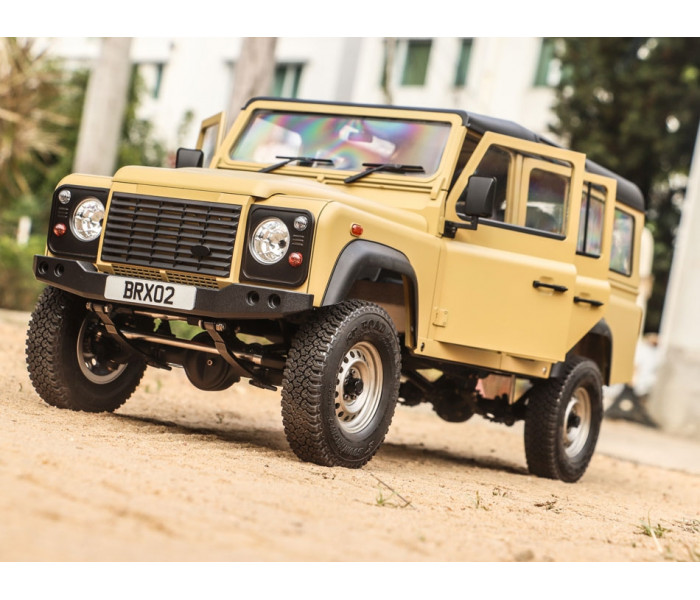

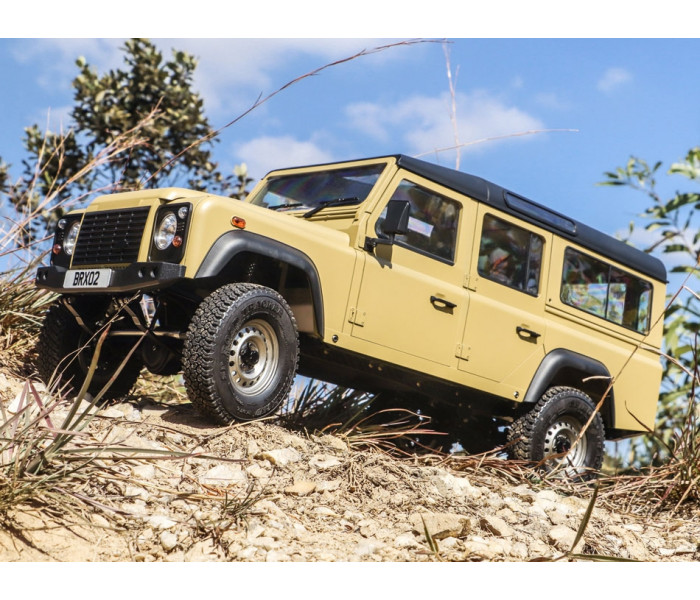

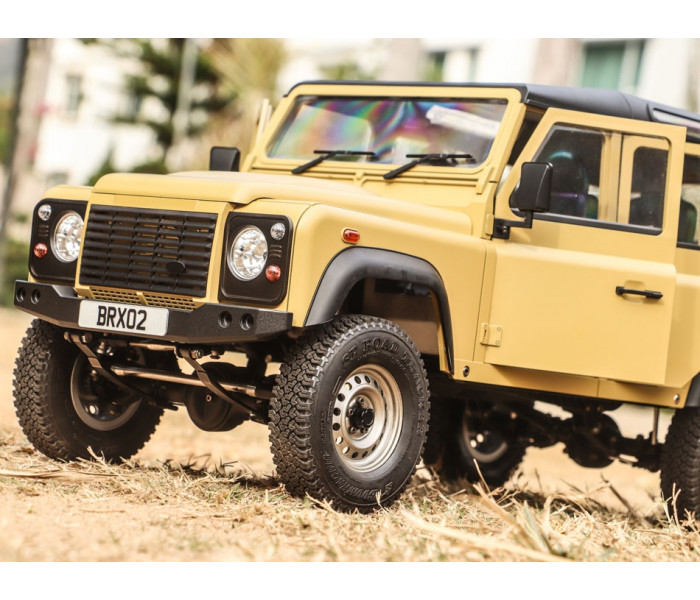

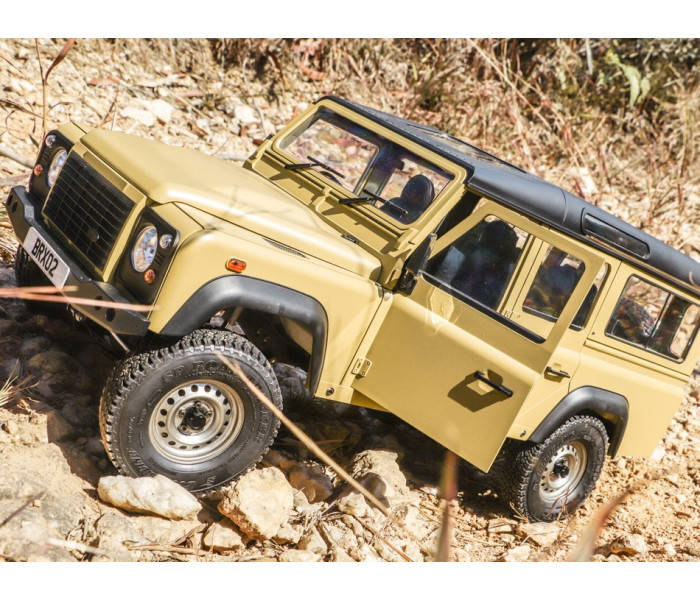

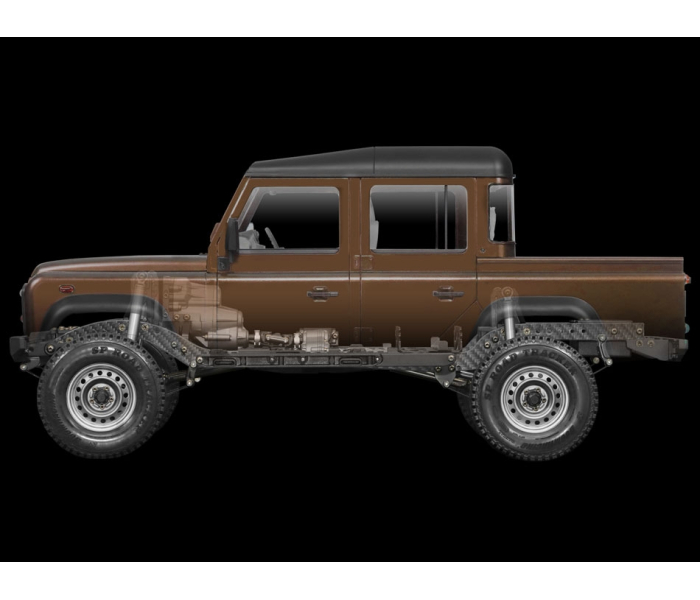

This chassis fits the Team Raffee Co. D110 Station Wagon and Pick-Up hard bodies.

All BRX02 come with a pair of unique UK license plates that are numbered which matches the chassis number, on a first-come-first-served basis.

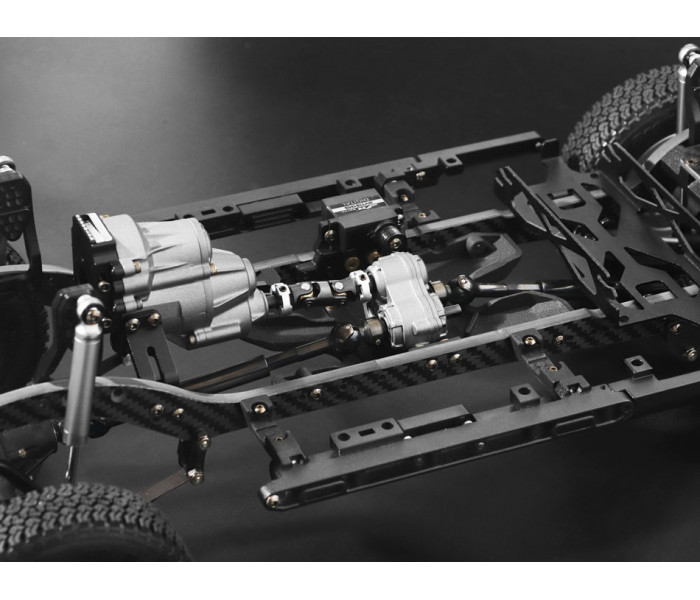

The BCF2™ Transmission and the SRD™ Transfer Case in the BRX02 require assembly.

Features Highlight:

  • Transmission: BCF2™ 2-speed Hi-Lo, Remote Shifting
  • Transfer Case: SRD™ Anti-Torque Twist w/ Selective Rotational Drive (SRD)

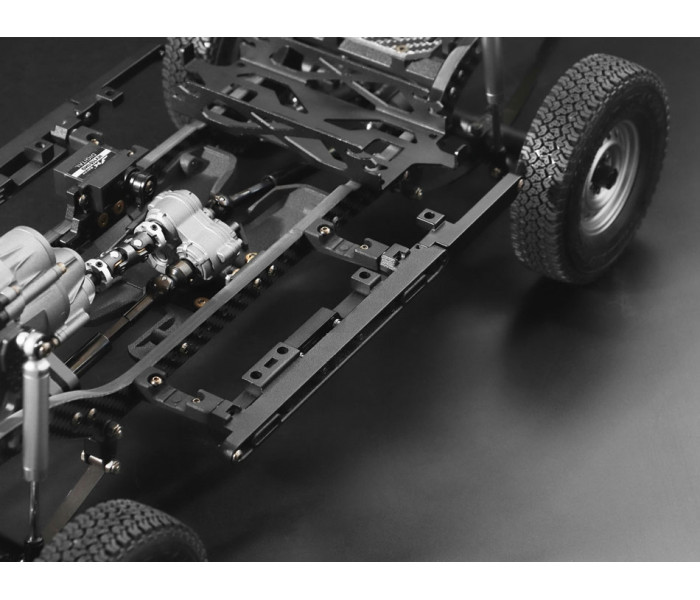

  • Aluminum 6mm Chassis Rails for strength and durability
  • BRX90 High Pinion PHAT™ Axle w/ AR44 Keyed Helical Cut HD Gears

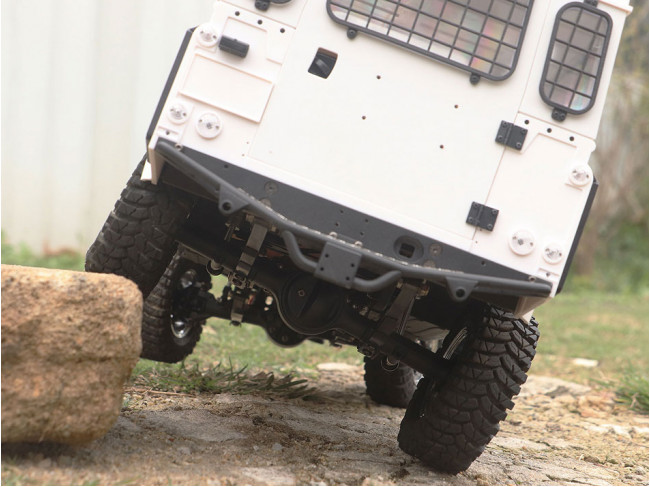

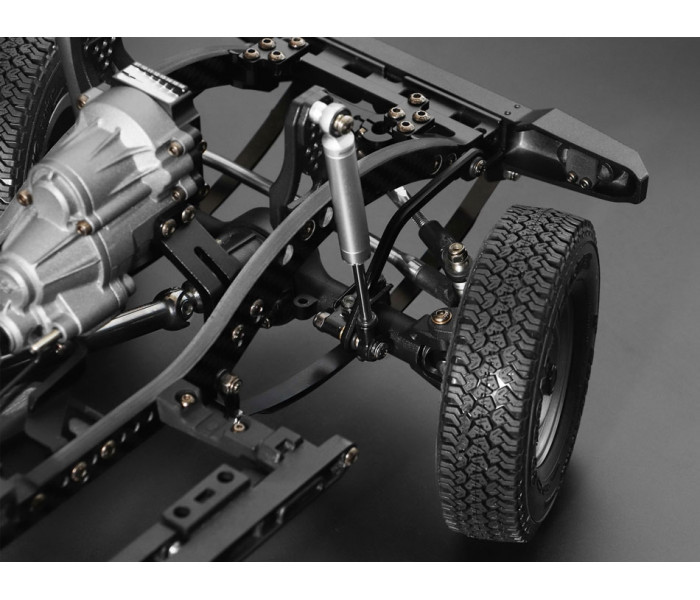

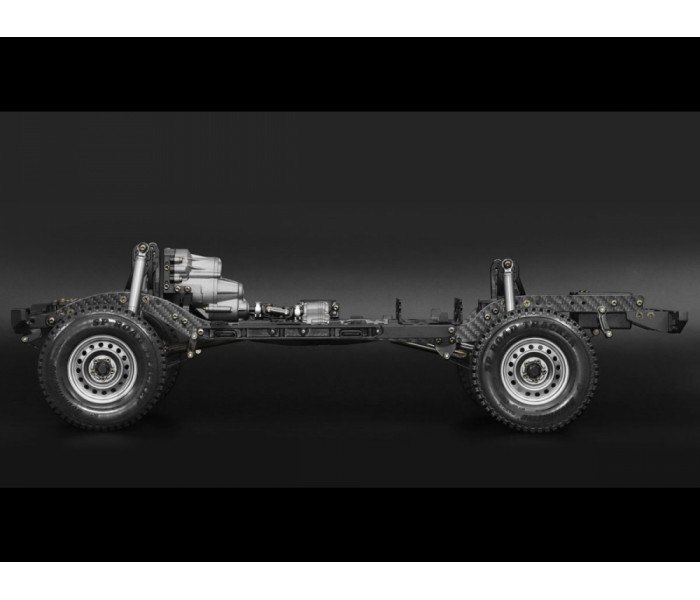

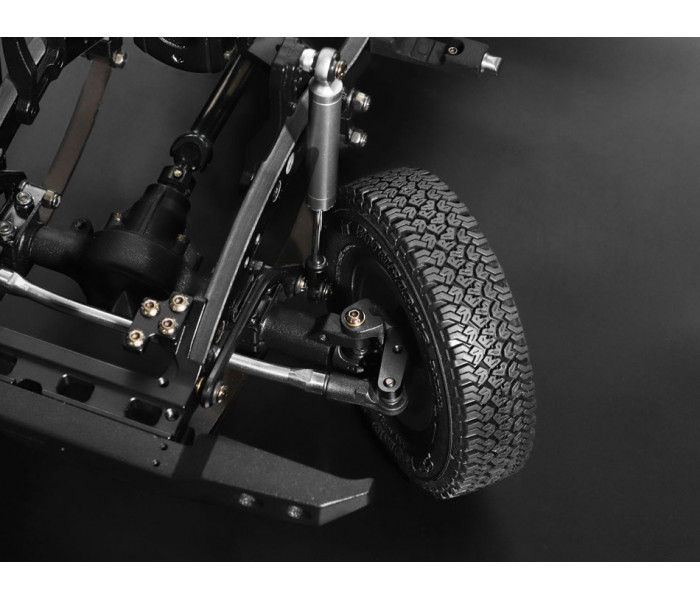

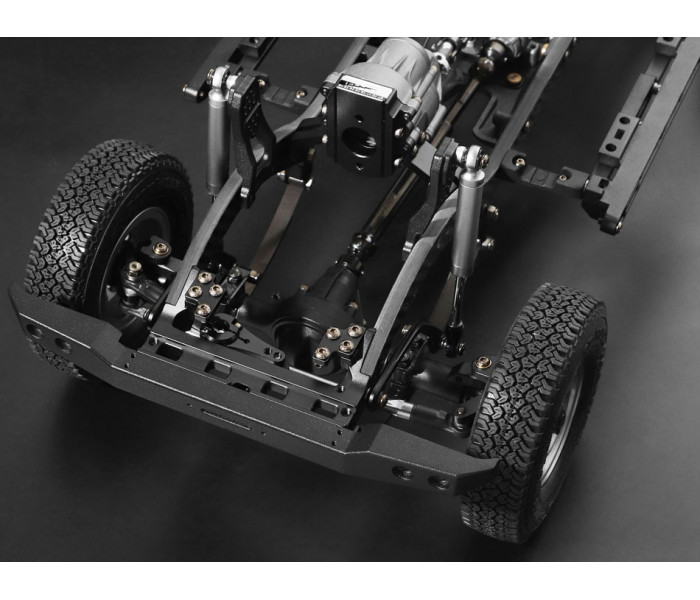

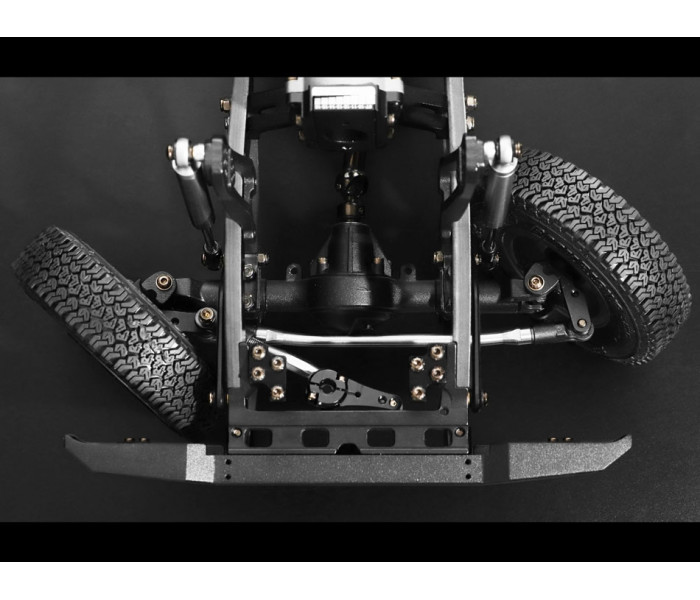

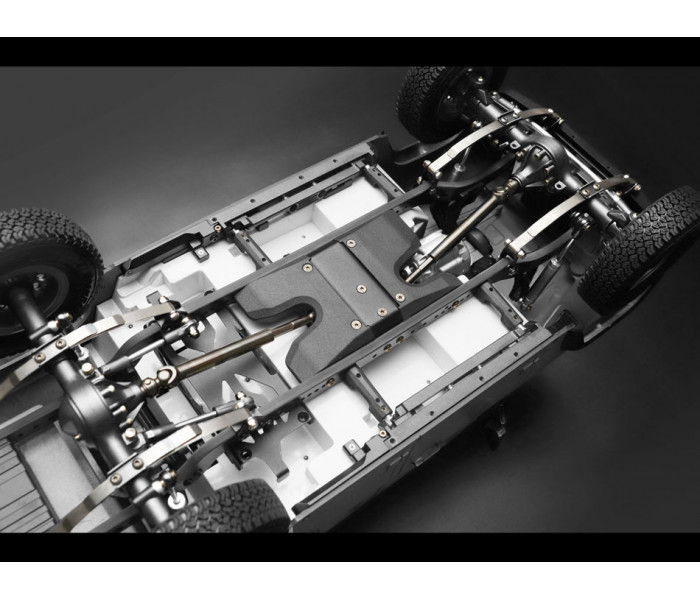

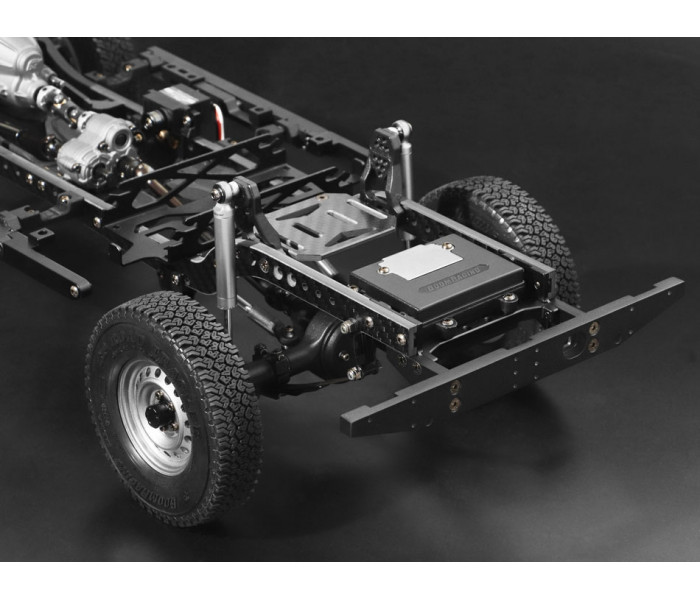

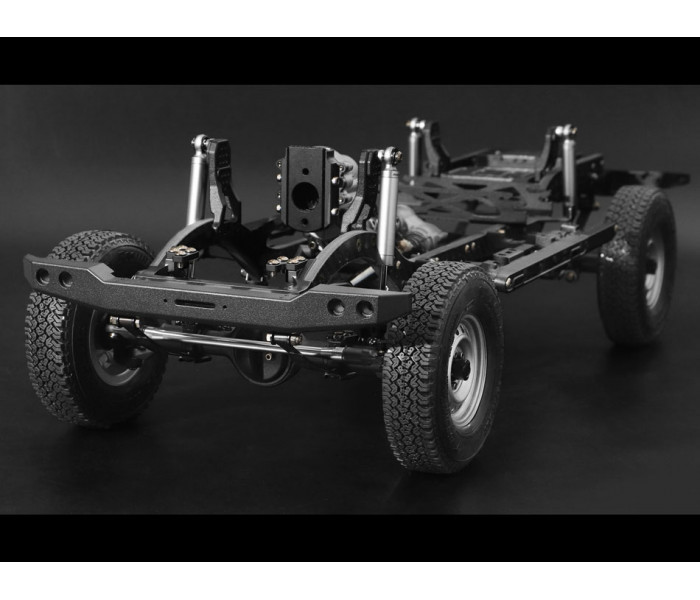

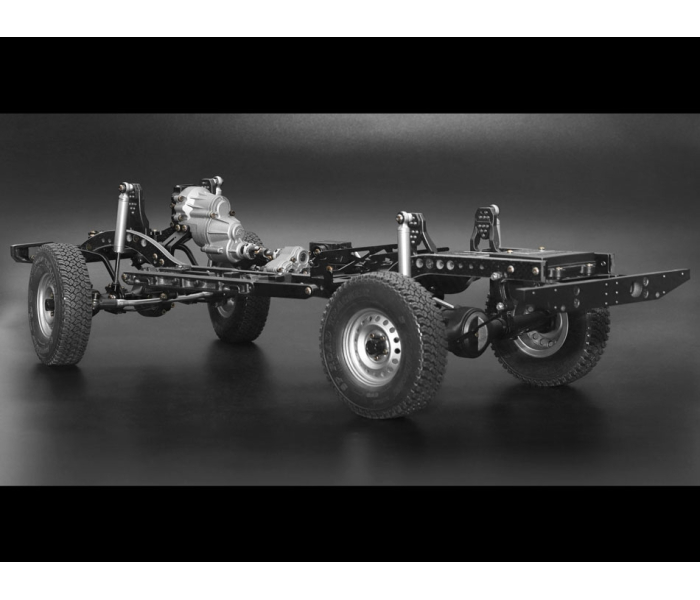

  • Full Front and Rear Realistic HD Steel Leaf Spring Suspension

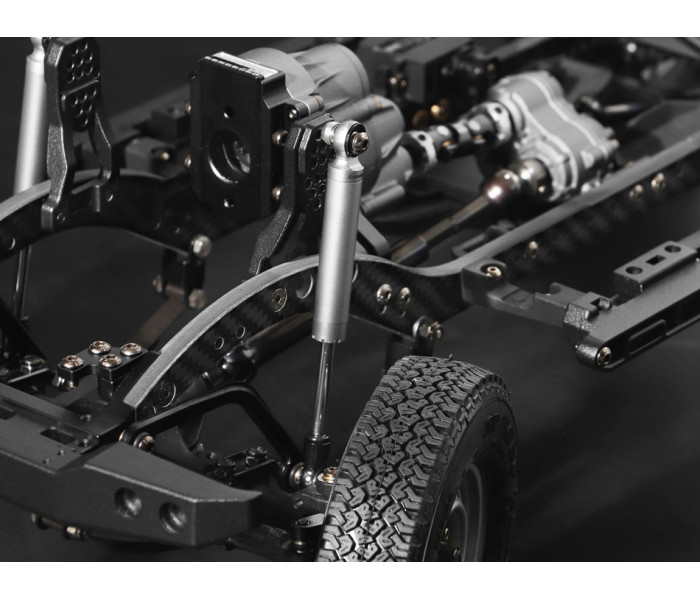

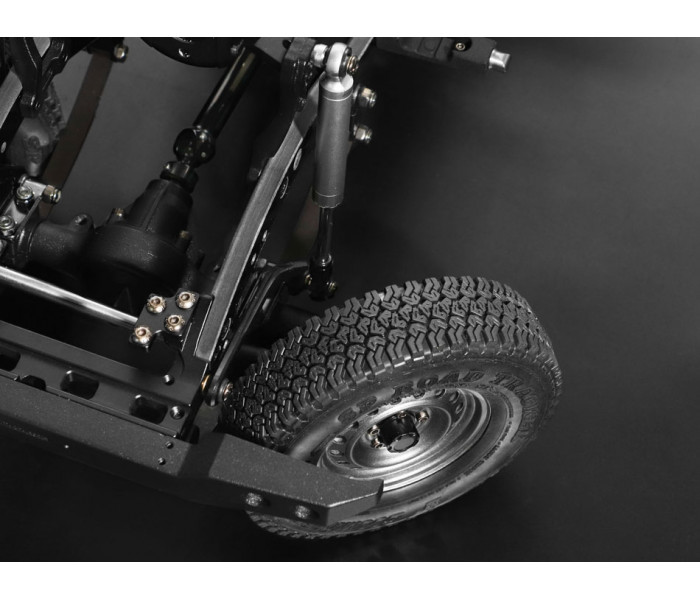

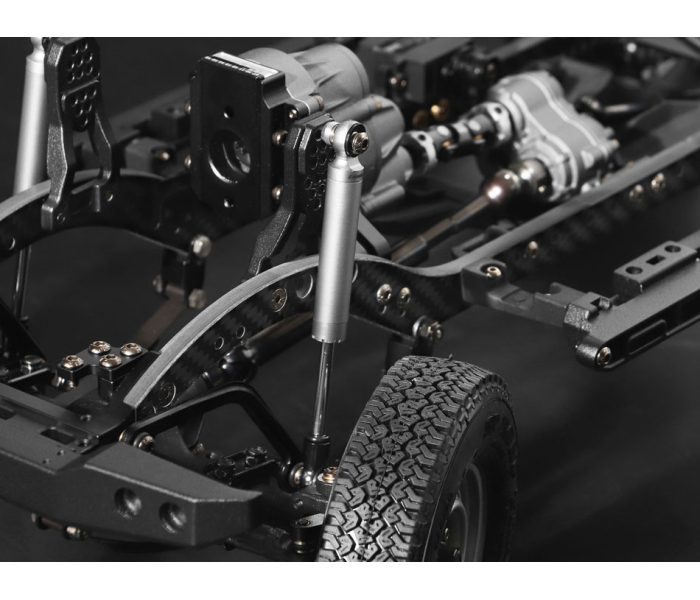

  • KUDU™ 90mm Scale Shock Dampers
  • KUDU™ 110-130mm Heavy-Duty Steel CVD Drive Shafts
  • Quick-Release System designed for a quick and easy way to attach and detach the body

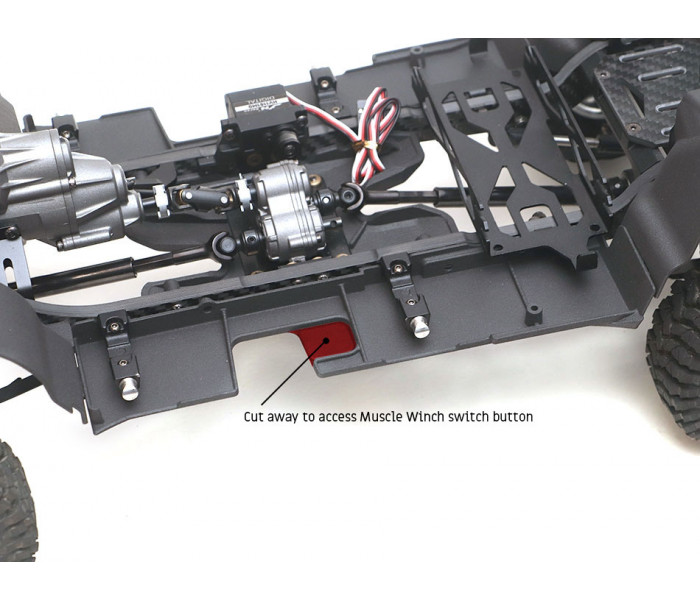

  • Design ready for Internal Servo Winch Kit to be mounted

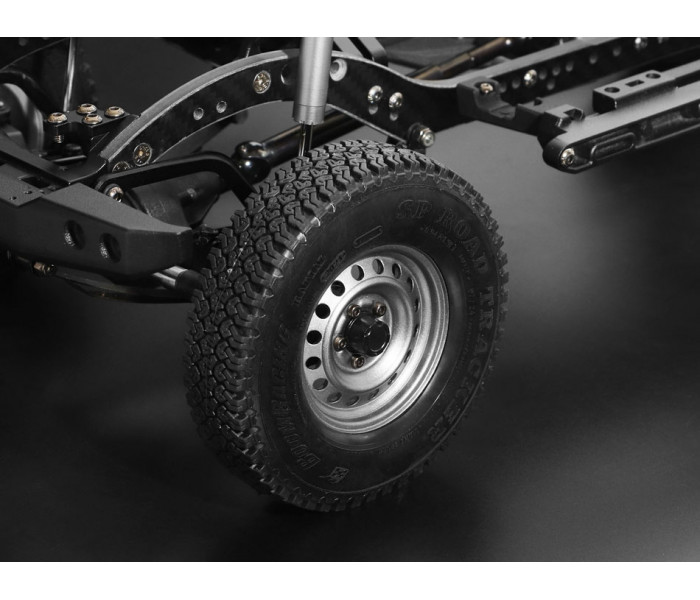

  • 1.9" Narrow 21mm 16-Hole Steelie Beadlock Wheels
  • 1.9" SP Road TrackerTM 97x24mm Gekko Compound
  • High clearance aluminum links to clear bigger obstacles

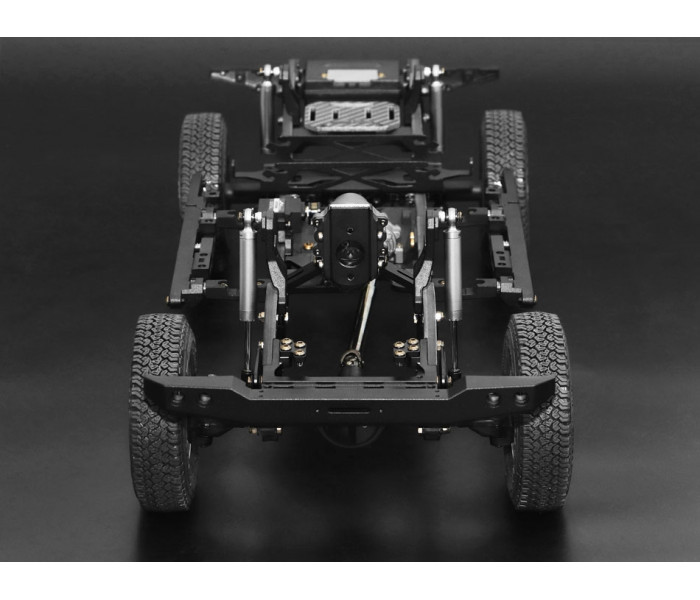

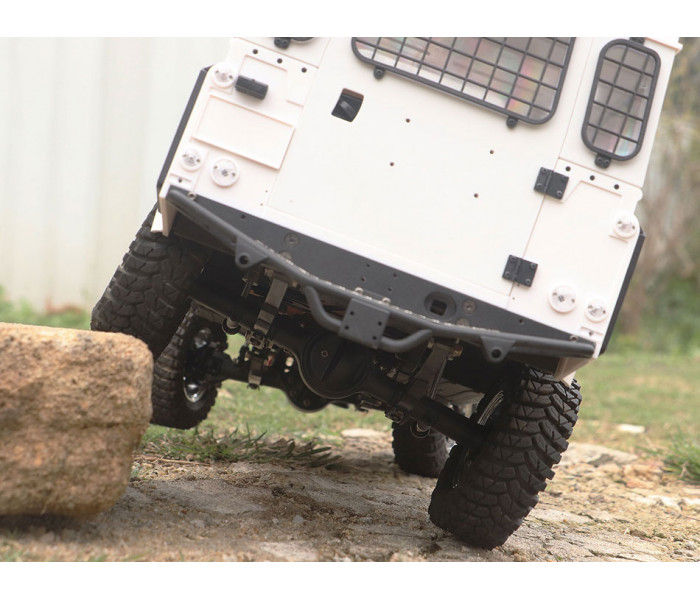

  • High clearance skid plate for superior crawling capability
  • Center Front and Rear Skid Sliders For Leaf Spring Setup

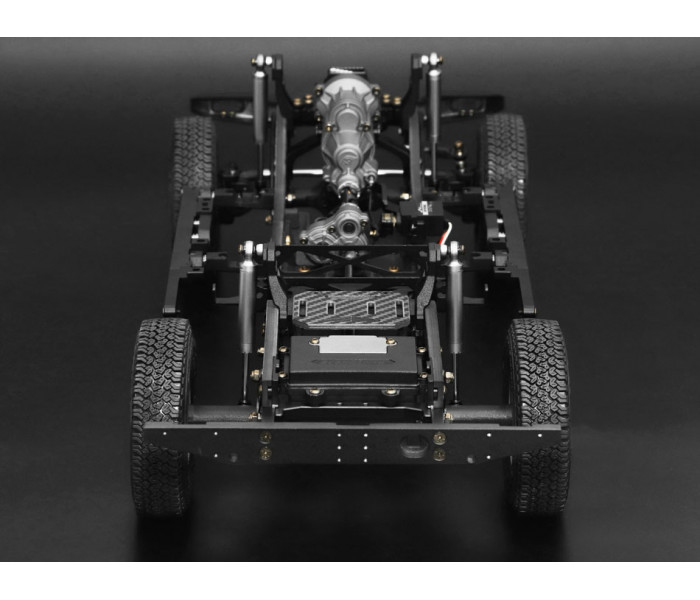

  • Centralized chassis weight and drivetrain layout to keep the left and right sides equally balanced

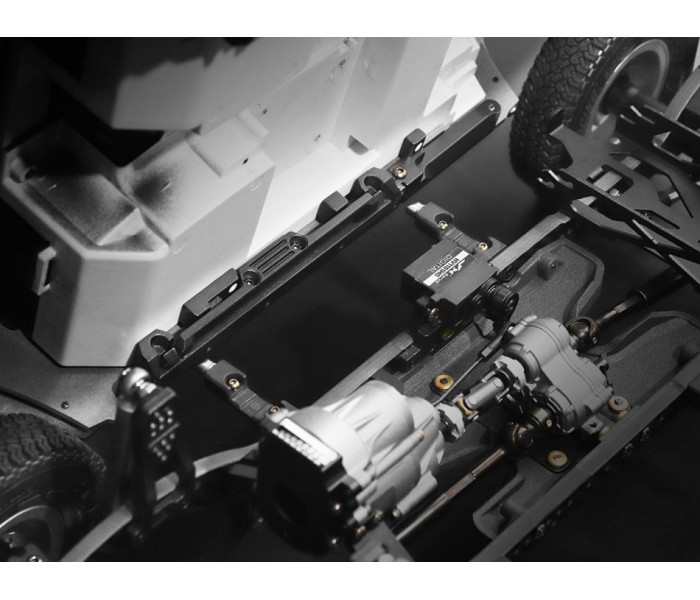

  • Adjustable Chassis-Mounted-Servo (CMS) Mount
  • JX Waterproof Metal Gears Mini Servo for remote 2-speed shifting

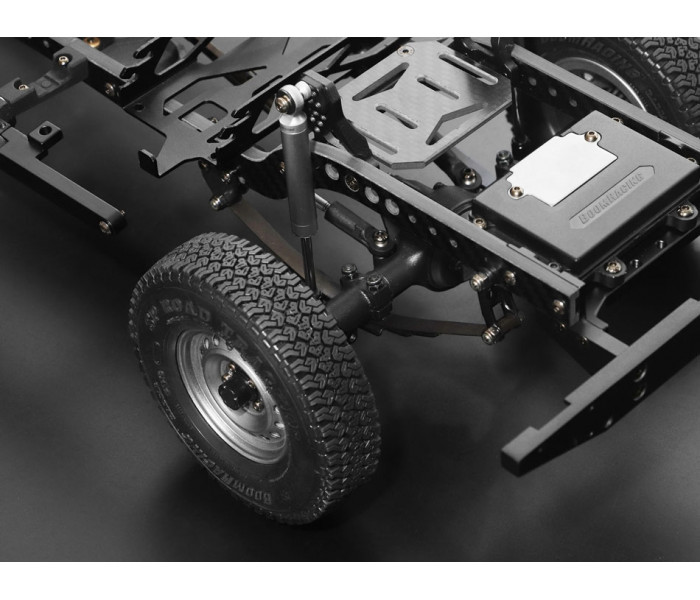

  • Proprietary silicone sealed watertight receiver box keeps the receiver dry
  • Complete high performance Rubber Sealed Bearings
  • High Grade 12.9 Alloy Steel Nickel Plated Screws


Specifications:

  • Length: 528mm / 20.79"
  • Width: 212mm / 8.35"
  • Height: 146mm / 5.75"
  • Wheelbase: 334mm / 13.15"
  • Track Width: 187mm / 7.36"
  • Axle Clearance: 30mm / 1.18"
  • Skid Clearance: 65mm / 2.56"
  • Weight: 2279g / 5.02lbs
  • Shock Length: 90mm / 3.54"
  • Hex Size: 12mm
  • Motor Size: 540/550 (not included)
  • Gear Pitch: 12T 32P Pinion/Spur, 48P T-Case
  • Drive System: Full-Time Shaft Driven 4WD
  • Steering: Chassis Mounted Servo
  • Suspension: Front and Rear Leaf Spring Suspension with Dampers

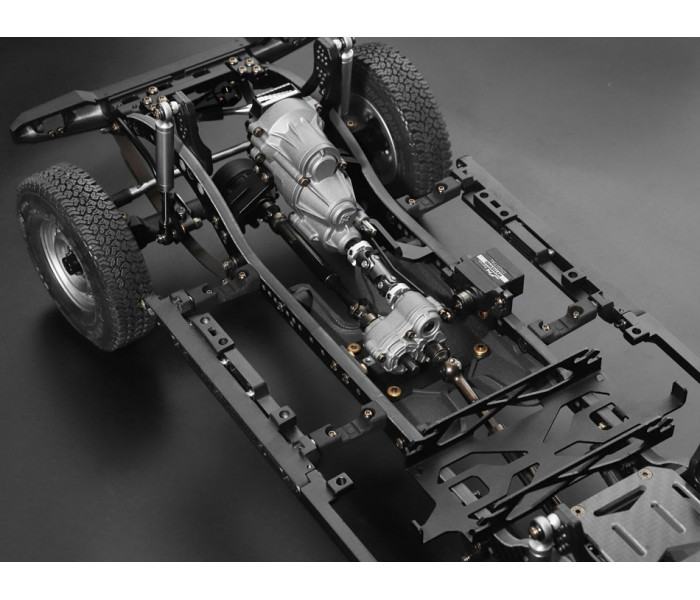

Drivetrain:

  • Full-time shaft driven 4WD
  • Innovative pinion-spur gear mesh guide for precision setup
  • SRD™ Anti-Torque Twist T-Case reduces chassis torque twist under acceleration, and choose between counter-rotational setup and standard setup
  • KUDU™ Heavy Duty 110-130mm Steel Center Drive Shafts
  • Axle Gears
    • AR44 HD Front Keyed Bevel Helical Gear 30/8T + Differential Locker Spool Set [RECON G6 The Fix Certified]
    • AR44 HD Rear Reverse Keyed Bevel Helical Gear 30/8T + Differential Locker Spool Set [RECON G6 The Fix Certified]

Mini Servo Specifications:
  • Brand: JX Servo
  • Model: JX/PDI-HV1151MG
  • Working voltage: 6V~8.4V
  • Working temperature: -20C°~ +60C°
  • Dead band: 4usec
  • Motor type: Core Motor
  • Signal booster type: Digital
  • Gear material: Metal gear
  • Operating Speed: 0.12s/60deg (6.0V) | 0.10s/60deg (8.4V)
  • Stall Torque: 3.5kg/cm (6.0V) | 4.5kg/cm (8.4V)
  • Idle Current: 150mA (6.0V) | 180mA (8.4V)
  • Load Current: 260mA (6.0V) | 340mA (8.4V)
  • Size: 23.2 x 12.5 x 25.6mm
  • Weight: 15g
  • Tooth Count: 25
  • Wire length: 310mm JR plug
  • Black: Negative Red: Positive White: Signal

What's Included:

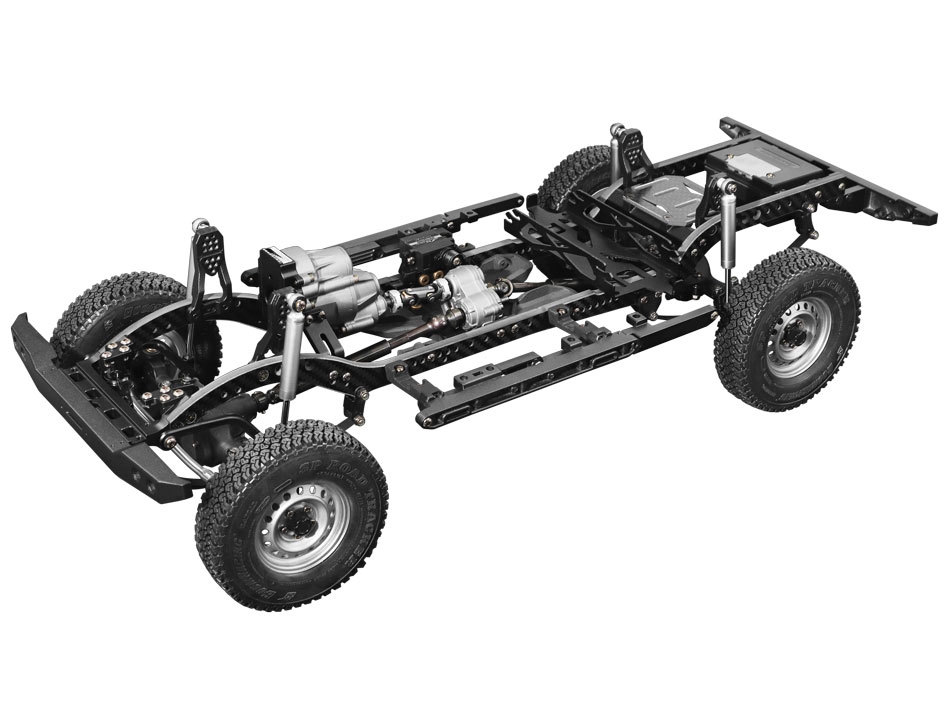

  • BRX02 1/10 4WD Scale Performance Chassis Kit Leaf Spring Version BR8005
  • JX Waterproof Mini Servo with Metal Gears
  • 32 Pitch 12T Steel Pinion Gear
  • 25T Low Profile Aluminum Servo Horn
  • Maintenance Kit (Shock Oil, Black Grease, Siliking Grease, Thread Lock)
  • Cable Wiring Retainer Set (18pcs)
  • BRX02 Custom Unique License Plates (Numbered) with Chassis VIN# Plate
  • Basic Tool Kit


Equipment Required:

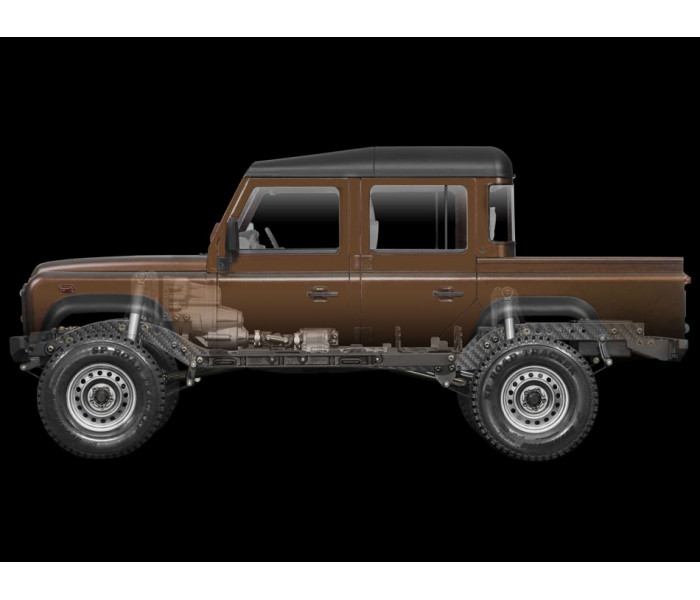

  • Body (Team Raffee Co. D110 Pick-Up #TRC/302215 or Station Wagon #TRC/302214)
  • 3 Channel Radio System
  • ESC (electronic speed control)
  • Steering Servo
  • 540 or 550 Motor (27T for off-road / 35T for crawling matched with provided 12T pinion gear)
  • Battery
  • Charger
  • Tools


What's A Bolt-On Kit?

Parts of the chassis components are pre-assembled and only require minor assembly to finish. The factory-assembled parts offer convenience for builders eager to get started.

The BRX02 kit includes factory pre-built axles. Shocks require oil to be filled (included).


BRX02 Owners Club

Similar to the BRX01 owners club, as an owner of the BRX02 kit, you are eligible to receive a special promotion at each of the events being attended by Boom Racing.

Register your vehicle directly on the manufacturer's website.

Once your vehicle is registered online, the chassis is officially registered to you and no one else can claim it. This will help with recalls, scheduled maintenance, any updates, and can be used to notify you of new options in the future.

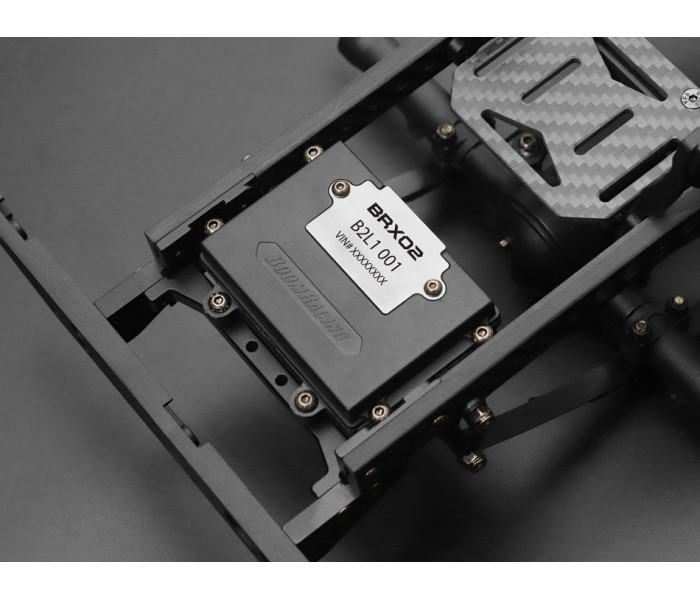

All BRX02 chassis kits are numbered and include a VIN#. The Car No. matches the number on the BRX02 License Plates. No two chassis will ever have the same License Plate.

Boom Racing

The scale performance continues

Our pursuit in designing the highest quality scale performance off-road vehicle brings you the latest innovative BRX02 – a high-performance chassis with realistic scale designs.

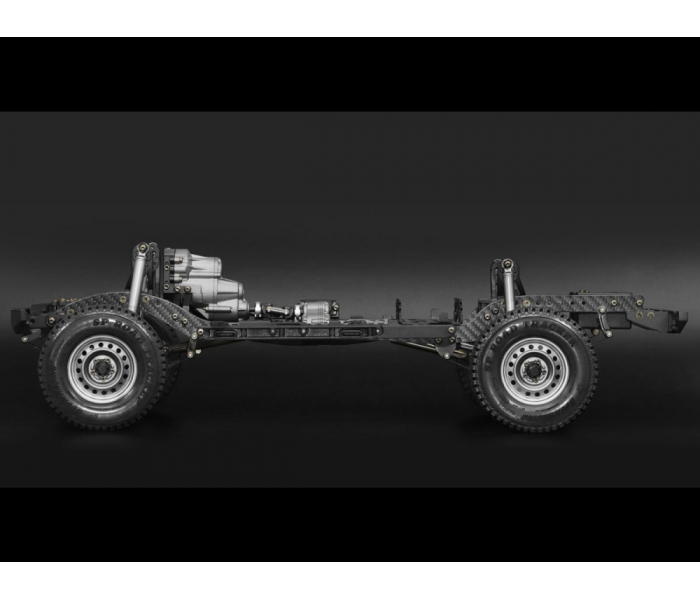

Introducing the BRX02

Two chassis, two bodies, four variations.

Two suspension geometries

Choose the full leaf sprung suspension with dampers or the 4-linked suspension with coil-over shocks.

Compare chassis

Leaf version

link version

Full leaf sprung suspension with dampers.

4-linked suspension with coil-over shocks.

FEATURES
BCF2TM (Boom Racing Compact Front-Mounted 2-Speed) Transmission with Remote Shifting
Anti-Torque Twist Transfer Case SRDTM (Selective Rotational Drive)
Quick-release system designed for a quick and easy way to attach and detach the body
KUDUTM 110-130mm Heavy-Duty Steel CVD Drive Shafts
BRX90 High Pinion PHATTM Axle w/ AR44 Keyed Helical Cut HD Gears
Design ready for internal servo winch kit to be used
Shocks KUDUTM 90mm Dampers w/ Leaf Springs KUDUTM 90mm Coilover Shocks
Suspension Geometry Front & Rear Leaf Spring w/ Dampers 4-Link w/ Coilover Shocks
1.9” Steelie Beadlock Wheels Narrow (21mm) Standard (25mm)
1.9” GEKKOTM Compound Tires SP Road TrackerTM 97x24mm MAXGRAPPLERTM 97x32mm
SPECIFICATIONS
Length 528mm 528mm
Width 212mm 220mm
Height 146mm 148mm
Wheelbase 334mm 334mm
Track Width 187mm 185mm
Axle Clearance 30mm 28mm
Skid Clearance 65mm 66mm
Weight 2279g 2373g
Shock Length 90mm 90mm

Be a part of the BRX02 experience

Owner's club registration
Register your BRX02 today. This will help with recalls, scheduled maintenance, any updates, and can be used to notify you of new options in the future.

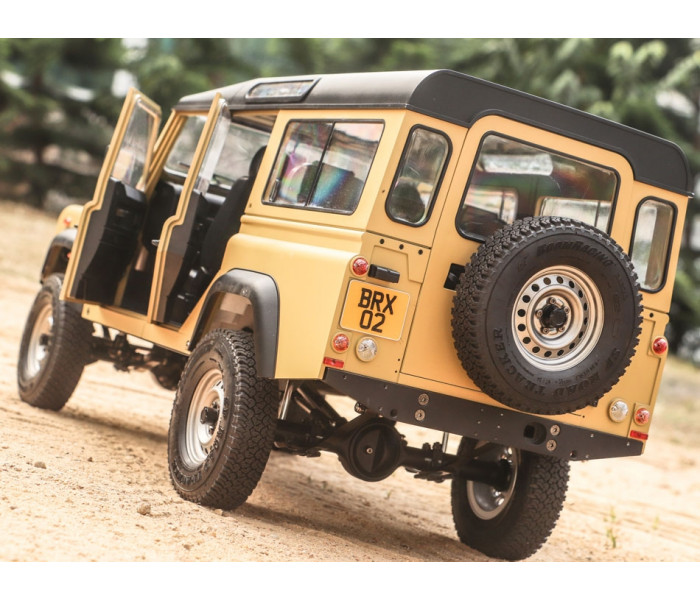

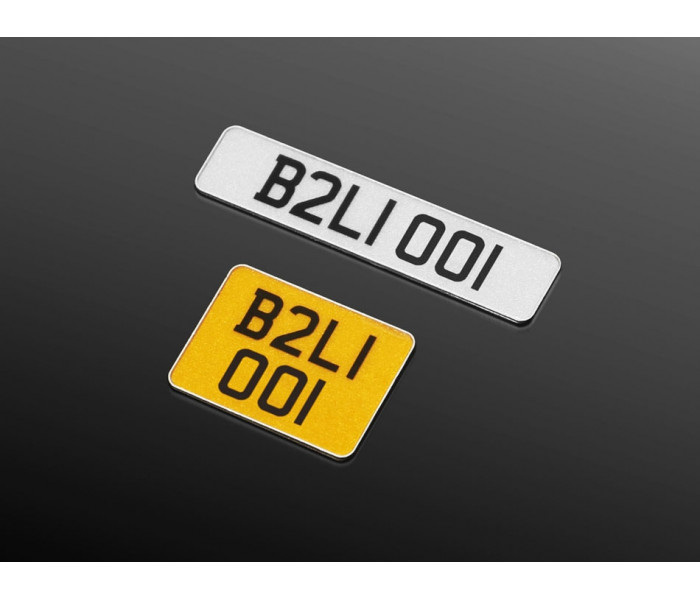

Your own unique license plates

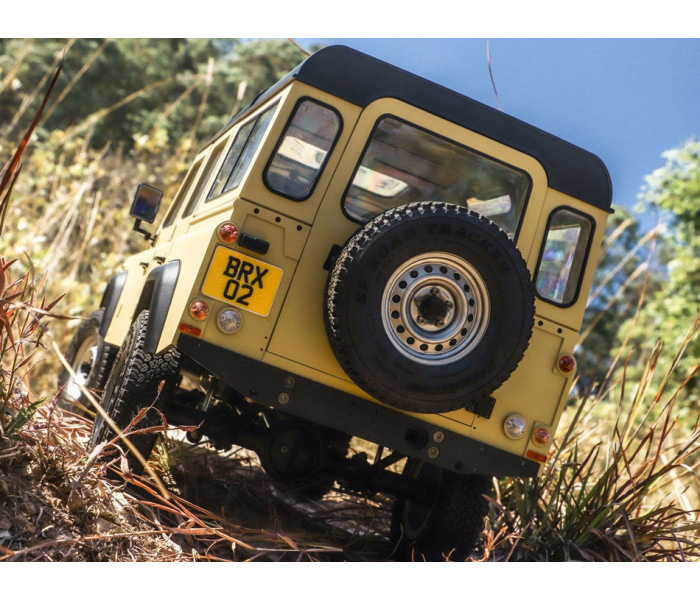

Each BRX02 includes a set of unique custom vehicle license plates that match the vehicle number. These license plates were commonly used in the United Kingdom during the D110 production period.
Community support
Got a question about your BRX02? Join the Boom Racing BRX01 & BRX02 Official Fan Page and ask away!

Additional information & support

Leaf Spring Version BR8005

BRX02 1/10 4WD Chassis Kit Leaf Spring Version BR8005

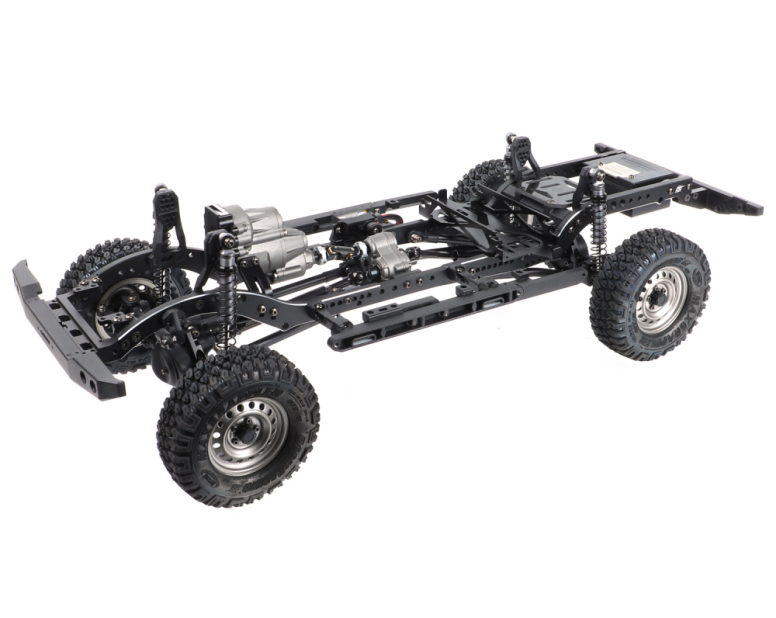

4-Link Version BR8004

BRX02 1/10 4WD Chassis Kit 4-Link Version BR8004

Scale Box

Build your own scale BRX02 boxes as scale accessories. Have the BRX02 with you wherever your RC takes you.

Reviews (2)

Overall:
Fit & Finish:
N/A
Design Styles:
N/A
Performance:

Improves performance.

Loadinggg....

BRX02 is a part of the Scale 4WD Series

The Scale 4WD Series is Boom Racing’s line of scale based 4WD R/C products geared towards realistic appearance.
