BRX01 AWB Adjustable Wheelbase 1/10 4WD Builder's Kit

Fits BRX01 AWB

USD $545.00

Part #: BR8011


LOADING IMAGES

BRX01 AWB Adjustable Wheelbase 1/10 4WD Builder's Kit

Fits BRX01 AWB

USD $545.00

Part #: BR8011

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

The Official Scale Performance Chassis of the RECON G6

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

One year factory limited warranty

We will repair or replace any product that is incorrectly made or proves to be defective in material or craftsmanship during the one-year warranty period.

Learn more
Tagged Keywords BRX01BRX01 AWB Parts

PRODUCT DESCRIPTION

Product Resources
brx01-awb-builders-kit-scale-box-art_1753780204.pdf
instruction-manual---brx01-awb-adjustable-wheelbase-chassis-kit-with-zil-pickup-hard-body-br8010_ver1_3_1762506037.pdf

Introducing the all-new Boom Racing BRX01 AWB 1/10 Adjustable Wheelbase Chassis Builder's Kit. This product is Recon G6 certified by AMS Scale Performance at the European The FIX 2024 event.

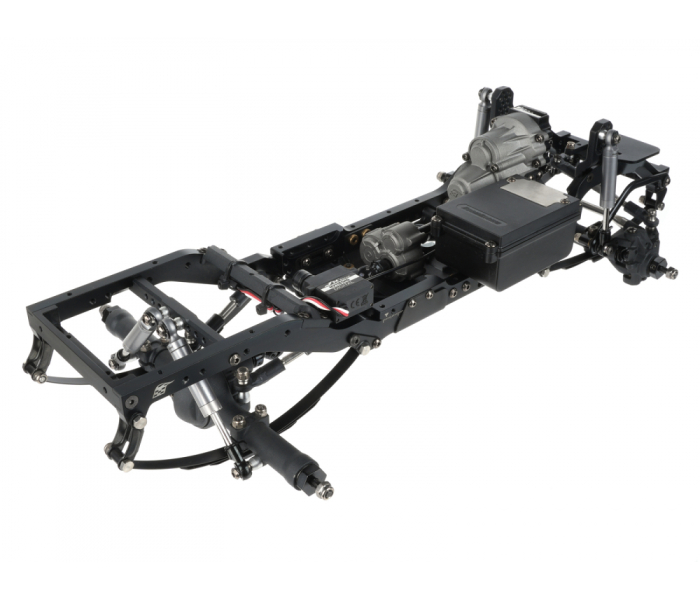

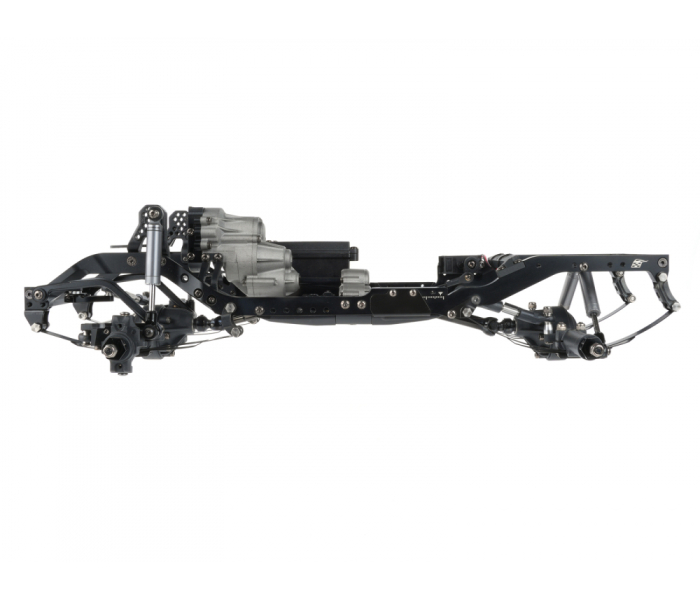

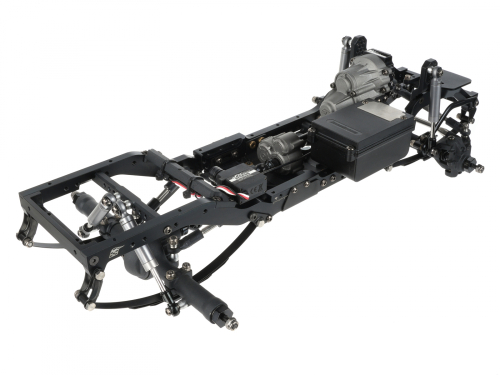

BRX01 AWB Chassis

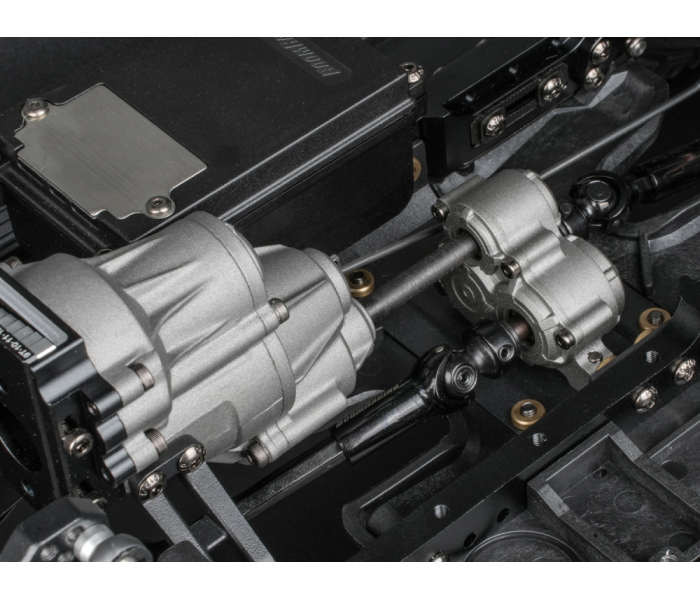

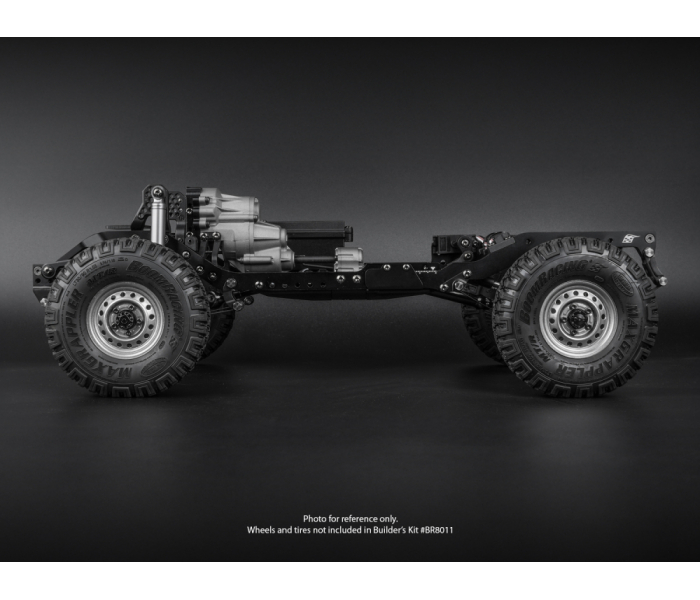

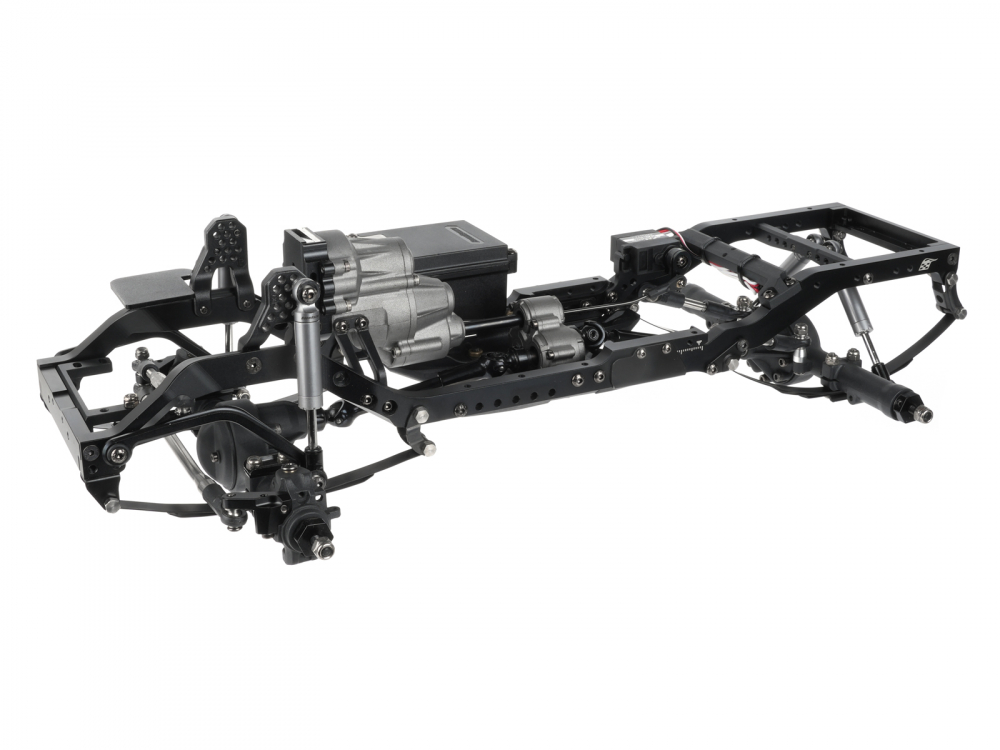

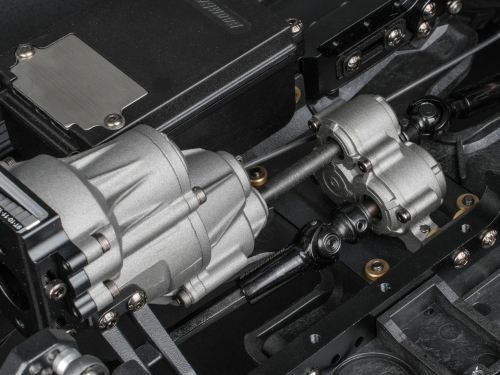

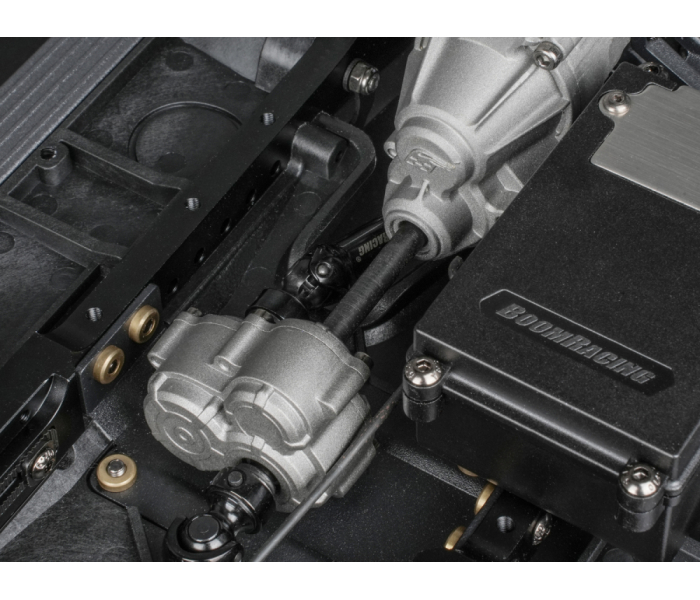

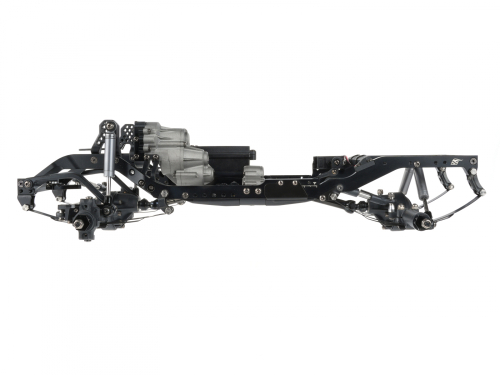

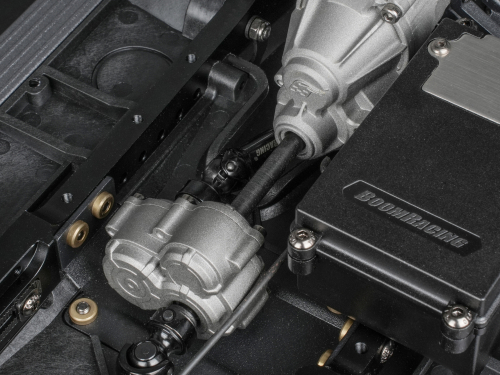

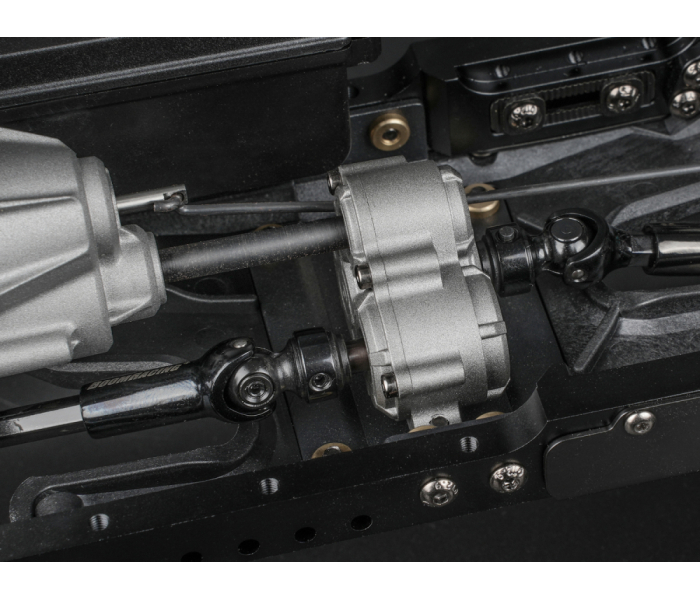

The BRX01 AWB (Adjustable Wheelbase) is a new variant of the popular BRX01 chassis, featuring a full leaf spring suspension setup and a wheelbase adjustable from 265mm to 285mm or 10.4" to 11.2". It is equipped with the robust BCF2™ two-speed transmission and divorced B2X™ transfer case, connected by a high-efficiency output shaft originally introduced in the BRX02 88 chassis. This drivetrain layout simplifies the build process and reduces play for improved efficiency and smoother operation.

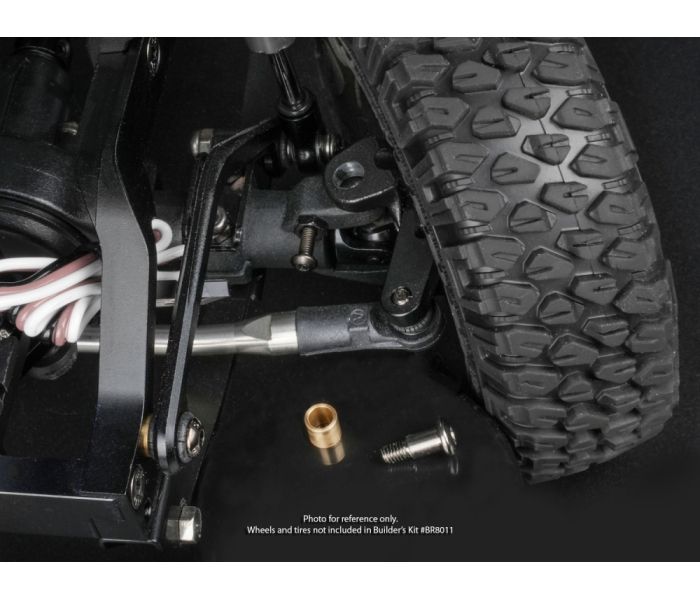

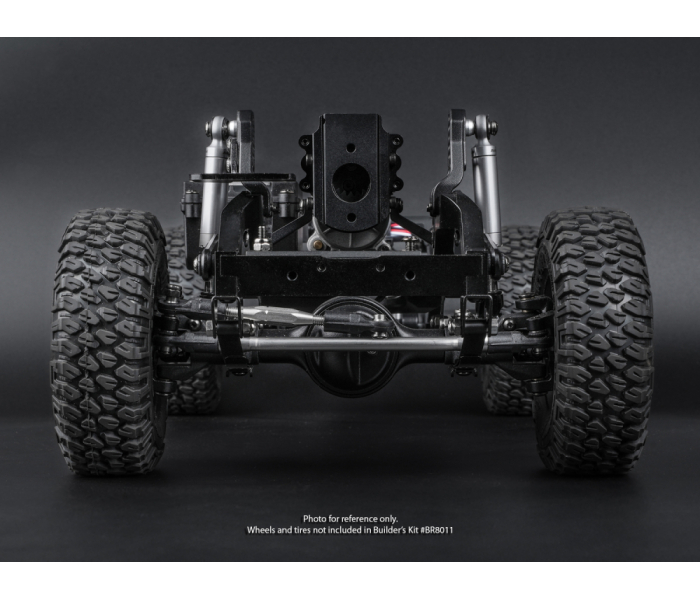

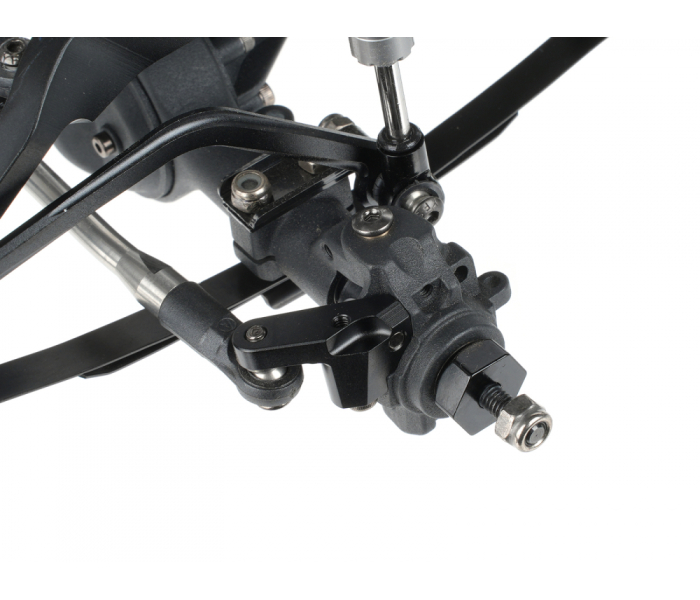

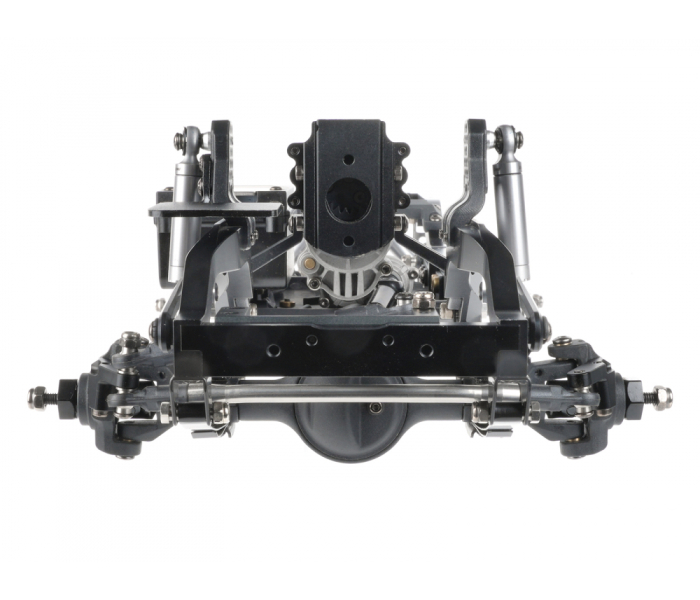

At its core, the BRX01 AWB runs on the proven BRX80 PHAT™ axles, with an all-new C-hub and knuckle design using kingpins and brass bushings for enhanced durability and long-term performance. The axles use our popular proprietary AR44 heavy-duty hardened steel triangular keyed bevel helical cut 30/8T diff gears, with the same but reversed cut gears in the rear axle. The rear axle counter-rotates, which results in near-zero torque twist for chassis stability.

Heavy-Duty Shafts

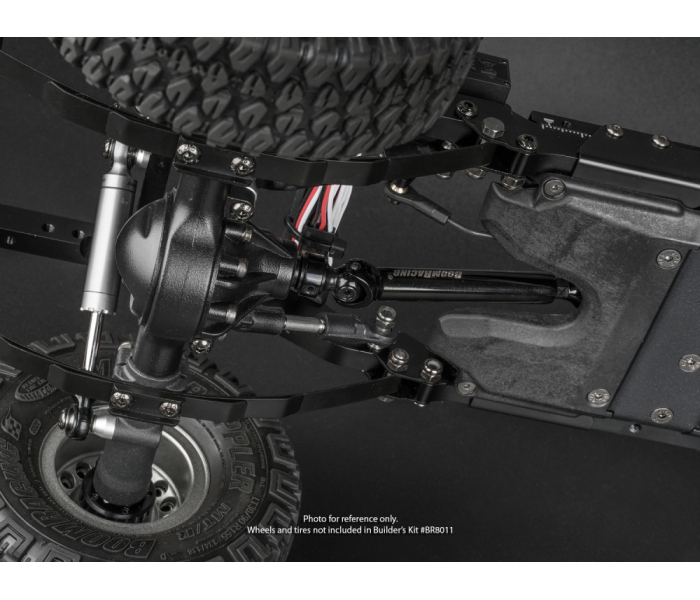

The BADASS™ heavy-duty front and rear steel axle shafts and KUDU™ center CVD driveshafts are durable, smooth, and capable of high articulation angles. KUDU™ driveshafts are rebuildable and have become the standard drive shaft for all Boom Racing vehicles.

Suspension

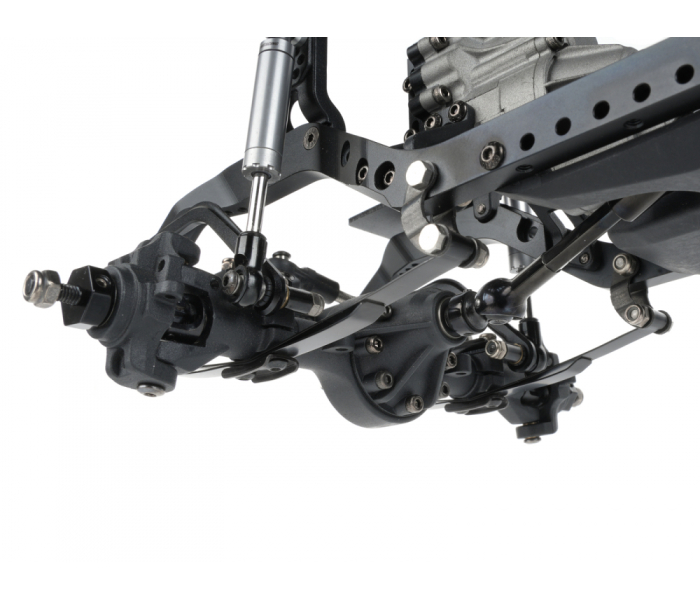

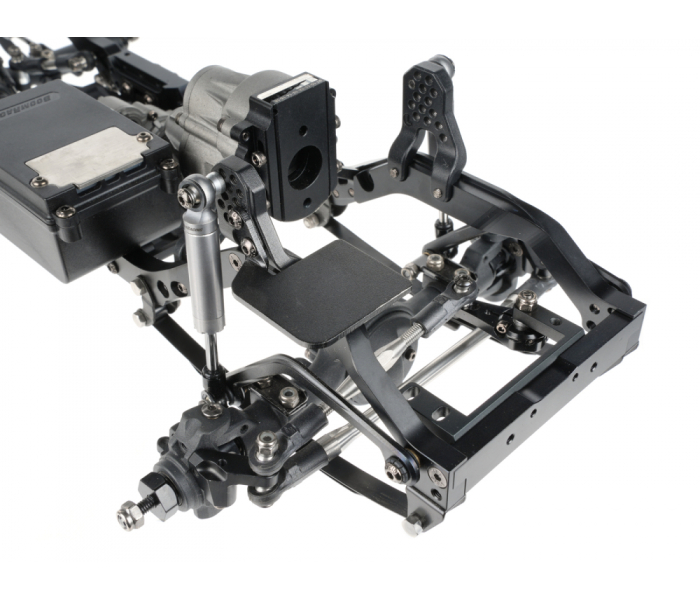

The suspension system features front and rear leaf springs, front and rear anti-wrap bars, and high-performance, scale-accurate KUDU™ 70mm oil-filled dampers.

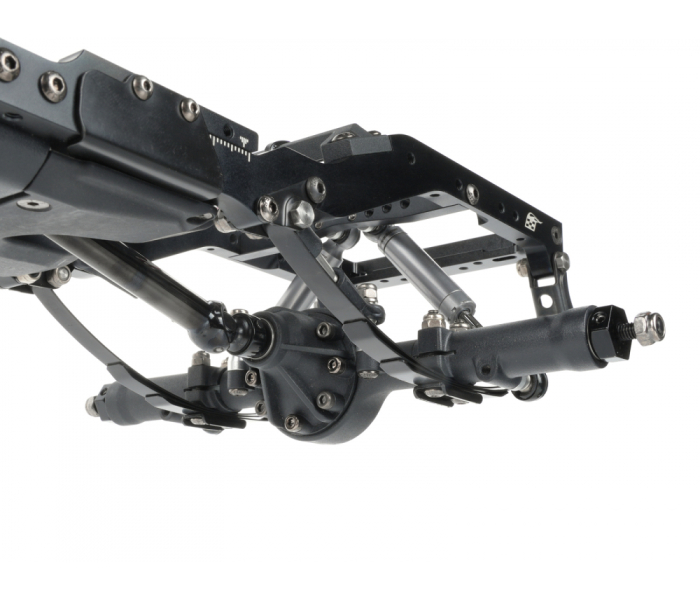

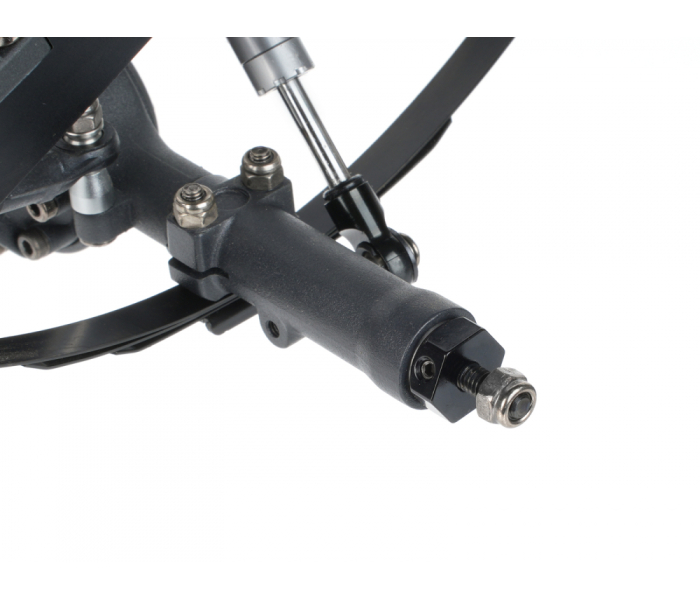

Each leaf spring set has a master leaf with three graduated leaves for suspension stability and adjustability. You may use up to four leaves for adjusting the rebound rate. Anti-wrap bars attached to the front and rear axles prevent axle twists, and realistic shackle bolts are included for the scale realism factor.

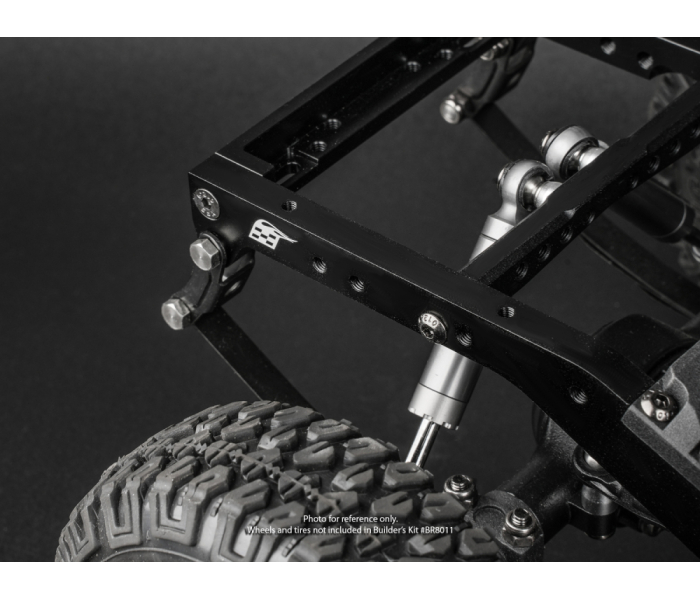

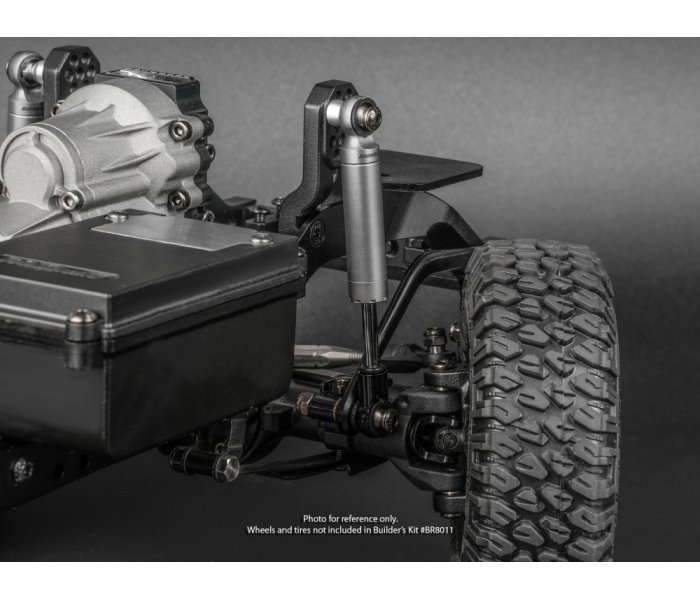

Optimized for scale performance, the KUDU™ Scale Shock Absorber features billet aluminum cylinder body for durability, steel shock shaft with titanium nitride coating, plastic pivot retainers (replaceable) for smoother swivel movements, high-degree pivot angle for high-angle articulation, and double X-Ring oil seals. It comes with cylinder and friction seals to prevent leaks and contaminants from entering. The bump stop provides an additional level of bottoming control, stainless steel pivot balls for stainless, corrosion-resisting pivot rotation, and an aluminum pivot ball tool included for hassle-free maintenance.

Adjustable Wheelbase

Need a longer setup? Optional XL and 2XL rear aluminum chassis rails extend the wheelbase to 285-305mm / 11.2" to 12.0" and 305-325mm / 12.0" to 12.8".

Recommended KUDU shaft sizes for the BRX01 AWB based on different wheelbase lengths:

  • Wheelbase 265 to 285mm #BRKD003-94 (stock)
  • Wheelbase 281mm to 296mm #BRKD003-107 (option)
  • Wheelbase 293 to 318mm #BRKD003-119 (option)
  • Wheelbase 316 to 341mm #BRKD003-142 (option)

Optional Servo Winch

The chassis is ready for an internal servo winch by installing the optional Servo Winch Mount Kit for BRX01 AWB & BRX01 (#BRLC70227).

Optional DIG and 2/4WD

Want dig or 2/4wd options? Swap out the B2X™ t-case for the optional DIG or SWD (2WD/4WD) t-cases. You will need the optional Mini Servo Mount for either of these two optional transfer cases.

DIG (#BRLC70101-DIG)
SWD [2WD/4WD] (#BRLC70301-SWD)

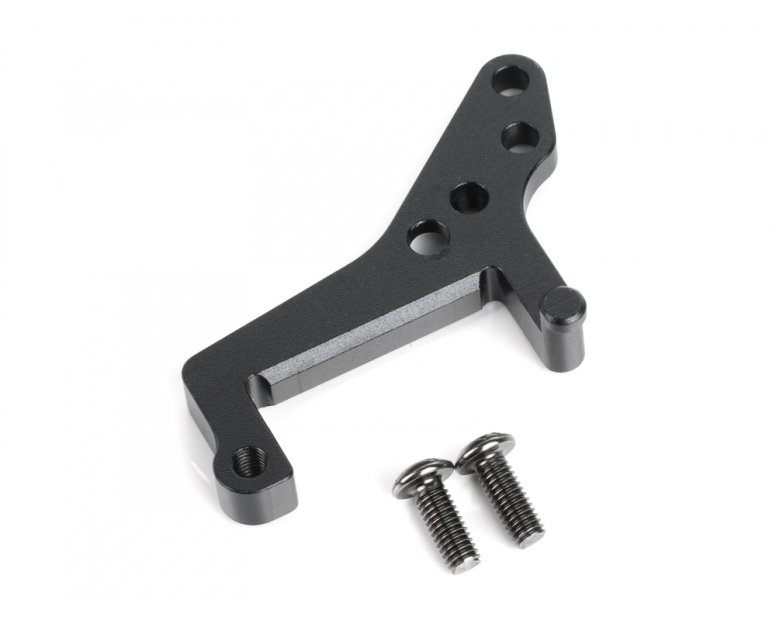

Mini Servo Mount (#BRLC70223L)

Mini Servo Included

A JX waterproof 8.4V metal gear mini servo for remote 2-speed shifting is included.

Wheels and Tires

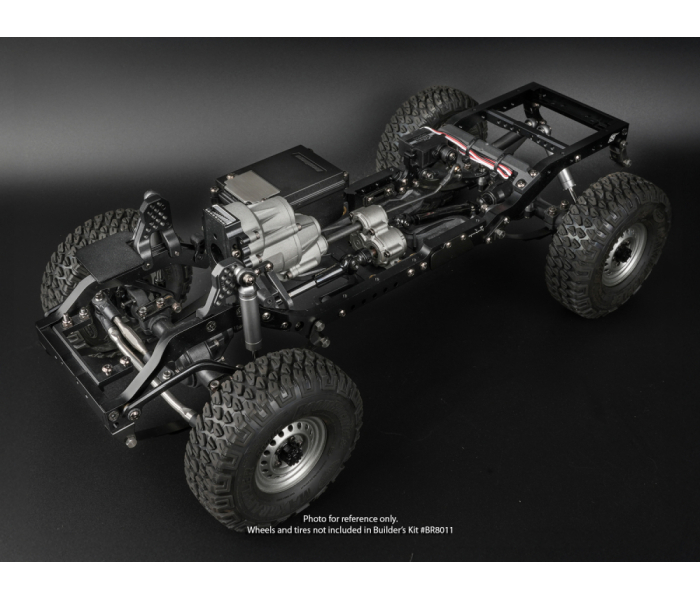

Does not include wheels, tires and inserts.

Unique Customized Vehicle

The BRX01 AWB Builder's Kit includes unique license plates. Register your vehicle on BoomRacing.com with your kit's VIN # and vehicle number, download the Scaletra App available on Google Play and App Store to track your vehicle mileage.

Waterproof

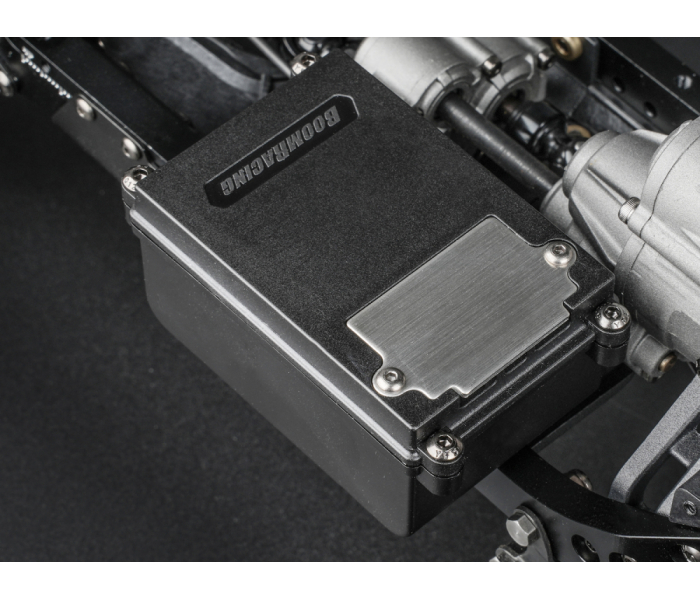

Is this kit waterproof? The short answer is yes! The BRX01 AWB is capable of being submerged in water. The receiver box is designed to be fully waterproof with rubber seals all around to protect your receiver from water. We've included a fully waterproof JX high-voltage mini shift servo for the BCF2™ 2-speed transmission. The axle gears are fully greased, with extra silicone and black graphite grease provided for maintenance and protection against water corrosion. Add your own waterproof electronics to make it fully waterproof.

Chassis Features:
  • Transmission: BCF2™
  • Transfer Case: B2X™ (OD Ready)
  • Axles: BRX80 PHAT™ Axle with new kingpin & brass bushing
  • Axle Gears: AR44 heavy-duty triangulated helical cut 30/8T gears
  • Tranny to T-Case: HD High-Efficiency Output Shaft

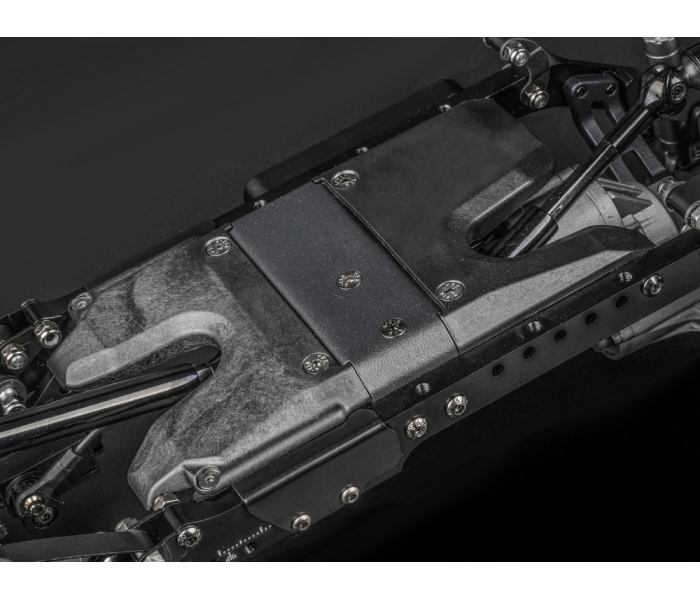

  • Rails: 7mm Aluminum Adjustable
  • ESC Plate: Forward (Aluminum)
  • Servo Position: Front of motor
  • Drive System: Full-Time Shaft Driven 4WD
  • Steering: Chassis Mounted Servo
  • Suspension: Front & Rear Leaf Spring Suspension
  • KUDU™ Scale Shock Absorbers 70mm


Chassis Specifications:

  • Wheelbase: 265mm / 10.4" to 285mm / 11.2"
  • Length: 401mm / 15.79"
  • Width: 199mm / 7.83"
  • Height: 133mm / 5.24"
  • Weight: 1830g / 4.0lbs
  • Track Width: 169mm / 6.65"
  • Axle Ground Clearance: 29.5mm / 1.16"
  • Breakover Angle: 57mm / 2.45"
  • Damper Length: 70mm
  • Motor Size: 540 / 550 (not included)
  • Gear Pitch: 12T 32P Pinion / Spur, 48P T-Case
  • Wheel Hubs: Probuild™ XT504 V2


Mini Servo Specifications:

  • Brand: JX Servo
  • Model: JX/PDI-HV1151MG
  • Working voltage: 6V~8.4V
  • Working temperature: -20C°~ +60C°
  • Dead band: 4usec
  • Motor type: Core Motor
  • Signal booster type: Digital
  • Gear material: Metal gear
  • Operating Speed: 0.12s/60deg (6.0V) | 0.10s/60deg (8.4V)
  • Stall Torque: 3.5kg/cm (6.0V) | 4.5kg/cm (8.4V)
  • Idle Current: 150mA (6.0V) | 180mA (8.4V)
  • Load Current: 260mA (6.0V) | 340mA (8.4V)
  • Size: 23.2 x 12.5 x 25.6mm
  • Weight: 15g
  • Tooth Count: 25
  • Wire length: 310mm JR plug
  • Black: Negative Red: Positive White: Signal

The Boom Racing BRX lineup is the official scale performance chassis of the Recon G6.
