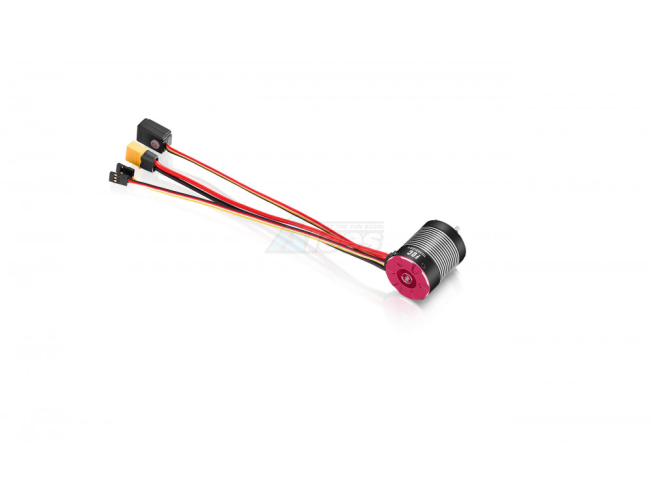

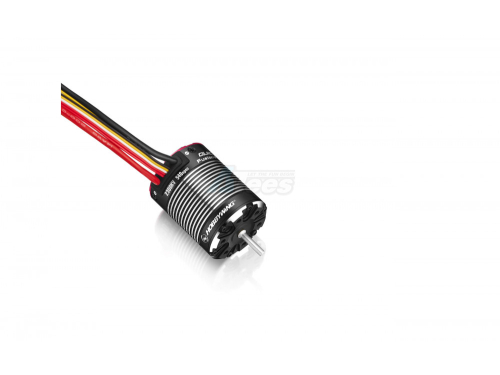

Hobbywing QuicRun Fusion Pro-Elite for Crawler-2300KV

USD $119.99

Part #: HW/30120500

Fusion Pro-Elite 2300KV 2-4S Fusion Pro-Elite 2300KV 2-4S

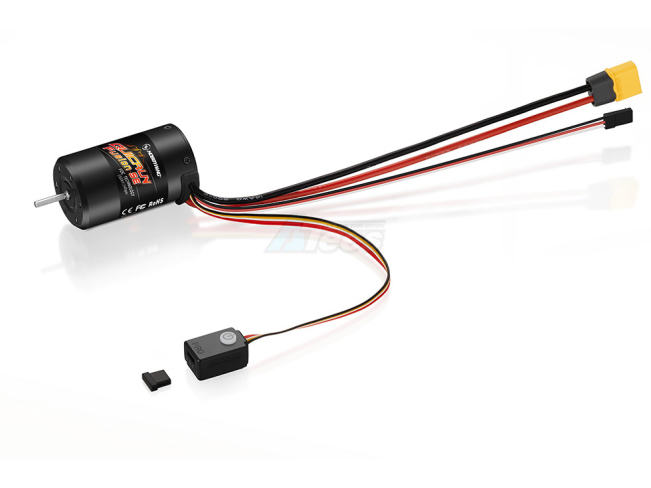

Fusion SE 1200KV Fusion SE 1200KV
Fusion SE 1800KV Fusion SE 1800KV

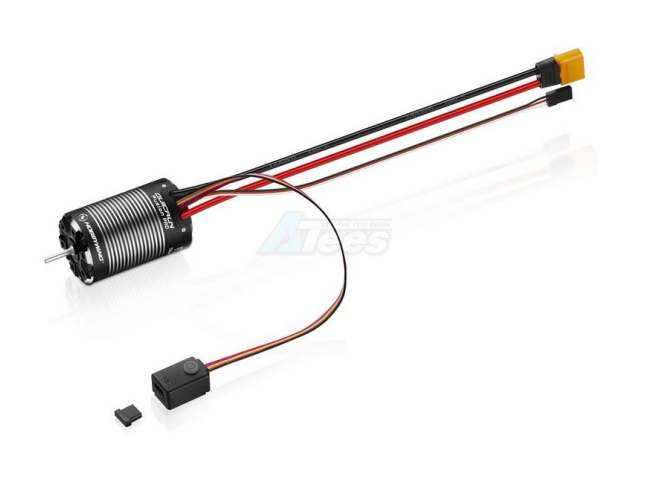

Fusion Pro 2300KV 2-3S Fusion Pro 2300KV 2-3S
Fusion Pro-Elite 2300KV 2-4S Fusion Pro-Elite 2300KV 2-4S
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

PRODUCT DESCRIPTION

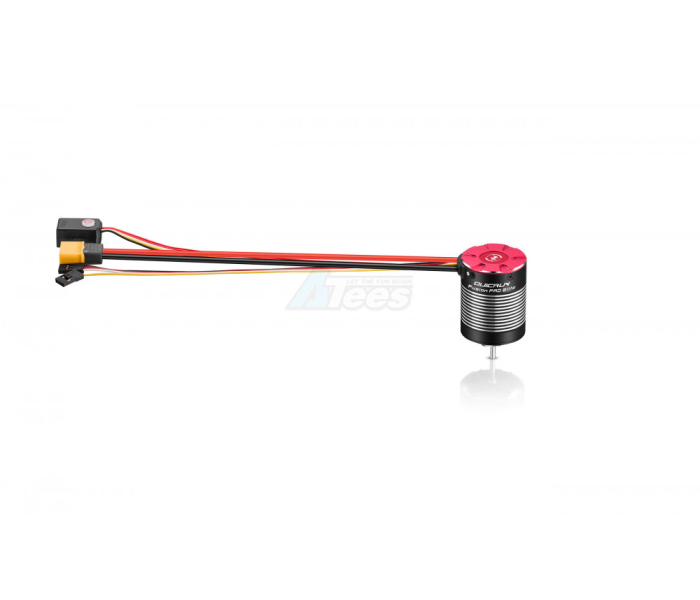

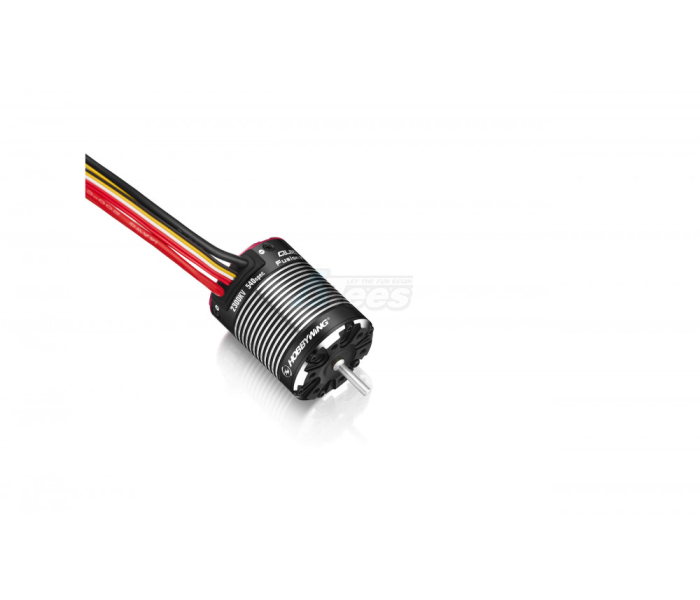

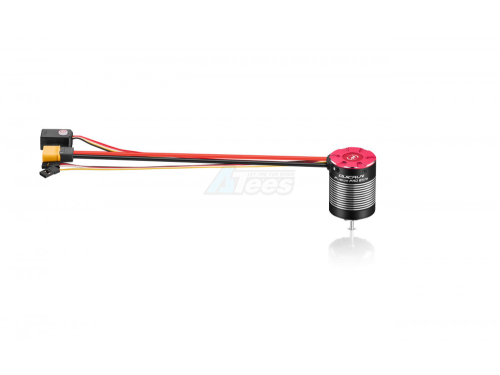

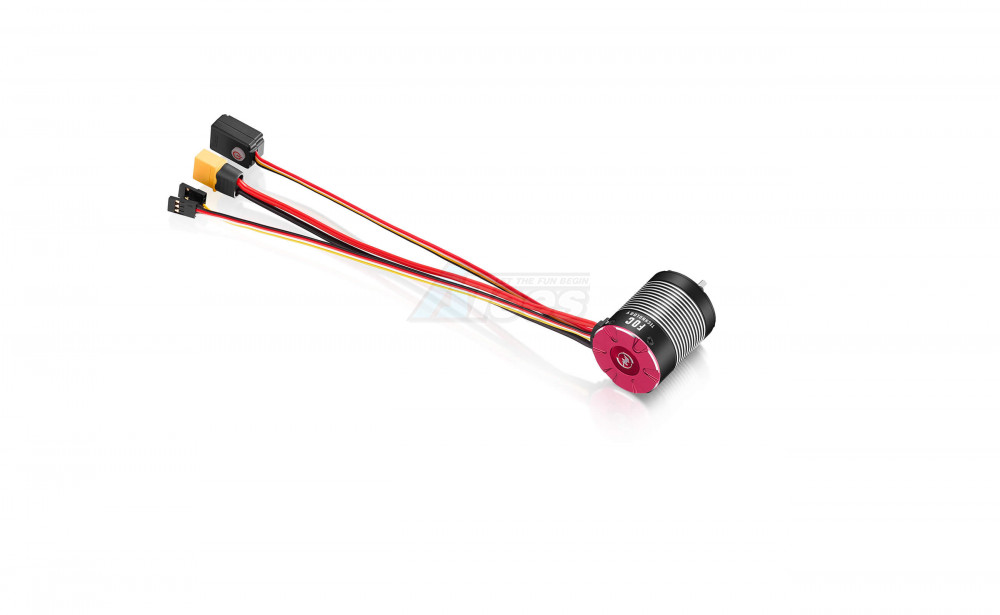

QuicRun Fusion Pro Elite Integrated Crawler Power System

Features:

  • Compact yet Powerful
    • Fits nearly all 1/10th scale vehicles on the market. This ultra-compact 2-in-1 motor and ESC allow for a super clean installation and wiring.

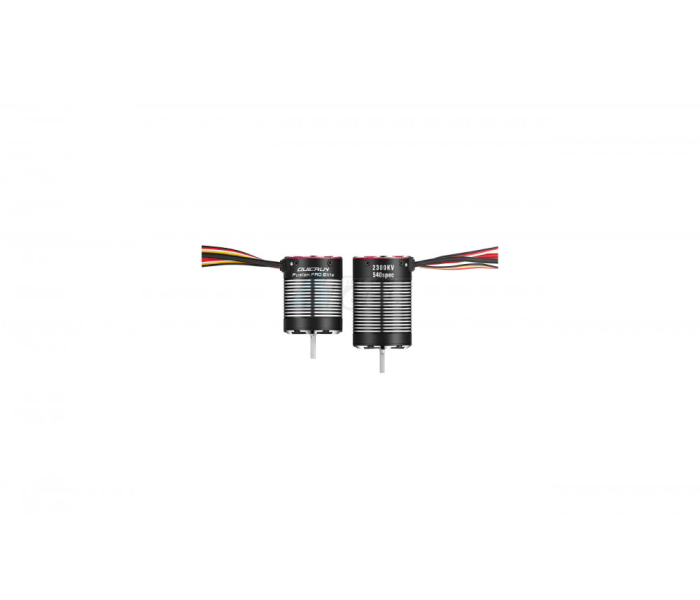

    • Featuring an ultra-short integrated design with a length of just 48.5mm, the motor is 9.5mm shorter than the Pro Standard version. It's 1.3mm shorter than the AXE 540.
  • Supports 2-4S Lipo, Ideal Choice for 1/10th Climbing Vehicles
    • The ESC supports 2-4S LiPo batteries
    • Maximum continuous output current of 50A
    • Combined with its compact designs, it meets the demands of most 1/10th scale crawler applications, providing stable, consistent power without performance drop-offs.
  • AUX External Control, Channel for Real-time Parameter Adjustment
    • By connecting the yellow AUX CH signal wire to an unused receiver channel, you can adjust ESC parameters (like drag brake force) in on the fly from your radio. On-trial tuning has never been this easy.
  • FOC Drive, Quiet, Powerful Torque with Excellent Linearity
    • The power system uses FOC (Field-oriented control) drive, delivering significantly stronger low-speed torque and smoother performance than conventional sensored systems.
    • It eliminates motor noise for near-silent operation, allowing you to fully enjoy the experience.
  • Closed loop, Intelligent Torque Control for Precise Throttle Matching and Amazing Control
    • The ESC features an intelligent torque output and speed closed-loop control system that automatically adapts to changing terrain conditions.
    • The ESC increases output torque to overcome obstacles when encountering resistance.
    • On descents, it reduces torque output and stabilizes vehicle speed, making driving remarkably simple.
  • IP67 All-terrain Protection
    • The entire power system is rated IP67, delivering outstanding waterproof and
    • dustproof performance. Whether in rain, snow, mud, sand, or standing water, it handles harsh environments with confidence.
  • Built-in 10A High-performance BEC
    • Built-in BEC capable of delivering up to 10A of output current
    • Supports selectable voltages of 6V/7.4V/8.4V
    • It effortlessly powers standard and high-voltage servos, as well as accessories like lighting systems and winches.
  • Five Selectable Operating Modes
    • ESC offers versatile control with five operating modes; this flexibility easily adapts to a wide range of applications.
      • Constant Speed Mode (Direct Forward/Reverse)
      • Normal Mode (Forward/Reverse with Brake)
      • Normal Mode (Direct Forward/Reverse without Constant Speed)
      • Hybrid-RPM Matching Mode
      • Hybrid-Normal Mode
    • Compatible with both LED and LCD Pro Program
      • The ESC supports not only the simple LED Program Box but also the more advanced LCD Pro Program box, which offers a complete range of settings and professional-level adjustments.
    • Extensive Parameter Options
      • The ESC offers 14 adjustable parameters to meet a wide variety of setup application requirements.


Specification:

  • Scale: 1/10th
  • Brushed/Brushless: Brushless
  • Sensored/Sensorless: Sensored
  • Waterproof: Waterproof
  • /Peak Current: 50A/150A
  • Input Voltage: 2-4S LiPo,6-12 Cells NiMH
  • BEC Output: 6V/7.4V/8.4 adjustable,continuous current 5A (Switch mode)
  • KV: 2300KV
  • Motor Poles: 4
  • Wires & Connectors
    • Input Wires: Black-14AWG-220mm*1 Red-14AWG-220mm*1
    • Input Connectors: XT60
  • ESC Programming via
    • SET Button on ESC: Not Supported
    • LED Program Box: Supported
    • LCD G2 Program Box/LCD PRO: Supported
    • OTA Programmer: Not Supported
    • Program Port: Independent programming port(switch position)
  • Firmware Upgrade: Not Supported
  • Size & Weight:
    • Diameter / Length of motor: 37mm/48.5mm
    • Shaft diameter / exposed shaft length: 3.175mm/16mm
    • Weight: 178.5g (including wires&connectors)
  • Applications Vehicles: 1/10th Crawlers
