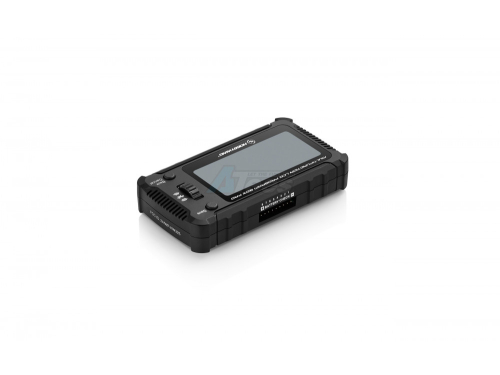

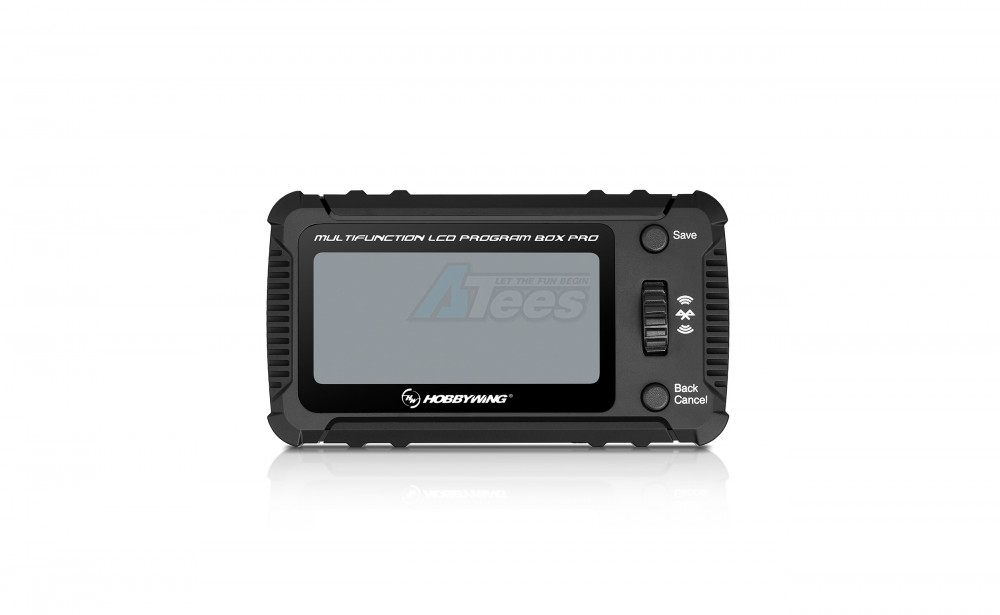

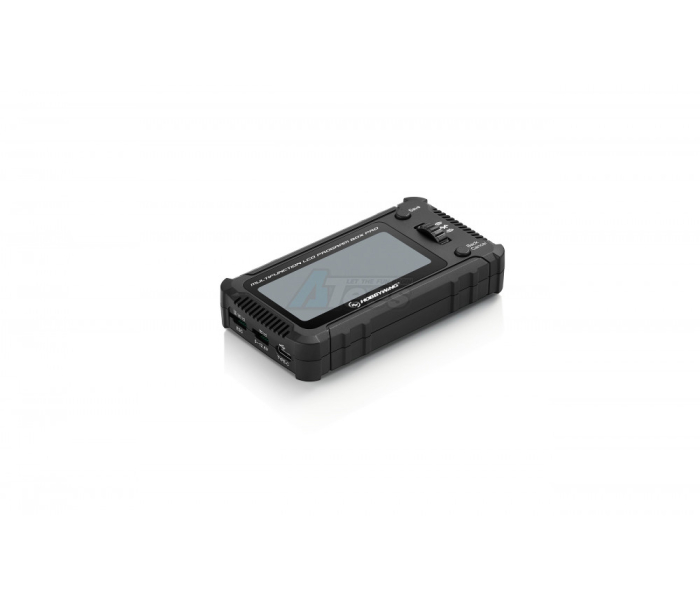

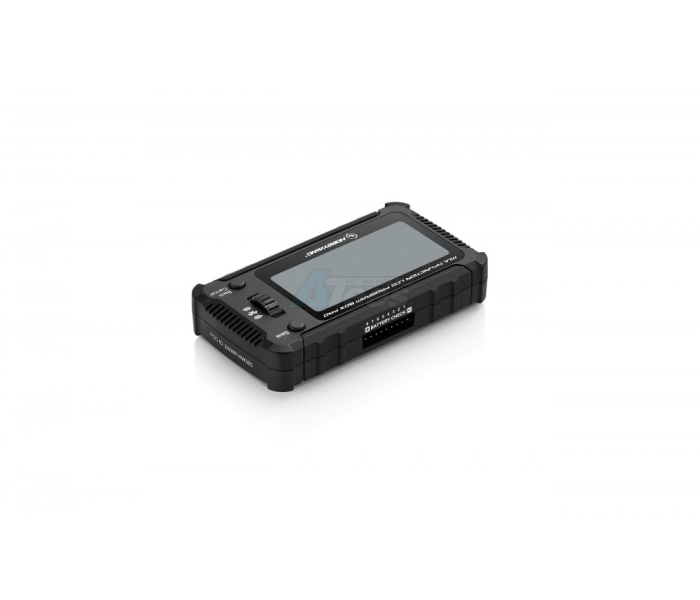

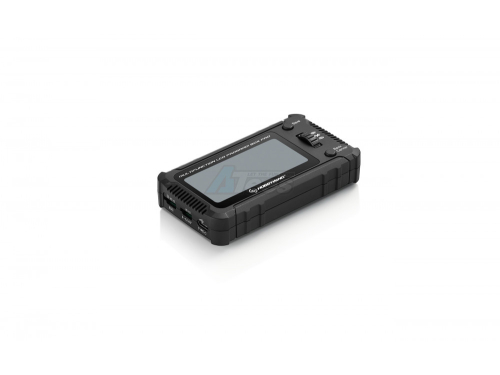

Hobbywing Multifunction LCD Program Box Pro

USD $39.99

Part #: HW/30502002


LOADING IMAGES

Hobbywing Multifunction LCD Program Box Pro

USD $39.99

Part #: HW/30502002

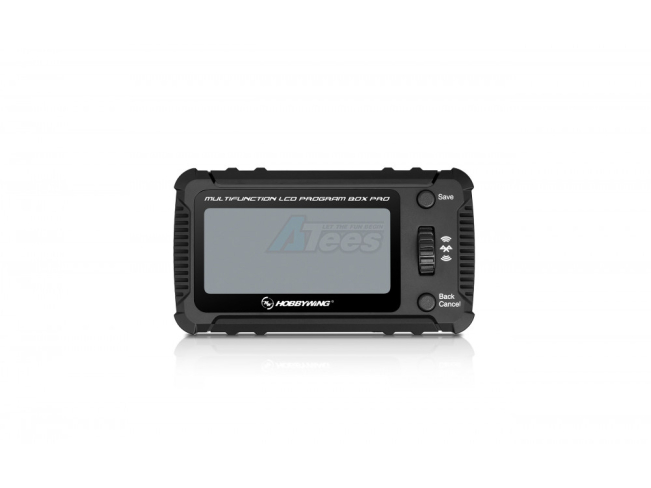

Multifunction LCD Program Box-Pro Multifunction LCD Program Box-Pro
Multifunction LCD Program Box-Pro Multifunction LCD Program Box-Pro
Program Card for QuicRun EzRun XeRun SeaKing Program Card for QuicRun EzRun XeRun SeaKing
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Motors and Electronic Speed Controls (ESC)

PRODUCT DESCRIPTION

Features:

  • Supports 3 languages: Chinese, English and Japanese.
    • Note: There are plans to expand even more language support in the future.
  • Large screen is easier to read than ever. Equipped with a 2.8-inch display.
  • Meet the needs of viewing in various brightness environments. Supports 20 levels of adjustable brightness.
  • Simplified operation and control using the single roller interface. Navigating speed control settings is easier than ever.
  • Import and Export your favorite profiles with ease. You can bring in your ESC settings, save them and export them to a new ESC. This makes profile sharing simple and easy.
  • The built-in Bluetooth module functions as an OTA Programmer. The ESC establishes a wireless connection with a smartphone through the LCD programming box. The HW Link V2 app can be used to adjust the ESC and update the firmware. The HW Link V2 app can be used to adjust the ESC and update the firmware.
  • Built-in audio to make settings save confirmations easy. The sound can of course be turned off as well.
  • Supports 1-8S battery voltage detection. Easy to view battery cell voltage information.

Specifications:
  • Size: 105.6x59x24.4mm?LxWxH)
  • Weight: 85g
  • Input Voltage: 5-12.6V (a separate battery is needed for powering this program box when ESC has no built-in/external BEC)
  • Interface: TYPE-C USB, ESC interface (Futaba plug), Power supply interface (Futaba plug)
  • Display Screen: LCD
  • Other Features:
    • As an independent parameter adjustment device, directly use the built-in LCD screen to display, set, and share ESC parameters (import).
    • Connect the ESC to a computer using a USB adapter. Use the USB Link application software on the computer to upgrade the ESC firmware and set parameters.
    • The OTA Bluetooth module: Using the mobile APP to set ESC parameters, upgrade firmware, and read data.
    • Detect the overall voltage of the lithium battery and the individual voltage of each cell.
    • The scope of application here can also be understood as all the ESCs that the old LCD G2 program box and OTA Bluetooth module can support.
