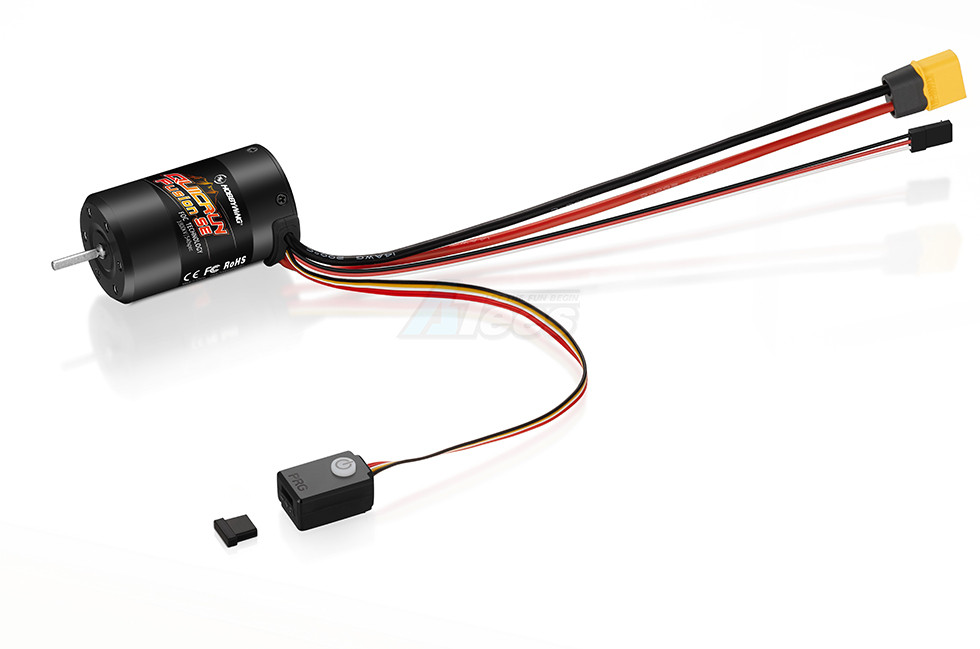

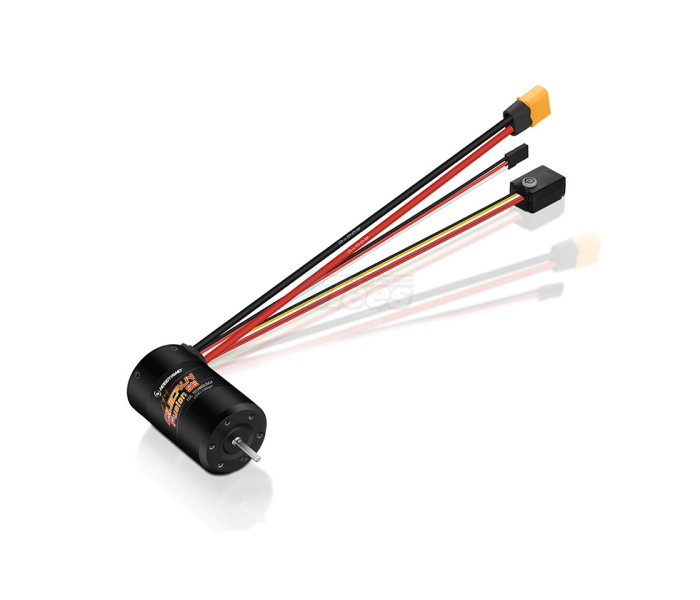

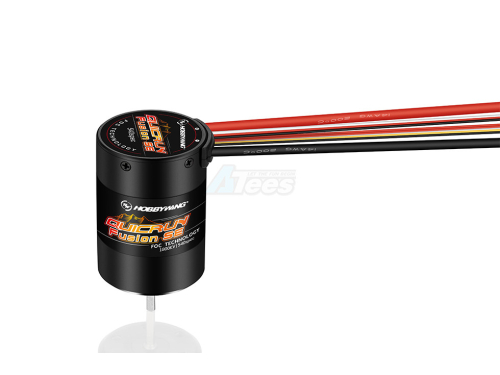

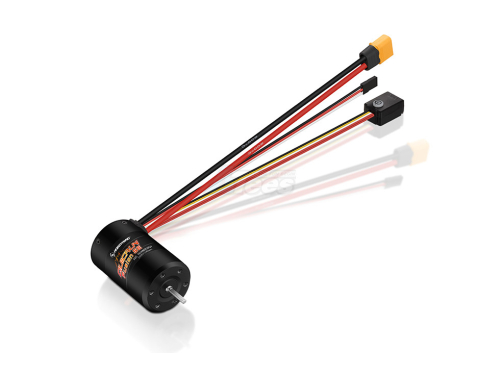

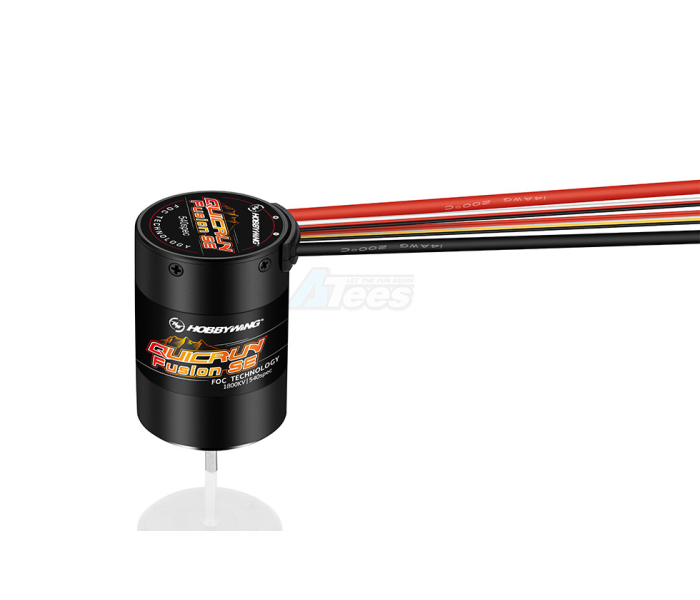

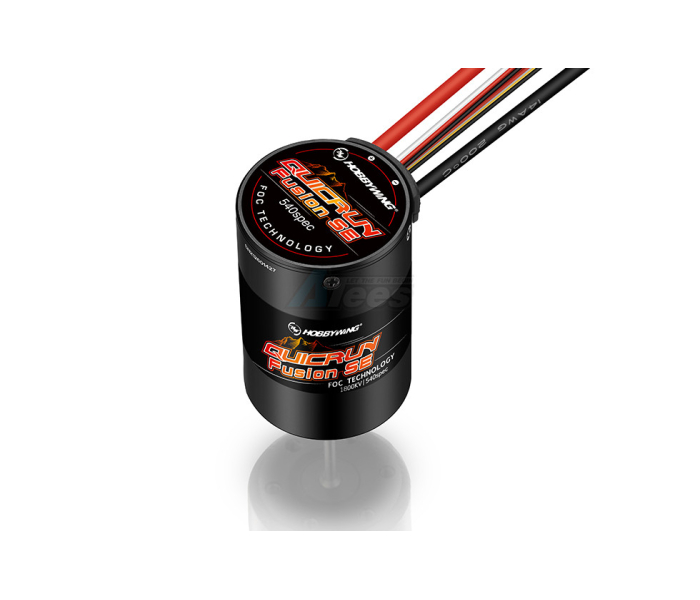

Hobbywing QUICRUN Fusion SE for Crawlers 1200KV 540 Spec

USD $69.99

Part #: HW/30404318


LOADING IMAGES

Hobbywing QUICRUN Fusion SE for Crawlers 1200KV 540 Spec

USD $69.99

Part #: HW/30404318

Fusion SE 1200KV Fusion SE 1200KV
Fusion SE 1200KV Fusion SE 1200KV
Fusion SE 1800KV Fusion SE 1800KV
Fusion Pro 2300KV 2-3S Fusion Pro 2300KV 2-3S
Fusion Pro-Elite 2300KV 2-4S Fusion Pro-Elite 2300KV 2-4S
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

PRODUCT DESCRIPTION

Features:

  • Integrated Design, Aesthetically Appealing

The Fusion SE provides an integrated space-saving design for builders. With a 58mm length, the Fusion SE has been shortened slightly to allow it to ?t into more vehicles.

  • FOC Powered with proven design heritage

FOC has been a game changer for the crawling segment. The extreme efficiency operates at lower temps and provides extended runtimes. The nearly silent operation provides amazing power and response at all speeds while providing extremely low RPM control. Compared to normal brushless, FOC systems provide a dramatic increase in response and power delivery.

  • Efficient operation
  • Low operating temperatures
  • High torque at low and high speeds
  • Quiet operation
  • Smart torque output and closed loop control. Amazing control on climbs and descents.
    • The smart torque output control feature of the built-in FOC ESC ensures unmatched downhill and uphill driving. The ESC can automatically adjust the motor output to RPM to match the driver inputs.
    • Intelligent Torque Output is a smart management system that allows the ESC to adjust the motor for inclines or descent under any load to match the throttle
  • U- matched hill holding

With 8 levels of drag brake force (Power) and 9 levels of Drag Brake Rate, drivers can fine-tune their vehicle’s hill-holding power and general driving. Overall, drag brakes can be 2 times stronger than normal brushless setups.

  • Designed for Durability

Silicon rubber gaskets, electronic buttons, and quality hardware ensure a long life for the Fusion SE. Made to take the abuse and conditions of daily RC bashers.

  • Ready for all weather and track conditions.

IP-67 waterproof rating ensures the Fusion SE has protection from water, dust, and about anything else that gets thrown at it. Designed to withstand all conditions time and time again.

Note: The IP67 protection level mentioned above is splash-resistant, water-resistant and dust-resistant under normal use, and is tested under controlled laboratory conditions. Its effect is in the GB / T 4208-2017 (domestic) / IEC 60529 (overseas) standard to IP67 level. Splash, water and dust resistance are not permanently effective, and the level of protection may decline due to aging. Do not soak for a long time to avoid damaging the product.


Speccifications:
  • Type:
    • Scale:1/10th
    • Brushed/Brushless: BL
    • Sensored/Sensorless: SD
    • Waterproof: Waterproof
  • Specifications:
    • /Peak Current: 40A
    • Input Voltage: 2-3S Lipo/6-9 Cell NiMH
    • BEC Output: 6V/7.4V@4A?6A peak
    • Motor KV: 1200KV
    • Diameter/length of Motor: 36mm / 58.1mm
    • Shaft diameter / exposed shaft length: 3.175mm / 16.5mm
    • Motor Poles: 4
  • Wires & Connectors
    • Input Wires: Red-14AWG-200mm*1 / Black-14AWG-200mm*1
    • Input Connectors: XT60

(Note: All the wire length above is the original length not the length you see from the outside.)

  • ESC Programing via
    • SET Button on ESC: Not Supported
    • LED Program Box: Supported
    • LCD Program Box: Not Supported
    • OTA Programmer: Not Supported
    • Program Port: Independent programming interface(switch position)
  • Firmware
    • Firmware Upgrade: Not Supported
  • Size & Weight
  • Size: 36X58.1mm
  • Weight: 201g (including wires & connectors)
  • Applications
    • Vehicles: 1/10th rock crawler
