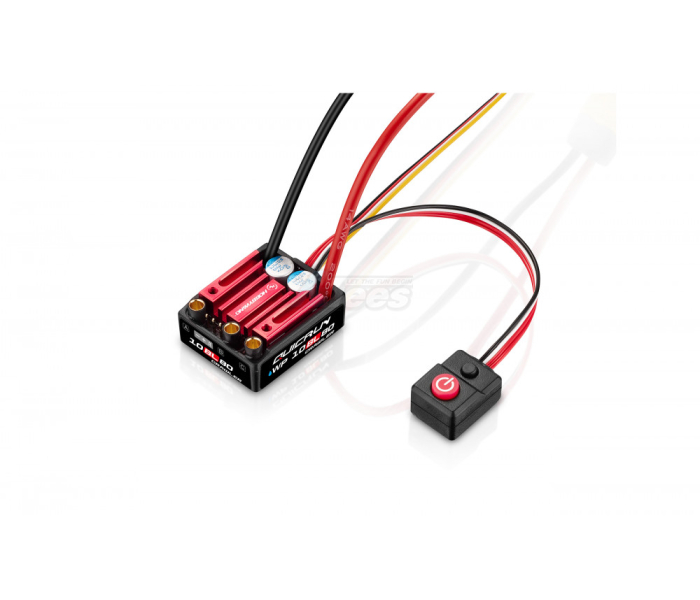

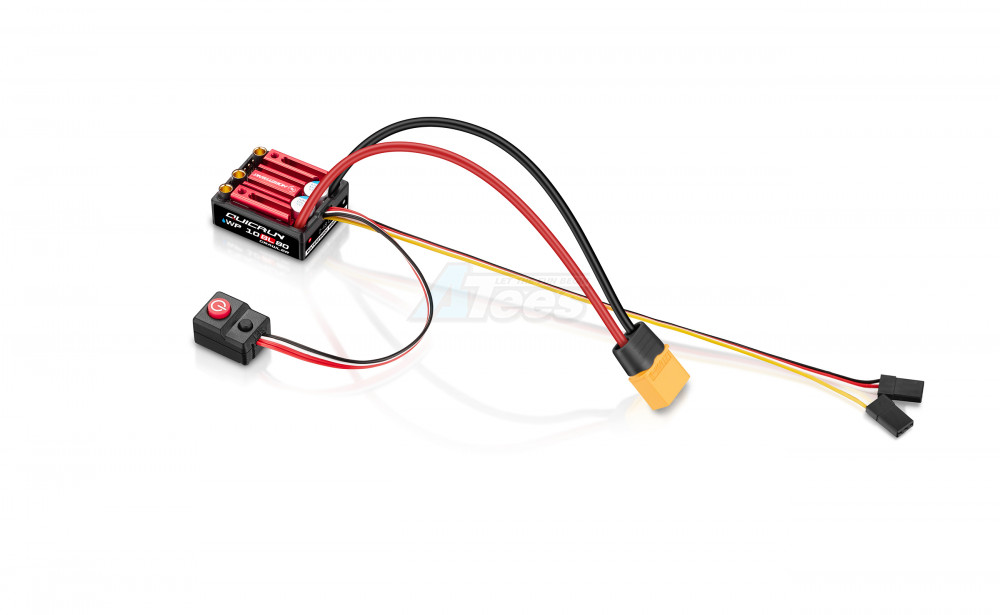

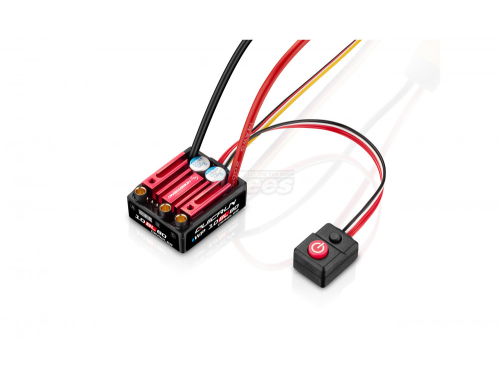

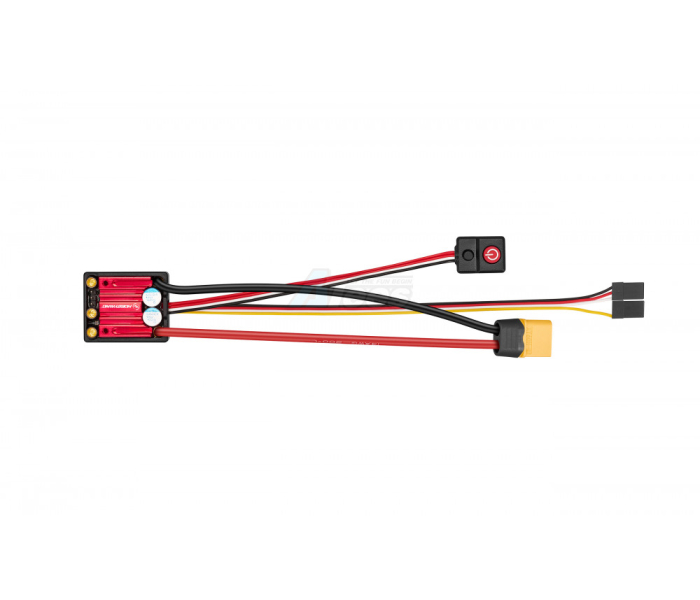

Hobbywing QuicRun WP 10BL80 Crawler Brushless & Brushed Crawler ESC

USD $44.99

Part #: HW/30108002


LOADING IMAGES

Hobbywing QuicRun WP 10BL80 Crawler Brushless & Brushed Crawler ESC

USD $44.99

Part #: HW/30108002

Notify me when this item is in stock.
Add to favorites

Warehouse Availability:

HK: Out of stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Motors and Electronic Speed Controls (ESC)

PRODUCT DESCRIPTION

Features:

  • Compact, Powerful, and Capable
    • Compact Dimensions 36×30×15.5mm
    • The ESC delivers high-performance output of 4S/80A.
    • It features strong low-speed torque, low startup speed, and smooth operation, making it an ideal power choice for 1/10th scale crawling.
  • Real-Time Drag Brake Adjustment, Precise Control
    • The ESC supports AUX channel control of drag brake force. By connecting the Aux input signal wire to an available channel on the receiver, you can adjust the drag brake power as you drive from your remote control.
  • Built-in BEC Supporting High-voltage Servos
    • The integrated high-voltage BEC provides up to 11A of output current.
    • Supports selectable output voltages of 6V/7.4V/8.4V.
    • It easily powers high-torque, high-voltage servos, meeting a wide range of demands.
  • Supports Brushed and Brushless Modes
    • The ESC is compatible with both Brushless and Brushed motors.
  • Supports Fan Installation
    • The ESC includes mounting holes for a cooling fan to be installed. Depending on vehicle load and application requirements, users can choose whether to install the fan to ensure the ESC operates within the ideal temperature range (around 60? in this case).
  • Easy Installation, Ready for Immediate Usage
    • The ESC comes equipped with integrated 3.5mm female connectors on the output side, enabling seamless connection to HOBBYWING motors or other motors with compatible plugs.
    • No soldering is needed.
  • High Level Protection
    • The ESC’s protection rating is IP67, offering outstanding waterproof and dustproof performance. It can be used in muddy, sandy, icy, snowy, or wet terrain under various weather conditions without concern.
  • Compatible with both LED and LCD Program Boxes
    • The ESC supports both the LED Program Box and the more advanced LCD Program Box PRO, giving users the flexibility options for setup and adjustment to suit different tuning needs.
  • Extensive Parameter Settings
    • The ESC offers 13 adjustable parameters, including essential options commonly used in crawler power systems, such as drag brake force and drag brake rate. Drivers can fine-tune settings precisely to meet the requirements of different conditions and terrain.


Specifications:

  • Scale: 1/10th
  • Brushed/Brushless: Brushless
  • Sensored/Sensorless: Sensorless
  • Waterproof: Waterproof
  • /Peak Current: 80A/240A
  • Input Voltage: 2-4S LiPo
  • BEC Output: 6V/7.4V/8.4V,5A
  • Wires & Connectors
    • Input Wires: Black-14AWG-175mm*1, Red-14AWG-175mm*1
    • Output Wires: No
    • Input Connectors: XT60
    • Output Connectors: 3.5MM Gold (female)
  • ESC Programming via
    • SET Button on ESC: Supported
    • LED Program Box: Supported
    • LCD G2 Program Box: Supported
    • LCD PRO: Supported
    • OTA Programmer: Not Supported
    • Program Port: Independent program port
  • Data Recording
    • Extreme value: Not supported
    • Real-time Data: Not Supported
    • Historical data (Graph): Not Supported
  • Firmware Upgrade: Not Supported
  • Size & Weight
    • Size: 36*30*15.5mm
    • Weight: 47.8g(Included wires & connectors)
  • Applications
    • Motors: Sensorless / Sensored Brushless Motor
    • Vehicles: 1/10th Crawlers

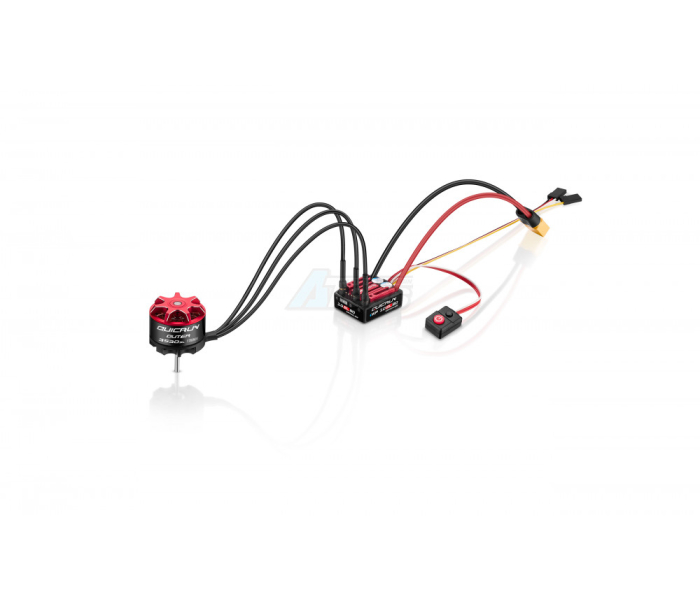

    • KV Rating/T Count: Outer 3530SL sensorless outrunner motors; 540, 555, including other brushed motors
