USD $26.00 #BRLC70212
  1. BRX01 AWB
  2. BRX01 AWB
  3. BRX01 AWB Parts

Fits Boom Racing BRX01 AWB

Standard Billet Aluminum Adjustable Rear Rails 265-285MM / 10.4"-11.2" L/R

Fits BRX01 AWB

USD $26.00

Part #: BRLC70212


LOADING IMAGES

Fits Boom Racing BRX01 AWB

Standard Billet Aluminum Adjustable Rear Rails 265-285MM / 10.4"-11.2" L/R

Fits BRX01 AWB

USD $26.00

Part #: BRLC70212

Rear Standard 265-285mm / 10.4"-11.2" Rear Standard 265-285mm / 10.4"-11.2"
Rear Standard 265-285mm / 10.4"-11.2" Rear Standard 265-285mm / 10.4"-11.2"
Rear XL 285-305mm / 11.2"-12.0" Rear XL 285-305mm / 11.2"-12.0"
Rear 2XL 305-325mm / 12.0"-12.8" Rear 2XL 305-325mm / 12.0"-12.8"
Front Front
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on non-heavy items

On US orders $120+ (including territories)

free shipping for heavy items

1 heavy item: Add $200 in non-heavy items to get free shipping.
2+ heavy items: Add $100 in non-heavy items to get free shipping.

Tagged Keywords BRX01 AWB Parts

PRODUCT DESCRIPTION

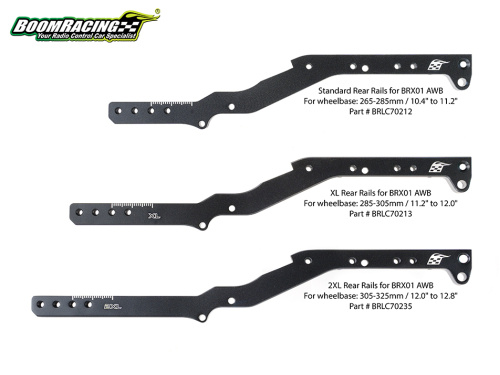

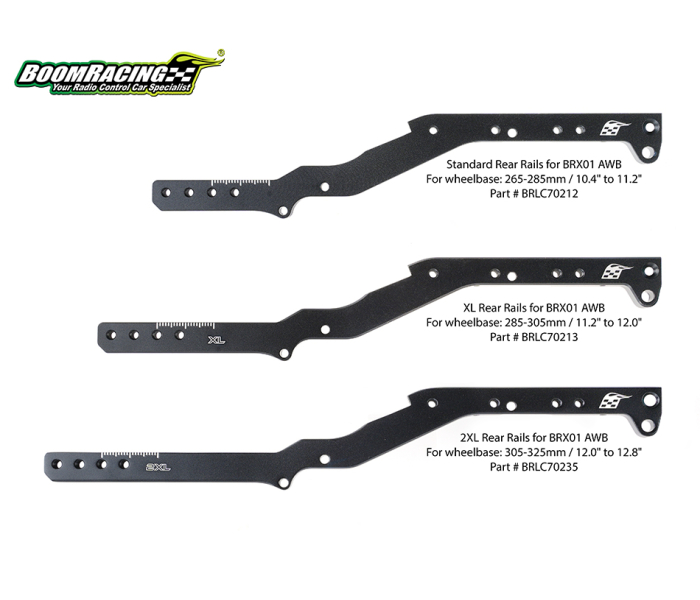

This is a pair of 7mm thick billet aluminum adjustable standard rear chassis rails designed for the BRX01 AWB chassis kit. These standard rails give you the wheelbase range between 265mm–285mm / 10.4"-11.2".

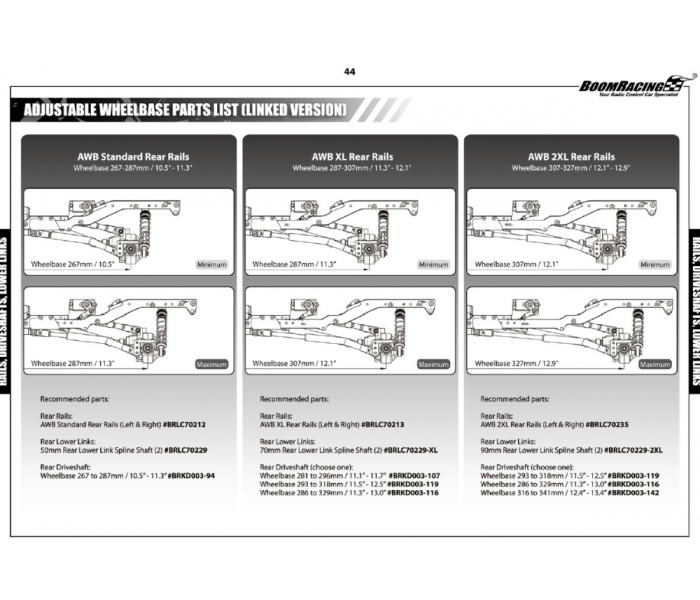

Recommended KUDU rear center drive shaft sizes for the BRX01 AWB based on different wheelbase lengths:

  • Wheelbase 265-285mm / 10.4"-11.2": #BRKD003-94 (stock rear center driveshaft)

For BRX01 AWB Link chassis, use the Rear Lower Link Barrel (BRLC70232) with:
  • 42mm Stainless Steel Rear Lower Link Spline Shaft (2) for Standard Rear Rails BRLC70229

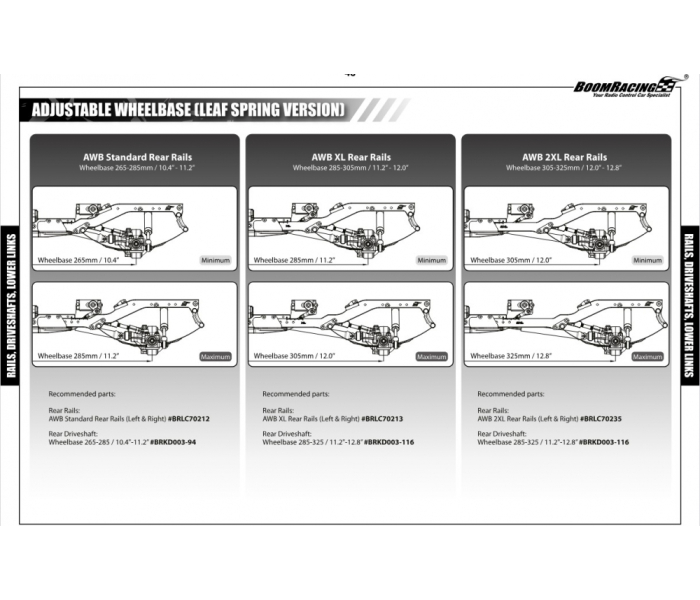

Note for BRX01 AWB Leaf chassis, only the rails and rear center drive shafts are needed to change the wheelbase.

Note: Hardware is not included. Please reuse the original hardware from your BRX01 AWB kit.

Safety Information

Not a toy. Intended for ages 14+.
