2XL Billet Aluminum Adjustable Rear Rails 305-325MM / 12.0"-12.8" L/R

Fits BRX01 AWB

USD $37.00

Part #: BRLC70235


LOADING IMAGES

2XL Billet Aluminum Adjustable Rear Rails 305-325MM / 12.0"-12.8" L/R

Fits BRX01 AWB

USD $37.00

Part #: BRLC70235

Qty:

Warehouse Availability:

HK: Out of stock (ships worldwide)

US: In stock (ships within US and US territories only)

This item is not available to ship outside of the U.S.

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords BRX01 AWB Optional PartsBRX01 AWB Parts

PRODUCT DESCRIPTION

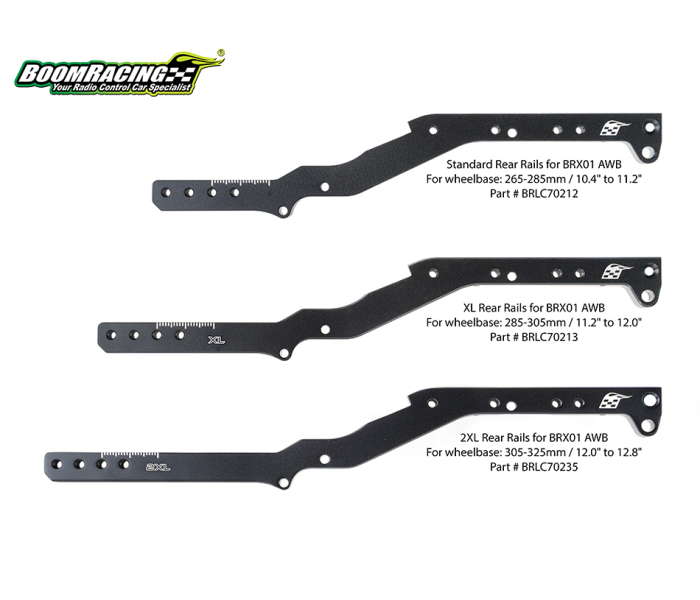

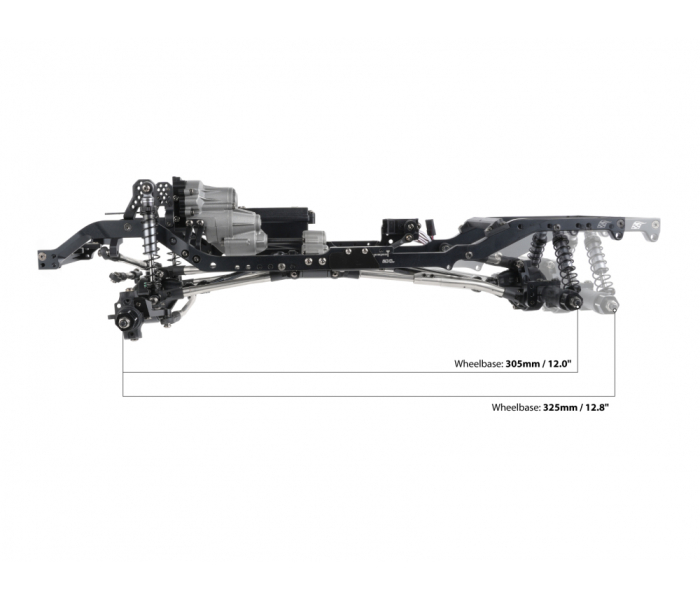

This is a pair of 7mm thick billet aluminum adjustable 2XL rear chassis rails designed specifically for the BRX01 AWB chassis kit. These extended rails increase the wheelbase adjustment range from the original 265mm–285mm / 10.4"-11.2" to a longer 305mm–325mm / 12.0" - 12.8" range.

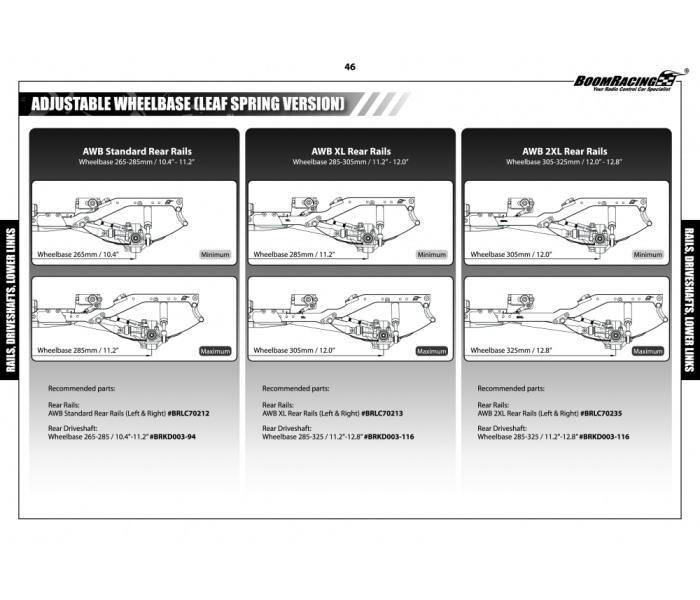

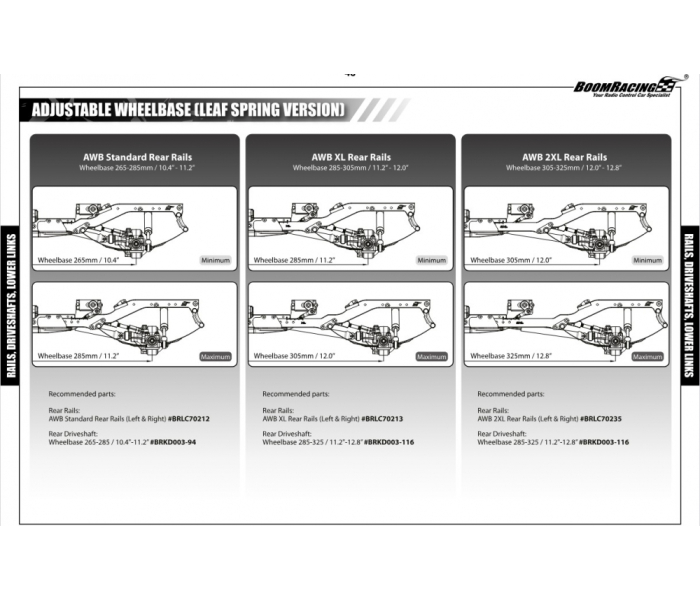

Recommended KUDU shaft sizes for the BRX01 AWB based on different wheelbase lengths:

  • Wheelbase 293-319mm / 11.5"-12.6": #BRKD003-119 (option)
  • Wheelbase 285-328mm / 11.2"-12.9": #BRKD003-116 (option)
  • Wheelbase 316-341mm / 12.4"-13.4": #BRKD003-142 (option)

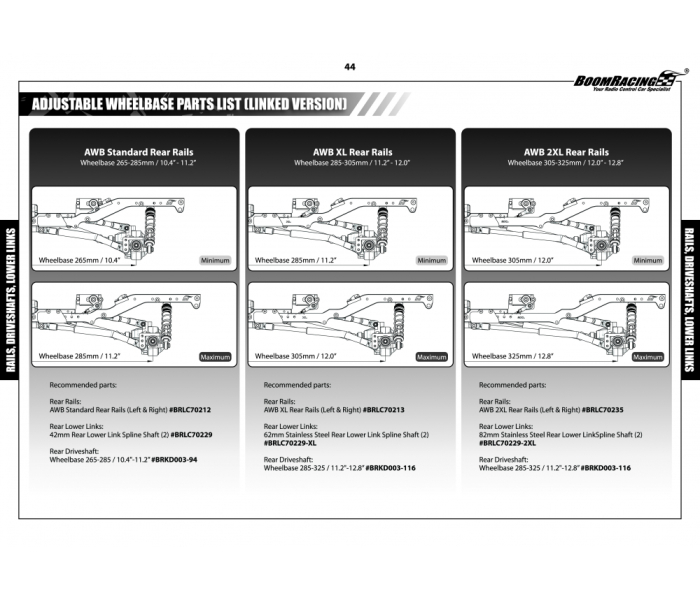

For BRX01 AWB Link chassis, use the Rear Lower Link Barrel (BRLC70232) with:
  • 82mm Stainless Steel Rear Lower Link Spline Shaft (2) for 2XL Rear Rails BRLC70229-2XL

Note for BRX01 AWB Leaf chassis, no additional parts are needed to extend the wheelbase.

Note: Hardware is not included. Please reuse the original hardware from your BRX01 AWB kit.
