KUDU™ LED Light Module System for BRX01 AWB ZIL Pickup Hardbody

Fits BRX01 AWB
USD $56.00
  1. Electronics
  2. Electronics
  3. LED Lights

KUDU™ LED Light Module System for BRX01 AWB ZIL Pickup Hardbody

Fits BRX01 AWB

USD $56.00

Part #: BRTLB007


LOADING IMAGES

KUDU™ LED Light Module System for BRX01 AWB ZIL Pickup Hardbody

Fits BRX01 AWB

USD $56.00

Part #: BRTLB007

For BRX01 AWB ZIL Pickup For BRX01 AWB ZIL Pickup
For BRX02 Series Land Rover For BRX02 Series Land Rover
For BRX02 D110 4x4 6x6 For BRX02 D110 4x4 6x6
Rock Light for BRX02 Series Land Rover Rock Light for BRX02 Series Land Rover
Rock Light for BRX02 Rock Light for BRX02
Rock Light for BRX02 6X6 Rock Light for BRX02 6X6
Dash LED for Land Rover Series II Dash LED for Land Rover Series II
Dash LED for Land Rover Series III Dash LED for Land Rover Series III
For BRX01 AWB ZIL Pickup For BRX01 AWB ZIL Pickup
For BRX01 Toyota LC70 For BRX01 Toyota LC70
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords LED LightsKudu PartsBRX01 AWB Optional PartsBRX01 AWB Parts

PRODUCT DESCRIPTION

Product Resources
user-manual--brtlb007--en--r1_1762337869.pdf

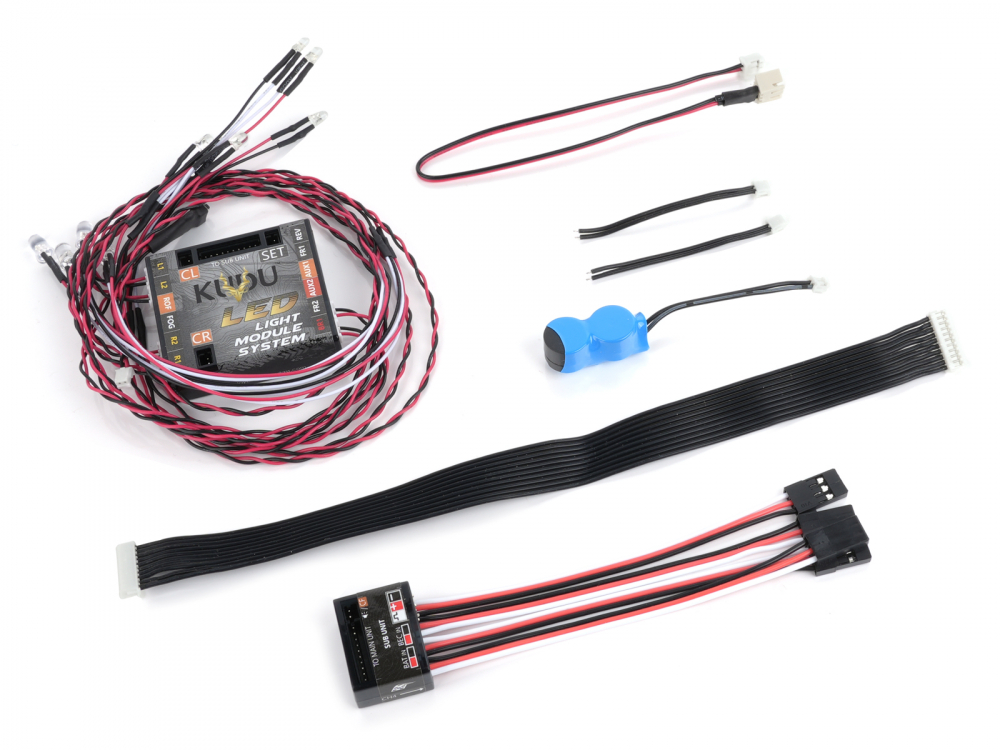

This is a complete LED light system for the Boom Racing ZIL Pickup Hard Body. This set includes a main LED light unit, a sub unit, a main connecting cable connecting the main and sub units, a set switch cable, a battery cable (2s), a buzzer (for reverse and low voltage detection), six LED light cables, and a user manual.

The module has a default setting already installed. This is a highly adjustable LED light system, different lighting options can be accessed through the setup mode.

Features:

  • Low-voltage detection capability
  • Includes one high-voltage module plug rated 7.4v-12.6v (e.g. for roof light)
  • Six high-power light plugs (up to 16 LEDs each) with power settings
  • Blinkers can be turned on and off, or use a toggle switch to operate
  • Brake light includes standard, drag, and crawler modes
  • Blinker and Hazard mode settings with flash rate options
  • Reverse beeper included
  • Ten flash mode toggle switch options
  • Auto hazard start time setting
  • Channel 2 and 4 polarity setup

Included LED Lights:
  • 2x Left & Right - 3mm Yellow (2x parallel)
  • 2x Left & Right - 3mm Yellow (1x parallel)
  • 1x Front - 5mm Warm White (2x parallel)
  • 1x Brake - 5mm Red (2x parallel)

Included:
  • 1x Main unit
  • 1x Sub unit
  • 1x Main cable
  • 1x Set switch cable
  • 1x Battery cable (LiPo 2S)
  • 1x Buzzer
  • 1x User manual
  • 2x Spare wire for CL, CR, CF plugs

Specifications:
  • Input Voltage: 5-7.4V (powered by BEC)
  • Battery Type for Low Voltage Detection: LiPo 2S (user define max 12.6V)
  • Size (LxWxH):
    • Main Unit: 45x41.3x11.7mm
    • Sub Unit: 24.5x18.5x12mm
  • Weight:
    • Main Unit: 14g
    • Sub Unit: 10g

Fits:
  • ZIL Pickup Hardbody

Spares:
  • Main Cable for KUDU™ LED Light Kit #BRTLB005
