Muscle Winch™ Servo Mount Kit for BRX01

Fits BRX01, BRX01 AWB

USD $47.00

Part #: BRLC7200


LOADING IMAGES

Muscle Winch™ Servo Mount Kit for BRX01

Fits BRX01, BRX01 AWB

USD $47.00

Part #: BRLC7200

BRX01 Mount Kit BRX01 Mount Kit

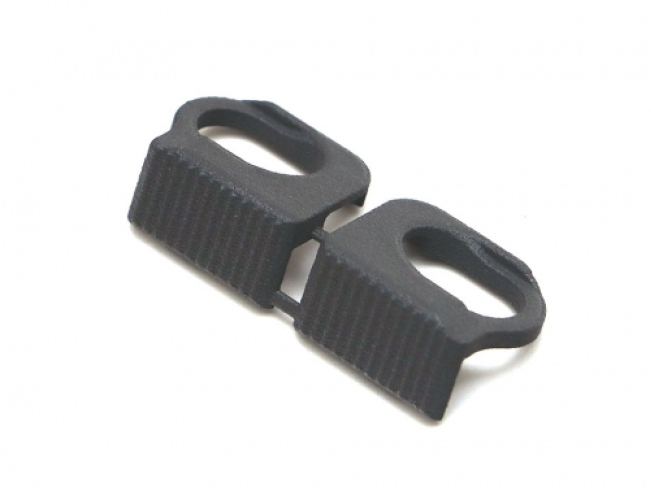

Switch Button Switch Button
Winch Line (2) Winch Line (2)

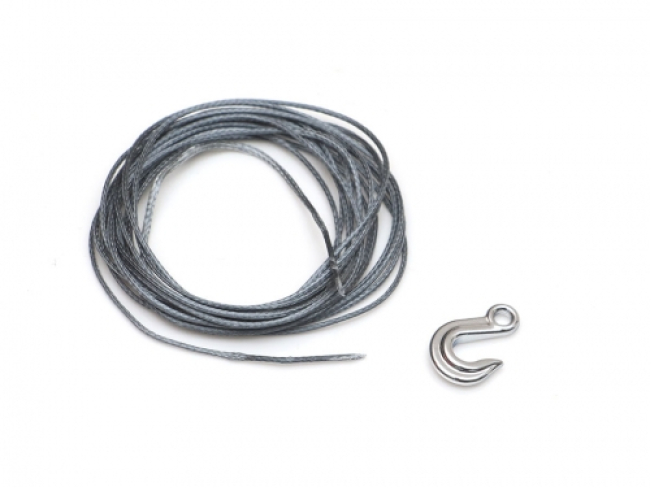

Winch Line & Hook Winch Line & Hook

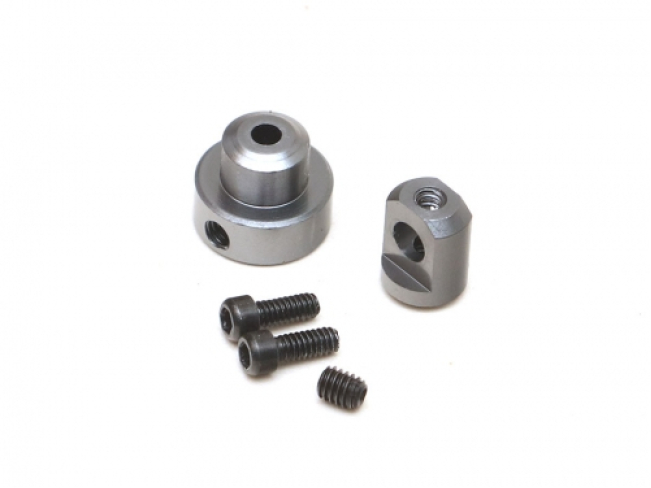

Easy Access Knob Easy Access Knob

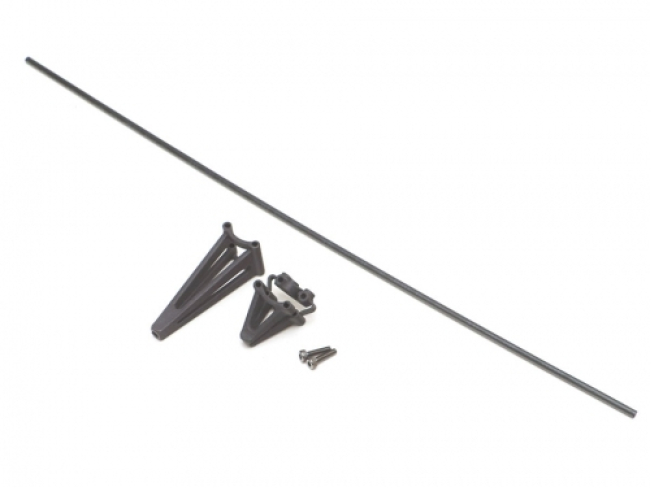

Universal Routing Kit Universal Routing Kit

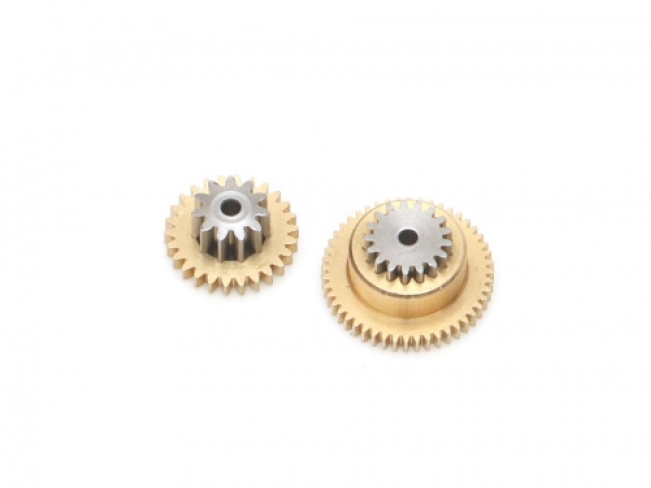

220 Fast Gear Set 220 Fast Gear Set

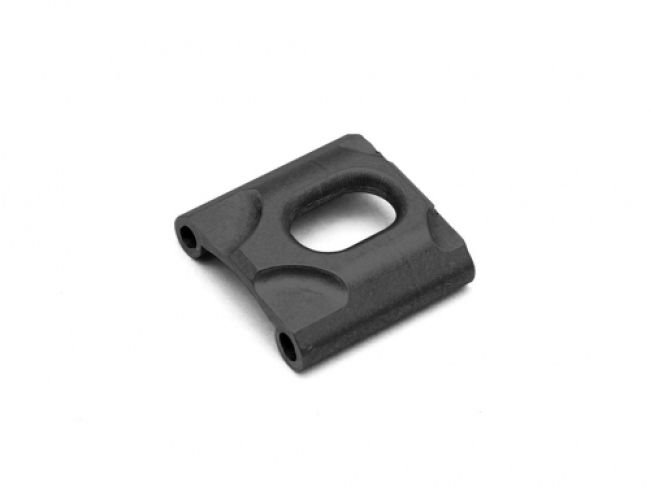

Low Profile Fairlead Low Profile Fairlead

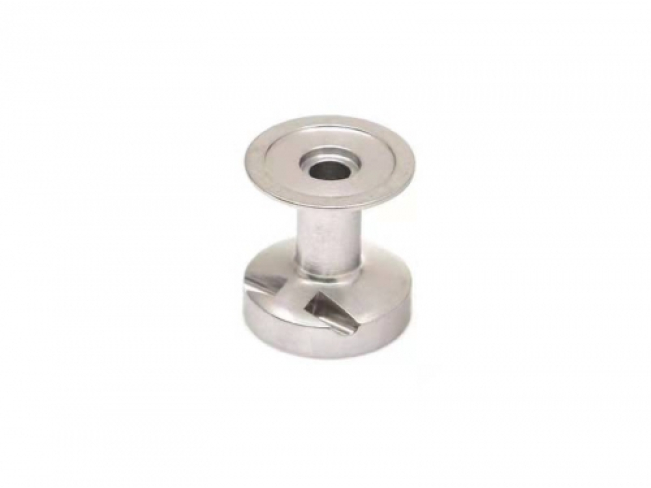

Stainless Steel Barrel Stainless Steel Barrel

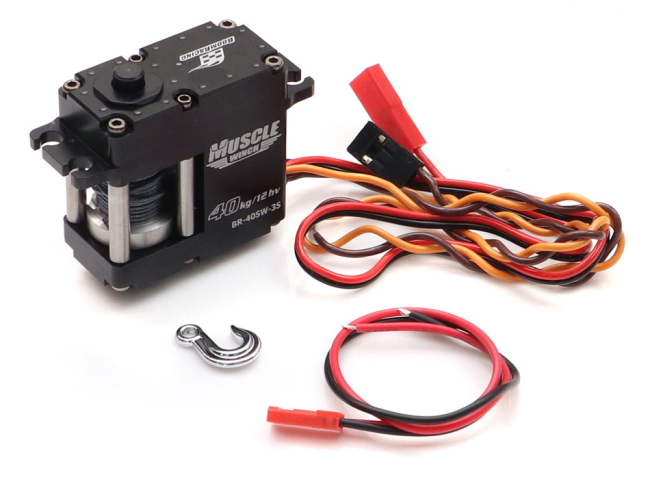

3S Muscle Winch 555oz (40KG) 3S Muscle Winch 555oz (40KG)

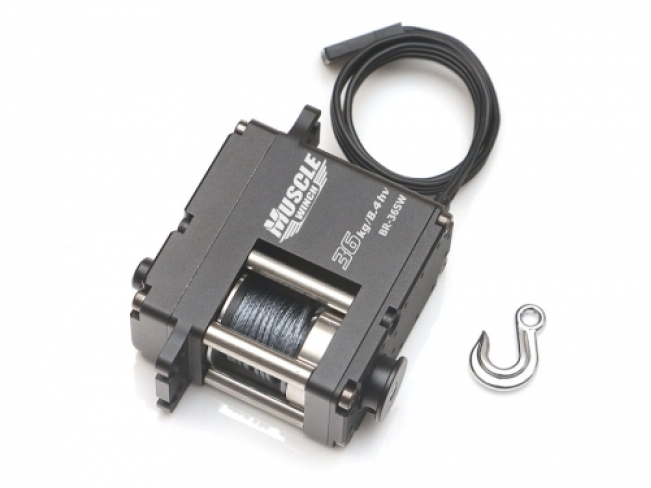

Muscle Winch 500oz (36KG) Muscle Winch 500oz (36KG)

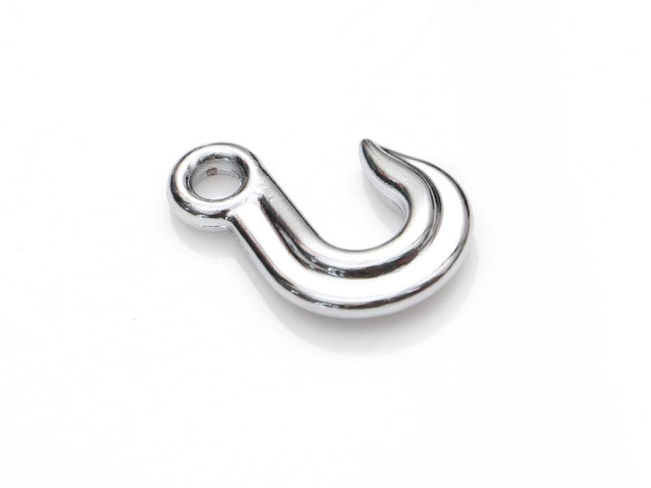

Metal Hook Metal Hook

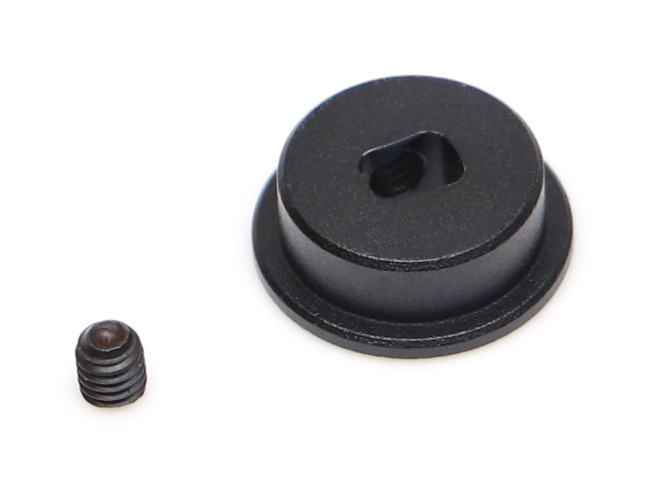

Knob Replacement Knob Replacement

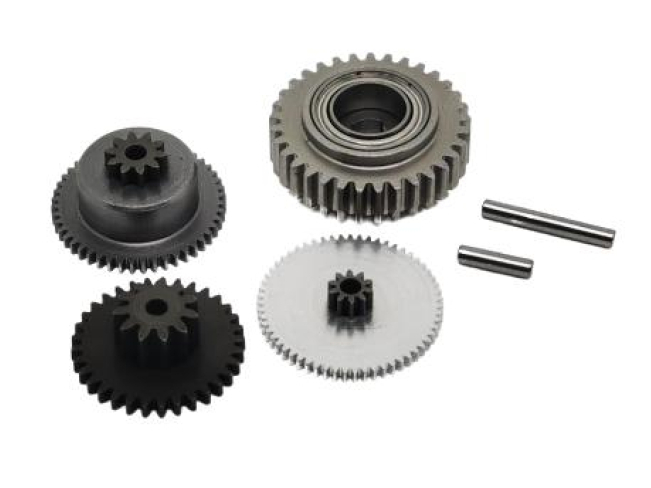

Spare Gear Set Spare Gear Set
BRX01 Mount Kit BRX01 Mount Kit

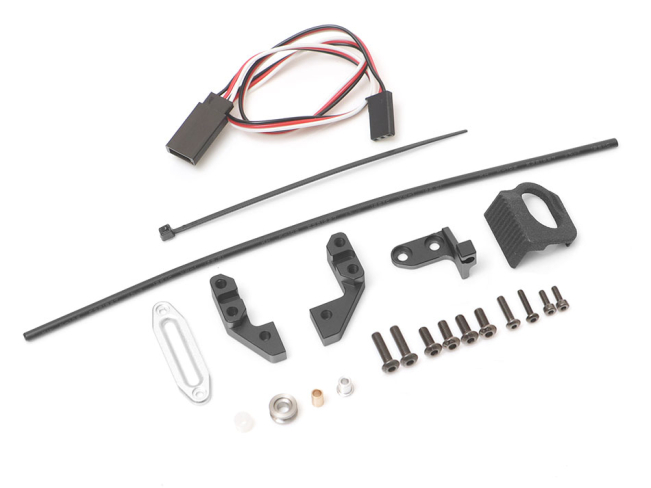

BRX02/BRX02 109 Mount Kit BRX02/BRX02 109 Mount Kit
BRX02 88 Mount Kit BRX02 88 Mount Kit

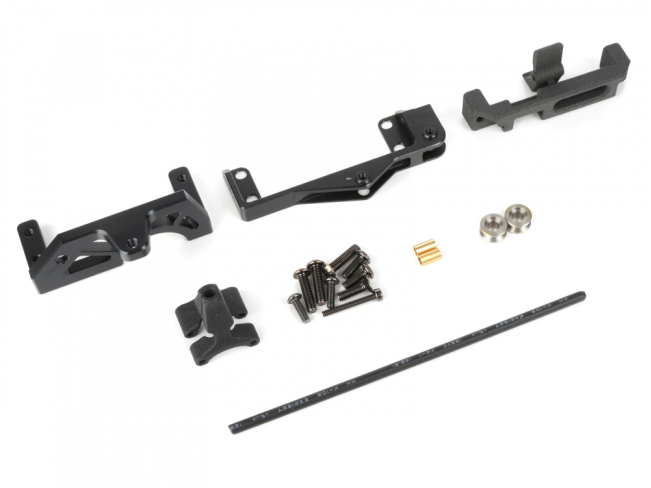

BRX01 / BRX01 AWB Mount Kit BRX01 / BRX01 AWB Mount Kit
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords WinchesBRX01 PartsBRX01 Optional PartsBRX01 AWB Optional PartsBRX01 AWB Parts

PRODUCT DESCRIPTION

Product Resources
servo-winch-mount-kit-interior-cut-out-guideline-for-lc70_1635825758.pdf
instruction-manual---servo-winch-mount-kit-for-brx01-brlc7200_1708313260.pdf

This is a Muscle Winch Mount Kit for the BRX01 chassis. For the BRX01 AWB chassis, look for part no. BRLC70227.

This kit includes a complete setup for running the Muscle Winch.

A CNC aluminum winch mount secures a standard servo winch.

A switch and switch retainer together are designed specifically for using the Boom Racing Muscle Winch. The combined unit has an easy-access knob to engage the push button of the Muscle Winch.

A front-mounted hardened steel router unit has two pulleys to guide the winch line and change of direction. A routing tube and routing tube retainer are included to guide the winch line from the Muscle Winch to the router unit for smooth operations.

An optional LC70 CNC hardbody mount #BRLC7098 is required to maintain the quick release feature and winch line directly passing through.

If you have the LC70 interior installed, a cut-out guideline is included. Place the guideline onto the interior (as shown in Step 6 in the manual) and follow the solid white lines to remove the material.

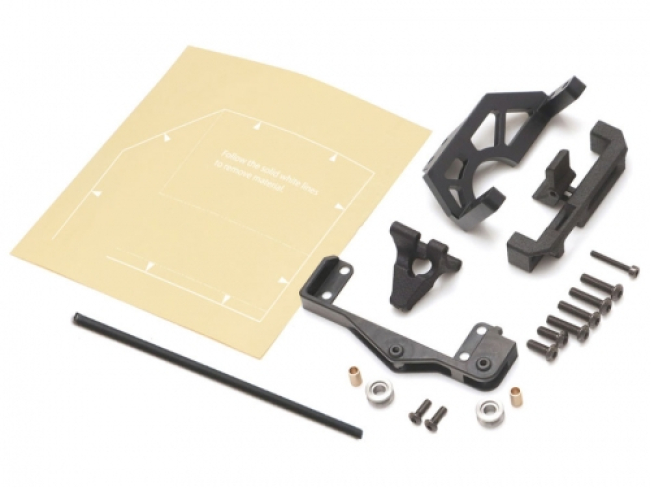

Includes:

  • 1x Aluminum Winch Mount
  • 1x Switch Retainer
  • 1x Switch
  • 1x Routing Tube Retainer
  • 1x Hardened Steel Router
  • 2x Stainless Steel Pulley
  • 2x Pivot Tube
  • 1x Routing Tube
  • 1x M2x16 SC Screw #BRASCH2016
  • 2x M2.5x8 RS Screw #BRASCH2508
  • 2x M3x8 RS Screw #BRASCH3008
  • 4x M3x12 RS Screw #BRASCH3012
  • 1x Interior Cut-Out Guideline for Killerbody LC70 interior

Optional Part:
  • Pass-Thru Aluminum Front Body Mount for LC70 #BRLC7098

Compatibility:
  • This Servo Winch Mount Kit is designed for the BRX01 using the Muscle Winch. The servo winch Mount will fit other standard servos. It is intended to be installed on the left-hand side of the BRX01 chassis. The Switch and Switch Retainer are designed explicitly for the Muscle Winch.

Fits:
  • BRX01
