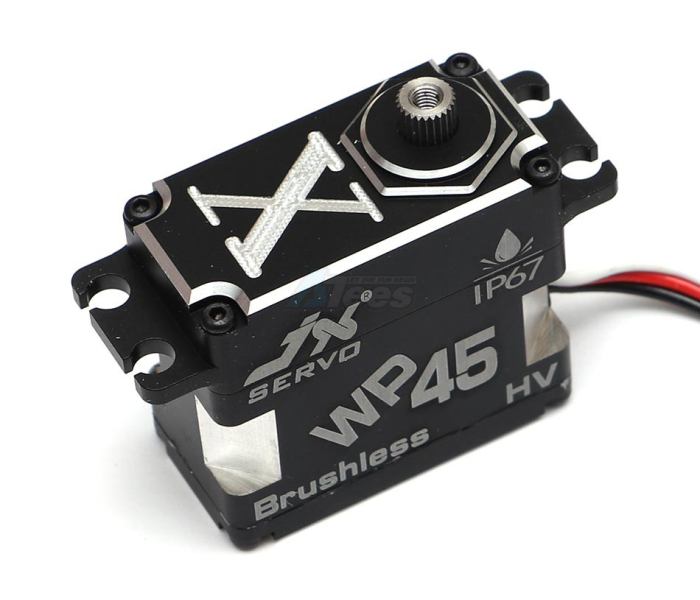

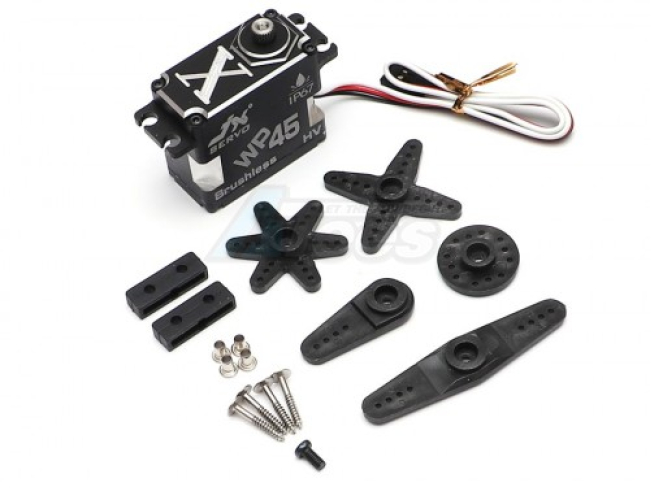

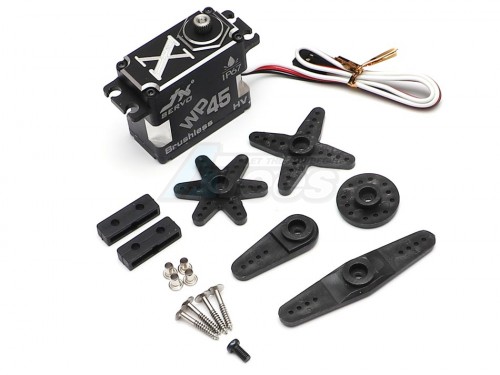

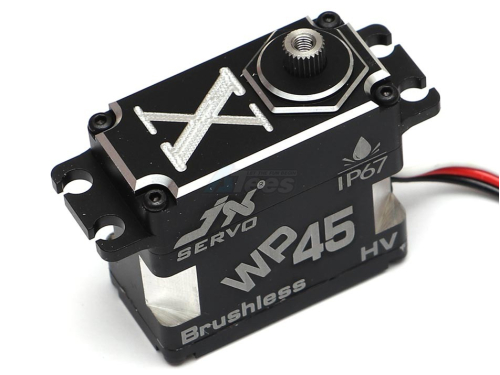

JX Servo 45KG Waterproof Aluminum Case Brushless Metal Gear Digital Servo 0.11S 45kg @8.4V

USD $76.00

Part #: JX/WP45


LOADING IMAGES

JX Servo 45KG Waterproof Aluminum Case Brushless Metal Gear Digital Servo 0.11S 45kg @8.4V

USD $76.00

Part #: JX/WP45

45KG Brushless 45KG Brushless
45KG Brushless 45KG Brushless
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Servos & Horns

PRODUCT DESCRIPTION

The JX/WP45 is JX Servo's new flagship brushless high torque servo. It features an all aluminum case, full metal gears and is fully waterproof.

Specification:

  • Working voltage: 0V ~ 8.4V
  • Working temperature: -20C°~ +60C°
  • Torque (6.0V/8.4V): 37kg.cm/45kg.cm
  • Idle speed (6.0V/8.4V): 0.13/0.11Sec/60°
  • Idle current (6.0V/8.4V): 300mA/560mA
  • Load current (6.0V/8.4V): 430mA/810mA
  • Dead band: 2usec
  • Lifetime: >60000 times without load
  • Moving angle: 60°±10°
  • Drive type: MOS drive
  • Motor type: Brushless Motor
  • Potentiometer type: Direct drive
  • Signal booster type: Digital

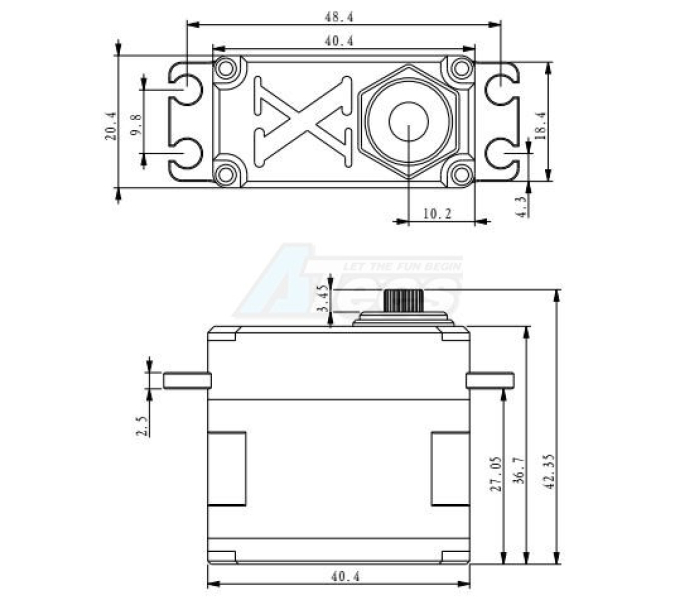

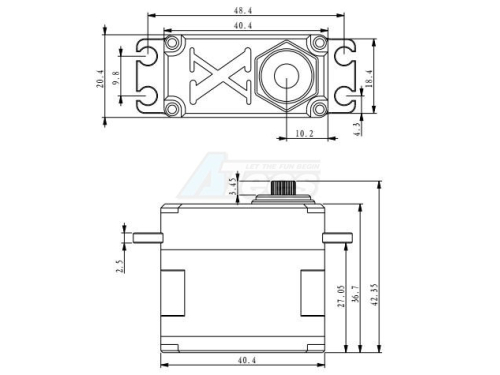

  • Size: 40.4 x 20.4 x 36.7mm
  • Weight: 75g
  • Ball Bearing: 2BB
  • Gear material: Full Metal
  • Case material: Aluminum case
  • Wire length: 260mm
  • Wire gauge No and plug type: 26AWG, JR plug
  • Black wire: Negative
  • Red wire: Positive
  • White wire: Singal
  •  IP67 Waterproof


Replacements:
Complete Rebuild Steel Gears for JX/WP-45 & JX/WP-43 Servo JX/WP4345-SG
