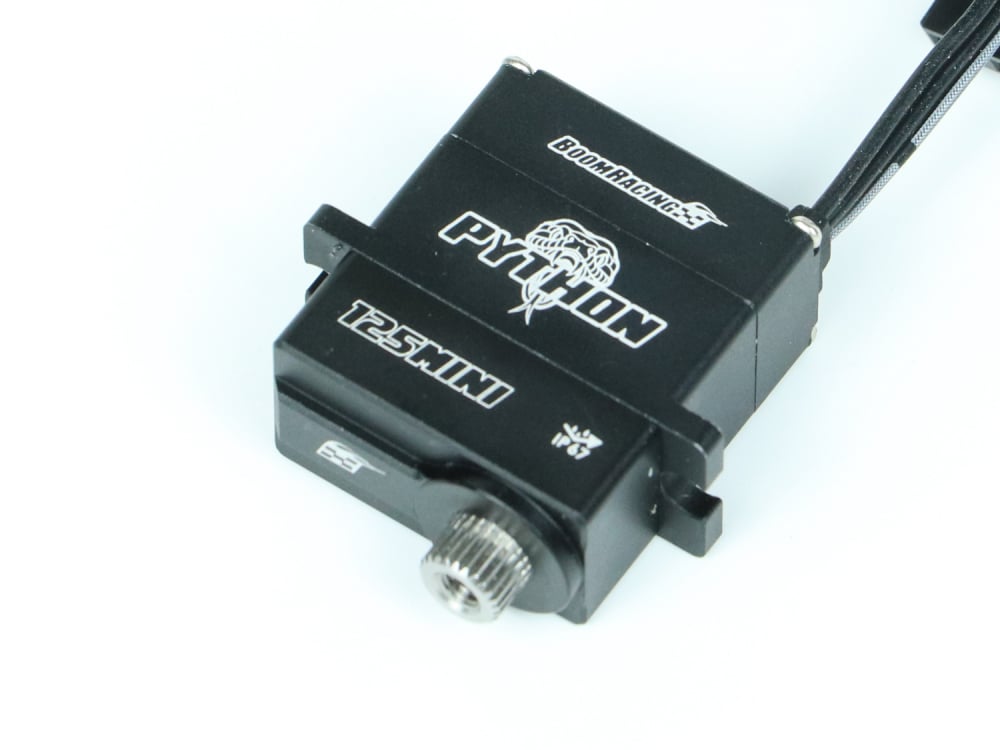

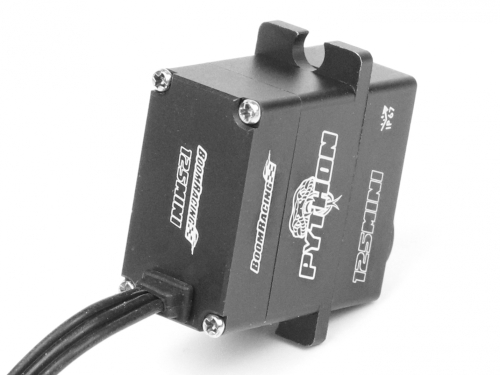

PYTHON™ 125Mini HV Waterproof Aluminum Mini Servo 125oz-in / 9kg-cm @ 8.4V

Fits BRX01, BRX01 AWB, BRX02, BRX02 109, BRX02 6x6, BRX02 88, BRX02 D130

USD $45.00

Part #: BRPS125Mini


LOADING IMAGES

PYTHON™ 125Mini HV Waterproof Aluminum Mini Servo 125oz-in / 9kg-cm @ 8.4V

Fits BRX01, BRX01 AWB, BRX02, BRX02 109, BRX02 6x6, BRX02 88, BRX02 D130

USD $45.00

Part #: BRPS125Mini

125Mini HV Waterproof 125Mini HV Waterproof
25T Standard Spline Alu Servo Saver 25T Standard Spline Alu Servo Saver
125Mini HV Waterproof 125Mini HV Waterproof
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on non-heavy items

On US orders $120+ (including territories)

free shipping for heavy items

1 heavy item: Add $200 in non-heavy items to get free shipping.
2+ heavy items: Add $100 in non-heavy items to get free shipping.

Tagged Keywords Servos & HornsBRX02 Optional PartsBRX01 Optional PartsBRX02 109 Chassis Optional PartsBRX02 88 Chassis Optional PartsBRX01 AWB Optional PartsBRX02 6x6 Optional PartsBRX02 D130 Chassis Spare Parts

PRODUCT DESCRIPTION

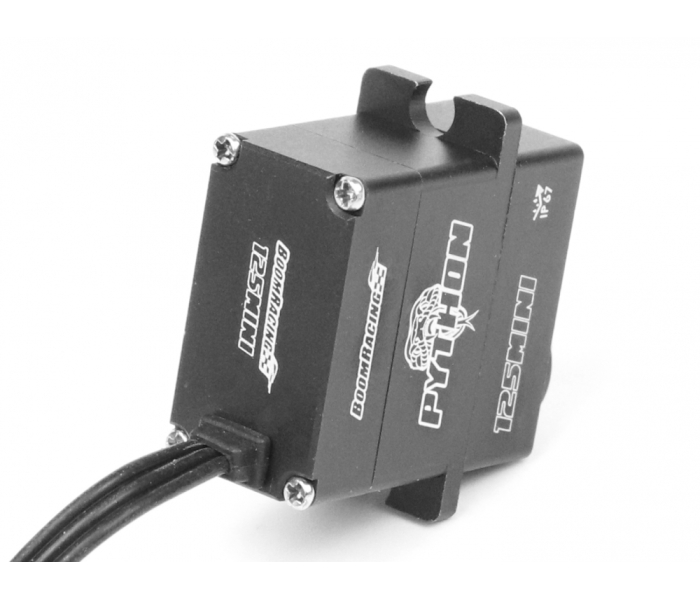

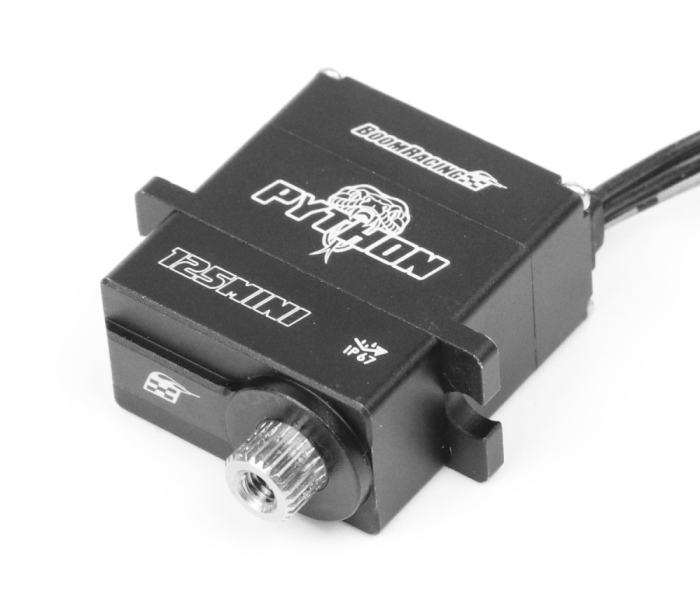

The PYTHON™ 125Mini HV Waterproof Aluminum Mini Servo packs impressive power and speed into a compact package, making it an excellent choice for demanding RC applications where performance and installation space matter.

Built with a strength-treated metal gear train, CNC-machined aluminum housing, high-quality coreless motor, and high-precision position sensor, it delivers up to 125oz-in (9kg-cm) of stall torque with a lightning-fast 0.07 sec/60° transit speed at 8.4V.

With its excellent power-to-size ratio and high-voltage operation from 4.8V to 8.4V, the 125Mini combines serious performance with a compact 13mm-wide footprint.

IP67 waterproofing, O-ring sealed construction, conformal-coated electronics, and built-in stall and over-current protection provide added reliability for demanding trail and crawler environments.

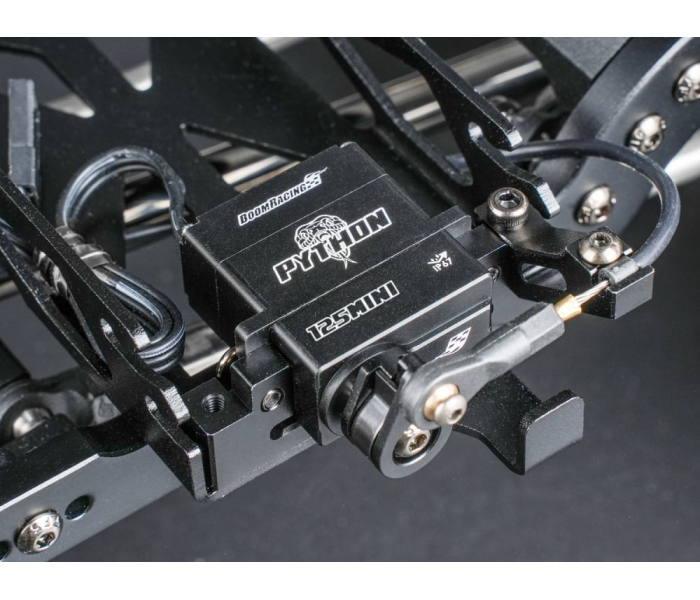

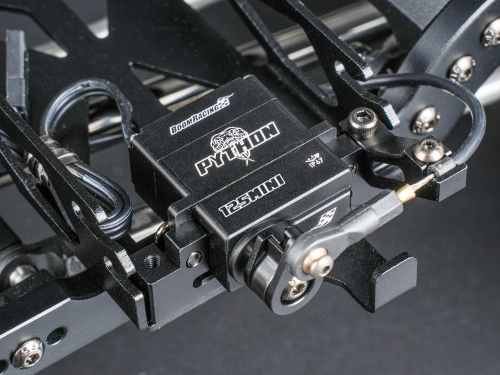

At just 29 × 13 × 28mm and 23.5g, the PYTHON™ 125Mini HV is an excellent choice for compact crawler steering, transmission and transfer case shifting, and other auxiliary functions where installation space is limited.

Features:

  • Stall Torque: 125oz-in (9kg-cm) @ 8.4V
  • Speed: 0.07 sec/60° @ 8.4V
  • Compact 13mm-Wide Design
  • IP67 Waterproof
  • High-Quality Coreless Motor
  • Strength-Treated Metal Gear Train
  • CNC-Machined Aluminum Housing
  • 4.8V-8.4V High-Voltage Operation
  • Fast & Precise Digital Control
  • Conformal-Coated Electronics
  • O-Ring Sealed Construction
  • Built-In Stall & Over-Current Protection
  • High-Precision Position Sensor
  • Standard 25T Output Spline
  • 1-Year Limited Warranty

Specifications:
  • Operating Voltage: 4.8V-8.4V
  • Maximum Stall Torque:
    • 125oz-in (9kg-cm) @ 8.4V
    • 111oz-in (8kg-cm) @ 7.4V
    • 97oz-in (7kg-cm) @ 6.0V
    • 78oz-in (5.6kg-cm) @ 4.8V
  • Speed:
    • 0.07 sec/60° @ 8.4V
    • 0.08 sec/60° @ 7.4V
    • 0.09 sec/60° @ 6.0V
    • 0.10 sec/60° @ 4.8V

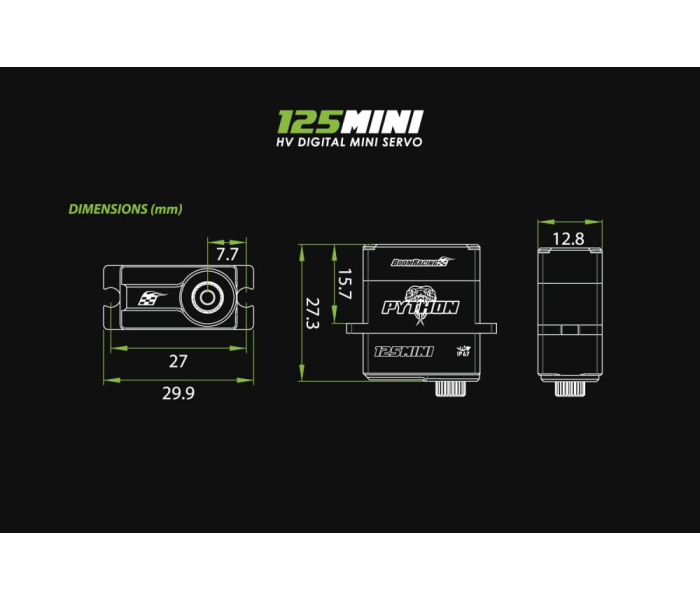

  • Dimensions: 29 × 13 × 28mm
  • Weight: 23.5g
  • Gear Train: Strength-Treated Metal
  • Motor Type: Coreless
  • Output Spline: Standard 25T
  • Waterproof Rating: IP67
  • Operating Travel: 180°

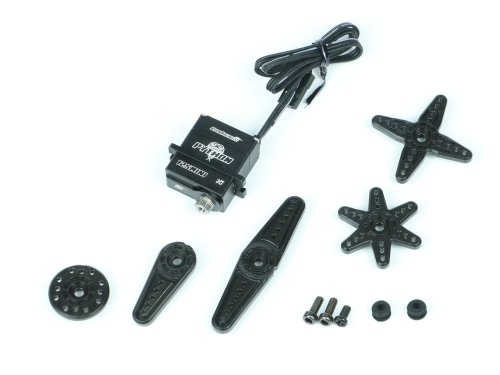

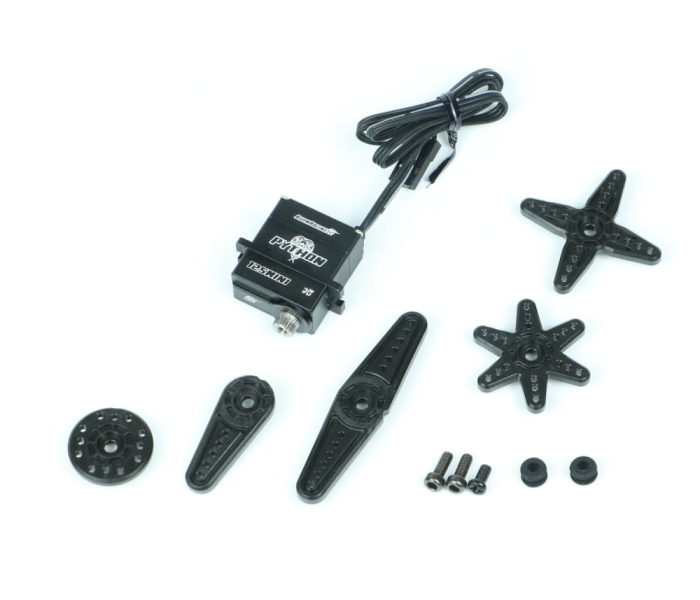

Servo Horns & Accessories:
  • Aluminum Mini Servo Saver for Standard 25T (BRX027046)
  • Includes multiple plastic servo horns

1-Year Limited Warranty

The PYTHON™ 125Mini HV is backed by a 1-Year Limited Warranty against defects in materials and workmanship from the original date of purchase. The warranty covers manufacturing defects affecting the servo's electronics, motor, gear train, and housing under normal intended use.

The warranty does not cover damage resulting from:
  • Crash, impact, or physical damage
  • Improper installation or setup
  • Operation outside the specified 4.8V-8.4V voltage range
  • Inadequate or unstable power supply / BEC
  • Excessive or prolonged loading beyond the servo's intended use
  • Modified, cut, or damaged wiring
  • Unauthorized disassembly or modification
  • Normal wear and tear
  • Use beyond the specified IP67 protection rating

Proof of purchase may be required for warranty service. Warranty coverage applies to the original purchaser and is subject to inspection and verification of the reported failure.

Safety Information

Not a toy. Intended for ages 14+.
