JX Servo High Voltage Mini Servo Waterproof Core Metal Gear 4.5KG 0.08s @ 8.4V for TRX4 BRX01

Fits BRX01, BRX01 AWB, BRX02, BRX02 109, BRX02 6x6, BRX02 88

USD $19.90

Part #: JX/PDI-HV1151MG


LOADING IMAGES

JX Servo High Voltage Mini Servo Waterproof Core Metal Gear 4.5KG 0.08s @ 8.4V for TRX4 BRX01

Fits BRX01, BRX01 AWB, BRX02, BRX02 109, BRX02 6x6, BRX02 88

USD $19.90

Part #: JX/PDI-HV1151MG

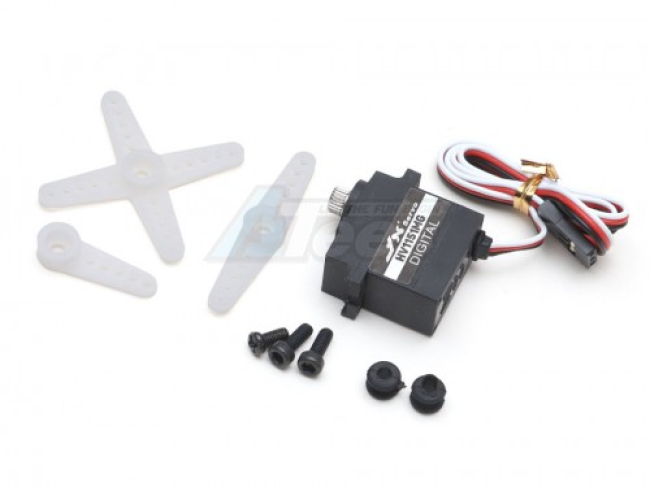

Up to 8.4V Up to 8.4V
Up to 8.4V Up to 8.4V
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Servos & HornsBRX01 PartsBRX02 PartsBRX02 109 Chassis Spare PartsBRX02 88 Chassis Spare PartsBRX01 AWB PartsBRX02 6x6 Parts

PRODUCT DESCRIPTION

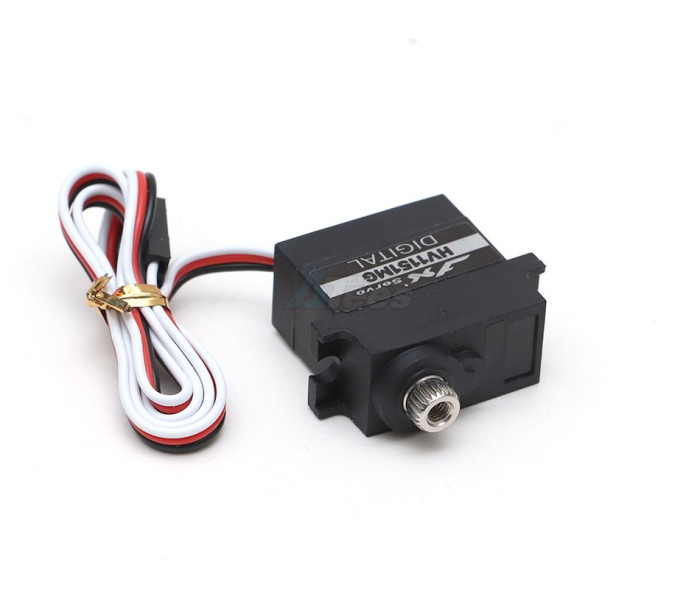

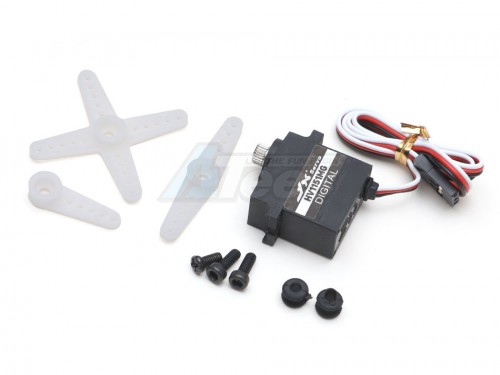

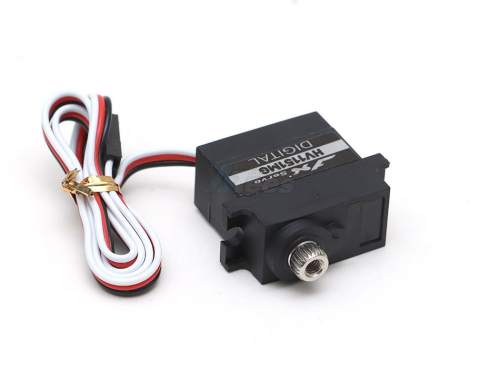

The JX PDI-HV1151MG High Voltage Mini Servo delivers strong performance in a compact package, making it well-suited for RC crawlers and scale vehicles where installation space is limited.

Operating from 6.0V to 8.4V, this digital mini servo produces up to 4.5kg-cm of torque at 8.4V while maintaining fast response for shifting, steering, and other auxiliary functions.

Its compact 23.2 × 12.5 × 25.6mm dimensions and lightweight 15g construction make it particularly useful for applications where a standard-size servo is too large. A metal gear train provides added durability, while the high-voltage design allows the servo to take advantage of compatible 7.4V and 8.4V BEC systems without requiring the voltage to be reduced to conventional 6V servo levels.

With up to 180° of available travel depending on the transmitter/controller signal range, the PDI-HV1151MG is a versatile choice for transmission shifting, transfer-case operation, and other compact RC applications.

Features:

  • High-Voltage 6.0V–8.4V Operation
  • Up to 4.5kg-cm Torque @ 8.4V
  • Compact Mini Servo Design
  • Metal Gear Train
  • Digital Control
  • Up to 180° Maximum Travel
  • Lightweight 15g Construction
  • Compact 23.2 × 12.5 × 25.6mm Size
  • JR-Style Servo Connector
  • Suitable for Crawlers & Scale RC Applications

Specifications:
  • Control system:
    • PWM control 1500 u-sec is the central point PWM control 1500 u-sec is the central point
    • Max Angle:180°
      Pulse width: 1000-2000μs=90°
      Pulse width: 500-2500μs=180°
      Dead band: 4μs 1520μs/330hz
  • Operating Voltage: 6V~8.4V
  • Working temperature: -20C°~ +60C°
  • Torque:
    • 3.5kg-cm @ 6.0V
    • 4.5kg-cm @ 8.4V
  • Idle speed:
    • 0.12 sec/60° @ 6.0V
    • 0.10 sec/60° @ 8.4V
  • Maximum Angle: 180°
  • Motor: Cored
  • Gear Material: Metal
  • Case Material: PA66 + 40% Fiber
  • Dimensions: 23.2 × 12.5 × 25.6mm
  • Weight: 15g
  • Wire Length: 310mm
  • Wire: 26AWG
  • Connector: JR
  • Operating Temperature: -20°C to +60°C

Servo Saver Horn:
  • Aluminum Servo Horn Set for Mini Servo (for JX Mini Servo) BRLC7049

Safety Information

Not a toy. Intended for ages 14+.
