XL Billet Aluminum Adjustable Rear Rails 285-305MM / 11.2"-12.0" L/R

Fits BRX01 AWB

USD $32.00

Part #: BRLC70213


LOADING IMAGES

XL Billet Aluminum Adjustable Rear Rails 285-305MM / 11.2"-12.0" L/R

Fits BRX01 AWB

USD $32.00

Part #: BRLC70213

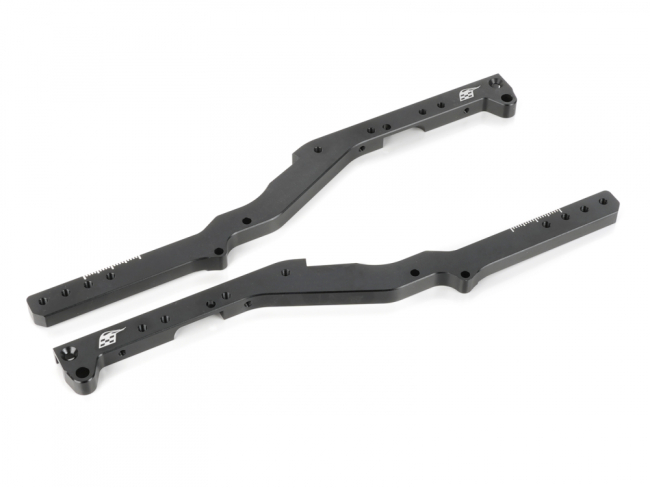

Rear XL 285-305mm / 11.2"-12.0" Rear XL 285-305mm / 11.2"-12.0"
Rear Standard 265-285mm / 10.4"-11.2" Rear Standard 265-285mm / 10.4"-11.2"
Rear XL 285-305mm / 11.2"-12.0" Rear XL 285-305mm / 11.2"-12.0"

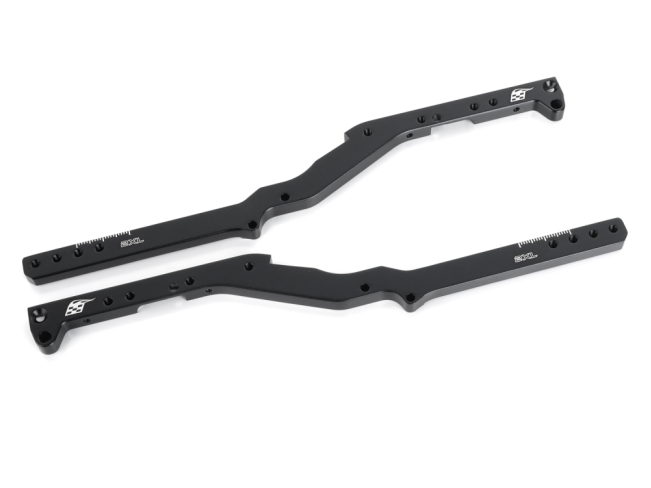

Rear 2XL 305-325mm / 12.0"-12.8" Rear 2XL 305-325mm / 12.0"-12.8"

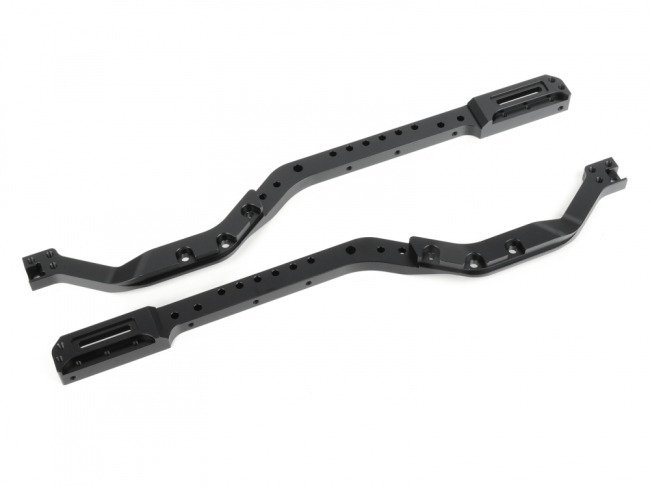

Front Front
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords BRX01 AWB Optional PartsBRX01 AWB Parts

PRODUCT DESCRIPTION

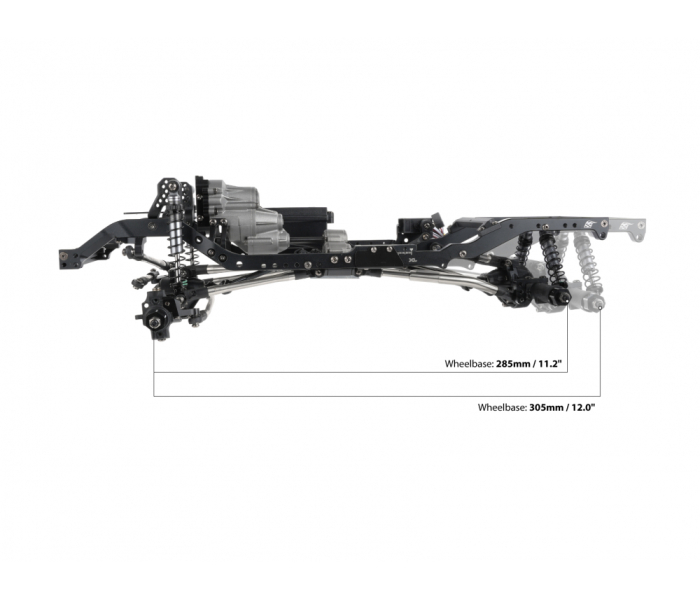

This is a pair of 7mm thick billet aluminum adjustable XL rear chassis rails designed specifically for the BRX01 AWB chassis kit. These extended rails increase the wheelbase adjustment range from the original 265mm–285mm / 10.4"-11.2" to a longer 285mm–305mm / 11.2" - 12.0" range.

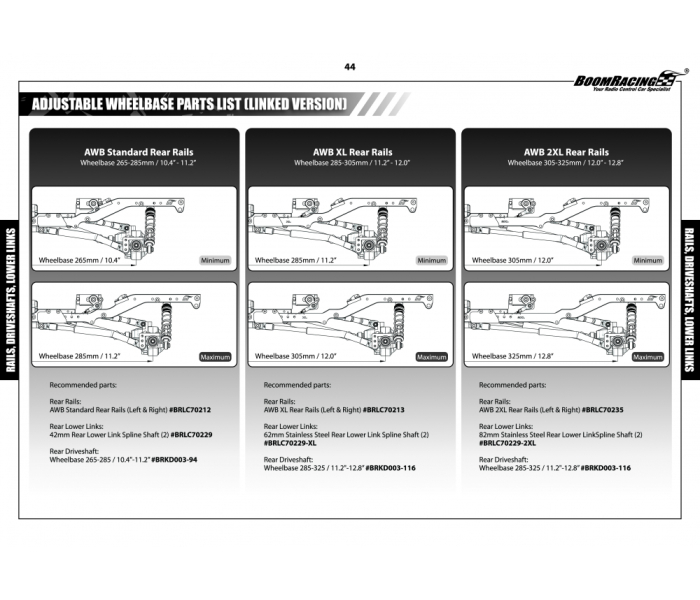

Recommended KUDU shaft sizes for the BRX01 AWB based on different wheelbase lengths:

  • Wheelbase 265-285mm / 10.4"-11.2": #BRKD003-94 (stock rear center driveshaft)
  • Wheelbase 280-300mm / 11.0"-11.8": #BRKD003-107 (option)
  • Wheelbase 293-319mm / 11.5"-12.6": #BRKD003-119 (option)

For BRX01 AWB Link chassis, use the Rear Lower Link Barrel (BRLC70232) with:
  • 62mm Stainless Steel Rear Lower Link Spline Shaft (2) for XL Rear Rails BRLC70229-XL

Note for BRX01 AWB Leaf chassis, no additional parts are needed to extend the wheelbase.

Note: Hardware is not included. Please reuse the original hardware from your BRX01 AWB kit.
