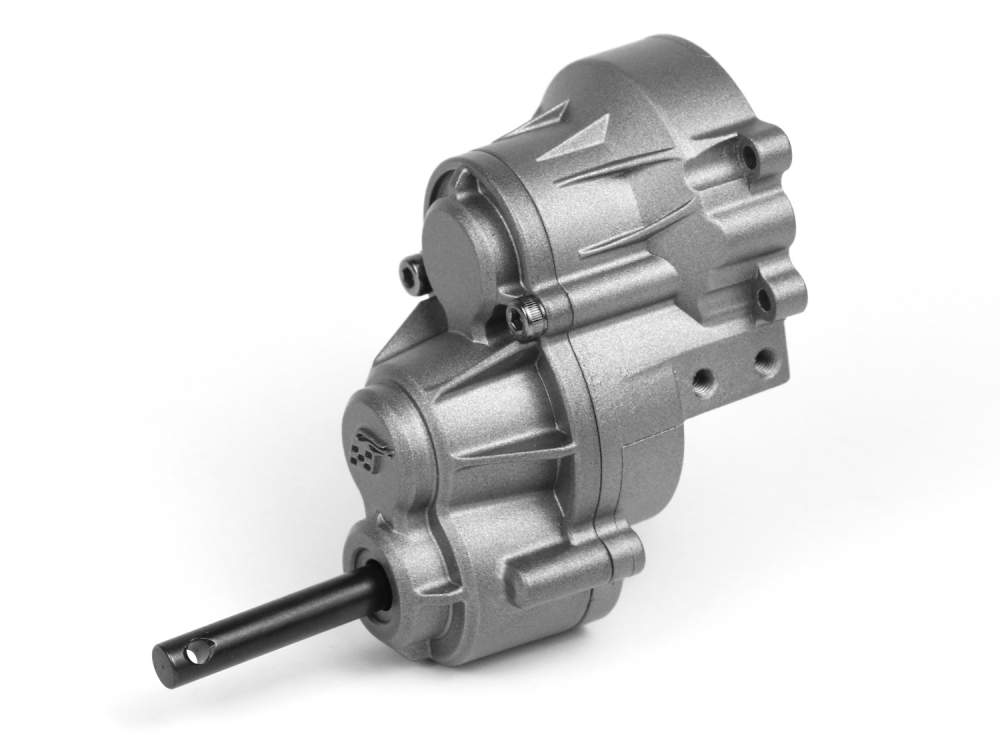

BCF™ Compact Front-Mounted Single-Speed Scale Transmission Gearbox Set

Fits BRX01, BRX01 AWB, BRX02, BRX02 109, BRX02 6x6, BRX02 88, BRX02 D130

USD $73.00

Part #: BR-G200


LOADING IMAGES

BCF™ Compact Front-Mounted Single-Speed Scale Transmission Gearbox Set

Fits BRX01, BRX01 AWB, BRX02, BRX02 109, BRX02 6x6, BRX02 88, BRX02 D130

USD $73.00

Part #: BR-G200

BCF Single-Speed Set BCF Single-Speed Set

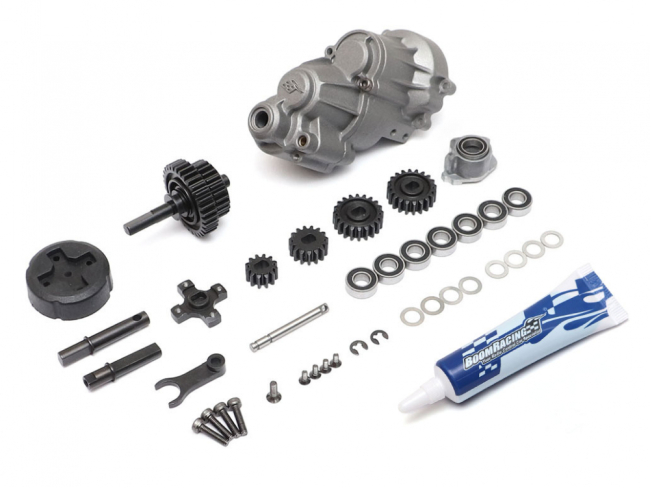

BCF2 2-Speed Set BCF2 2-Speed Set
BCF Single-Speed Set BCF Single-Speed Set

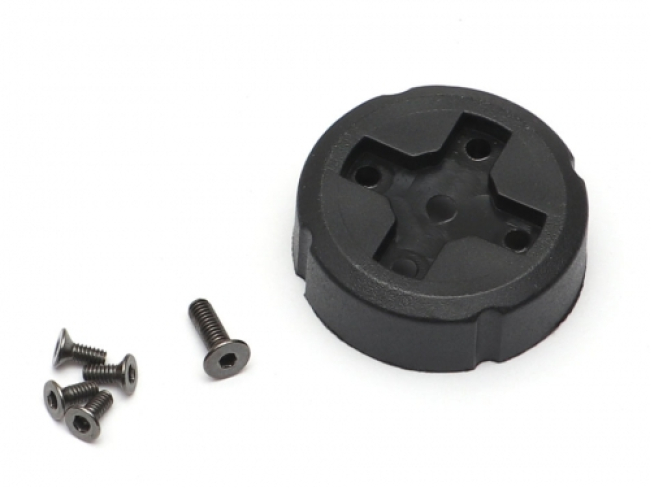

Spur Gear Spur Gear

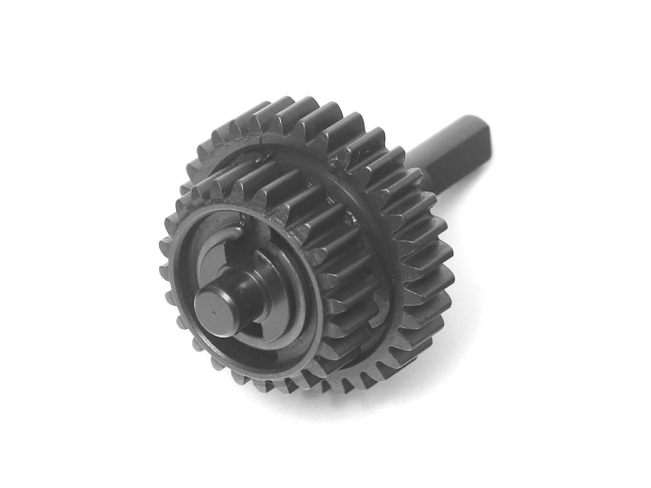

2-Speed Gear Set BCF2 2-Speed Gear Set BCF2

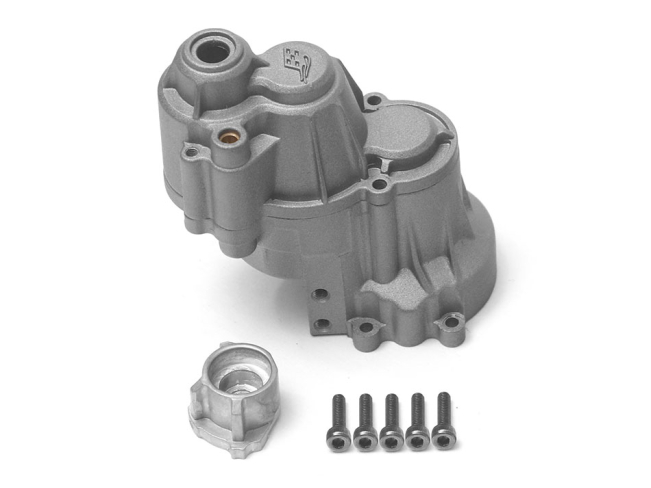

BCF2 Housing w/ Bearing Holder BCF2 Housing w/ Bearing Holder

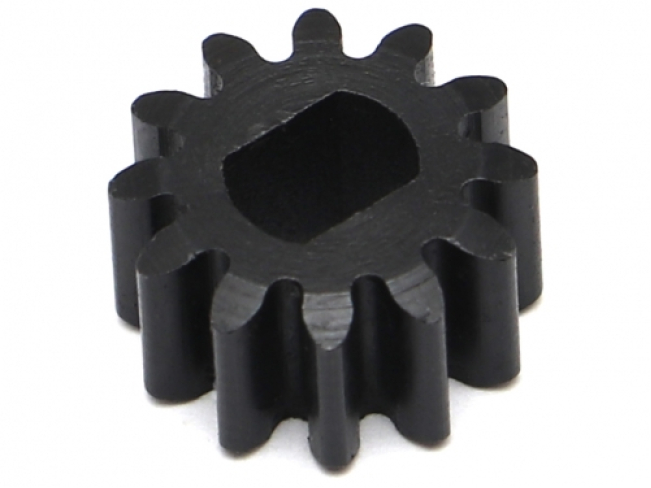

12T Gear 12T Gear

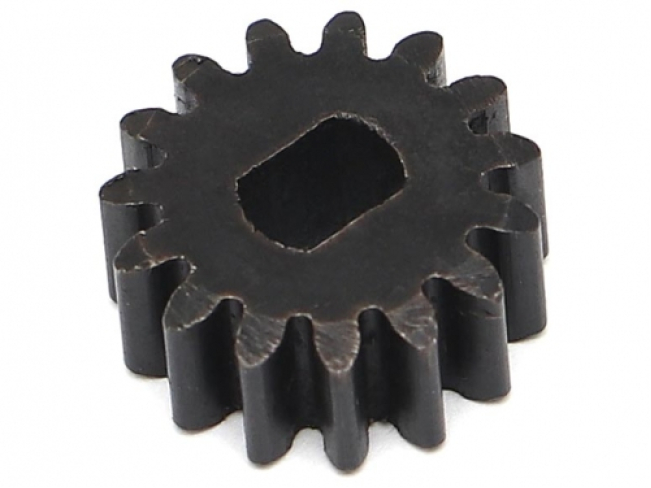

15T Gear 15T Gear

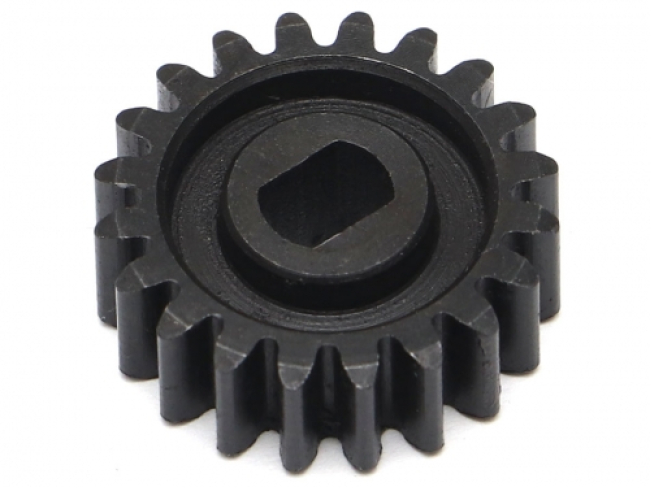

20T Gear 20T Gear

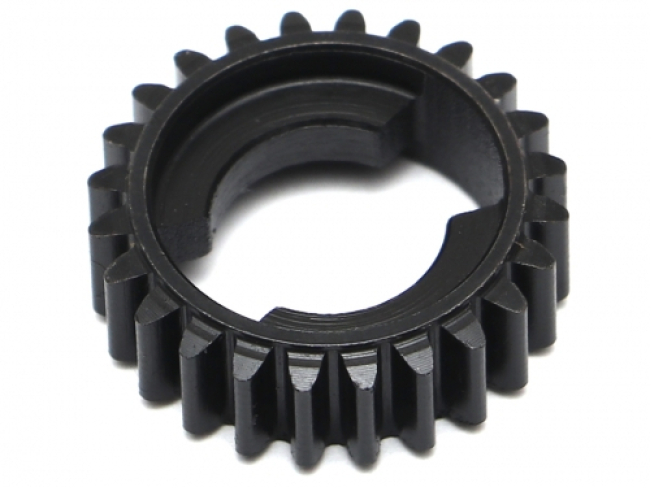

24T Gear 24T Gear

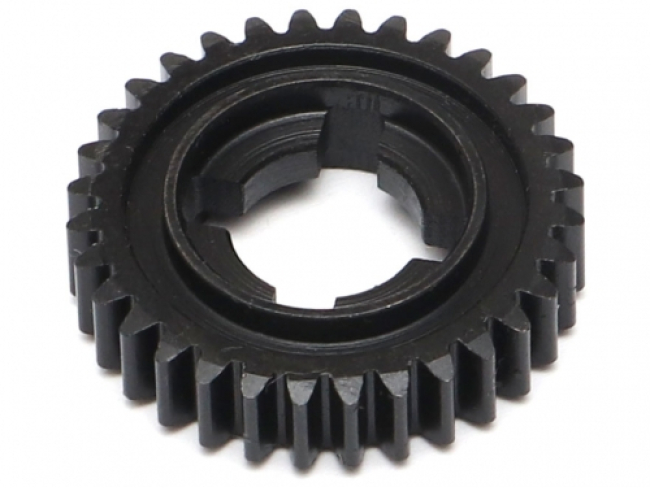

32T Gear 32T Gear

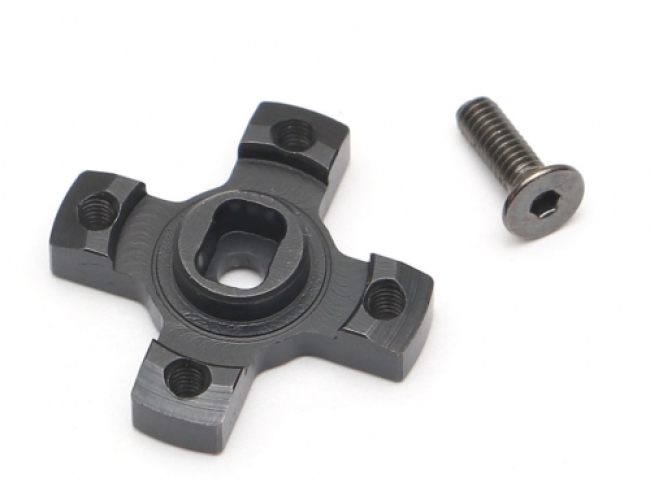

Steel Spur Gear Mount Steel Spur Gear Mount

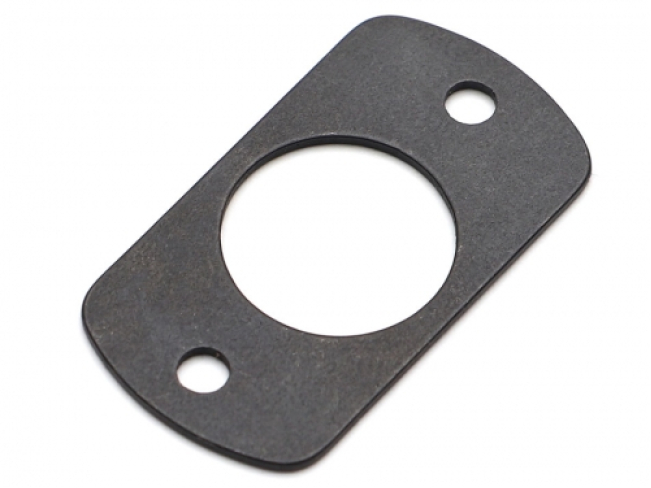

Steel Spacer (1mm) Steel Spacer (1mm)

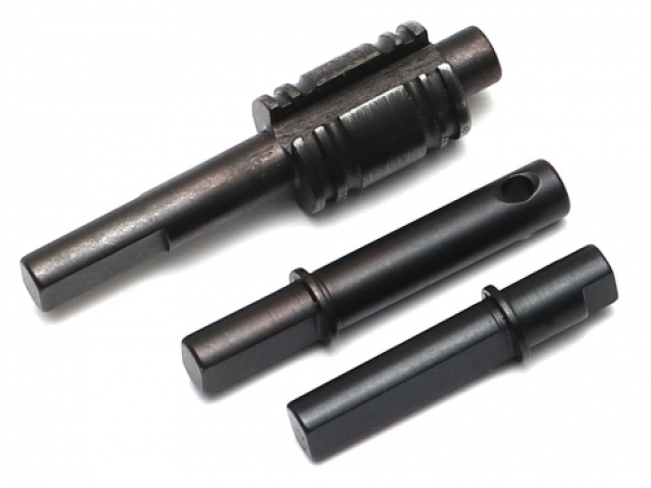

Gearbox Shaft (3pcs) BCF2 Gearbox Shaft (3pcs) BCF2

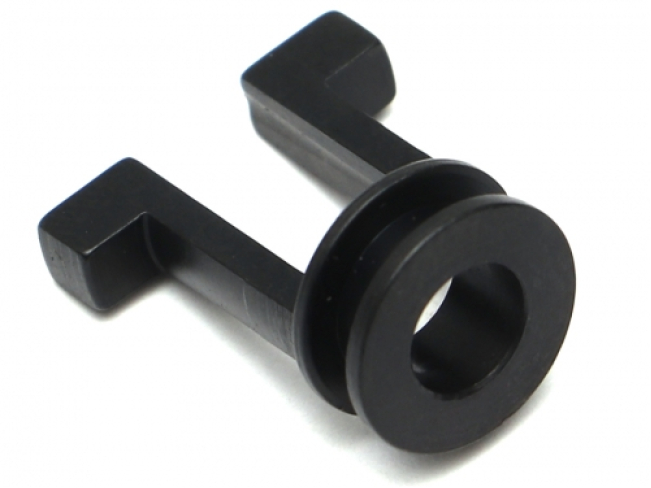

Steel Catcher BCF2 Steel Catcher BCF2

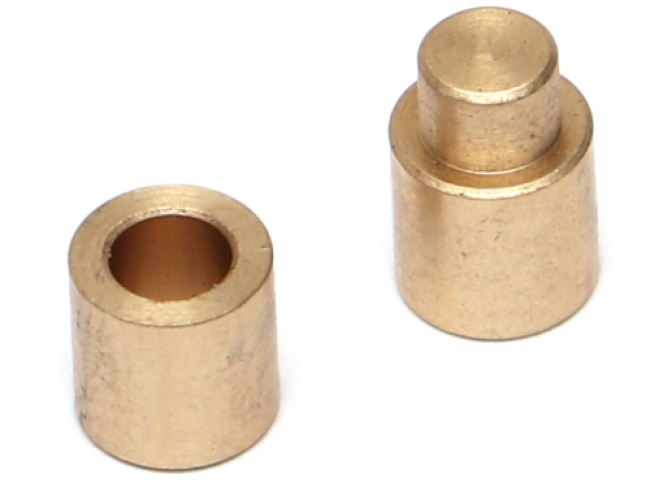

Brass Shifter Cap & Bushing BCF2 Brass Shifter Cap & Bushing BCF2

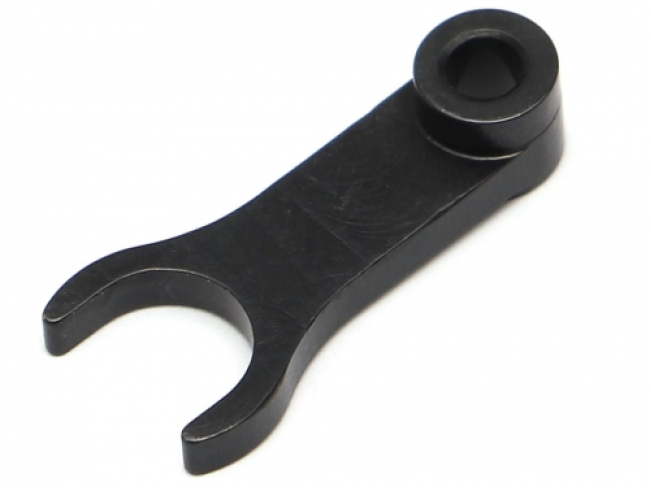

Steel Shifter BCF2 Steel Shifter BCF2

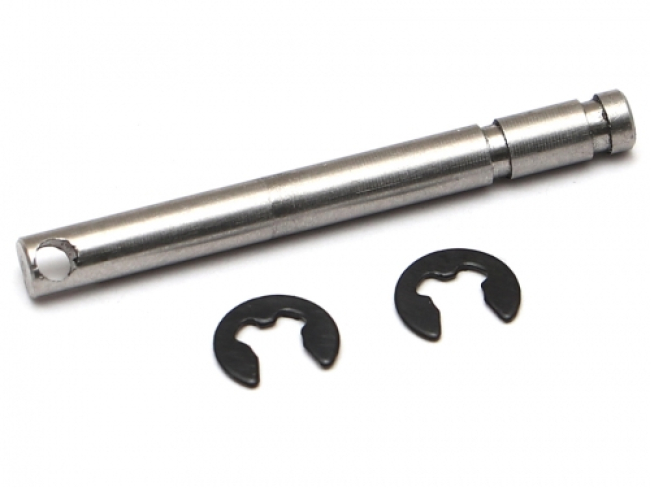

Steel Shift Rod BCF2 Steel Shift Rod BCF2

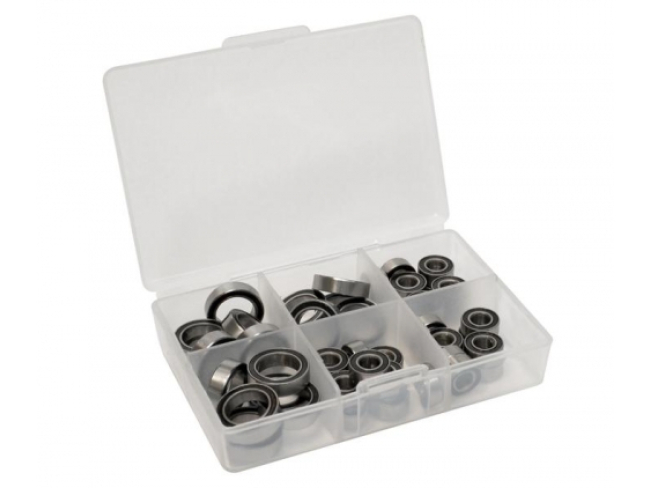

Complete Bearing Set Complete Bearing Set
Badass Graphite Black Grease 10g Badass Graphite Black Grease 10g
Badass Graphite Black Grease 20g Badass Graphite Black Grease 20g
29T Gear for BCF 29T Gear for BCF
BCF Housing w/ Bearing Holder BCF Housing w/ Bearing Holder
Shaft Set for BCF (3pcs) Shaft Set for BCF (3pcs)
BCF Complete Set BCF Complete Set
BCF Complete Set BCF Complete Set
for BRX02 88 for BRX02 88
BRX01 AWB BRX01 AWB
BRX02 D130 BRX02 D130
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on non-heavy items

On US orders $120+ (including territories)

free shipping for heavy items

1 heavy item: Add $200 in non-heavy items to get free shipping.
2+ heavy items: Add $100 in non-heavy items to get free shipping.

Tagged Keywords TransmissionBRX02 Optional PartsBRX01 Optional PartsBRX02 109 Chassis Optional PartsBRX02 88 Chassis Optional PartsBRX01 AWB Optional PartsBRX02 6x6 Optional PartsBRX02 D130 Chassis Optional Parts

PRODUCT DESCRIPTION

Product Resources
instruction-manual---bcf----compact-front-mounted-single-speed-scale-transmission-gearbox-set_br-g200_1787729264.pdf

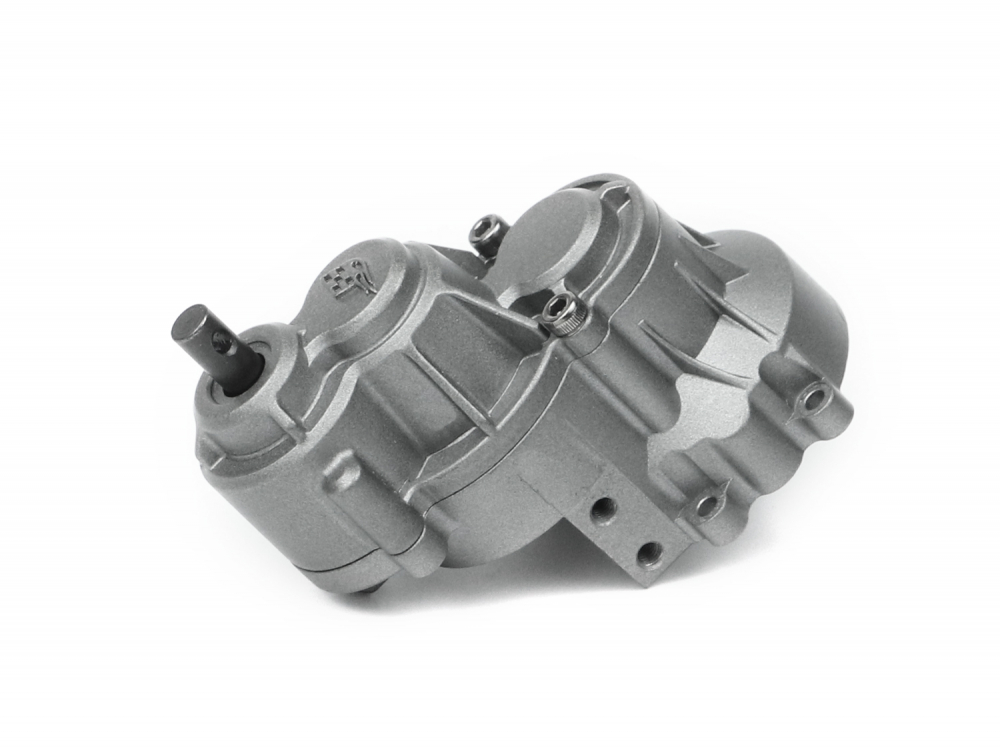

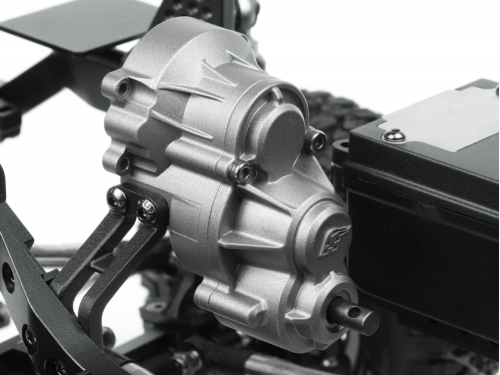

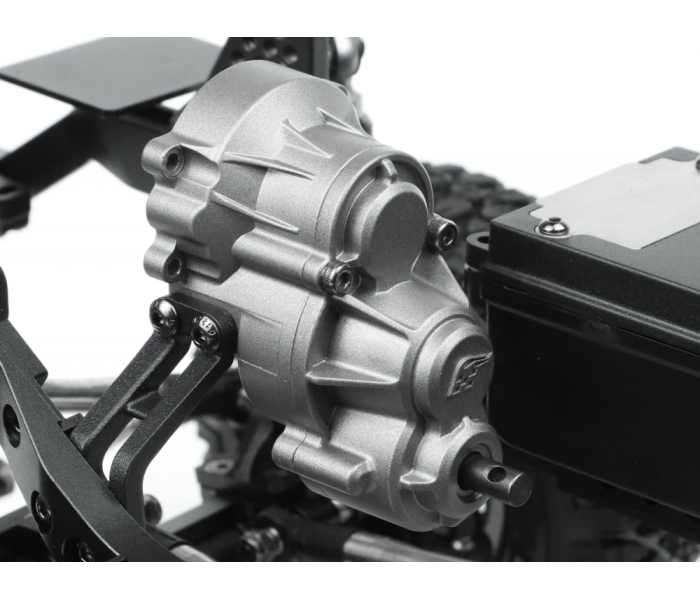

The BCF™ Compact Front-Mounted Single-Speed Scale Transmission brings a simpler drivetrain option to the BRX platform for builders who prefer the simplicity of a single-speed setup.

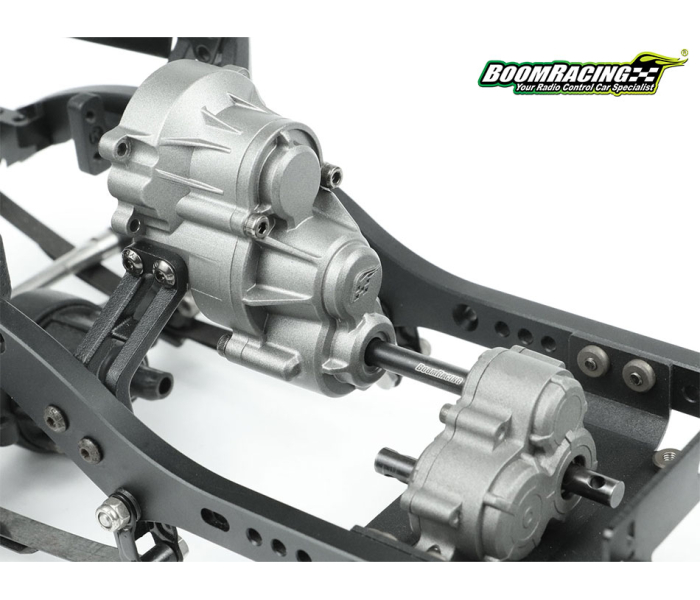

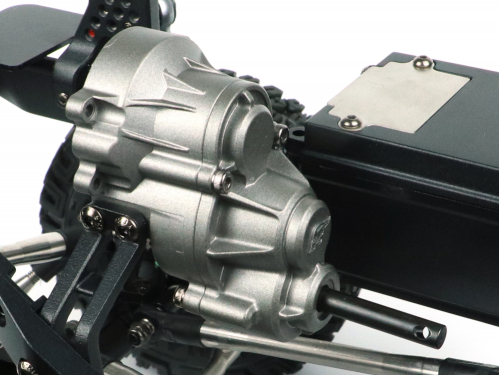

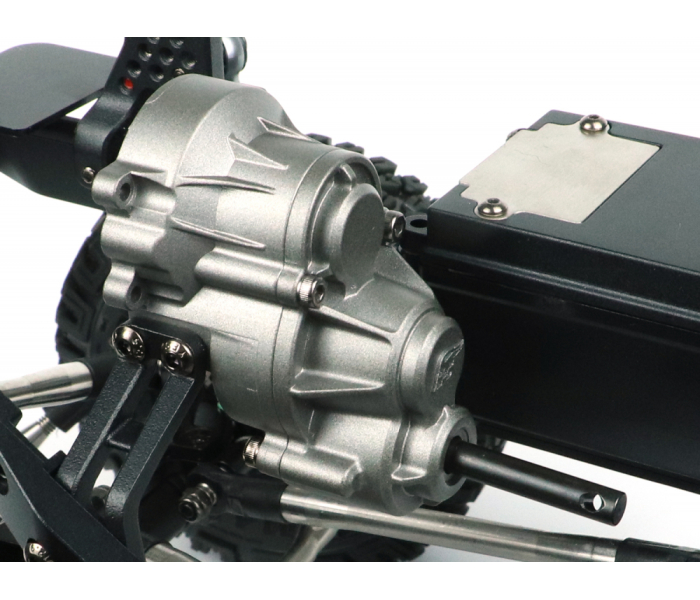

Developed as the single-speed counterpart to our BCF2™ 2-Speed Transmission, the BCF retains the compact front-mounted layout that places the motor and transmission toward the front of the chassis for a more realistic drivetrain configuration and improved scale appearance.

With no shifting mechanism or shift servo required, the BCF provides a straightforward, purpose-built drivetrain solution with fewer moving components and a clean installation.

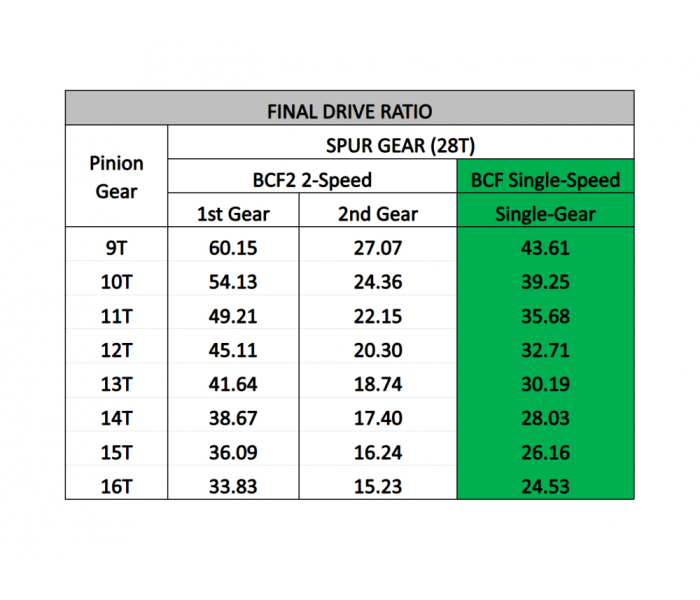

The gearing is set approximately halfway between the first and second gear ratios of the BCF2 transmission.

The BCF can be retrofitted to all BRX vehicles, giving existing BRX owners the option to convert to a compact single-speed transmission setup. Whether you're building a new BRX or converting an existing vehicle, the BCF provides a simple single-speed alternative to the BCF2.

Converting from BCF2 2-Speed to BCF Single-Speed:

  • The motor mounting position on the BRX chassis remains unchanged.
  • An extended transmission output shaft is included with the BCF Gearbox Set.
  • For BRX01, BRX02, BRX02-109, and BRX02 6x6 vehicles, the BCF Gearbox Set is a direct replacement.

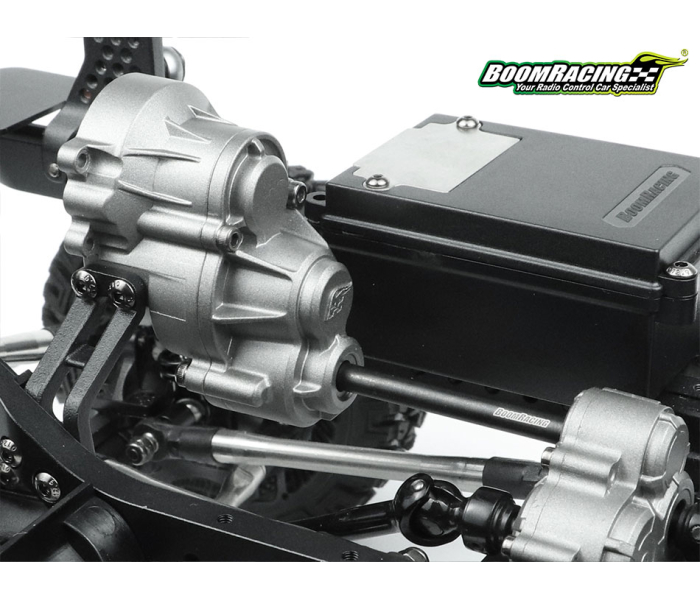

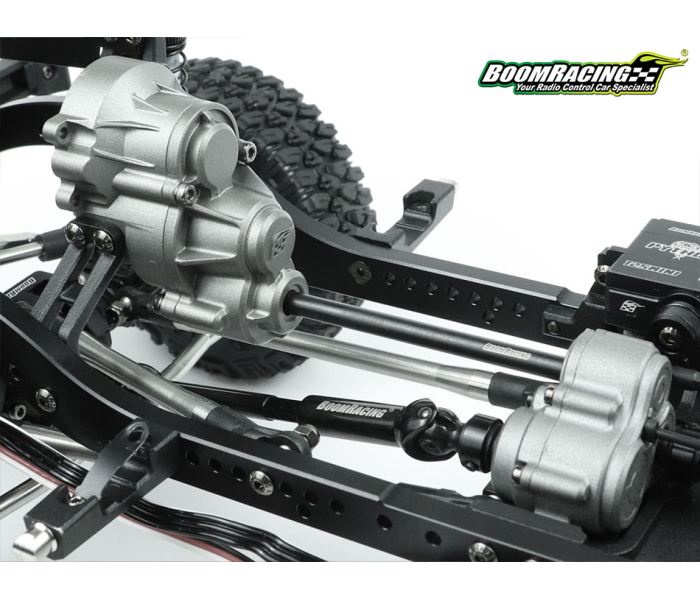

  • BRX01 AWB, BRX02-88, and BRX02 D130 vehicles use a High-Efficiency Coupler Shaft to connect the transmission to the transfer case. When converting these vehicles to the BCF, a longer High-Efficiency Coupler Shaft is required and is available separately.

Longer High-Efficiency Coupler Shafts are available for:
  • BRX01 (if modified) / BRX01 AWB (BR-G200S2)
  • BRX02-88 (BR-G200S1)
  • BRX02-D130 (BR-G200S3)

Features:
  • Compact Front-Mounted Design
  • Purpose-Built Single-Speed Transmission
  • Can Be Retrofitted to Existing BRX Vehicles
  • No Shift Servo Required
  • Simplified Drivetrain with Fewer Moving Components
  • Scale-Realistic Drivetrain Layout
  • Durable Gear-Driven Construction
  • Full Rubber-Sealed Ball Bearings
  • Compact Setup for BRX Chassis
  • Single-Speed Alternative to the BCF2™ 2-Speed Transmission
  • Note: Comes unassembled

Specifications:
  • Weight: 94g (fully assembled)

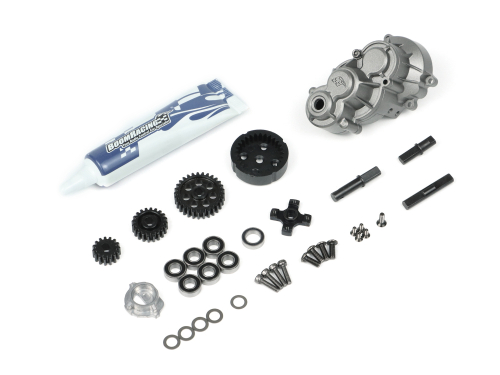

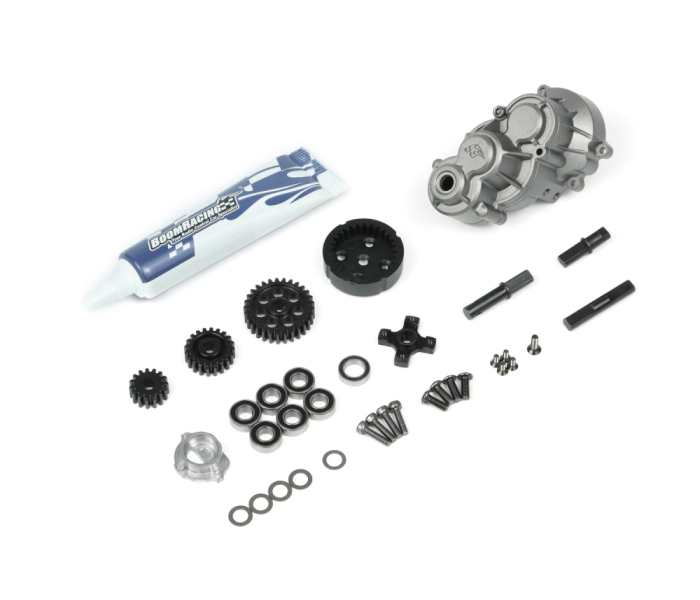

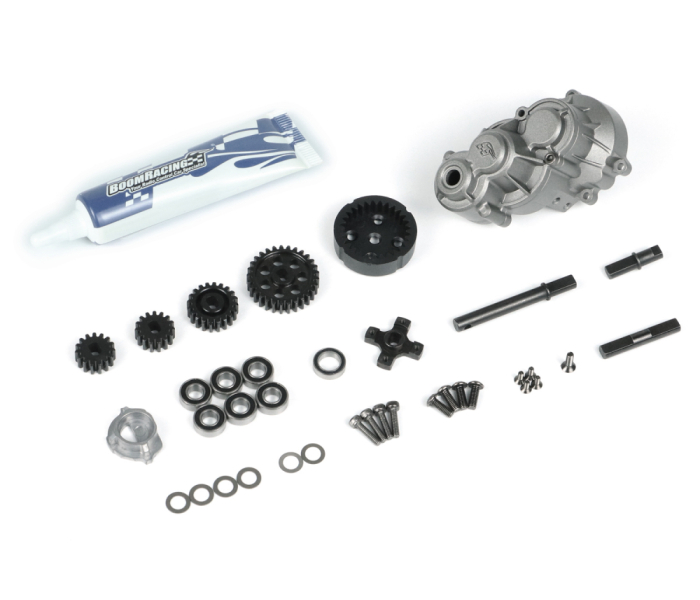

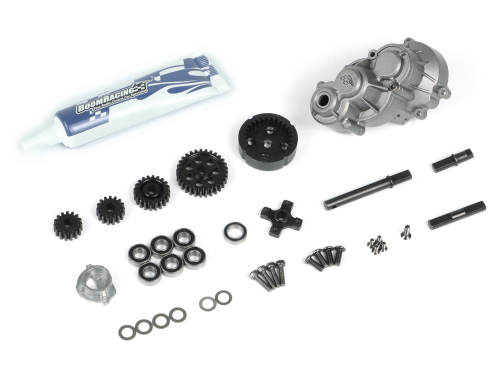

Includes:
  • 1x BCF Gearbox Housing A #
  • 1x BCF Gearbox Housing B #
  • 1x Gearbox Bearing Holder #
  • 1x Internal Spur Gear 28T #BRLC7031
  • 1x HD Steel Spur Gear Mount #BRLC7030
  • 1x Gear 29T #
  • 2x Gear 15T #BRLC7029-15T
  • 1x Gear 20T #BRLC7029-20T
  • 6x D5x11x4 Ball Bearing #BBZMR1152RS
  • 1x D7x11x3 Ball Bearing #BBZMR1172RS
  • 1x Gearbox Steel Main, Input & Output Shaft #BR-G200A
  • 4x D5x8x0.5 Spacer #BRASSPD5805
  • 1x D5x8x0.2 Spacer #BRASSPD5802
  • 4x M2x5 CSS #BRASFH2005
  • 1x M2.5x8 CSS #BRASFH2508
  • 4x M2.5x10 SC #BRASCH2510
  • 4x M3x8 RS #BRASBH3008
  • 1x Black Graphite Grease 10g #BRGRS1055-10


Difficulty Level:
  • 2 out of 5 (5 being the hardest)

Safety Information

Not a toy. Intended for ages 14+.
