Servo Winch Mount Kit for BRX01 AWB & BRX01

Fits BRX01 AWB
USD $49.00
  1. BRX01 AWB
  2. BRX01 AWB
  3. BRX01 AWB Optional Parts

Servo Winch Mount Kit for BRX01 AWB & BRX01

Fits BRX01 AWB

USD $49.00

Part #: BRLC70227


LOADING IMAGES

Servo Winch Mount Kit for BRX01 AWB & BRX01

Fits BRX01 AWB

USD $49.00

Part #: BRLC70227

BRX01 / BRX01 AWB Mount Kit BRX01 / BRX01 AWB Mount Kit
Switch Button Switch Button
Winch Line (2) Winch Line (2)
Winch Line & Hook Winch Line & Hook
Easy Access Knob Easy Access Knob
Universal Routing Kit Universal Routing Kit
220 Fast Gear Set 220 Fast Gear Set
Low Profile Fairlead Low Profile Fairlead
Stainless Steel Barrel Stainless Steel Barrel
3S Muscle Winch 555oz (40KG) 3S Muscle Winch 555oz (40KG)
Muscle Winch 500oz (36KG) Muscle Winch 500oz (36KG)
Metal Hook Metal Hook
Knob Replacement Knob Replacement
Spare Gear Set Spare Gear Set
BRX01 Mount Kit BRX01 Mount Kit
BRX02/BRX02 109 Mount Kit BRX02/BRX02 109 Mount Kit
BRX02 88 Mount Kit BRX02 88 Mount Kit
BRX01 / BRX01 AWB Mount Kit BRX01 / BRX01 AWB Mount Kit
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords BRX01 AWB Optional PartsBRX01 AWB Parts

PRODUCT DESCRIPTION

Product Resources
instruction-manual--servo-winch-mount-kit-for-brx01---awb_brlc70227_1750330689.pdf

This is a Servo Winch Mount Kit for the BRX01 AWB and BRX01 chassis.

This kit includes a complete setup for running an internal servo winch for the BRX01 AWB and BRX01.

A CNC aluminum winch mount secures a standard servo winch on the BRX01 AWB and BRX01 chassis.

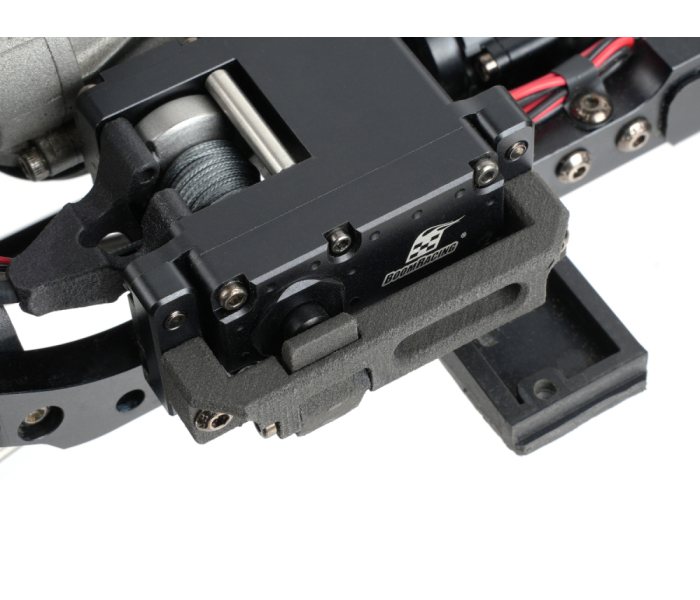

A switch and switch retainer together are explicitly designed for use with the Boom Racing Muscle Winch. The combined unit features an easy-access knob to engage the push-button of the Muscle Winch.

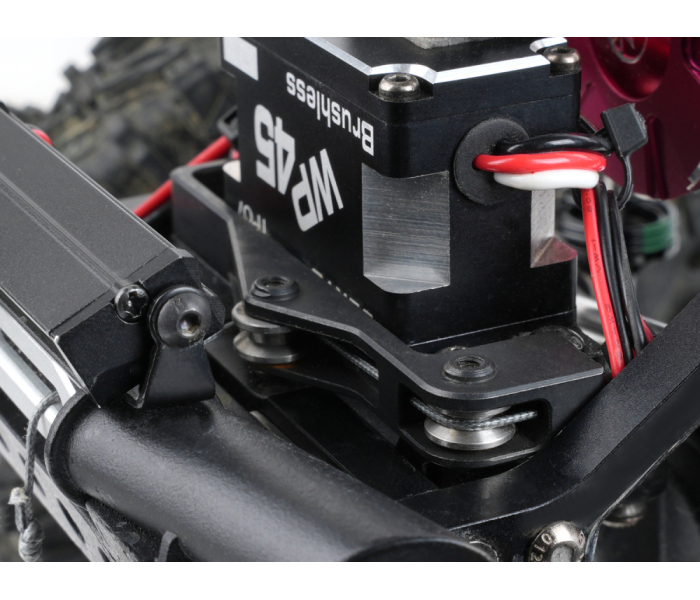

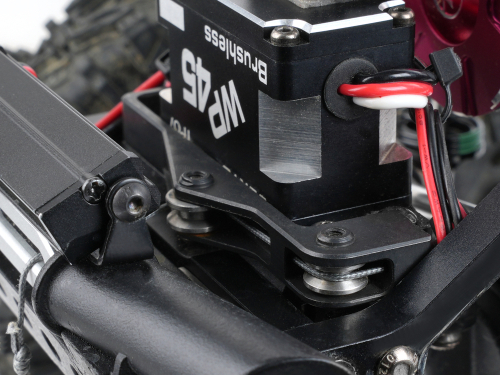

A front-mounted, hardened steel router unit features two pulleys to guide the winch line and facilitate a change in direction. A routing tube and a routing tube retainer are included to guide the winch line from the Muscle Winch to the router unit for smooth operations.

If using with BRX01, an optional LC70 CNC hardbody mount (#BRLC7098) is required to maintain the quick-release feature and to allow the winch line to pass directly through.

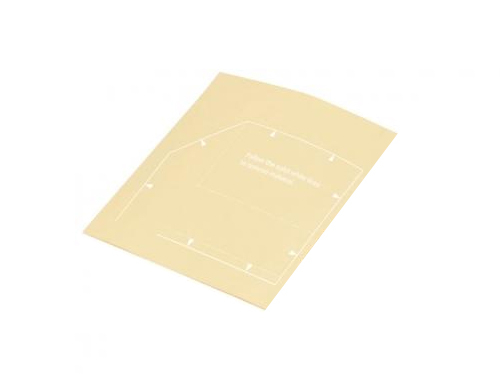

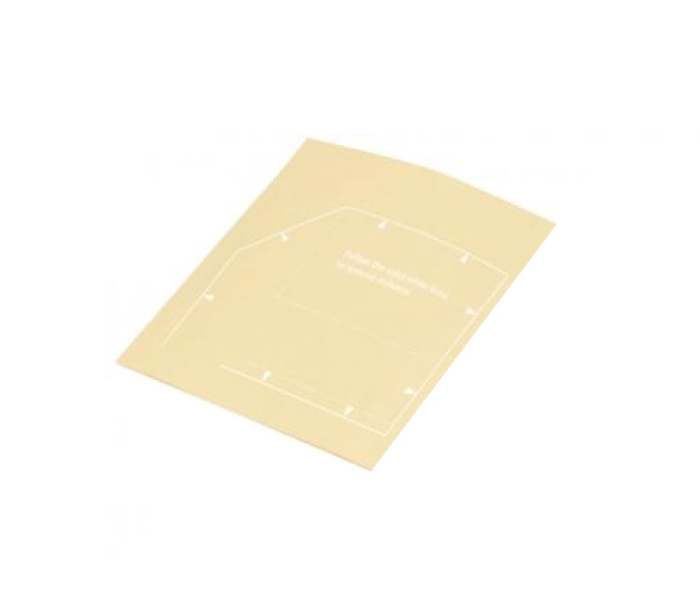

If you have the LC70 interior installed, a cut-out guideline is included. Place the guideline onto the interior (as shown in Step 6 in the manual) and follow the solid white lines to remove the material.

Includes:

  • 1x Aluminum Winch Mount
  • 1x Switch Retainer
  • 1x Switch
  • 1x Routing Tube Retainer
  • 1x Hardened Steel Router
  • 2x Stainless Steel Pulley
  • 2x Pivot Tube
  • 1x Routing Tube
  • 1x M2x16 SC Screw #BRASCH2016
  • 2x M2.5x8 RS Screw #BRASCH2508
  • 2x M3x8 RS Screw #BRASCH3008
  • 4x M3x12 RS Screw #BRASCH3012
  • 1x Interior Cut-Out Guideline for BRX01 + Killerbody LC70 interior

Optional Part:
  • If using with BRX01, Pass-Thru Aluminum Front Body Mount for LC70 #BRLC7098

Compatibility:
  • This Servo Winch Mount Kit is designed for the BRX01 AWB using the Muscle Winch. The servo winch Mount will fit other standard servos. It is intended to be installed on the left-hand side of the BRX01 AWB and BRX01 chassis. The Switch and Switch Retainer are designed explicitly for the Muscle Winch.

Fits:
  • BRX01 AWB
  • BRX01
