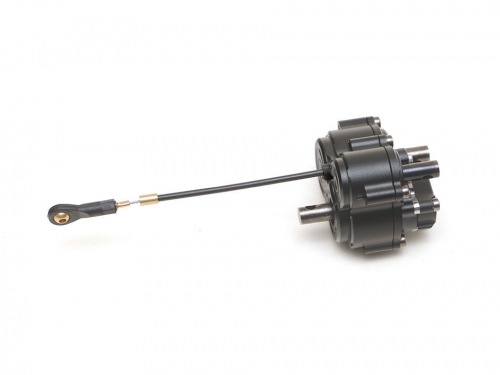

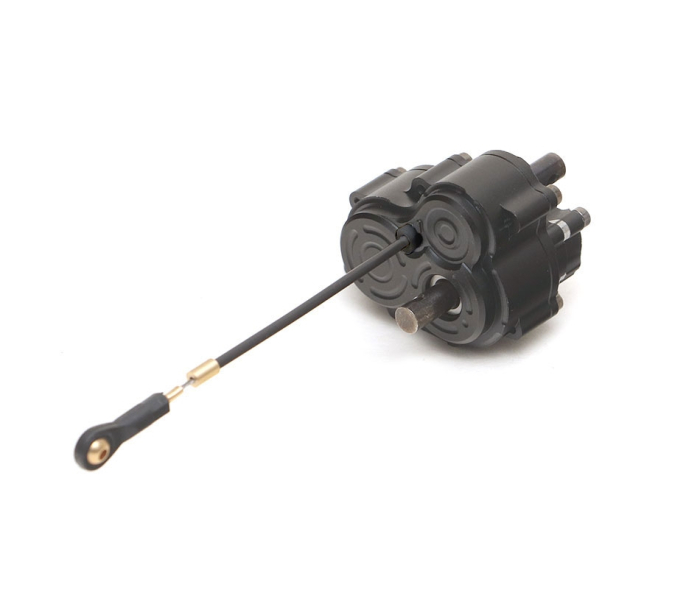

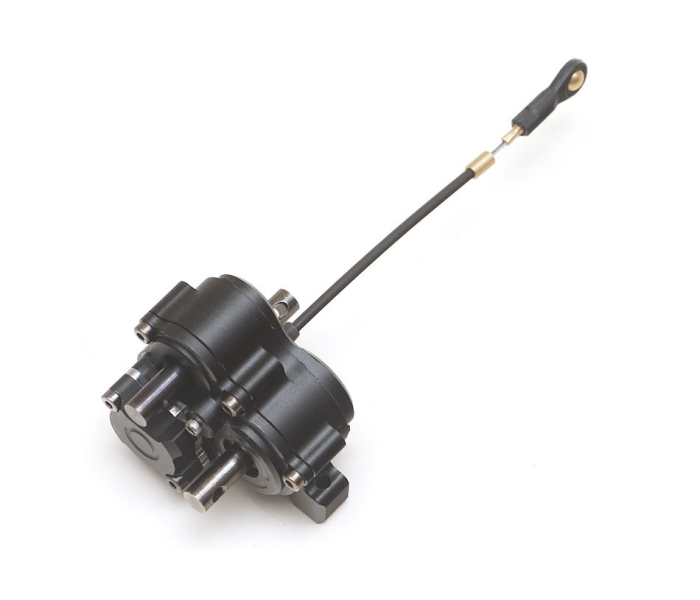

DIG Transfer Case Kit for BRX01 & BRX01 AWB

Fits BRX01, BRX01 AWB

USD $75.00

Part #: BRLC70101-DIG


LOADING IMAGES

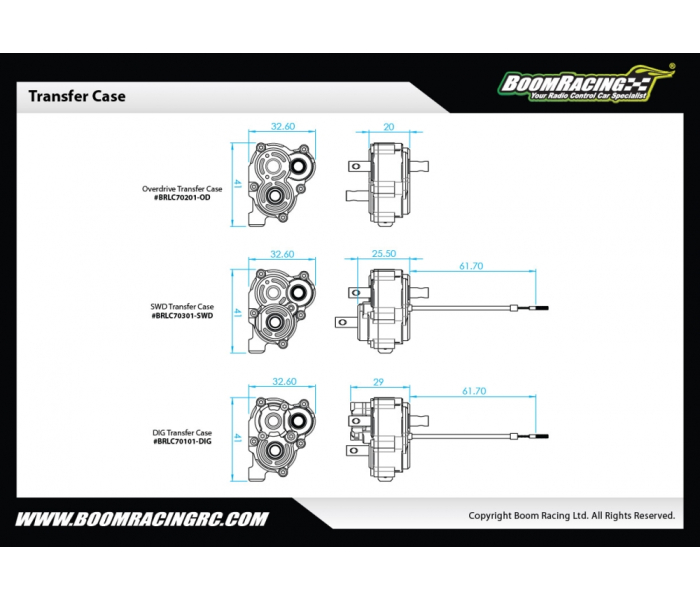

DIG Transfer Case Kit for BRX01 & BRX01 AWB

Fits BRX01, BRX01 AWB

USD $75.00

Part #: BRLC70101-DIG

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Transfer BoxBRX01 PartsBRX01 Optional PartsBRX01 AWB Optional PartsBRX01 AWB Parts

PRODUCT DESCRIPTION

Product Resources
instruction-manual---dig-t-case-for-brx-chassis_1625666684.pdf

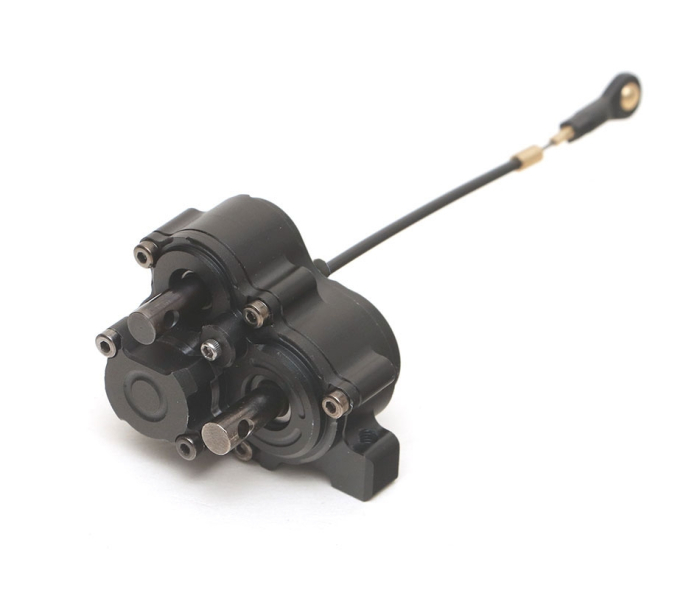

Improve the turning radius of your BRX01 or BRX01 AWB chassis with this DIG Transfer Case Kit unit.

Remotely lock the rear axle using this DIG T-Case to reduce the turning radius immediately.

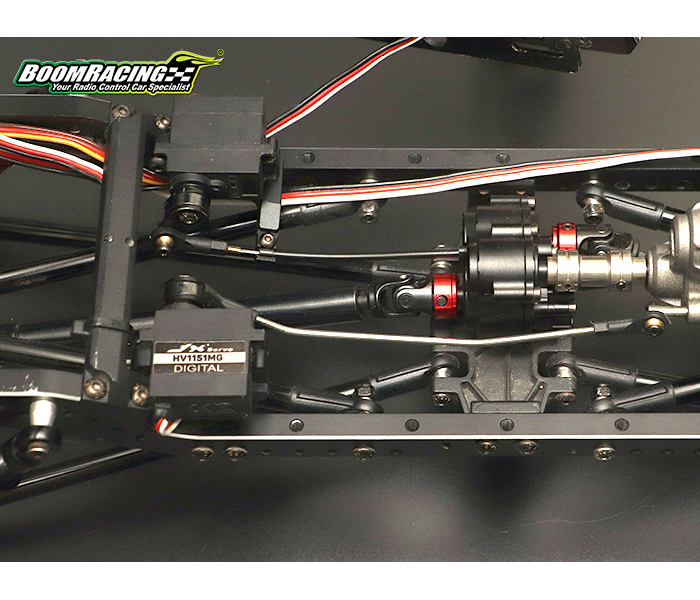

BRX01 Setup:

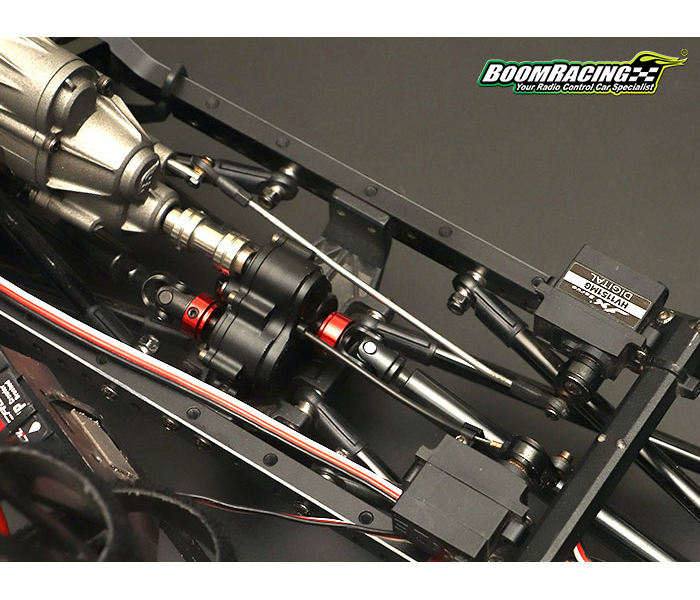

To setup the dig unit, replace the stock transfer case with the DIG T-Case. Use with Boom Racing Mini Servo Mount Set for BRX01 (with Mini Servo) #BRLC70100KIT. The servo setup instruction manual is available with the Mini Servo Mount for BRX01.

BRX01 AWB Setup:
For the BRX01 AWB, the following parts are required:

  • BRLC70223A Wire Cable Retainer for BRX01 AWB
  • BRLC70223L Mini Servo Mount for BRX01 AWB
  • BRLC7049 Aluminum Servo Horn Set
  • BRLC70301-SWD SWD T-Case
  • JX/PDI-HV1151MG Mini Servo

This DIG T-Case will also fit the optional Overdrive HD Gear Set for BRX T-Case (33T, 25T, 16T) #BRLC70201-GEAR, which adds 32% overdrive to the front wheels.

Features:
  • Significantly reduce turning radius
  • Remotely locking the rear axle
  • Improve steering ability

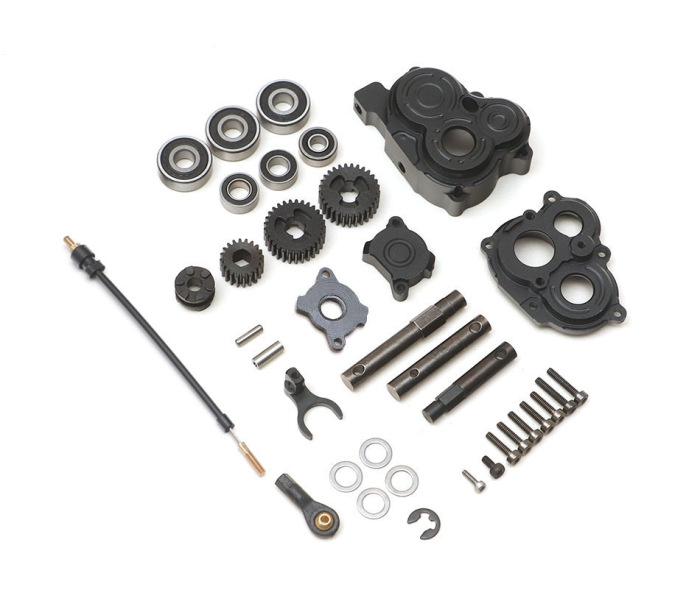

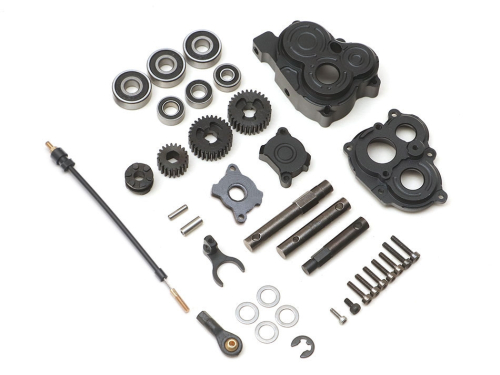

  • Heavy-duty steel gear set
  • Billet aluminum transfer case housing
  • Full rubber-sealed ball bearings
  • Keeps the original anti torque twist feature (counter-rotating output shafts)

Fits:
  • Boom Racing BRX01 and BRX01 AWB chassis

Note: This does not fit the BRX02. The BRX02 uses a longer cable.

Optional:
  • Overdrive HD Gear Set for BRX T-Case (33T, 25T, 16T) #BRLC70201-GEAR

Replacement
  • Wire Cable for BRX01 DIG / SWD Transfer Case #BRLC70306
