Complete Assembled BRX90 Pass-Thru PHAT Axle for 6x6 / 8x8

Fits BRX02 6x6
USD $106.00
  1. Phat Axle
  2. Phat Axle
  3. Drivetrain & Gears
  4. Drivetrain
  5. Complete Axle

Complete Assembled BRX90 Pass-Thru PHAT Axle for 6x6 / 8x8

Fits BRX02 6x6

USD $106.00

Part #: BRX026623


LOADING IMAGES

Complete Assembled BRX90 Pass-Thru PHAT Axle for 6x6 / 8x8

Fits BRX02 6x6

USD $106.00

Part #: BRX026623

BRX90 Pass Thru Axle BRX90 Pass Thru Axle
BRX70 Front BRX70 Front
BRX70 Rear BRX70 Rear
BRX80 Front BRX80 Front
BRX80 Rear BRX80 Rear
BRX90 Front BRX90 Front
BRX90 Rear BRX90 Rear
BRX70 Front Portal BRX70 Front Portal
BRX70 Rear Portal BRX70 Rear Portal
BRX80 Front Portal BRX80 Front Portal
BRX80 Rear Portal BRX80 Rear Portal
BRX90 Front Portal BRX90 Front Portal
BRX90 Rear Portal BRX90 Rear Portal
BRX02 Link Front BRX02 Link Front
BRX02 Link Rear BRX02 Link Rear
BRX02 Leaf Front BRX02 Leaf Front
BRX02 Leaf Rear BRX02 Leaf Rear
BRX01 AWB Leaf/BRX02-88/109 Front BRX01 AWB Leaf/BRX02-88/109 Front
BRX01 AWB Leaf/BRX02-88/109 Rear BRX01 AWB Leaf/BRX02-88/109 Rear
BRX01 Front BRX01 Front
BRX01 Rear BRX01 Rear
BRX01 AWB Link Front BRX01 AWB Link Front
BRX01 AWB Link Rear BRX01 AWB Link Rear
BRX90 Pass Thru Axle BRX90 Pass Thru Axle
Complete Axle Complete Axle
BRX02 6x6 Conversion Kit BRX02 6x6 Conversion Kit
Complete Axle Complete Axle
6X6 / 8x8 Axle Gear Set 6X6 / 8x8 Axle Gear Set
6x6 Center Diff Unit 6x6 Center Diff Unit
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Complete AxlePhat Axle PartsBRX02 6x6 Parts

PRODUCT DESCRIPTION

This is a complete assembled BRX90 Pass-Thru PHAT Axle for 6x6 and 8x8 builds. The Boom Racing PHAT axle is the go-to scale truck axle combining high-performance features with precision-made scale realism. It is an ultra-scale, heavy-duty axle set designed for top performance for any truck builds. The beefy housing keeps the vehicle nicely planted on the ground.

Features:

  • High mass heavy-duty performance axle for crawler and truck projects
  • Straightforward solid-axle design for easy installation
  • New keyed HD helical bevel gear set specifically designed for the pass-thru axle. Bevel gears are keyed for extra durability and strength.
  • Reversible axle bevel gear positions for standard or counter rotation setups (swap gear to the opposite side for counter rotation center drivetrain setup)
  • Detachable CNC aluminum truss
  • Leaf spring ready for over or under the axle leaf spring setup
  • BADASS HD Steel wheel shaft for ultimate durability and strength for the axle drivetrain
  • 12.9-grade hardware
  • Full ball bearings

Specs:
  • Weight: 200.1 grams (fully assembled)

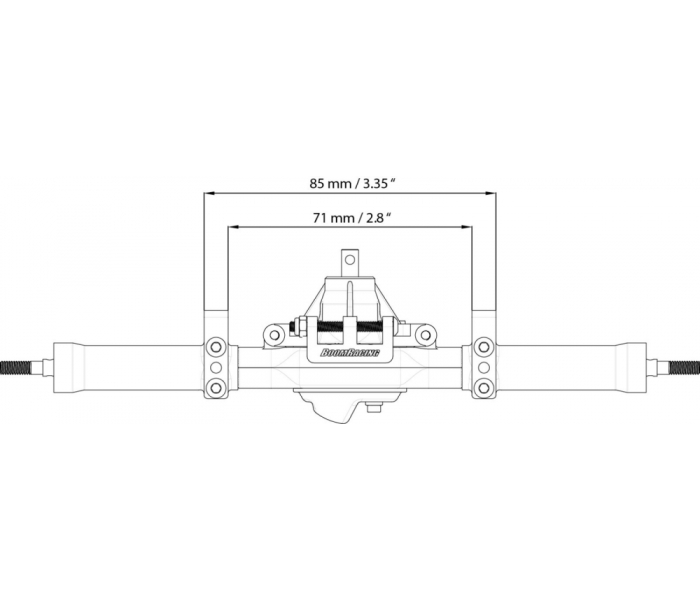

  • 176mm / 6.93 inch pin to pin (front and rear)
  • Ring Gear: 30T
  • Pinion Gear: 8T

Includes:
  • 1x BRX90 Pass-Thru PHAT Axle
  • 2x 12mm alum hex
  • 2x M4 wheel nut
  • 2x drive pin
  • 2x set screw

You will need:
  • 6X6 Axle Gear Set for BRX70/BRX80/BRX90 PHAT Axle for the connecting axle #BRX026615KIT


Optional:

  • For Leaf Spring setup, additional optional parts may/may not be needed depending on your setup. Leafs can be mounted directly on top or under the axle. We recommend
    • Steel Leaf Spring Channel w/ Shock Mount for BRX70 / BRX80 / BRX90 Axle (2) BRLC7010
  • For portal axle setup, use the BRX90 portal axle conversion kit
    • With Steering: BRPT9022KIT
    • Non Steering: BRPT9023KIT


When you receive the axle:
Make sure all of the screws are tightened properly.

The gear positions are factory setup and should be ready to go. Rotate the drivetrain by hand for physical inspection.

Install spacers accordingly between the center driveshaft and the input shaft to prevent the input shaft from unnecessary slop.
