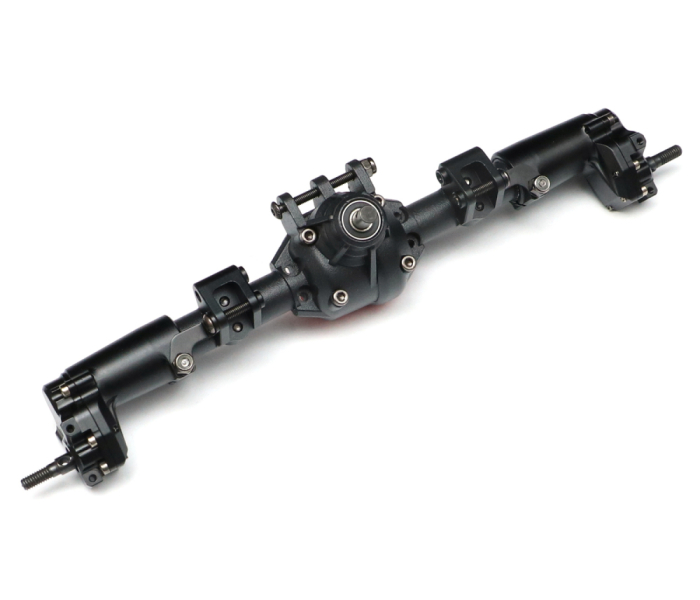

Complete Rear Assembled AR44 Portal PHAT™ Axle

USD $119.00

Part #: BRPT955023


LOADING IMAGES

Complete Rear Assembled AR44 Portal PHAT™ Axle

USD $119.00

Part #: BRPT955023

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

The Official Scale Performance Chassis of the RECON G6

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Complete AxlePhat Axle PartsRECON G6 Certified

PRODUCT DESCRIPTION

Introducing the Boom Racing AR44 PHAT Portal Axles, factory-assembled and ready to run.

Built heavier than most standard axles, PHAT portals add valuable low-mounted weight where crawlers need it most, helping improve stability and maintain a lower center of gravity on technical terrain.

Strength matches performance. Inside, heavy-duty hardened steel gears deliver smooth, reliable power transfer with long-term durability. Paired with BADASS high-strength alloy steel driveshafts, the system is engineered to handle serious crawling without compromise.

Scale realism. Added weight. Proven durability.

Specifications:

  • Hole to Hole: 193mm (7.6")
  • Weight: 270grams / 9.5oz (fully assembled)
  • Input pinion shaft: 5mm


Features:

  • Additional 15mm / 0.59" ground clearance at the pumpkin over AR44 straight axle
  • Heavy and low CG AR44 PHAT axle housing

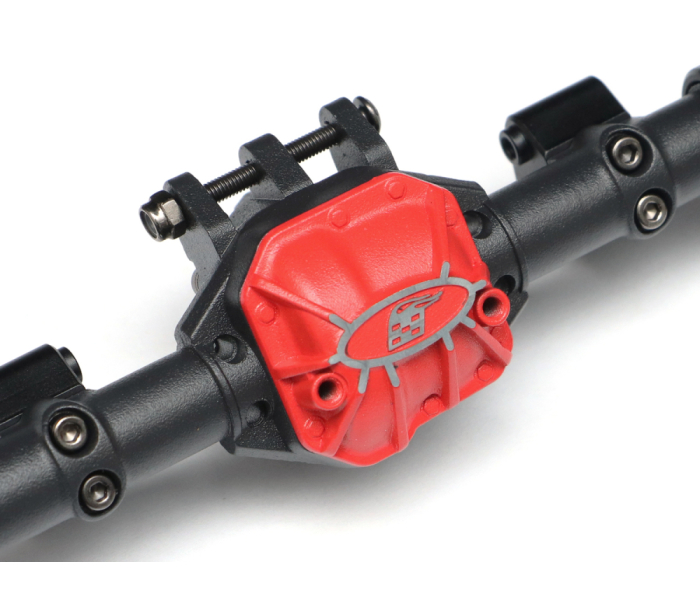

  • Heavy and low CG AR44 PHAT diff cover

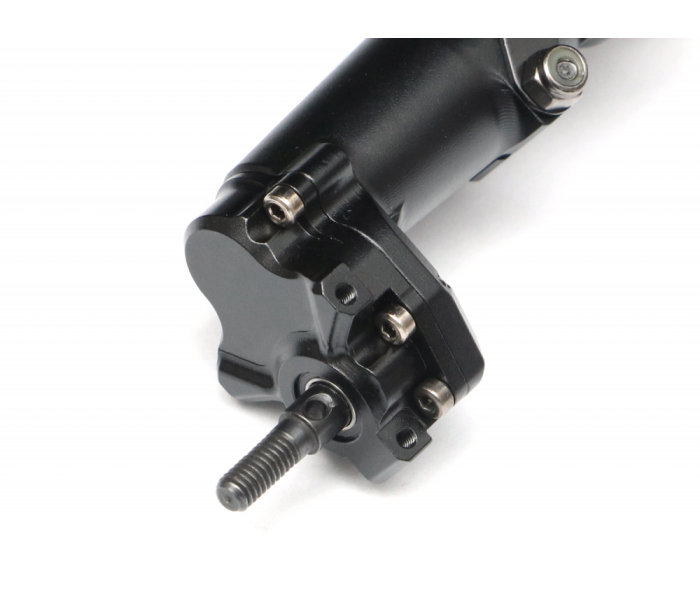

  • CNC anodized aluminum lockouts and portal covers
  • BADASS™ heavy-duty steel rear driveshafts and portal driveshafts for ultimate durability, performance, and strength for the axle drivetrain
  • Four heavy-duty hardened steel metal gears in each portal gearbox for ultimate durability; easy to set up as standard rotational drivetrain

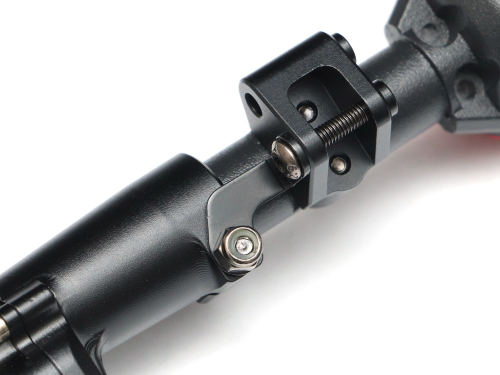

  • Steel brackets included for added axle strength

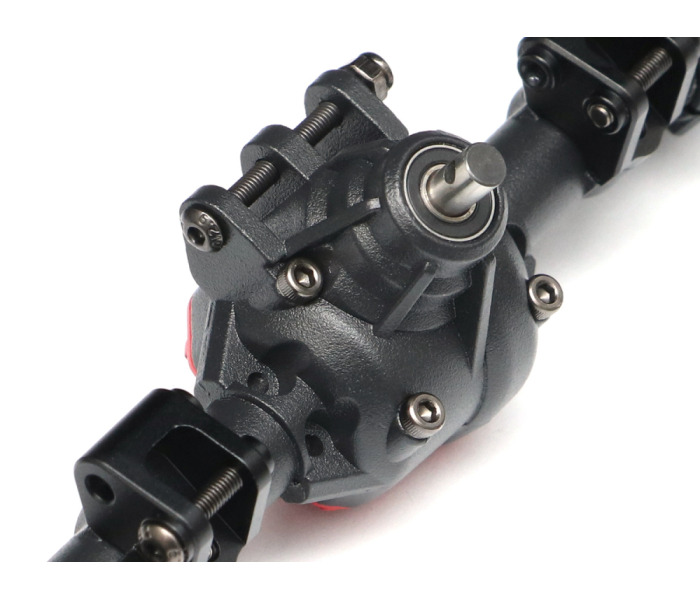

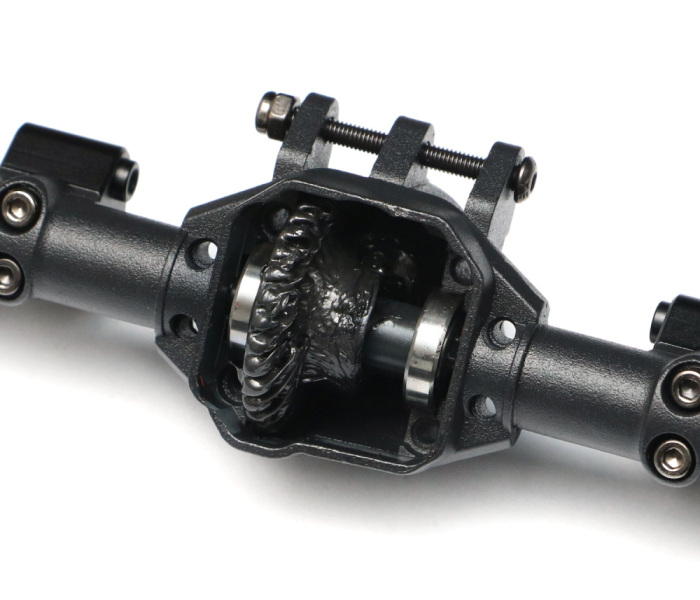

  • Heavy-duty triangular keyed AR44 (30/8T) high pinion machined gear, input shaft, and triangulated spool #BR955020 (optional 33/8T underdrive gear #BR955042)
  • High pinion axle setup for improved clearance
  • Reversible ring gear position in the housing and optional reversed AR44 gear for counter-rotating center drivetrain setup
  • Compatible with PHAT™ axle brake disc and caliper (requires optional adapter #BRPT005)

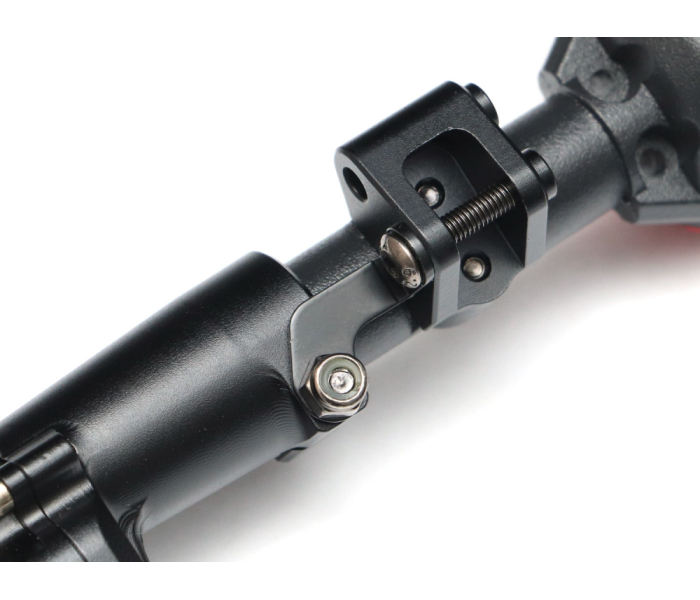

  • Anodized aluminum lower link mounts
  • Aluminum 12mm wheel hex
  • Full rubber shielded ball bearings
  • Full 12.9-grade hardware
  • Shims for fine tuning
