BRX90 Front Straight PHAT™ Axle (Center Pumpkin) w/ AR44 HD Gears for BRX02 Leaf Version Assembled

Fits BRX02, BRX02

USD $115.00

Part #: BRX020022LF


LOADING IMAGES

BRX90 Front Straight PHAT™ Axle (Center Pumpkin) w/ AR44 HD Gears for BRX02 Leaf Version Assembled

Fits BRX02, BRX02

USD $115.00

Part #: BRX020022LF

BRX02 Leaf Front BRX02 Leaf Front
BRX70 Front Straight Center Diff BRX70 Front Straight Center Diff
BRX70 Rear Straight Center Diff BRX70 Rear Straight Center Diff
BRX80 Front Straight Center Diff BRX80 Front Straight Center Diff
BRX80 Rear Straight Center Diff BRX80 Rear Straight Center Diff
BRX90 Front Straight Center Diff BRX90 Front Straight Center Diff
BRX90 Rear Straight Center Diff BRX90 Rear Straight Center Diff
BRX70 Front Portal BRX70 Front Portal
BRX70 Rear Portal BRX70 Rear Portal
BRX80 Front Portal BRX80 Front Portal
BRX80 Rear Portal BRX80 Rear Portal
BRX90 Front Portal BRX90 Front Portal
BRX90 Rear Portal BRX90 Rear Portal
BRX02 Link Front BRX02 Link Front
BRX02 Link Rear BRX02 Link Rear
BRX02 Leaf Front BRX02 Leaf Front
BRX02 Leaf Rear BRX02 Leaf Rear
BRX01 AWB Leaf/BRX02-88/109 Front BRX01 AWB Leaf/BRX02-88/109 Front
BRX01 AWB Leaf/BRX02-88/109 Rear BRX01 AWB Leaf/BRX02-88/109 Rear
BRX01 Front BRX01 Front
BRX01 Rear BRX01 Rear
BRX01 AWB Link Front BRX01 AWB Link Front
BRX01 AWB Link Rear BRX01 AWB Link Rear
BRX90 Pass Thru Axle BRX90 Pass Thru Axle
BRX70 Front Straight Link Offset Diff BRX70 Front Straight Link Offset Diff
BRX70 Front Straight Leaf Offset Diff BRX70 Front Straight Leaf Offset Diff
BRX80 Front Straight Link Offset Diff BRX80 Front Straight Link Offset Diff
BRX80 Front Straight Leaf Offset Diff BRX80 Front Straight Leaf Offset Diff
BRX90 Front Straight Link Offset Diff BRX90 Front Straight Link Offset Diff
BRX90 Front Straight Leaf Offset Diff BRX90 Front Straight Leaf Offset Diff
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Complete AxlePhat Axle PartsBRX02 Parts

PRODUCT DESCRIPTION

This is a BRX90 Complete Front PHAT™ Axle for BRX02 Leaf version. This is a complete replacement front axle for the BRX02 D110 Leaf Chassis Kit [BR8005].

Features:

  • PHAT axle 280grams total weight (front)
  • Keyed HD AR44 Helical Bevel Gear Set. Bevel gears are keyed for extra durability and strength. Standard AR44 high pinion gear & input shaft
  • High pinion axle setup for better clearance
  • Removable third member with reversible axle bevel gear positions for standard or counter rotation setups (swap gear to opposite side for counter rotation center drivetrain setup)
  • AR44 compatible cast metal knuckles
  • Cast metal splined axle housing and cast metal C-hubs with adjustable caster angles for steering adjustments
  • Detachable aluminum forward-steering knuckle levers (#BRLC7002/A and #BRLC7002/C)
  • Steel damper mount
  • BADASS HD Steel universal shaft for ultimate durability and strength for the axle drivetrain
  • Complete rubber-sealed ball bearings
  • Aluminum 12mm hex (5mm width)
  • M4 nyloc nut
  • Wheel pins
  • Shims
  • Pre-installed with all hardware included

Size:

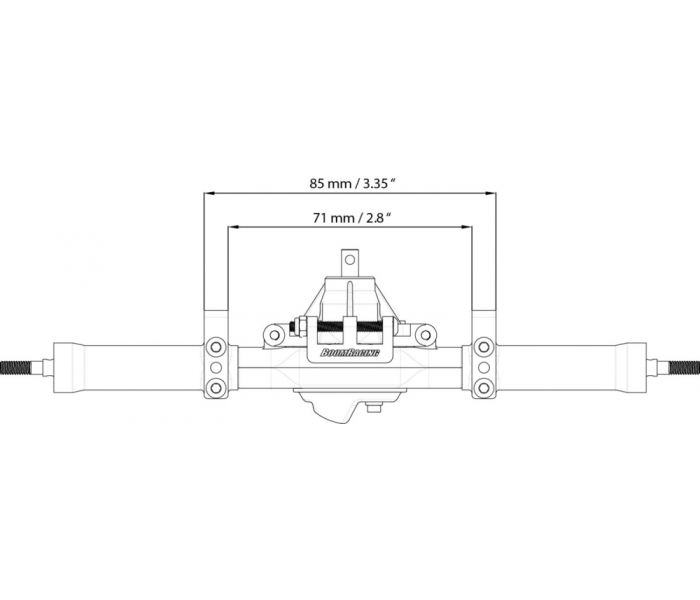

  • 176mm / 6.93 inch pin to pin (front and rear)

Optional:
  • Leaf springs set #BRLC7064A
