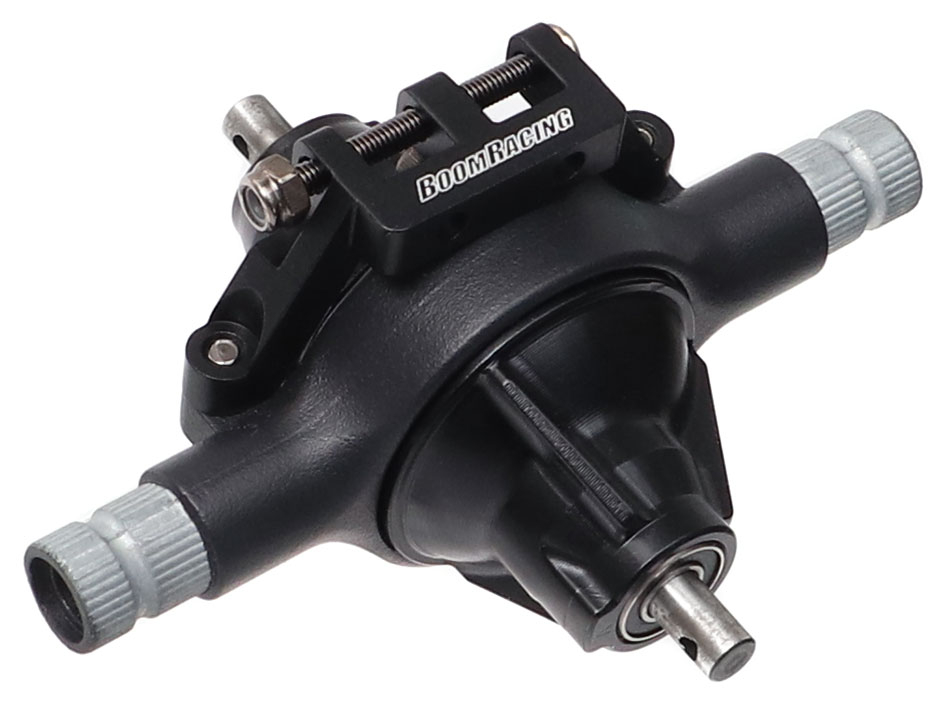

Pass-Thru PHAT™ Axle Center Housing Unit Set w/ AR44 HD Gears for 6X6 & 8X8 Builds

Fits BRX02 6x6

USD $73.00

Part #: BRX026624


LOADING IMAGES

Pass-Thru PHAT™ Axle Center Housing Unit Set w/ AR44 HD Gears for 6X6 & 8X8 Builds

Fits BRX02 6x6

USD $73.00

Part #: BRX026624

Center Diff Unit Center Diff Unit
BRX02 6x6 Conversion Kit BRX02 6x6 Conversion Kit
BRX90 Complete Axle BRX90 Complete Axle
Center-Pinion Third Member Gear Set Center-Pinion Third Member Gear Set
Center Diff Unit Center Diff Unit
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on non-heavy items

On US orders $120+ (including territories)

free shipping for heavy items

1 heavy item: Add $200 in non-heavy items to get free shipping.
2+ heavy items: Add $100 in non-heavy items to get free shipping.

Tagged Keywords Complete AxleAxle PartsAxle Conversion KitsPhat Axle PartsUpgrade LoversBRX02 6x6 Parts

PRODUCT DESCRIPTION

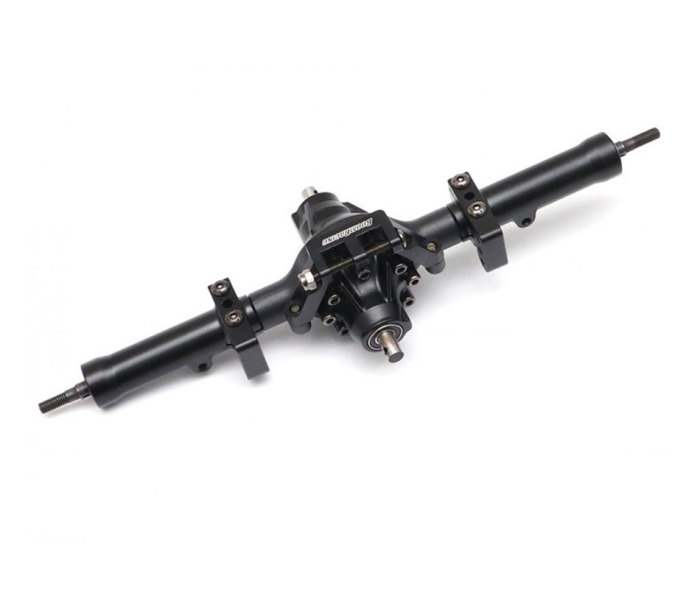

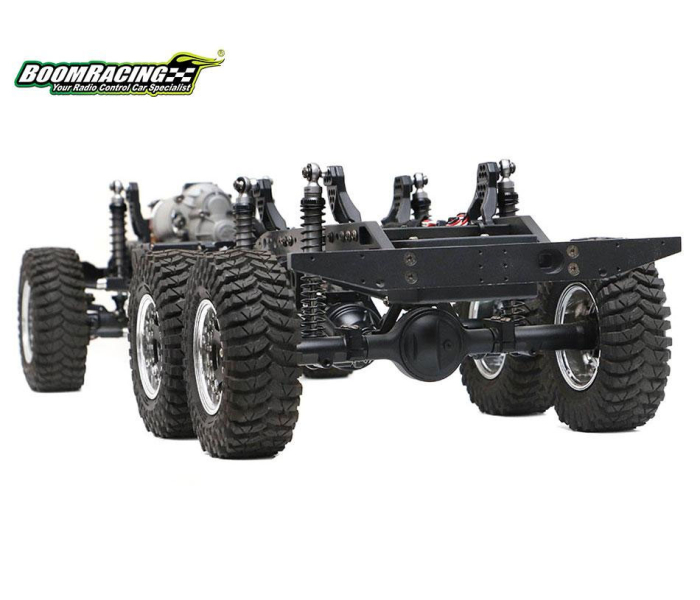

Build a custom powered pass-through axle for your 6X6, 8X8, or other multi-axle project.

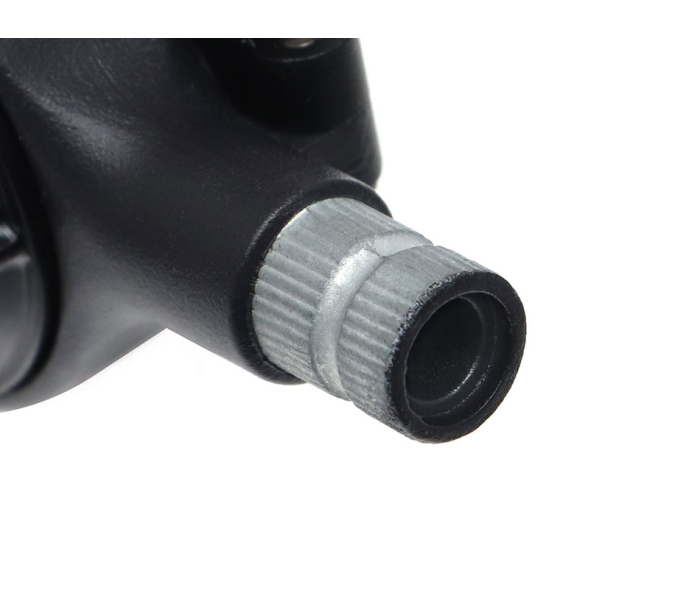

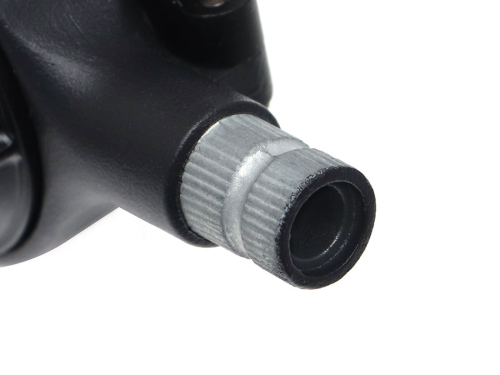

This Pass-Thru PHAT™ Axle Center Housing Unit features pinion input and output on opposite sides of the center housing, allowing drivetrain power to enter the axle and continue through to the next powered axle.

The modular PHAT™ axle system allows this center unit to be configured as either a steering or non-steering axle in BRX70, BRX80, BRX90, or BRX100 width using the appropriate axle components.

The heavy cast center housing keeps weight low, while the locked differential, heavy-duty 30/8T helical ring and pinion gears, and triangular-keyed steel spool provide a strong drivetrain for high-articulation and demanding multi-axle builds.

Features:

  • Designed for custom 6X6, 8X8, and multi-axle builds
  • True pass-through design transfers power through the axle to the next powered axle
  • Pinion input and output on opposite sides of the center housing
  • Build as a steering or non-steering pass-through axle
  • Configurable in BRX70, BRX80, or BRX90 axle widths
  • Heavy cast center housing helps keep the center of gravity low
  • Locked differential configuration
  • Heavy-duty steel 30/8T helical-cut ring and pinion gears
  • Heavy-duty steel triangular-keyed spool and ring gear
  • Straight input and output pinions provide excellent driveshaft articulation

Build the exact axle you need:
  • BRX70 Steering Straight Axle
    • BADASS™ Ultra Hard Steel Universal Driveshaft BRBDLC7010
    • Aluminum C-Hub BRLC7001
    • Aluminum Knuckle BRLC7002
      • Aluminum Knuckle Arms BRLC7002ARM (front steering link) or
      • Aluminum Knuckle Arms (High Clearance) BRLC7002/A + BRLC7002/C (front steering link) or
      • Aluminum Knuckle Arms BRLC7002/B + BRLC7002/A (behind-the-axle steering link)
    • Drag Links BRLC7063
    • Stainless Steel Steering Link Tie Rod BRLC7003
  • BRX70 Non-Steering Straight Axle
    • BADASS™ Ultra Hard Steel Rear Shaft BRBDLC7011
    • Aluminum Rear Lockout BRLC7006
    • Stainless Steel Link Mount BRLC7005
    • Bearings two D5x9x3 and two D5x11x4
  • BRX80 Steering Straight Axle
    • BADASS™ Ultra Hard Steel Universal Driveshaft BRBD8001
    • Aluminum C-Hub BRD8011
    • Aluminum Knuckle BRLC7002
      • Aluminum Knuckle Arms BRLC7002ARM (front steering link) or
      • Aluminum Knuckle Arms (High Clearance) BRLC7002/A + BRLC7002/C (front steering link) or
      • Aluminum Knuckle Arms BRLC7002/B + BRLC7002/A (behind-the-axle steering link)
    • Drag Links BRD8063

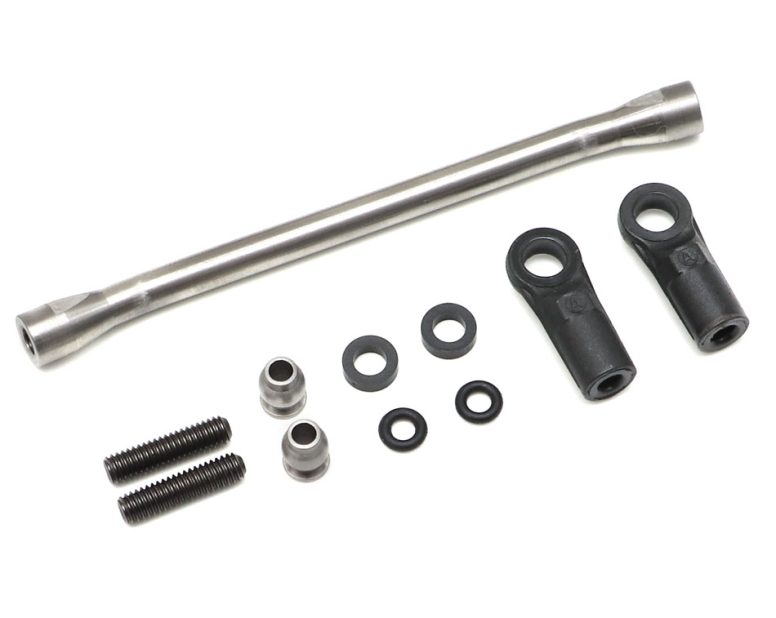

    • Stainless Steel Steering Link Tie Rod (1) BRD8022A
  • BRX80 Non-Steering Straight Axle
    • BADASS™ Ultra Hard Steel Rear Shaft BRBD8002
    • Aluminum Rear Lockout BRD8012
  • BRX90 Steering Straight Axle
    • BADASS™ Ultra Hard Steel Universal Driveshaft BRBD9001
    • Aluminum C-Hub BRD9011
    • Aluminum Knuckle BRLC7002
      • Aluminum Knuckle Arms BRLC7002ARM (front steering link) or
      • Aluminum Knuckle Arms (High Clearance) BRLC7002/A + BRLC7002/C (front steering link) or
      • Aluminum Knuckle Arms BRLC7002/B + BRLC7002/A (behind-the-axle steering link)
    • Drag Links BRD9063
    • Stainless Steel Steering Link Tie Rod BRD9022A
  • BRX90 Non-Steering Straight Axle
    • BADASS™ Ultra Hard Steel Rear Shaft BRBD9002
    • Aluminum Rear Lockout for BRX90 PHAT Axle BRD9012

Other optional parts:
  • Full Ball Bearings Set PHAT7890BBZ (good for one steering axle & one non-steering axle)
  • Front Skid Plate BRLC7086F (for front axle with behind axle steering link)
  • Rear Skid Plate BRLC7086R (for rear axle or front axle with front steering link)
  • Aluminum Low Profile Truss BRLC7004
  • Aluminum Link Mount BRLC7005
  • Aluminum Servo Mount on Axle BRLC7007
  • Steel Leaf Spring Channel w/ Shock Mount BRLC7010
  • XT Diff Cover BRLC7088

Bearing Sizes:
  • D5x14x5 #BBZ6052RS x2
  • D5x11x4 #BBZMR1152RS x2
  • D7x14x3.5 #BBZ687OPEN x2

Includes:

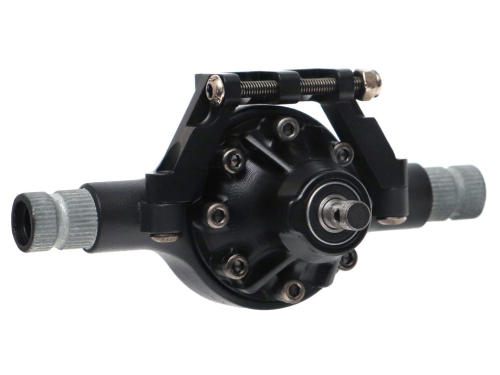

  • Center housing unit including third member and pumpkin
  • Ring and two pinion gears
  • Complete rubber sealed bearings
  • Aluminum truss

Safety Information

Not a toy. Intended for ages 14+.
