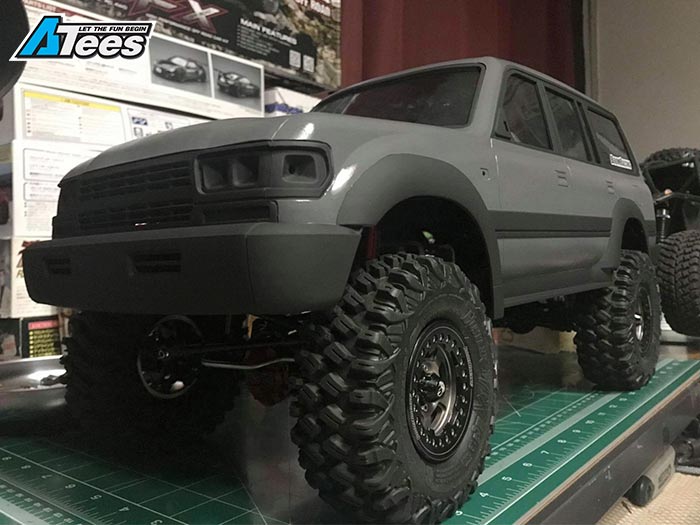

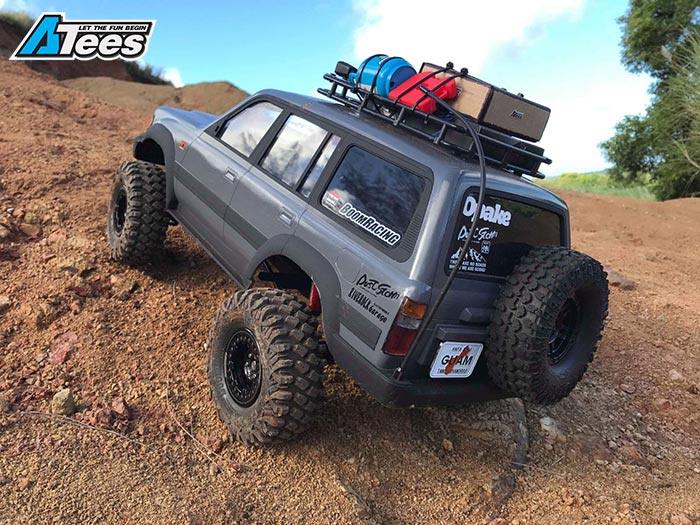

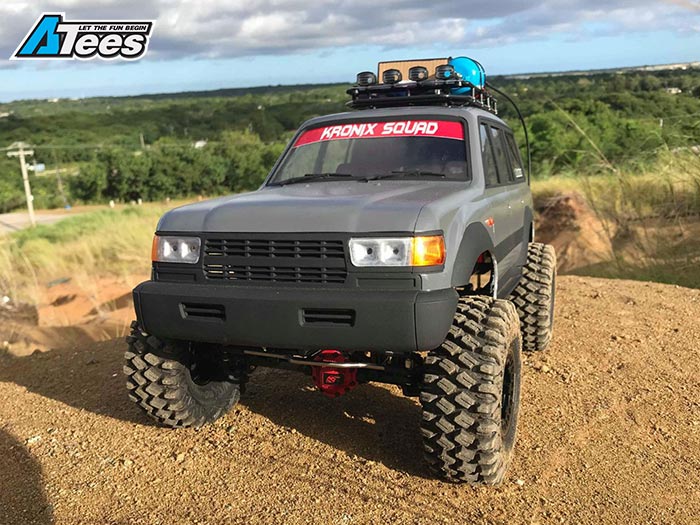

"NO MAN'S LAND" Build Toyota Land Cruiser LC80

7839 Views

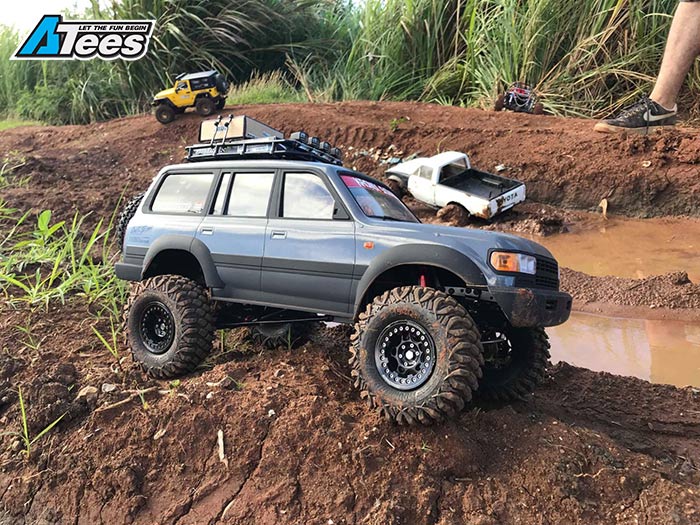

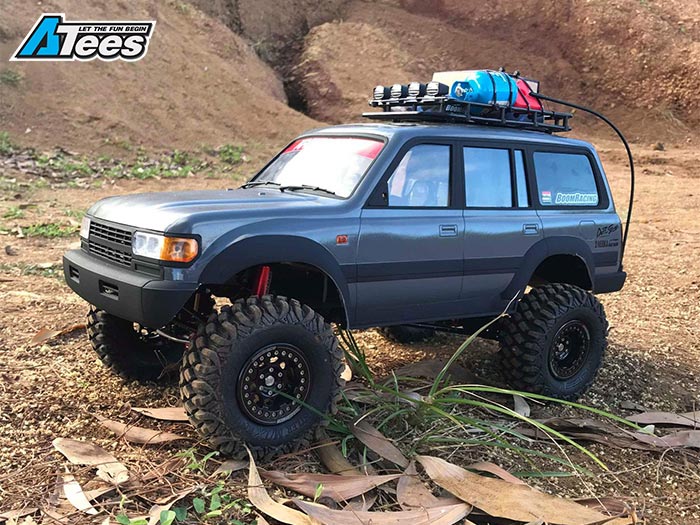

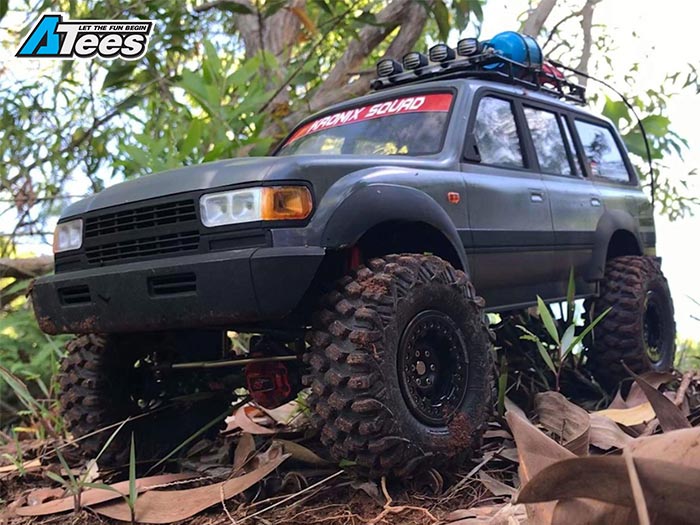

We recently spotted a very nice scale 1/10 Toyota Land Cruiser crawler build by Markster G. Dacanay from Guam. Here is how he built this rig.

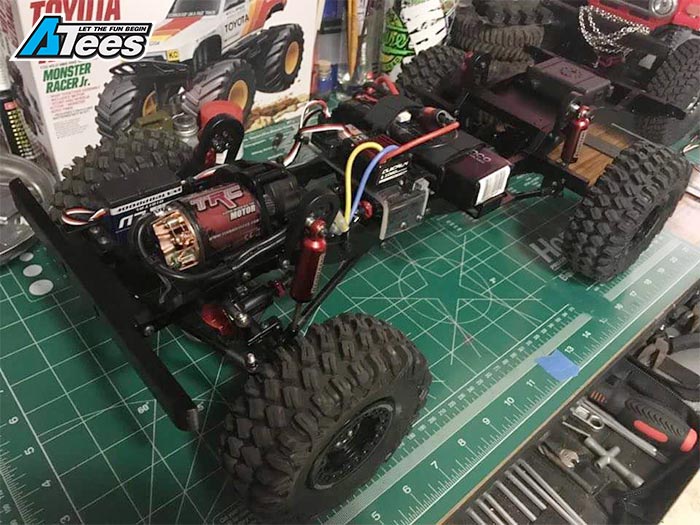

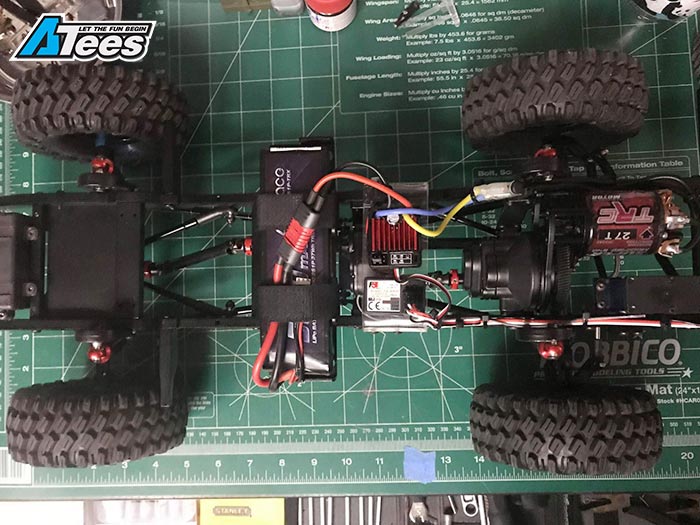

Markster set out to build a performance based Class 2 scale rig. The build is based on a Boom Racing D110 chassis. The original wheelbase is 334mm. To shorten the wheelbase to 313mm, the spacers from the stock upper links were removed and 1/4" was cut in both front links, and 1/2" was cut for the rear links.

After shortening the links, the shock hoops are then mounted in an angled position so the shocks would work in a functional angle. Both front and rear shock towers have optional mounting positions on the chassis rail for adjustability. The front driveshaft has to be shortened and is cut by 1/2". A very capable 313mm wheelbase chassis was built with a couple of quick and easy adjustments.



Below are the complete part list for the Land Cruiser 80 "No Man's Land" Build.

Chassis:
Boom Racing D110 Chassis

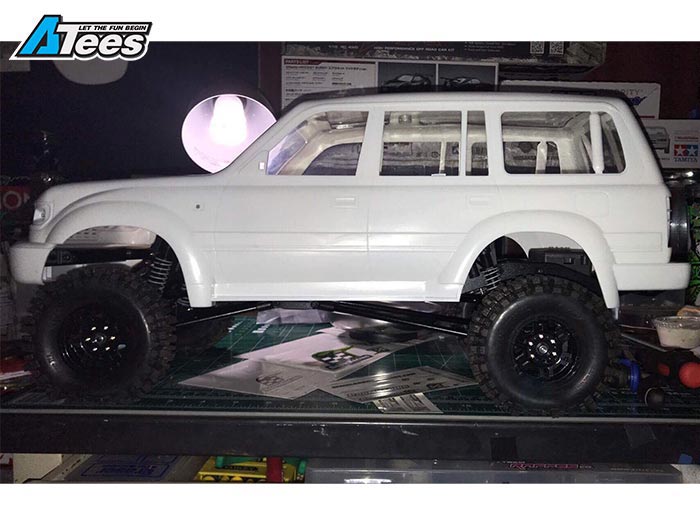

Team Raffee Co Hardbody LC80

Parts:

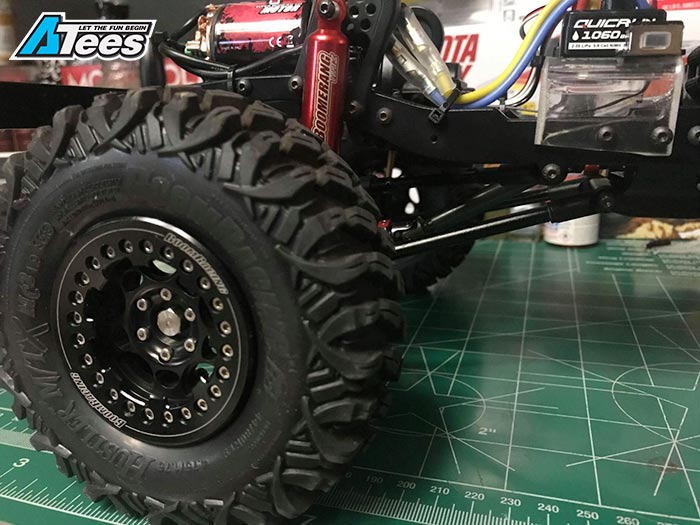

Boom Racing Boomerang TYPE I 90mm  Suspension (Red)
1.9" SandStorm KRAIT Beadlock Wheels
1.9" Boom Racing 4.75" Hustler M/TX MC2 Tires
KRAIT 8mm Hex Wheel Spacers
Boom Racing Lanka 1.9" Beadlocks Rings
Boom Racing Aluminim Servo Horn
Boom Racing Realistic Scale Antenna
Team Raffee Co. Roof Rack w/ LED Light
Team Raffee Co. Scale Accessories Combo

Electronics:
Flysky Gt3B Radio Transmitter and Receiver
JX Servo DC5821 Waterproof Servo
Hobbywing WP-1060 Quickrun ESC

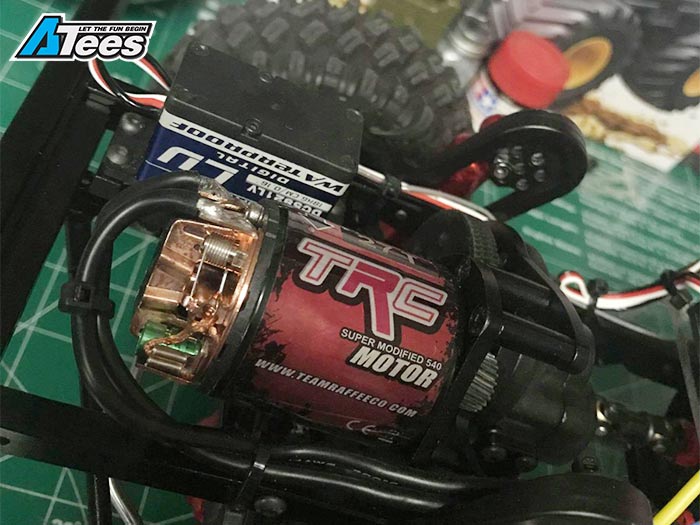

Team Raffee Co Brushed 27T Motor
Killerbody LED Light Kit w/ Control Unit






























Author:Jason Tsang
