Fits Boom Racing BRX01

KUDU™ LED Light Module System for BRX01 Killerbody Toyota LC70

Fits BRX01

USD $58.00

Part #: BRTLB008


LOADING IMAGES

Fits Boom Racing BRX01

KUDU™ LED Light Module System for BRX01 Killerbody Toyota LC70

Fits BRX01

USD $58.00

Part #: BRTLB008

For BRX01 Toyota LC70 For BRX01 Toyota LC70
For BRX02 Series Land Rover For BRX02 Series Land Rover
For BRX02 D110 4x4 6x6 For BRX02 D110 4x4 6x6
Rock Light for BRX02 Series Land Rover Rock Light for BRX02 Series Land Rover
Rock Light for BRX02 Rock Light for BRX02
Rock Light for BRX02 6X6 Rock Light for BRX02 6X6
Dash LED for Land Rover Series II Dash LED for Land Rover Series II
Dash LED for Land Rover Series III Dash LED for Land Rover Series III
For BRX01 AWB ZIL Pickup For BRX01 AWB ZIL Pickup
For BRX01 Toyota LC70 For BRX01 Toyota LC70
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on non-heavy items

On US orders $120+ (including territories)

free shipping for heavy items

1 heavy item: Add $200 in non-heavy items to get free shipping.
2+ heavy items: Add $100 in non-heavy items to get free shipping.

Tagged Keywords LED LightsKudu PartsBRX01 Optional Parts

PRODUCT DESCRIPTION

Product Resources
Instruction manual for KUDU™ LED Light Module System for BRX01 LC70

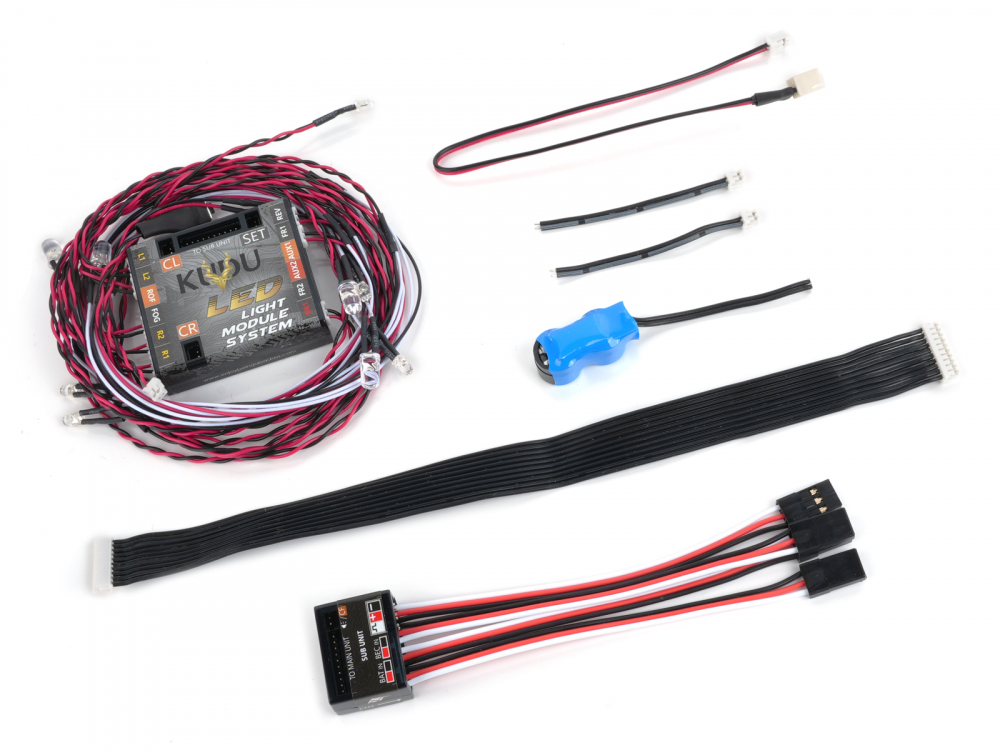

This is a complete LED light system for the Boom Racing BRX01 Toyota LC70. This set includes a main LED light unit, a sub unit, a main connecting cable connecting the main and sub units, a set switch cable, a battery cable (2s), a buzzer (for reverse and low voltage detection), eight LED light cables, and a user manual.

The module has a default setting already installed. This is a highly adjustable LED light system, different lighting options can be accessed through the setup mode.

Features:

  • Low-voltage detection capability
  • Includes one high-voltage module plug rated 7.4v-12.6v (e.g. for roof light)
  • Six high-power light plugs (up to 16 LEDs each) with power settings
  • Blinkers can be turned on and off, or use a toggle switch to operate
  • Brake light includes standard, drag, and crawler modes
  • Blinker and Hazard mode settings with flash rate options
  • Reverse beeper included
  • Ten flash mode toggle switch options
  • Auto hazard start time setting
  • Channel 2 and 4 polarity setup

Included LED Lights:
  • 2x Left & Right - 3 + 5mm Yellow (2x parallel)
  • 2x Left & Right - 3mm Yellow (1x parallel)
  • 1x Front - 5mm Cool White (2x parallel)
  • 1x Fog - 3mm Cool White (2x parallel)
  • 1x Reverse - 3mm Cool White (2x parallel)
  • 1x Brake - 3mm Red (2x parallel)

Included:
  • 1x Main unit
  • 1x Sub unit
  • 1x Main cable
  • 1x Set switch cable
  • 1x Battery cable (LiPo 2S)
  • 1x Buzzer
  • 1x User manual
  • 2x Spare wire for CL, CR, CF plugs

Specifications:
  • Input Voltage: 5-7.4V (powered by BEC)
  • Battery Type for Low Voltage Detection: LiPo 2S (user define max 12.6V)
  • Size (LxWxH):
    • Main Unit: 45x41.3x11.7mm
    • Sub Unit: 24.5x18.5x12mm
  • Weight:
    • Main Unit: 14g
    • Sub Unit: 10g

Fits:
  • ZIL Pickup Hardbody

Spares:
  • Main Cable for KUDU™ LED Light Kit #BRTLB005

Safety Information

Not a toy. Intended for ages 14+.
