DIG Transfer Case Kit for BRX02 88

Fits BRX02 88

USD $115.00

Part #: BRX02334


LOADING IMAGES

DIG Transfer Case Kit for BRX02 88

Fits BRX02 88

USD $115.00

Part #: BRX02334

DIG BRX02-88 DIG BRX02-88
DIG BRX01 & BRX01 AWB DIG BRX01 & BRX01 AWB
Overdrive For All BRX Overdrive For All BRX
SWD BRX01 & BRX01 AWB SWD BRX01 & BRX01 AWB
DIG BRX02/6x6/02-109 DIG BRX02/6x6/02-109
SWD BRX02/6x6/02-109 SWD BRX02/6x6/02-109
SWD BRX02-88 SWD BRX02-88
DIG BRX02-88 DIG BRX02-88
B2X For All BRX B2X For All BRX
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Transfer BoxBRX02 88 Optional PartsBRX02 88 Parts

PRODUCT DESCRIPTION

Product Resources
instruction-manual---dig-transfer-case-for-brx02-88-brx02334_1707988721.pdf

This is a complete DIG Transfer Case Set with JX mini servo and aluminum mounts for the BRX02 88 chassis.

Improve the turning radius of your BRX02 88 chassis with this DIG transfer case.

Remotely lock the rear axle of the BRX02 88 using this DIG T-Case to reduce the turning radius immediately.

To set up the dig unit, replace the stock transfer case with the DIG T-Case.

This DIG T-Case will also fit the optional Overdrive HD Gear Set for BRX T-Case (33T, 25T, 16T) #BRLC70201-GEAR, which adds 32% overdrive to the front wheels.

The extended bracket, which attaches to the included servo winch mount, fits the mini servo for t-case shifting.

Note that the included servo winch mount sits on the battery plate and will restrict the battery size. The suggested maximum battery size after this installation is 88x44x25mm.

Features:

  • Significantly reduce turning radius
  • Remotely locking the rear axle
  • Improve steering ability
  • Heavy-duty steel gear set

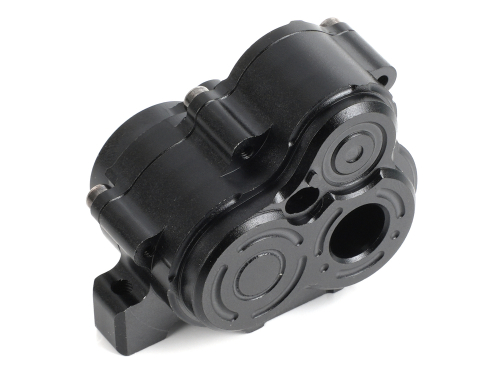

  • Billet aluminum transfer case housing
  • Full rubber-sealed ball bearings
  • Keeps the original anti-torque twist feature (counter-rotating output shafts)
  • JX high voltage mini servo included
  • Aluminum mounts included for installation

Mini Servo Specifications:
  • Brand: JX Servo
  • Model: JX/PDI-HV1151MG
  • Working voltage: 6V~8.4V
  • Working temperature: -20C°~ +60C°
  • Dead band: 4usec
  • Motor type: Core Motor
  • Signal booster type: Digital
  • Gear material: Metal gear
  • Operating Speed: 0.12s/60deg (6.0V) | 0.10s/60deg (8.4V)
  • Stall Torque: 3.5kg/cm (6.0V) | 4.5kg/cm (8.4V)
  • Idle Current: 150mA (6.0V) | 180mA (8.4V)
  • Load Current: 260mA (6.0V) | 340mA (8.4V)
  • Size: 23.2 x 12.5 x 25.6mm
  • Weight: 15g
  • Tooth Count: 25
  • Wire length: 310mm JR plug
  • Black: Negative Red: Positive White: Signal

Fits:
  • BRX02 88

Note: This does not fit BRX01, BRX02 109 or BRX02.

Optional:
  • Overdrive HD Gear Set for BRX T-Case (33T, 25T, 16T) #BRLC70201-GEAR

Parts:
  • SWD & DIG Transfer Case Shift Rod Set for BRX02-88 BRX02379
