Complete Rear Assembled BRX90 Portal PHAT™ Axle

Fits BRX02, BRX02, BRX02 6x6

USD $119.00

Part #: BRPT9023


LOADING IMAGES

Complete Rear Assembled BRX90 Portal PHAT™ Axle

Fits BRX02, BRX02, BRX02 6x6

USD $119.00

Part #: BRPT9023

BRX90 Rear Portal BRX90 Rear Portal
BRX70 Front BRX70 Front
BRX70 Rear BRX70 Rear
BRX80 Front BRX80 Front
BRX80 Rear BRX80 Rear
BRX90 Front BRX90 Front
BRX90 Rear BRX90 Rear
BRX70 Front Portal BRX70 Front Portal
BRX70 Rear Portal BRX70 Rear Portal
BRX80 Front Portal BRX80 Front Portal
BRX80 Rear Portal BRX80 Rear Portal
BRX90 Front Portal BRX90 Front Portal
BRX90 Rear Portal BRX90 Rear Portal
BRX02 Link Front BRX02 Link Front
BRX02 Link Rear BRX02 Link Rear
BRX02 Leaf Front BRX02 Leaf Front
BRX02 Leaf Rear BRX02 Leaf Rear
BRX01 AWB Leaf/BRX02-88/109 Front BRX01 AWB Leaf/BRX02-88/109 Front
BRX01 AWB Leaf/BRX02-88/109 Rear BRX01 AWB Leaf/BRX02-88/109 Rear
BRX01 Front BRX01 Front
BRX01 Rear BRX01 Rear
BRX01 AWB Link Front BRX01 AWB Link Front
BRX01 AWB Link Rear BRX01 AWB Link Rear
BRX90 Pass Thru Axle BRX90 Pass Thru Axle
BRX90 Rear BRX90 Rear

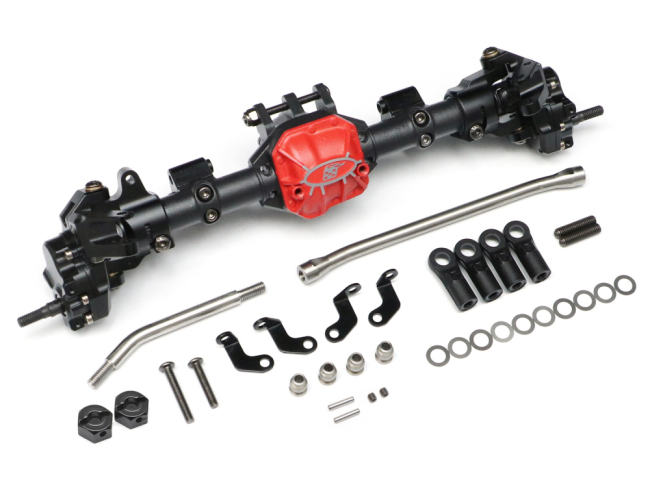

AR44 Front AR44 Front

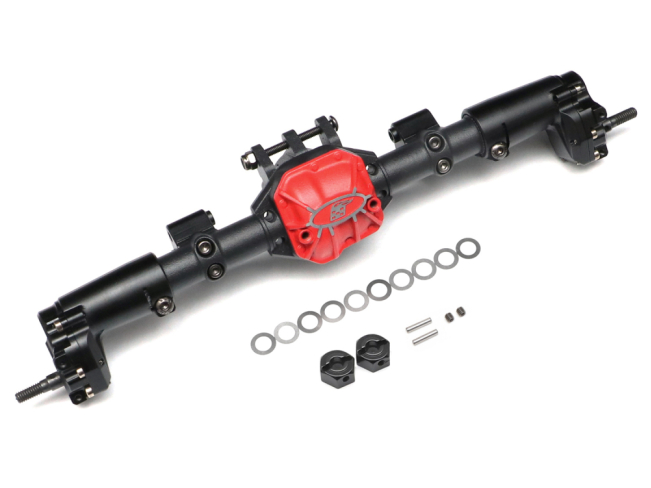

AR44 Rear AR44 Rear
BRX70 Front BRX70 Front
BRX70 Rear BRX70 Rear
BRX80 Front BRX80 Front
BRX80 Rear BRX80 Rear
BRX90 Front BRX90 Front
BRX90 Rear BRX90 Rear

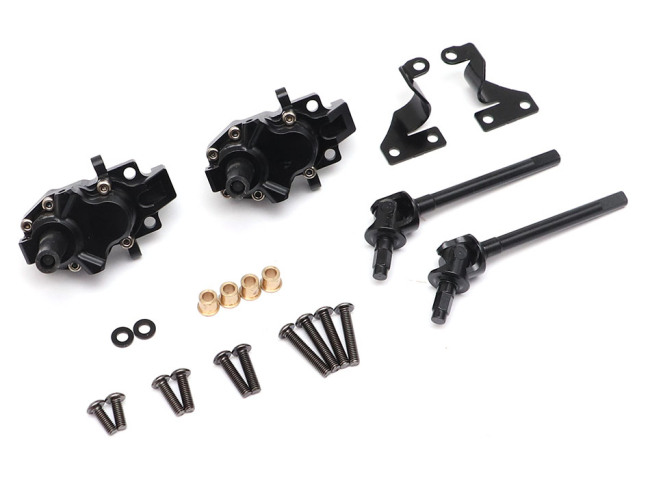

BRX70 Conversion Front BRX70 Conversion Front

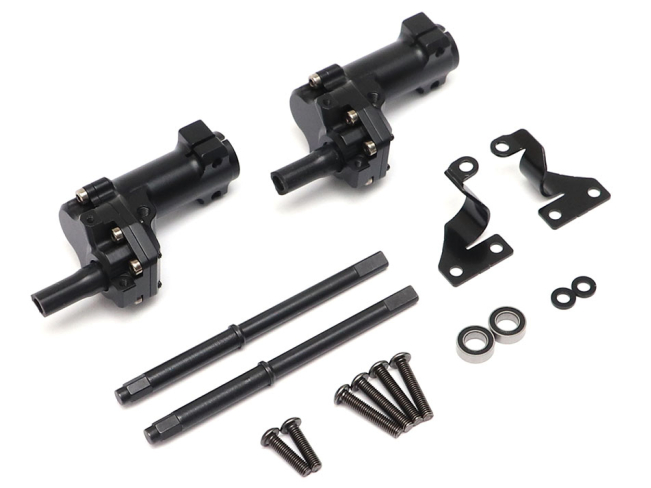

BRX70 Conversion Rear BRX70 Conversion Rear

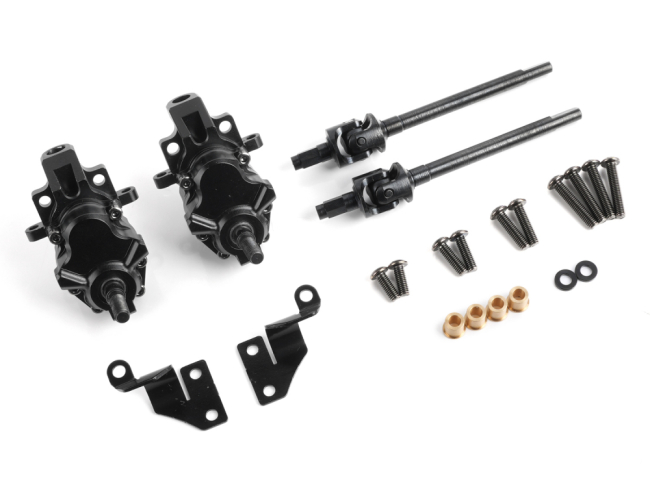

BRX80 Conversion Front BRX80 Conversion Front

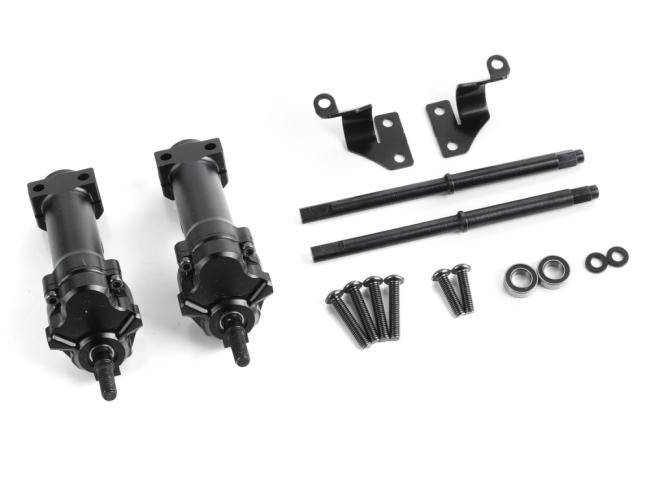

BRX80 Conversion Rear BRX80 Conversion Rear

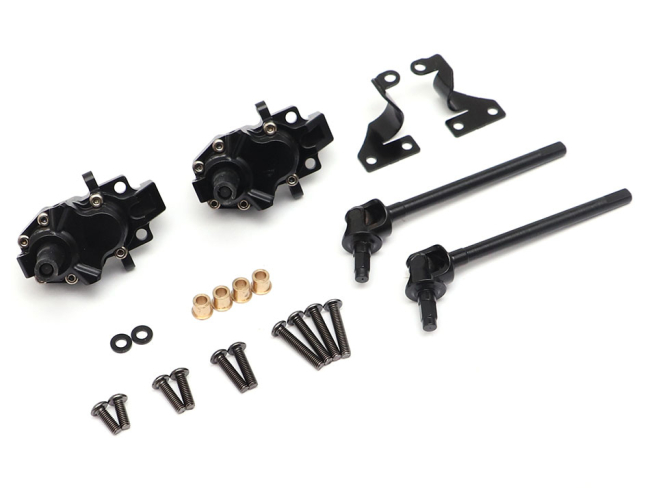

BRX90 Conversion Front BRX90 Conversion Front

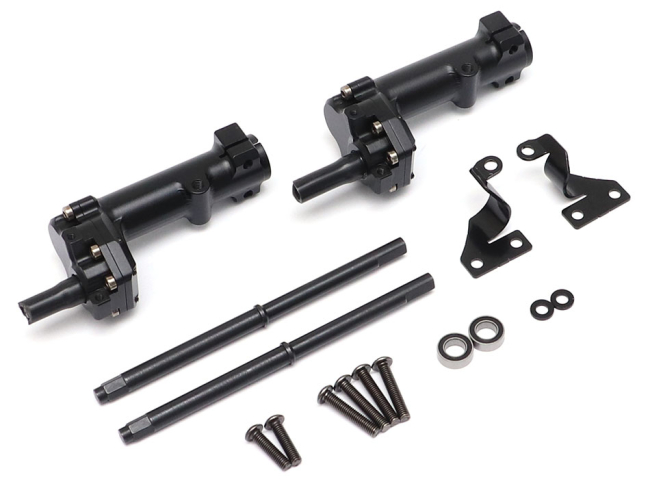

BRX90 Conversion Rear BRX90 Conversion Rear

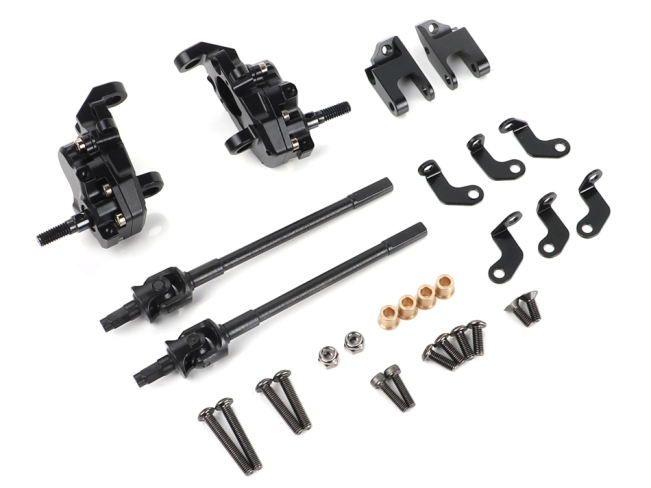

AR44 Conversion Front AR44 Conversion Front

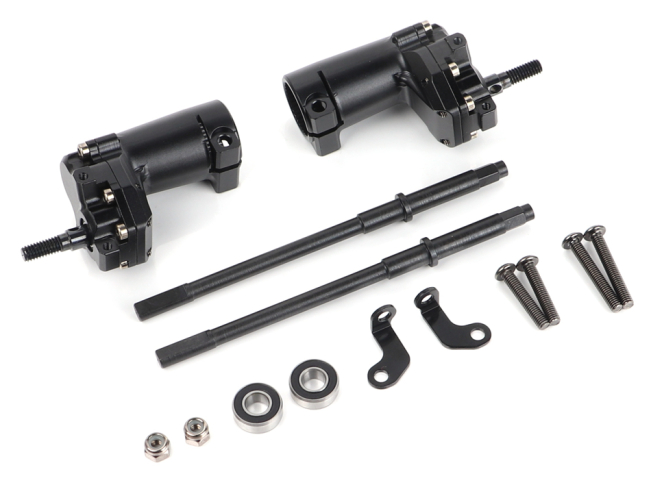

AR44 Conversion Rear AR44 Conversion Rear

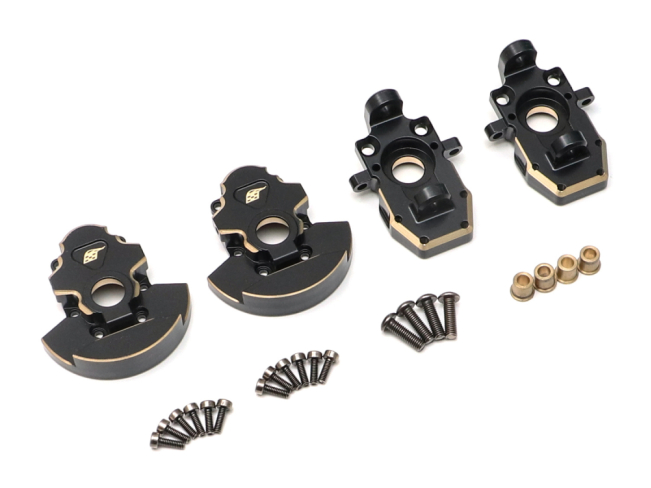

Brass Front Knuckles & Covers Brass Front Knuckles & Covers

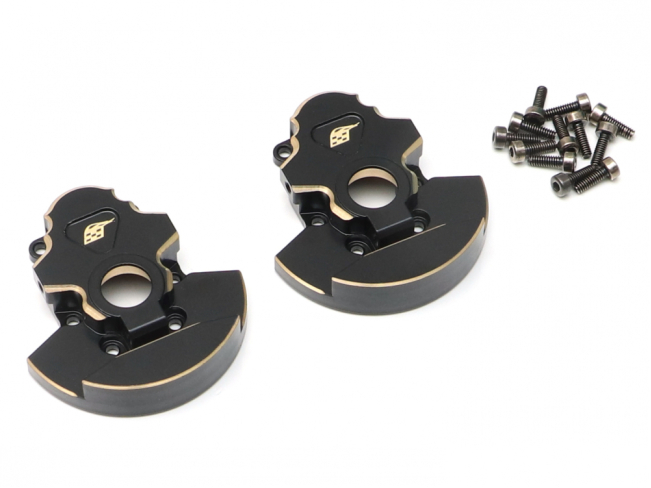

Brass Rear Covers Brass Rear Covers
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Complete AxlePhat Axle PartsBRX02 PartsBRX02 Optional PartsRECON G6 CertifiedBRX02 6x6 Optional PartsBRX02 6x6 Parts

PRODUCT DESCRIPTION

Product Resources
instruction-manual---complete-rear-assembled-portal-axle-for-brx70---brx90-brpt7023_brpt8023_brpt9023_20260108_1768182945.pdf

This is a complete set of rear assembled BRX90 portal PHAT™ axle set.

This is a heavy-duty axle set designed for performance-based scale RC builds. Designed for both linked and leaf spring setups. Use this axle as a base for any custom builds.

Packed with many desirable features; a heavy-weighted cast alloy axle housing for low CG, reversible axle bevel gear positions, leaf spring over and under axle (optional), detachable aluminum CNC truss, adjustable caster angle, and more.

It uses top-quality drivetrain components that are heavy-duty and efficient, including a set of hardened steel triangular keyed AR44 axle gears (30/8T) and a pair of BADASS™ steel rear drive shafts for ultimate strength and durability.

The portal gearbox is designed with four heavy-duty hardened steel gears each for strength and durability.

Includes black color XT diff cover and black color third member unit (fits Reverse AR44 Helical Cut Bevel Gear for running Counter Rotating Center Drive Shafts usually used in the rear axle).

Specification:

  • Width: 188.3mm / 7.41" pin-to-pin (BRX90 portal axle front and rear axles are the same width)
  • Requires 44mm / 1.73" wheel barrel clearance (to clear the entire portal gearbox)
  • Portal gearbox ratio: 1:1
  • Weight: 261.5g
  • Portal Gearbox Size:
    • Width: 23.5mm
    • Height: 30.5mm (21.5mm above shaft / 9mm below)

Features:
  • Additional 15mm / 0.59" ground clearance at the pumpkin over BRX90 straight axle
  • CNC aluminum portal lockout and cover
  • BADASS™ heavy-duty steel rear driveshafts and portal driveshafts for ultimate durability and strength for the axle drivetrain
  • Four heavy-duty hardened steel metal gears in each portal gearbox
  • Narrow axle setup for super scale builds and smaller 1/10 bodies
  • Cast PHAT™ axle housing - strong, durable, and heavy which keeps the CG low
  • Anti-twist steel brackets to prevent axle twist
  • Reversible axle gear in the housing (swap gear to the opposite side for counter rotation center drivetrain setup)
  • Standard AR44 high pinion gear & input shaft for better clearance
  • Leaf spring over and under the axle housing option
  • CNC aluminum truss included for linked setup (remove truss for leaf spring option for ultimate scale look)
  • Removable third member for 6x6 / 8x8 pass-thru option
  • Third member high pinion angle for higher clearance
  • Full rubber sealed bearings
  • Full 12.9-grade hardware

Includes:
  • 2x CNC Aluminum Portal Lockout #BRPT9023B
  • 2x CNC Aluminum Portal Cover #BRPT003
  • 2x BADASS Portal Rear Driveshaft #BRPT9023A
  • 2x BADASS Portal Shaft Spindle #BRPT007
  • 4x Hardened Steel Gear 20T
  • 4x Hardened Steel Gear 16T
  • 2x Anti-Twist (0 Deg) Steel Bracket (Left & Right) #BRPT004
  • 1x Cast Alloy PHAT Axle Housing #BRLC7024
  • 1x Cast Alloy XT Pumpkin Diff Cover #BRLC7088
  • 1x AR44 30/8T Triangular Keyed Hardened Steel Gear Set (Ring/Pinion Gear + Spool) #BR955020
  • 1x CNC Aluminum Truss #BRLC7004
  • 2x CNC Aluminum Link Mount #BRLC7005
  • 1x M3 Nyloc #BRASNUTM3
  • 22x Full Rubber Ball Bearings
  • 4x Washer
  • 5x Spacer D5X8X0.1 #BRASSPD5801
  • 2x E-Clip #BRASEC30
  • Full 12.9 Grade Screws

When you receive the axle:

Make sure to grease up the axle set. You can fill up the empty space with diff grease surrounding the bevel gear and input shaft.

The gear positions are factory setup and should be ready to go. Rotate the drivetrain by hand for physical inspection.

Install spacers accordingly between the center driveshaft and the input shaft to prevent input shaft from unnecessary slop.

Optional Parts:
  • Anti-Twist (10 Deg Positive Caster) Steel Bracket (Left & Right) #BRPT004+10
  • Rear Skid Plate for BRX70/BRX80/BRX90 PHAT™ Axle #BRLC7086R
  • Classic Diff Cover for BRX70/BRX80/BRX90 PHAT™ Axle Black #BRLC7026
  • Steel Leaf Spring Channel w/ Shock Mount for BRX70/BRX80/BRX90 PHAT™ Axle (2) #BRLC7010
