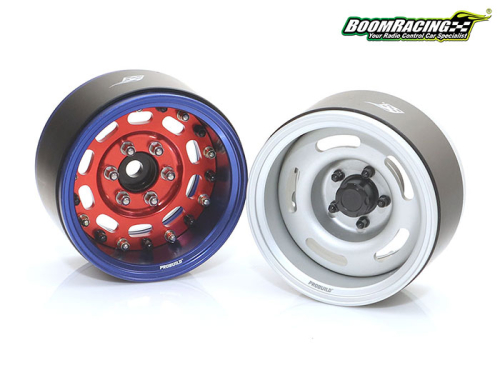

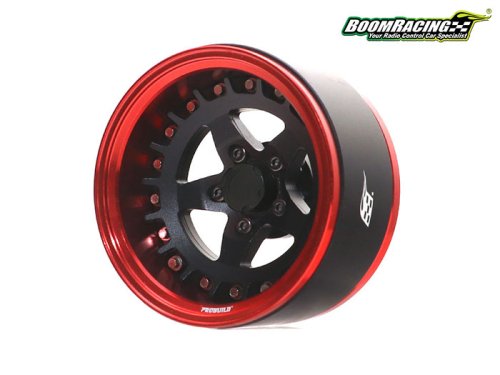

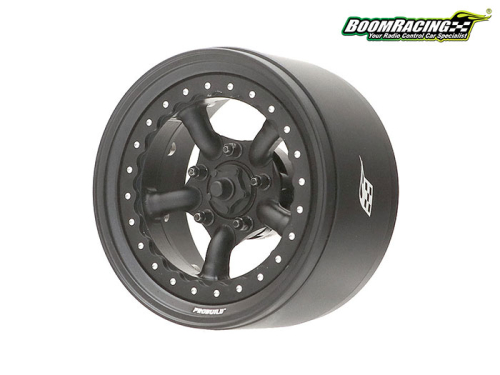

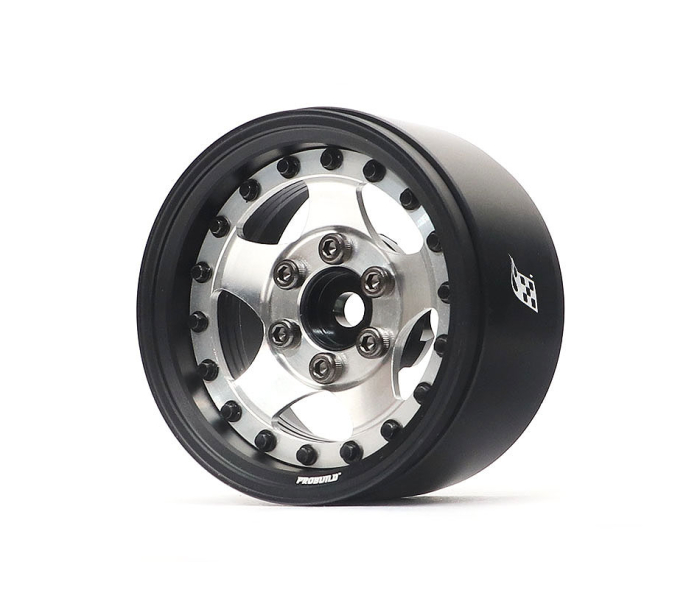

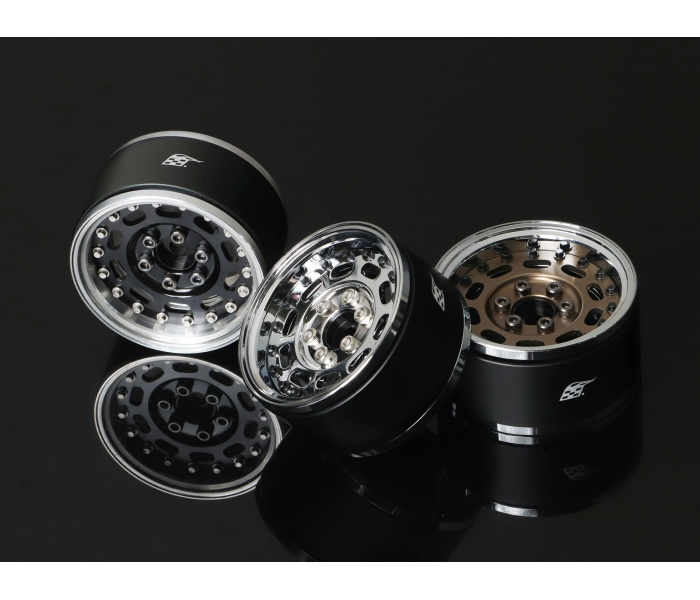

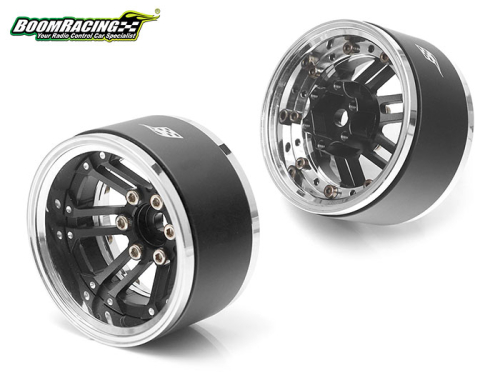

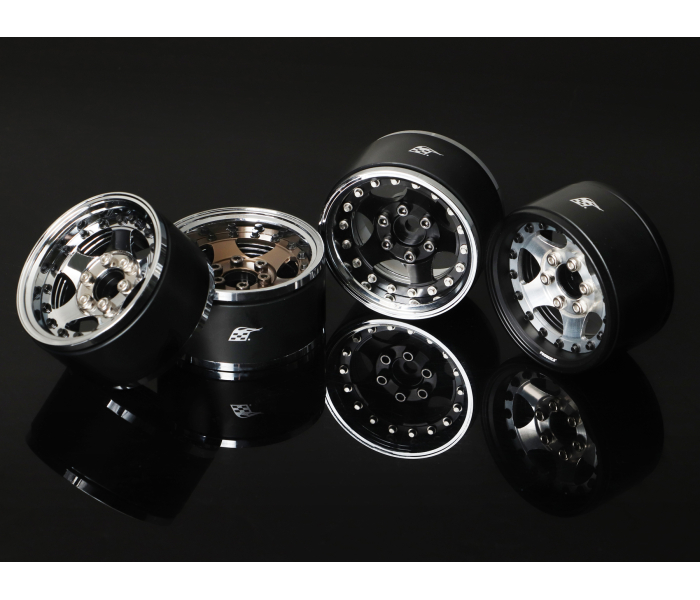

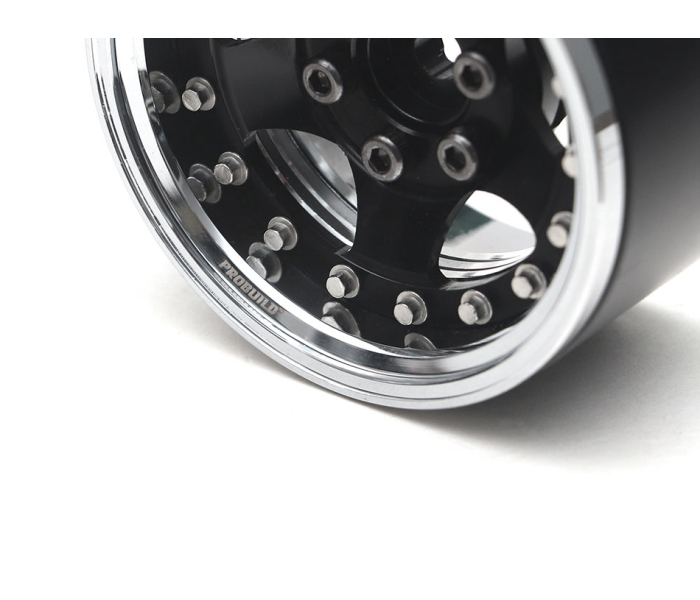

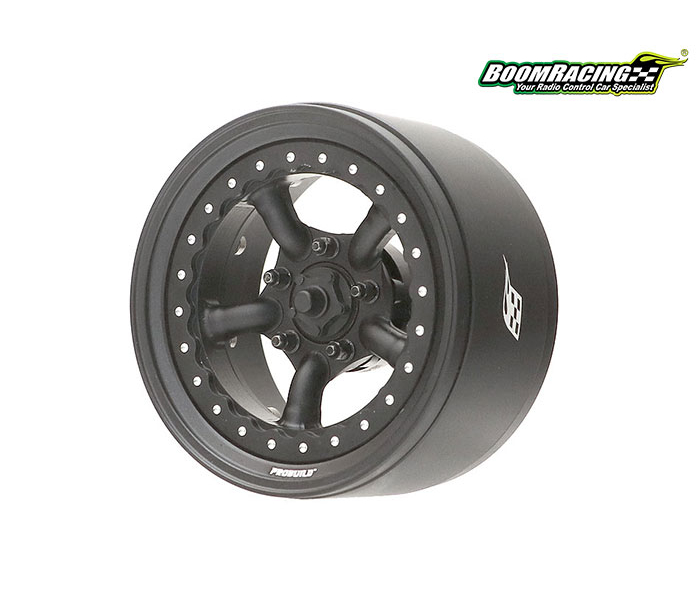

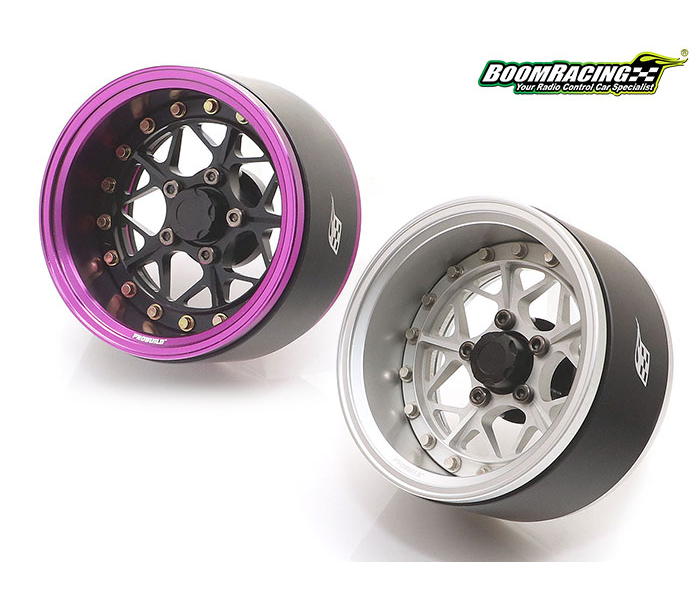

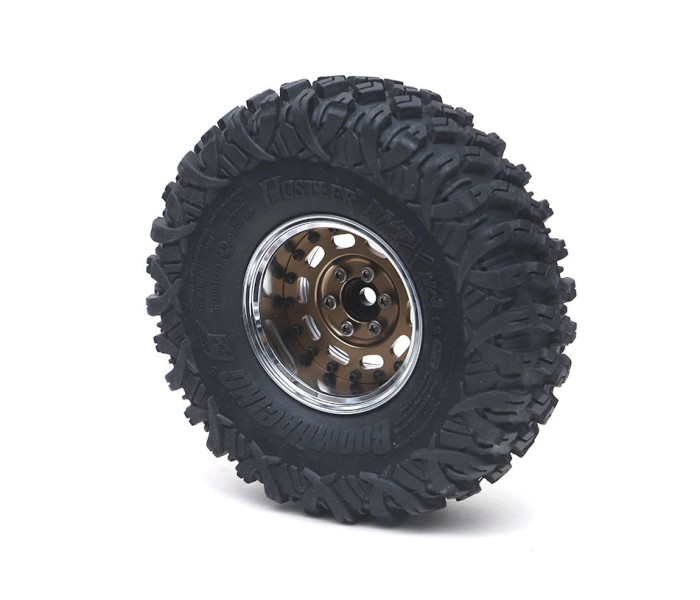

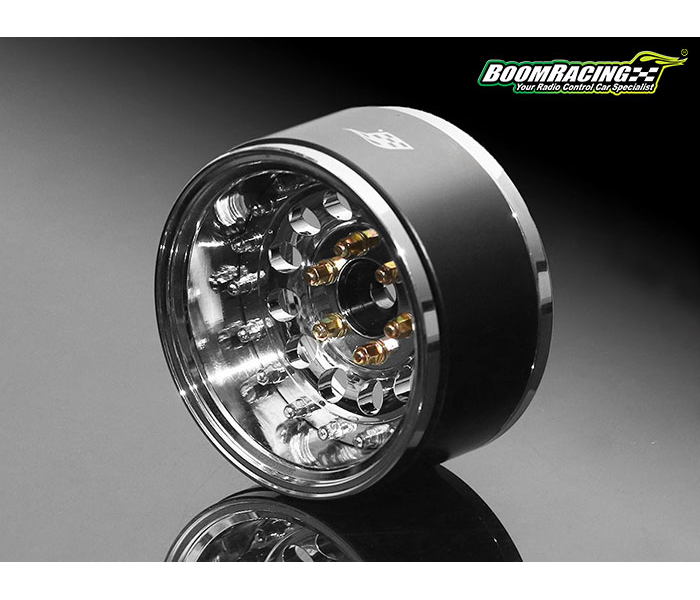

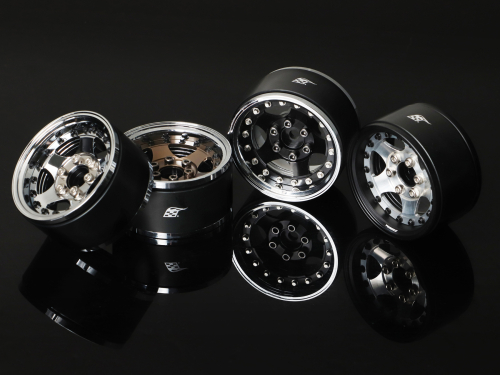

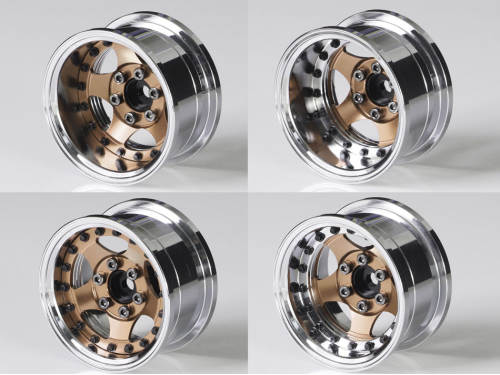

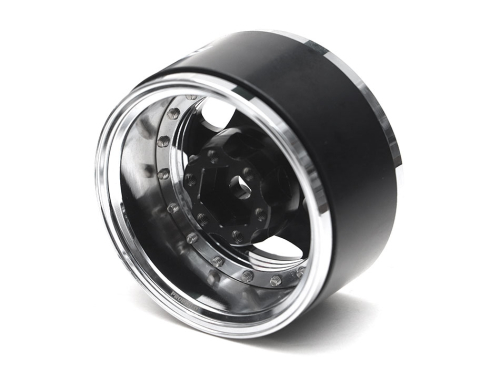

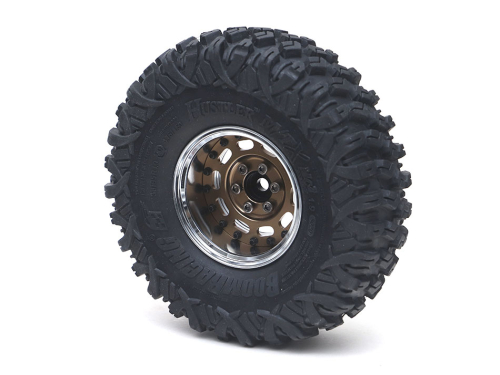

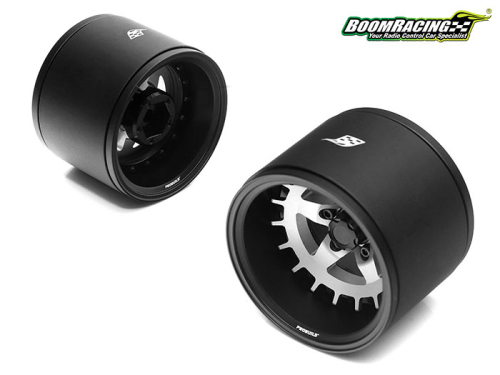

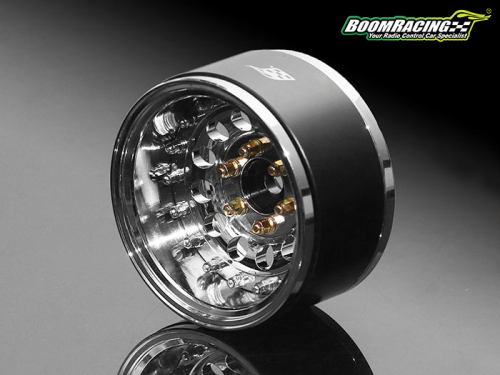

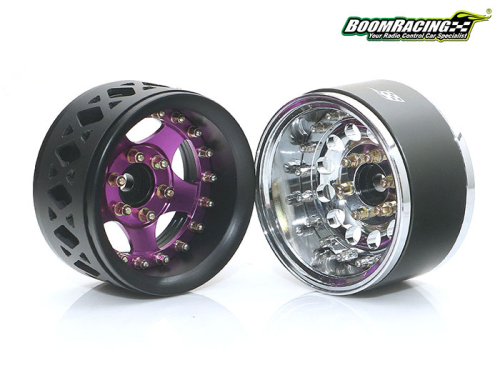

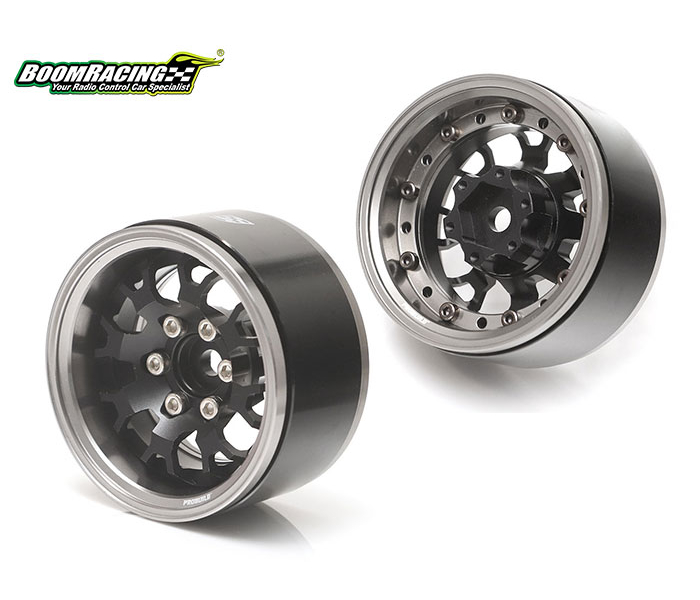

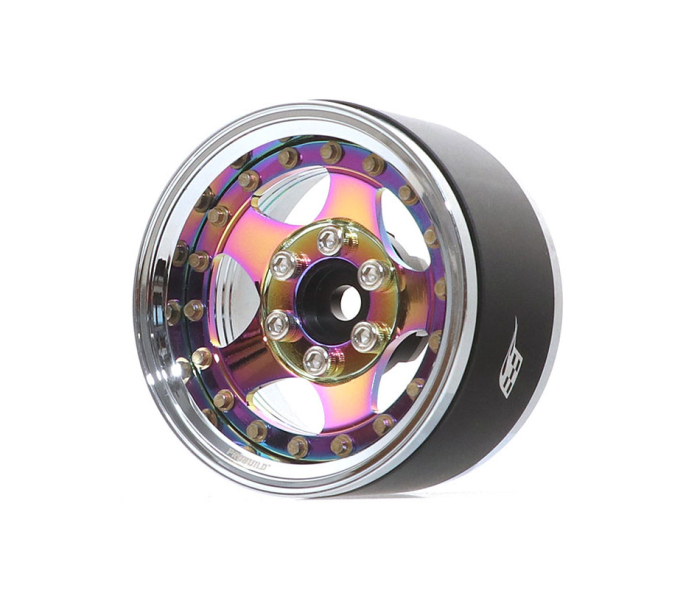

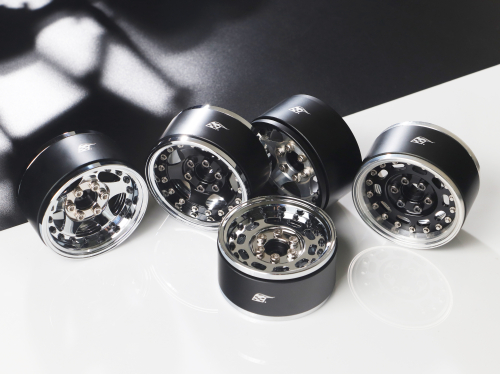

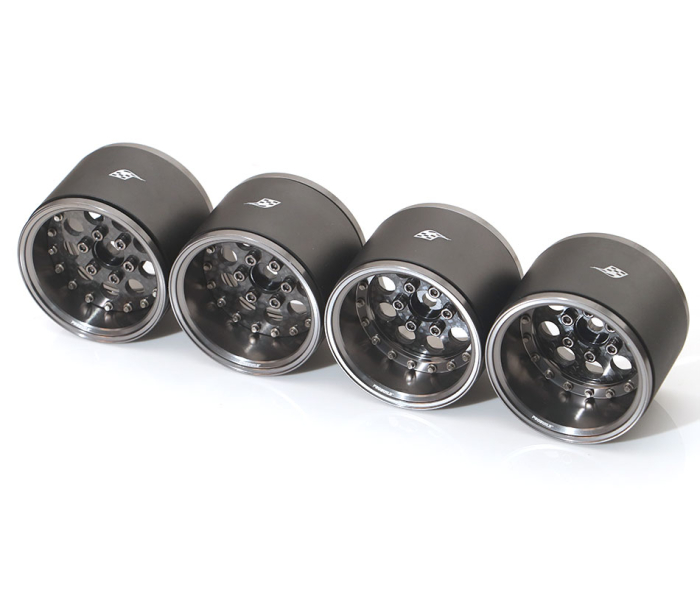

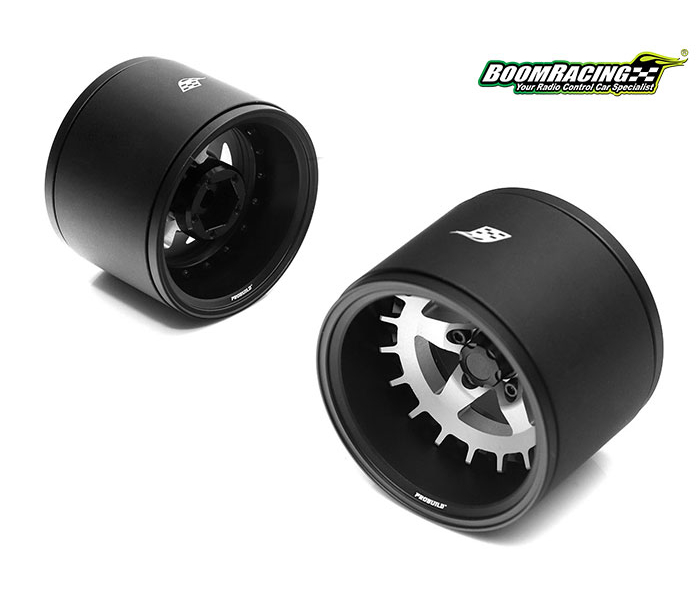

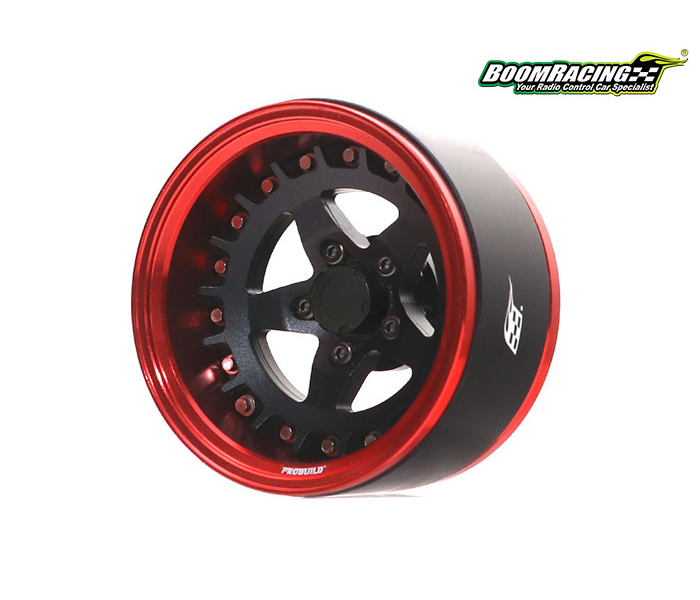

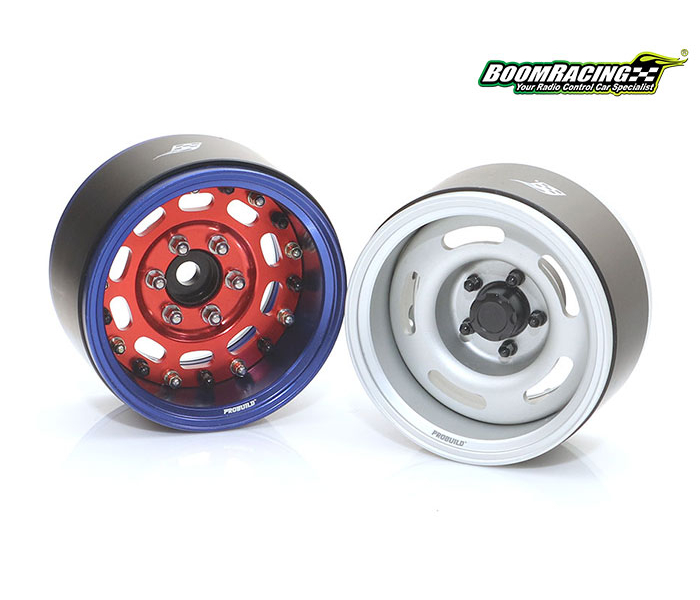

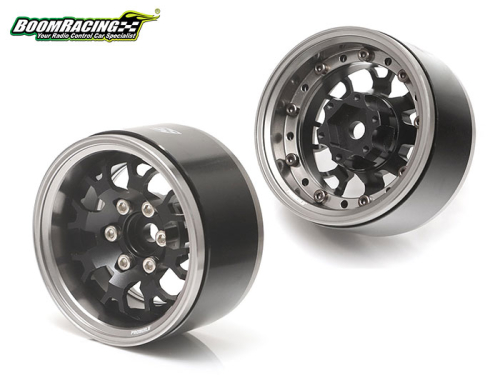

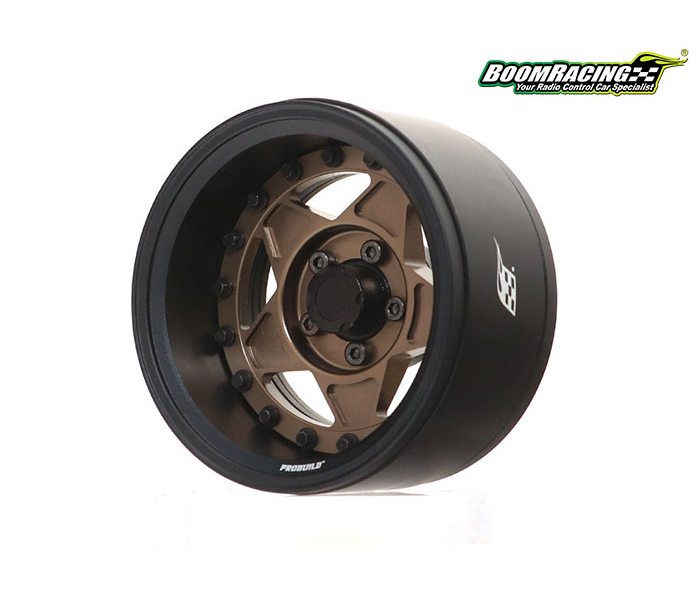

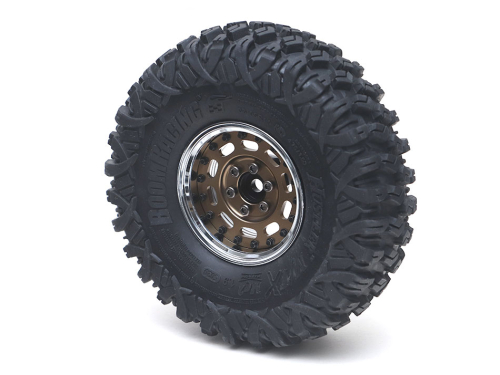

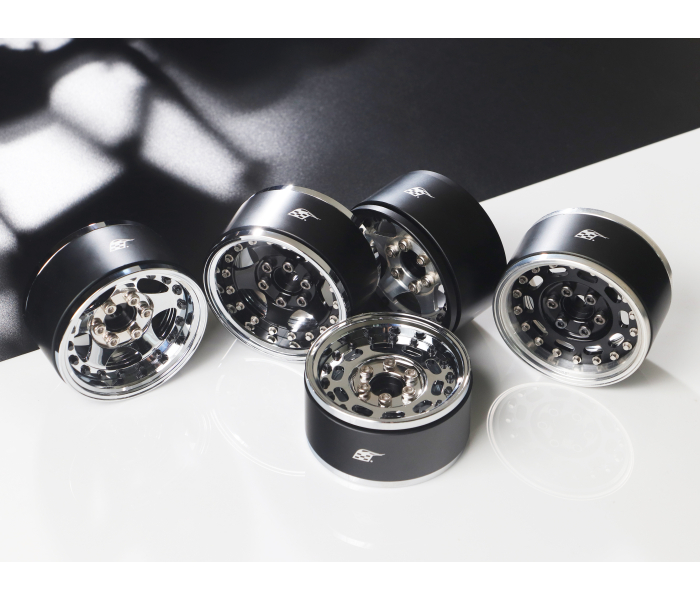

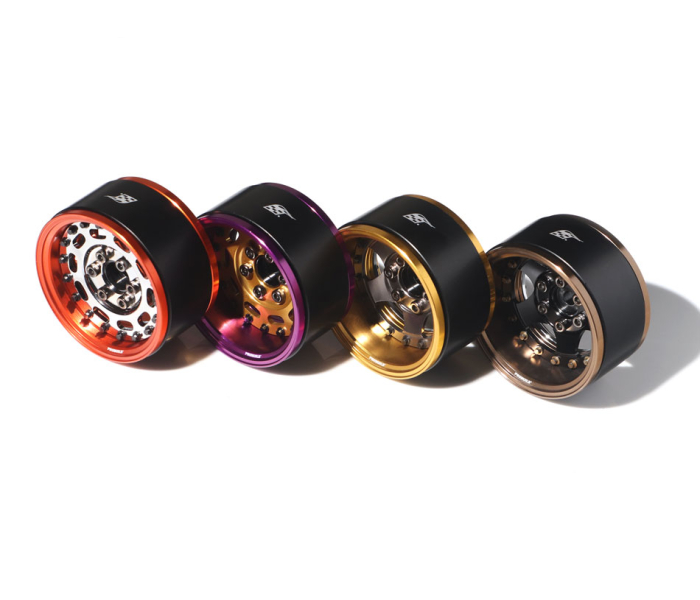

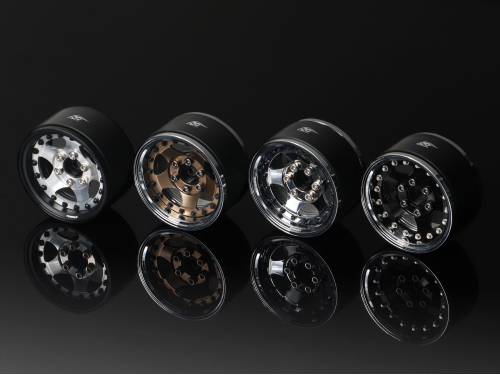

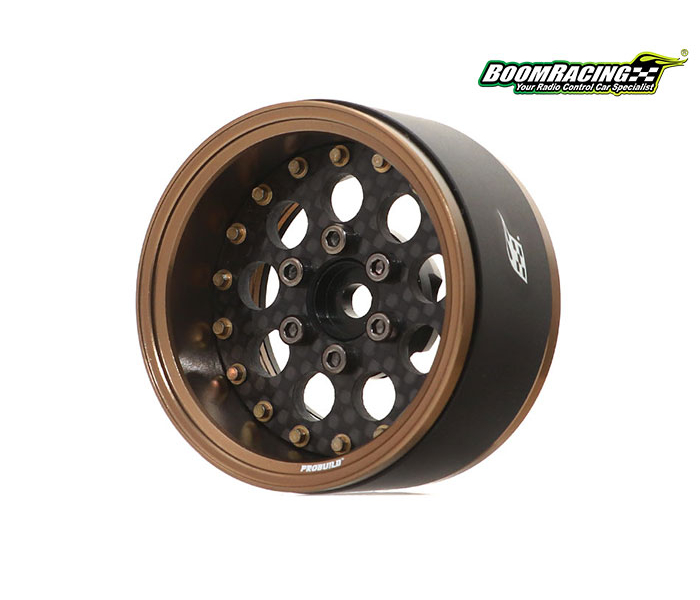

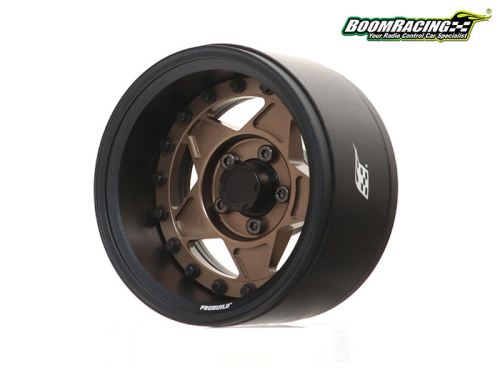

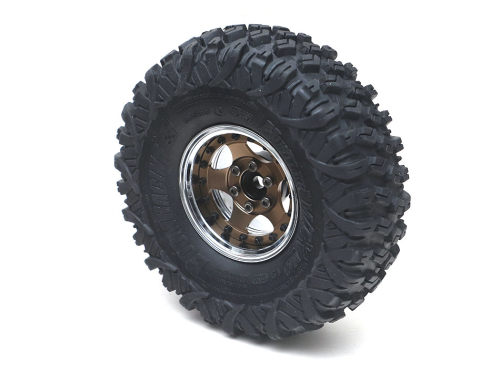

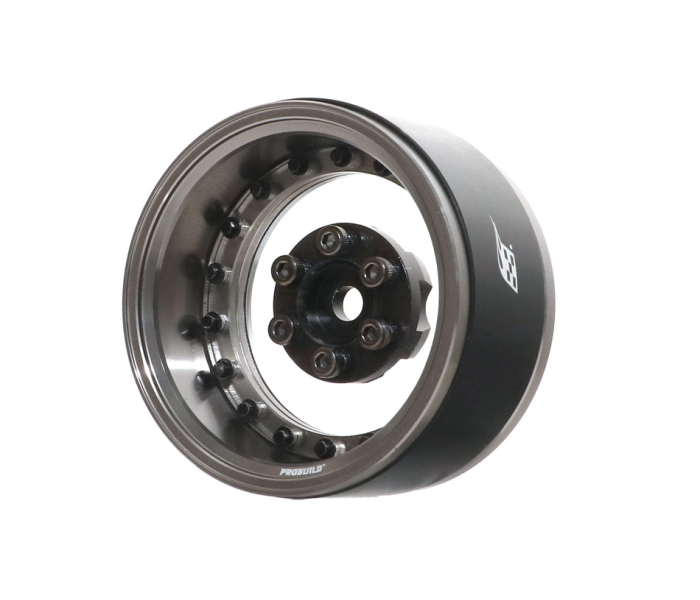

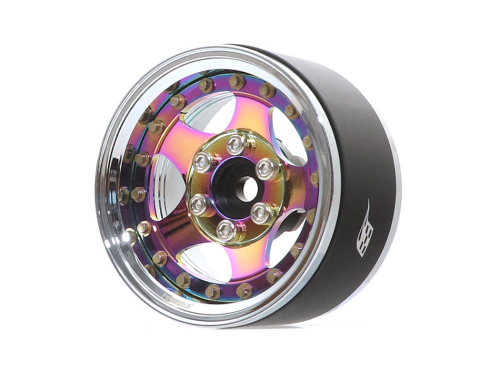

Boom Racing 1.9" Probuild Customizable Beadlock Wheels


LOADING IMAGES

  • Description
  • Manual
  • Reviews (0)

All custom ProBuild wheels are built to your specification. Once an order is placed, the build process takes up to 7 business days. Please allow for extra time for us to prepare your custom wheels.

We will notify you once there is a tracking number available. We understand this is a longer process than ordering off the rack, but with many proven satisfied customers, the extra time is well worth it!

We are proud to say that ProBuild wheels are the most customizable offroad wheel in R/C. There are hundreds of interchangeable parts and it is impossible for us to keep everything in stock. We are constantly replenishing out-of-stock parts. If an item is discontinued, it will be removed from the drop-down selection.

The computer-generated images are for your reference only. Actual wheels are much nicer, guaranteed!

Note: The ProBuild Customization Tool page is priced PER wheel. For example, if you want a set of wheels plus a spare, select Number of Wheels to 5.

Custom Probuild wheels are interchangeable with ready set ProBuild wheels. All ProBuild parts are interchangeable with each other.



BUILD LIKE A PRO

The idea behind PROBUILD was to find a way to make a fully customizable and adjustable wheel with multiple setup options. Today, that sounds really smart, but back when we started most people thought we were crazy. That’s alright, everything has its time!

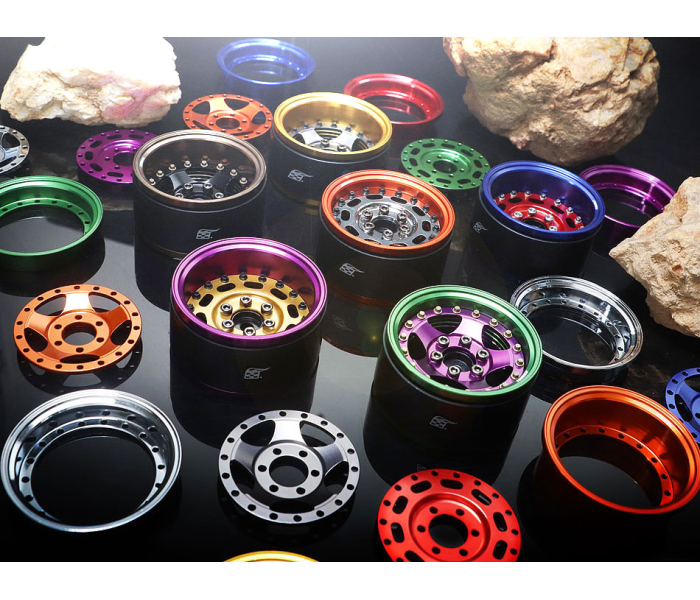

THE MOST CUSTOMIZABLE OFF-ROAD WHEELS IN RC

In order to provide a platform to express individuality and creativity, we created this ProBuild Customization Tool page by offering user-selectable components. Choose the exact parts you desire and build your own unique wheels that are like no one else's.



EXACTLY THE WAY YOU LIKE

Quality off-road wheels are not always affordable. Most of us save our money to get a nice set. Deciding on the right set of wheels can end up being a scary and expensive learning lesson. Our proprietary customizable design completely removes any fear of getting another set of wheels that are “almost right”. We took into consideration all of the desirable wheel features - style, color, offset, material, total width, weight, hub size, hardware styling, etc., and provide the options to adjust the wheel to the way you like.



What makes PROBUILD probuild?

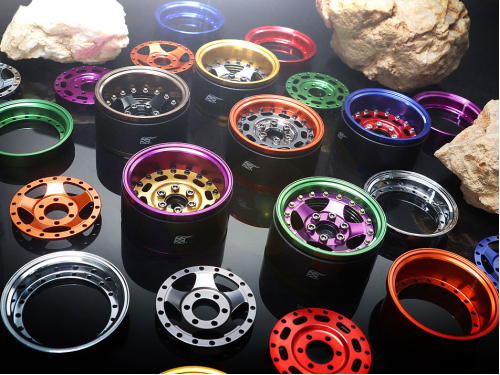

  • High changeability, unlimited possibilities
  • Built-in offset options ^
  • Revolutionary and cutting edge designs
  • Engineered to the exact specifications of world-class drivers

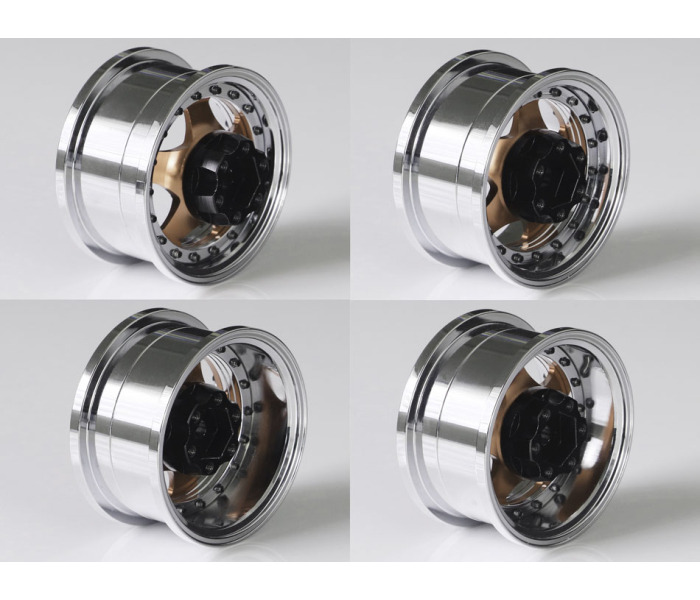

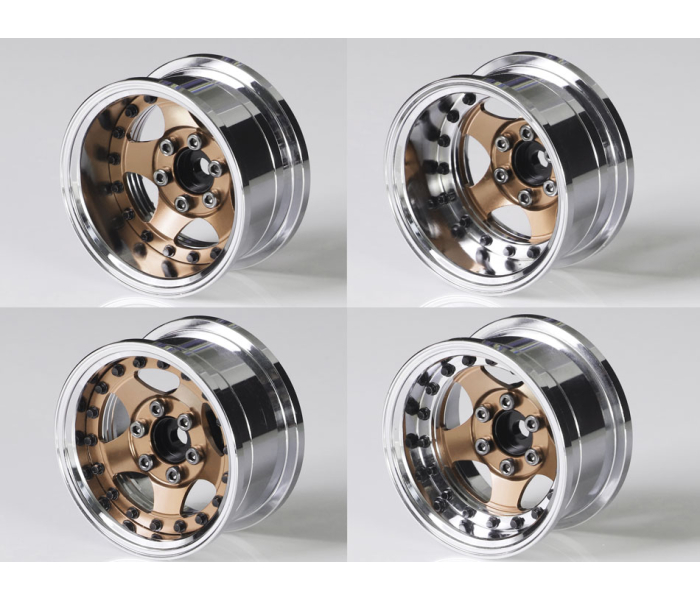

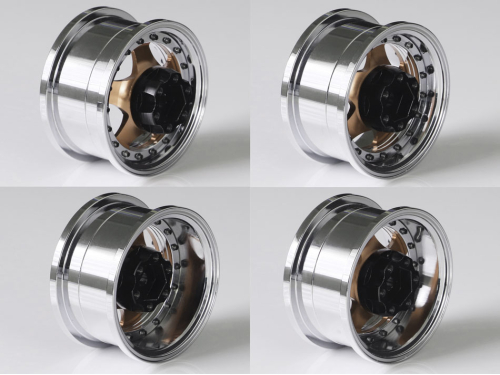

^ All ProBuild wheels offer at least two built-in offset options. Faceplates that use a steel lock ring provide a minimum of four built-in offsets. By changing the orientation of the faceplate, some designs unlock even more adjustment.

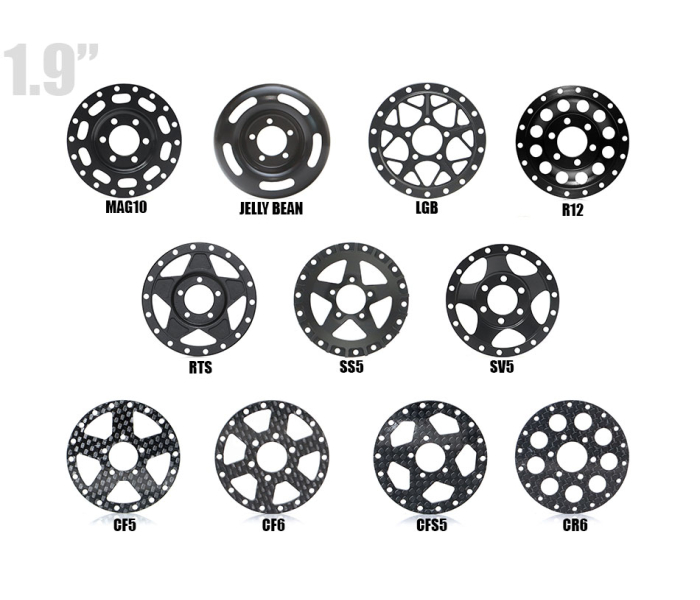

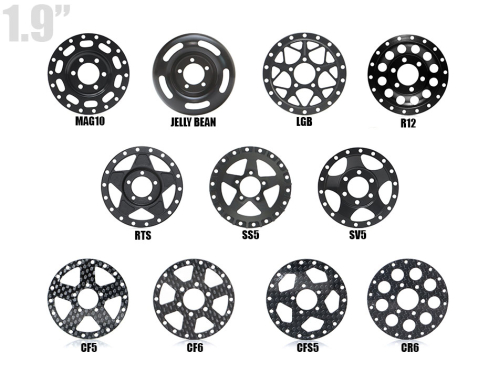

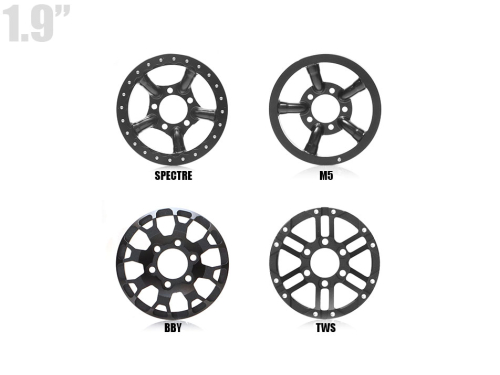

For example, the SV5 faceplate can be reversed to expand offset configurations further. The COMBAT faceplate offers near-limitless built-in offset possibilities.

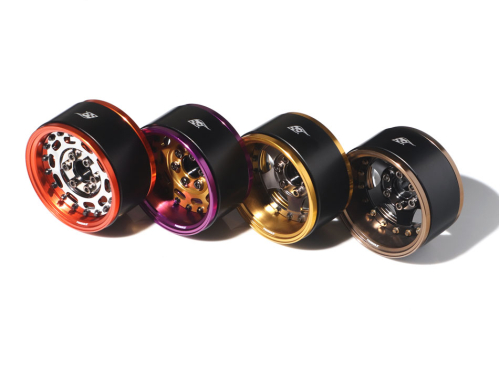

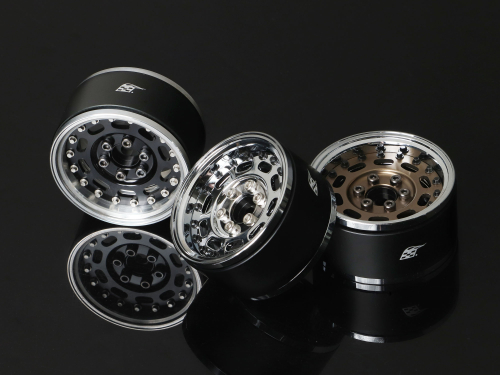

With unlimited combinations of colors, faceplates, multiple offset options, etc, ProBuild wheels is a game-changing design for how we build and match custom rigs. No longer are we stuck with a full set of wheels that remain the same for too long.



Specification:

  • Diameter: 1.9"

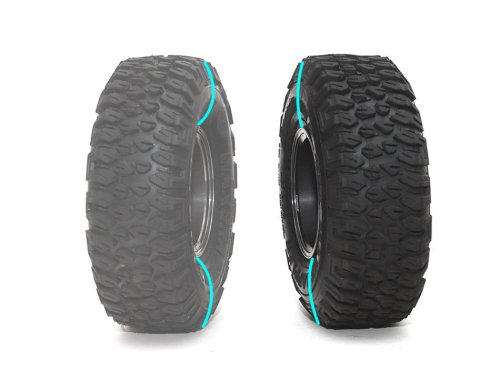

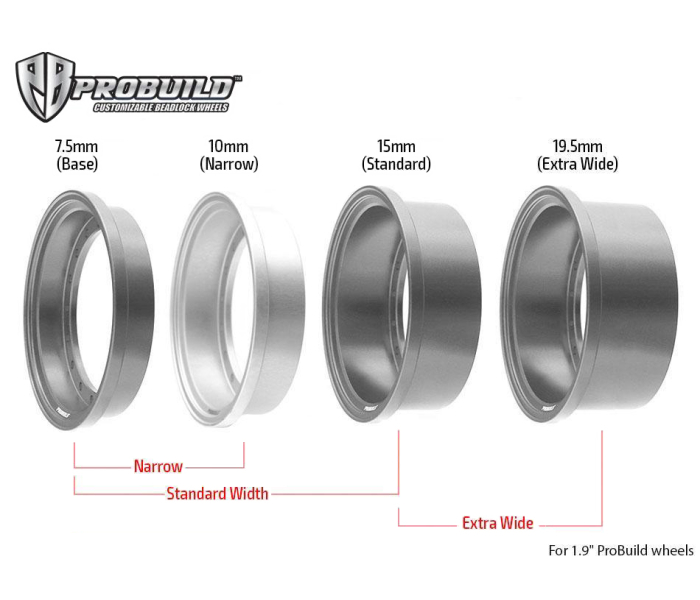

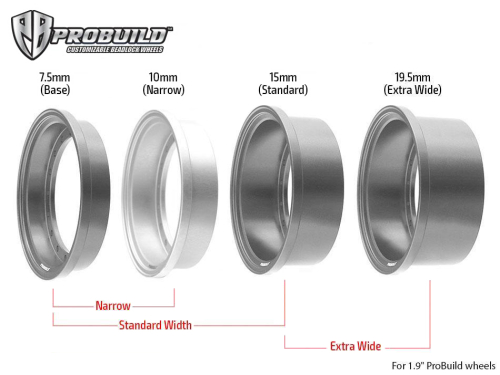

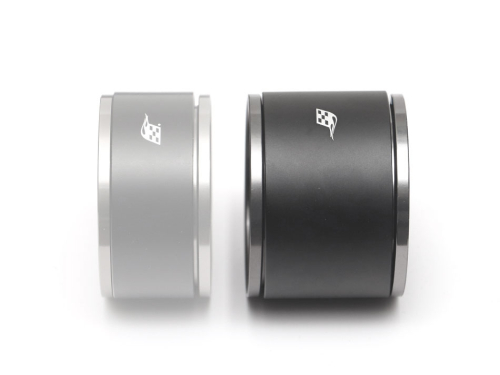

  • Width options:
    • Standard 29.4mm / 1.157"
    • Wide 41.35mm / 1.62"
    • Narrow 24.2mm / 0.95"
  • Inner Wheel Clearance: 45mm
  • See the Weight section for approximate estimate

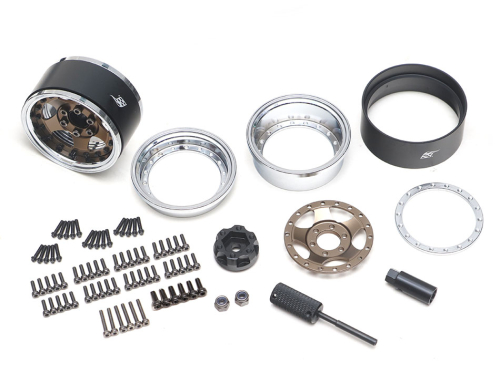

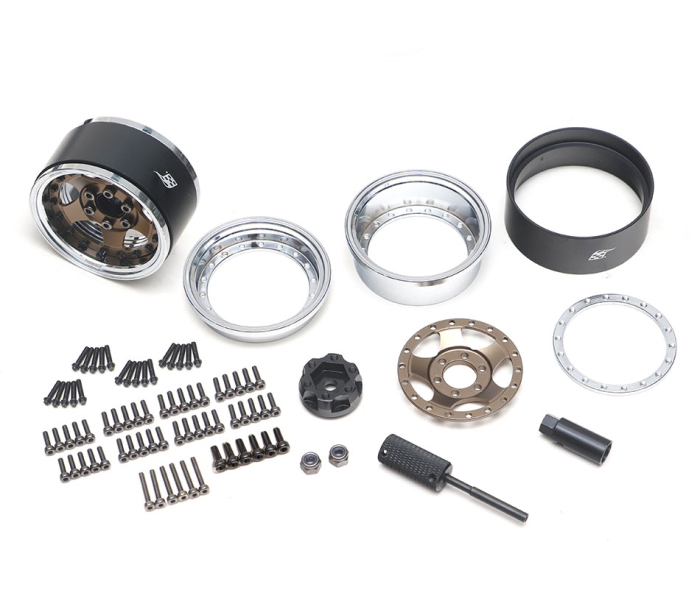

What's Included?

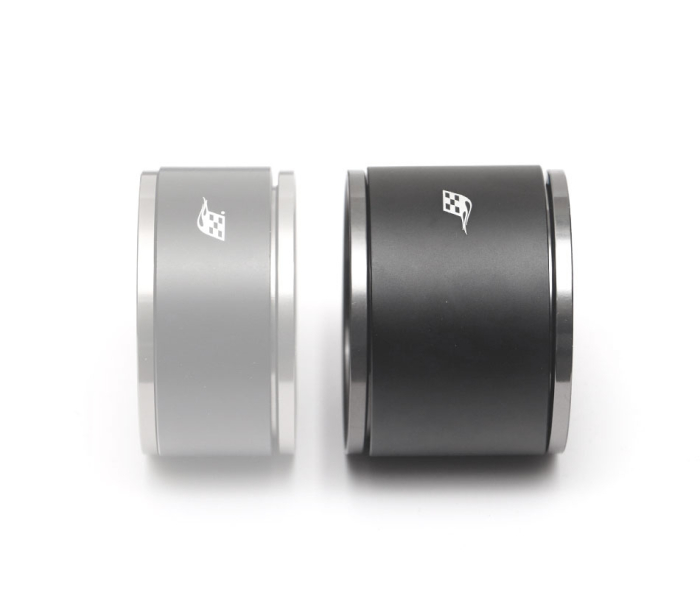

  • 1x Alum Barrel (Front)*
  • 1x Alum Barrel (Rear)*

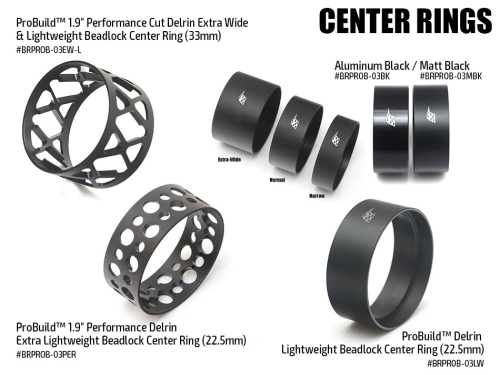

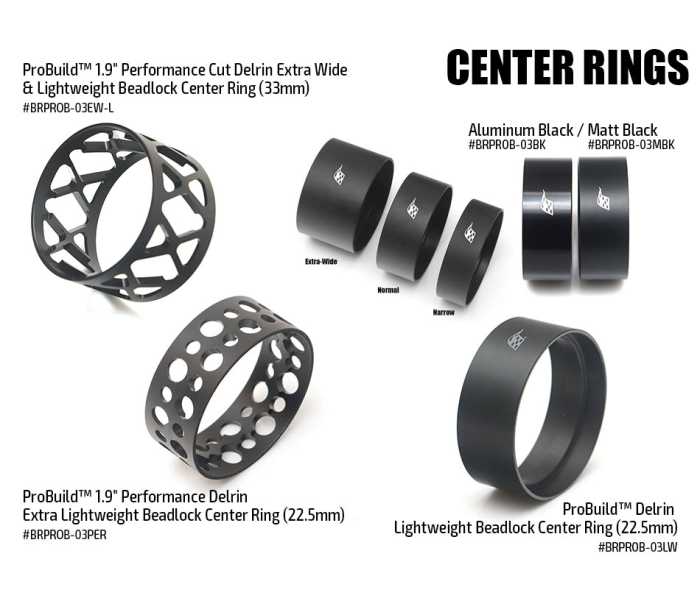

  • 1x Alum Beadlock Center Clamp Ring*

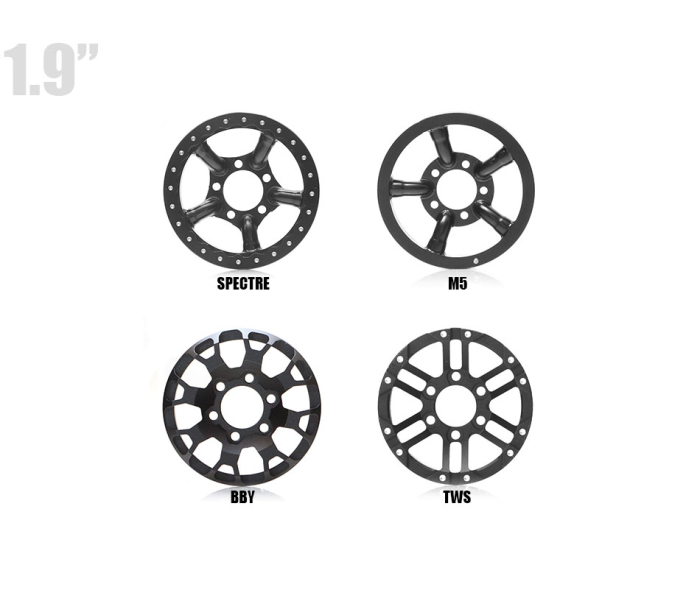

  • 1x Alum Faceplate
  • 1x Steel Lock Ring (may or may not be included)
  • 1x Alum Wheel Hub Adapter

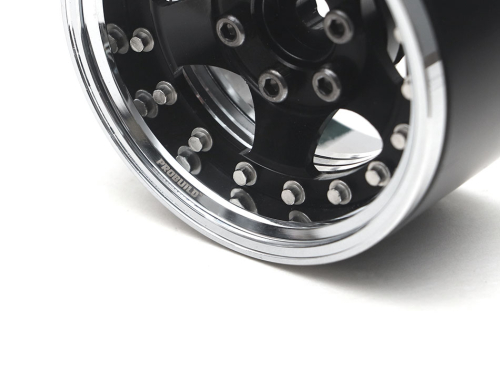

  • M2x9 Scale Hex Screw or M2x8 12.9 Grade Socket Cap Screw
  • M2.5x9 Scale Mag Seat Screw or M2.5x8 12.9 Grade Socket Cap Screw
  • 3x M2x14 12.9 Grade Socket Cap Pilot Screw
  • 1x M4 Nyloc Nut
  • 7mm Thin-Walled Nut Driver Tool** #BRT10045
  • 2mm Scale Socket Driver Thumb Tool** #BRT10049

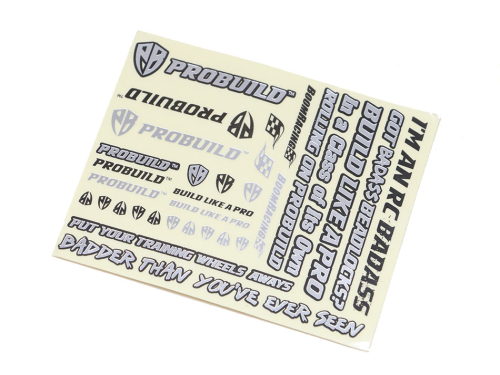

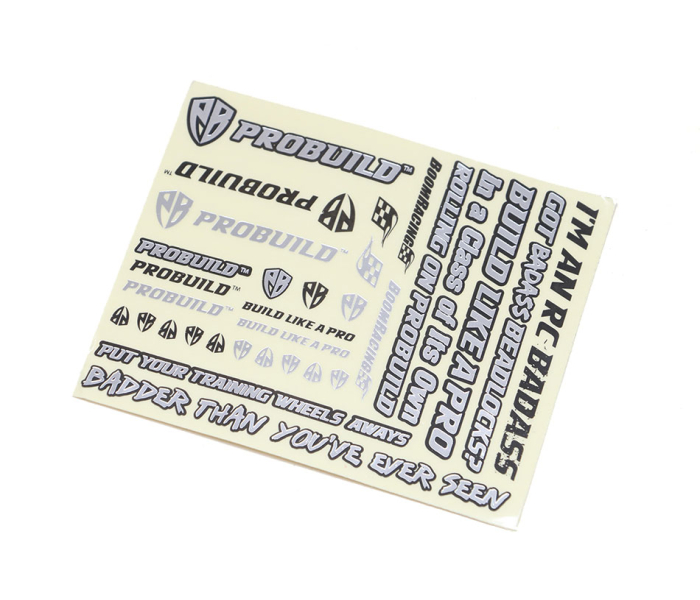

  • 1x Decal Sheet

*Barrel sizes and Beadlock Center Piece sizes depend on wheel width selected.

**If scale hardware is chosen, tool will be provided.

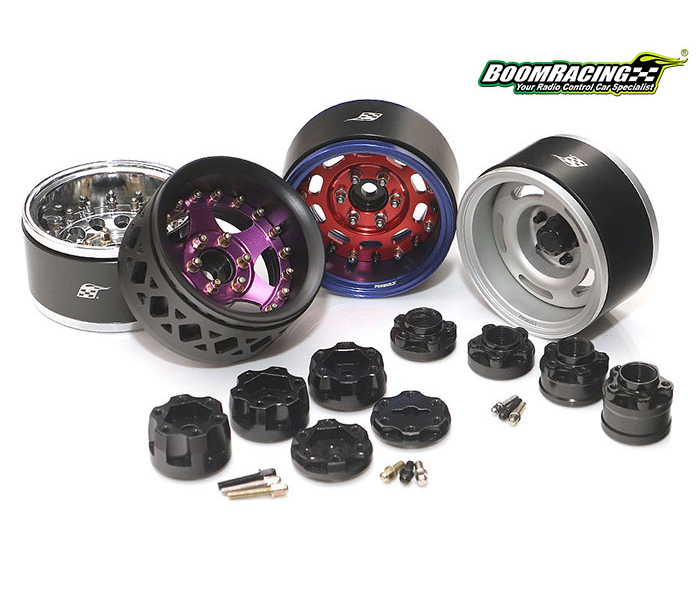

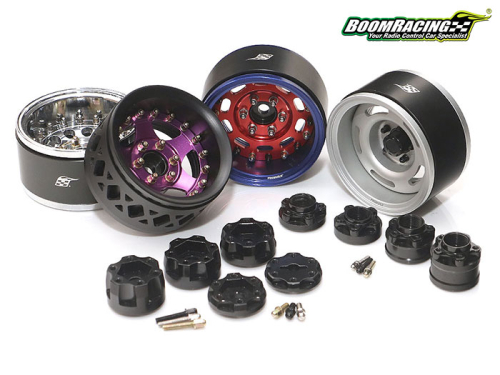

Optional Wheel Hub Adapter Sizes:

  • 6-Lug
    • 1.5mm Pin (no hex) #BRXT6015PIN (most narrow)
    • 1mm #BRXT601
    • 4mm #BRXT604
    • 6mm #BRXT606
    • 8mm #BRXT608
    • 12mm #BRXT612
    • 16mm #BRXT616 (widest)
  • 5-Lug
    • 0mm Pin (no hex) #BRXT500 (most narrow)
    • 4mm #BRXT504
    • 8mm #BRXT508
    • 12mm #BRXT512
    • 16mm #BRXT516 (widest)



Thin-Walled Nut Driver Adapter

7mm-to-7mm (#BRT10045)

7mm-to-8mm (#BRT10056)

Ever struggled with a nut driver that won’t fit inside your wheel?

There is no true industry standard for nut driver head diameters. To accommodate bulky tools, many wheels are designed with oversized center openings, which compromises scale realism and limits face design.

We take a different approach. Our wheels are designed for scale accuracy first. Smaller center openings allow cleaner proportions and more detailed face designs. To support this, we developed thin-walled nut driver adapters specifically for modern scale wheels.

The thin-walled 7mm-to-7mm adapter is designed for M4-sized axle stub (fits both XT5 and XT6 hubs), while the thin-walled 7mm-to-8mm adapter is designed for M5-sized axle stub (fits XT6 hubs). Both feature a reduced outer hex diameter that allows any 7mm standard nut drivers to reach recessed wheel nuts on modern 1.9 and 1.55 scale wheels with realistic hub dimensions.

Compact, precise, and purpose-built, these adapters are essential tools for serious builders.



Scale Socket Thumb Drivers (2.0mm/2.5mm/3.0mm)

An awesome handy tool for scale hardware to have in any toolbox. You can also hang this on a keyring for convenience.

When you select scale hardware, the matching tool will be included for installation.

#BRT10049 2mm Scale Socket Driver Thumb Tool for M2 Hex Bolt Scale Hardware

#BRPROB-16 Scale Socket Thumb Driver 2.5mm for M2 Mag Seat hardware

#BRPROB-17 Scale Socket Thumb Driver 3.0mm for M2.5 Mag Seat hardware



Build your beadlock wheels exactly the way you want like a Pro!
