Front Portal Axle Conversion Kit for BRX80 PHAT™ Axle

Fits BRX01 AWB, BRX02 109, BRX02 88

USD $85.00

Part #: BRPT8022KIT


LOADING IMAGES

Front Portal Axle Conversion Kit for BRX80 PHAT™ Axle

Fits BRX01 AWB, BRX02 109, BRX02 88

USD $85.00

Part #: BRPT8022KIT

BRX80 Conversion Front BRX80 Conversion Front
AR44 Front AR44 Front
AR44 Rear AR44 Rear
BRX70 Front BRX70 Front
BRX70 Rear BRX70 Rear
BRX80 Front BRX80 Front
BRX80 Rear BRX80 Rear
BRX90 Front BRX90 Front
BRX90 Rear BRX90 Rear
BRX70 Conversion Front BRX70 Conversion Front
BRX70 Conversion Rear BRX70 Conversion Rear
BRX80 Conversion Front BRX80 Conversion Front
BRX80 Conversion Rear BRX80 Conversion Rear
BRX90 Conversion Front BRX90 Conversion Front
BRX90 Conversion Rear BRX90 Conversion Rear
AR44 Conversion Front AR44 Conversion Front
AR44 Conversion Rear AR44 Conversion Rear
Brass Front Knuckles & Covers Brass Front Knuckles & Covers
Brass Rear Covers Brass Rear Covers
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Phat Axle PartsBRX02 109 Optional PartsBRX02 109 PartsBRX02 88 Optional PartsBRX02 88 PartsBRX01 AWB Optional PartsBRX01 AWB Parts

PRODUCT DESCRIPTION

This is a set of front portal axle conversion kit for the BRX80 PHAT™ axle. The portal gearbox has four heavy-duty steel gears (doubles the contact mesh) each for strength and durability.

Features:

  • Additional 15mm / 0.59" ground clearance at the pumpkin
  • CNC aluminum portal knuckle & cover
  • BADASS™ heavy-duty steel front universal driveshafts
  • BADASS™ heavy-duty steel front portal driveshafts
  • Four heavy-duty hardened steel metal gears in each portal gearbox (increased contact mesh for durability and strength)
  • Anti-twist steel brackets to prevent axle twist (optional 10 deg bracket available)
  • Full rubber sealed bearings
  • Full 12.9-grade hardware
  • Compatible with PHAT™ Axle brake disc and caliper (caliper requires optional adapter)
  • Knuckle arms from the BRX80 straight axle are compatible with the portal knuckle.

Specification:
  • Width: 173.5mm / 6.83" pin-to-pin (BRX80 portal front and rear axles have the same widths)
  • Requires 44mm / 1.73" wheel barrel clearance (to clear the entire portal gearbox)
  • Portal gearbox ratio: 1:1
  • Weight: 320g
  • Portal Gearbox Size:
    • Width: 23.5mm
    • Height: 30.5mm (21.5mm above shaft / 9mm below)

Fits:
  • BRX80 Front PHAT™ Axle
  • 1.55" / 1.9 / 2.2" wheels (will fit 1.55" wheels depending on offset)

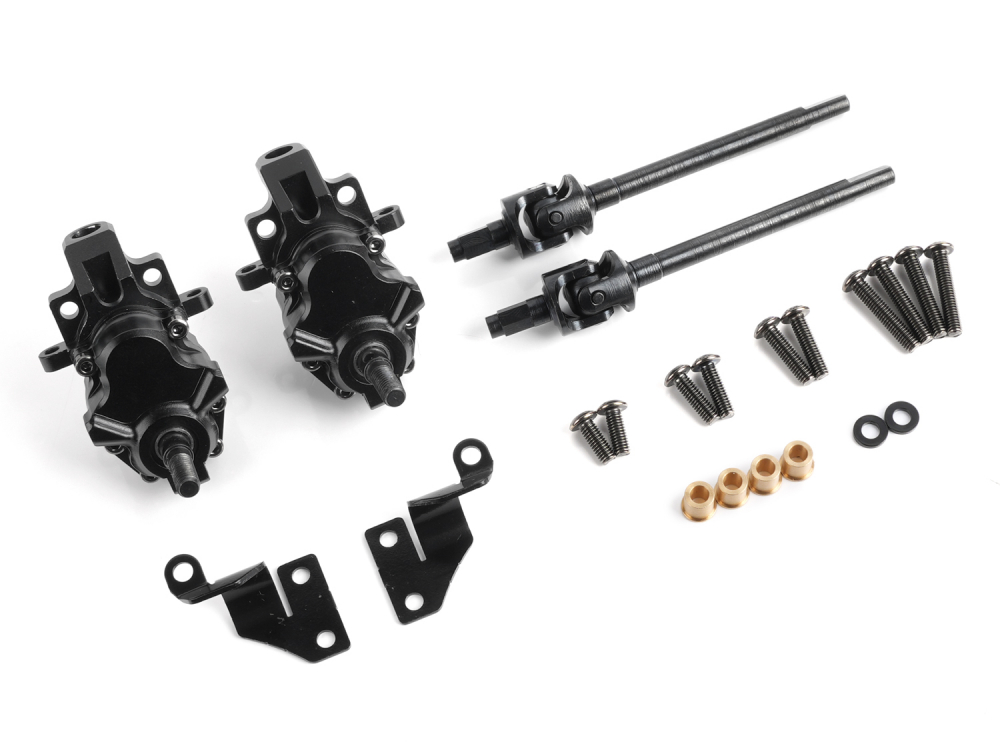

Includes:
  • 1x Left Side Portal Conversion Unit
  • 1x Right Side Portal Conversion Unit
  • 2x BADASS Front Universal Driveshaft for BRX80 Portal PHAT™ Axle
  • 1x Left Side Steel Anti-Twist Bracket
  • 1x Right Side Steel Anti-Twist Bracket
  • 4x Brass Washer
  • 2x Spacer
  • Full Rubber Sealed Bearings
  • Full 12.9-Grade Hardware

Bearing Sizes:
  • D4x7x2.5 #BBZMR742RS x10
  • D5x10x4 #BBZMR1052RS x2
  • D5x9x3 #BBZMR952RS x2
  • D4x8x3 #BBZMR842RS x2

Requires:
  • BRX80 Front PHAT™ Axle

Optional
  • Brass Front Knuckles & Knuckle Covers for AR44/BRX70/BRX80/BRX90 Portal PHAT™ Axle BRPT009
