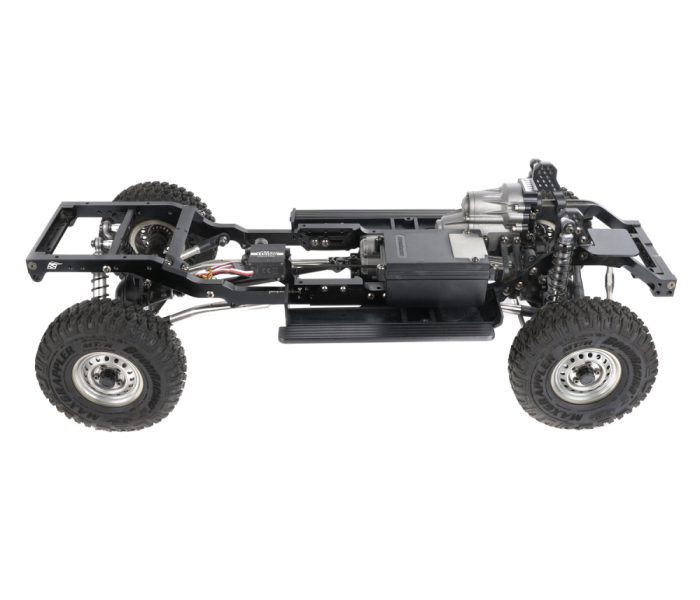

BRX01 AWB Custom Builder's Kit

USD $545.00

Part #: BR8016


LOADING IMAGES

BRX01 AWB Custom Builder's Kit

USD $545.00

Part #: BR8016

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

PRODUCT DESCRIPTION

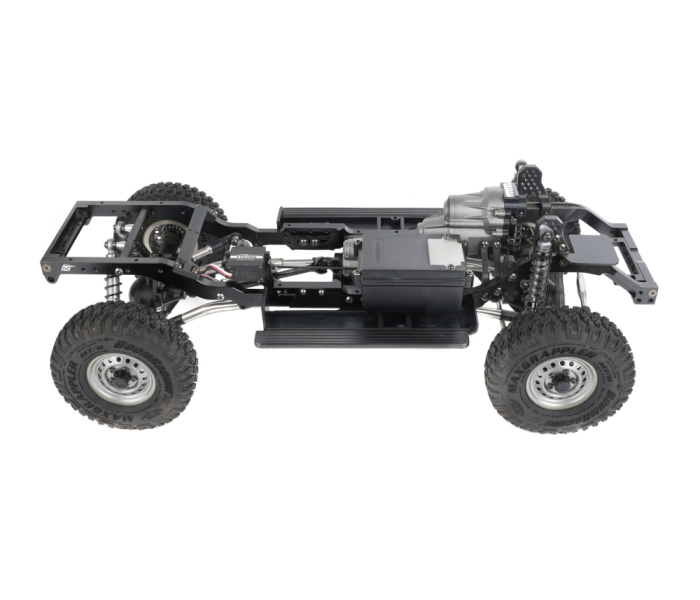

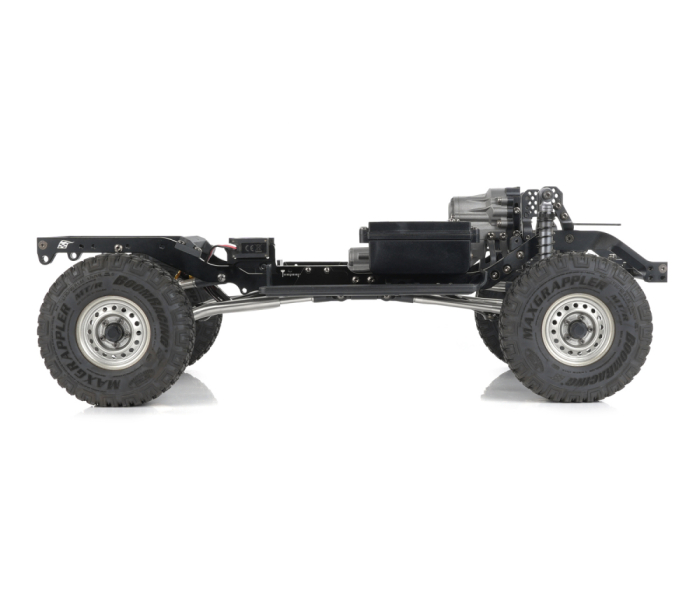

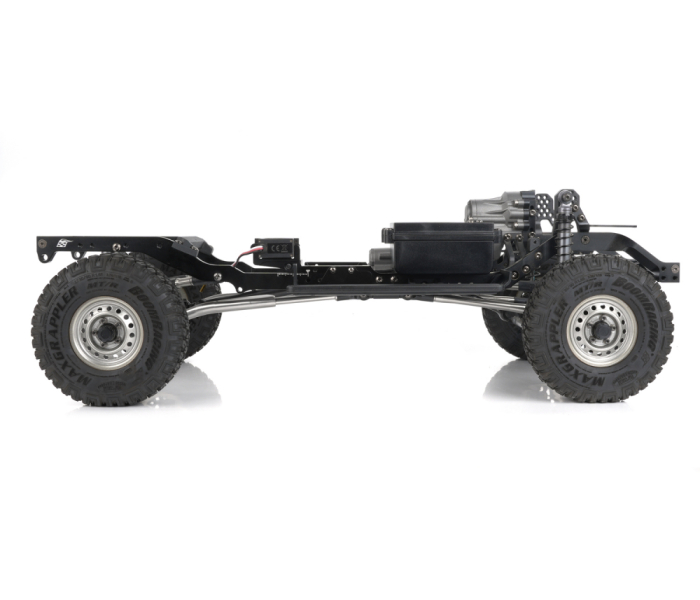

Want a truly unique, bespoke chassis?

For the first time, you can order a custom-configured Boom Racing chassis, built your way.

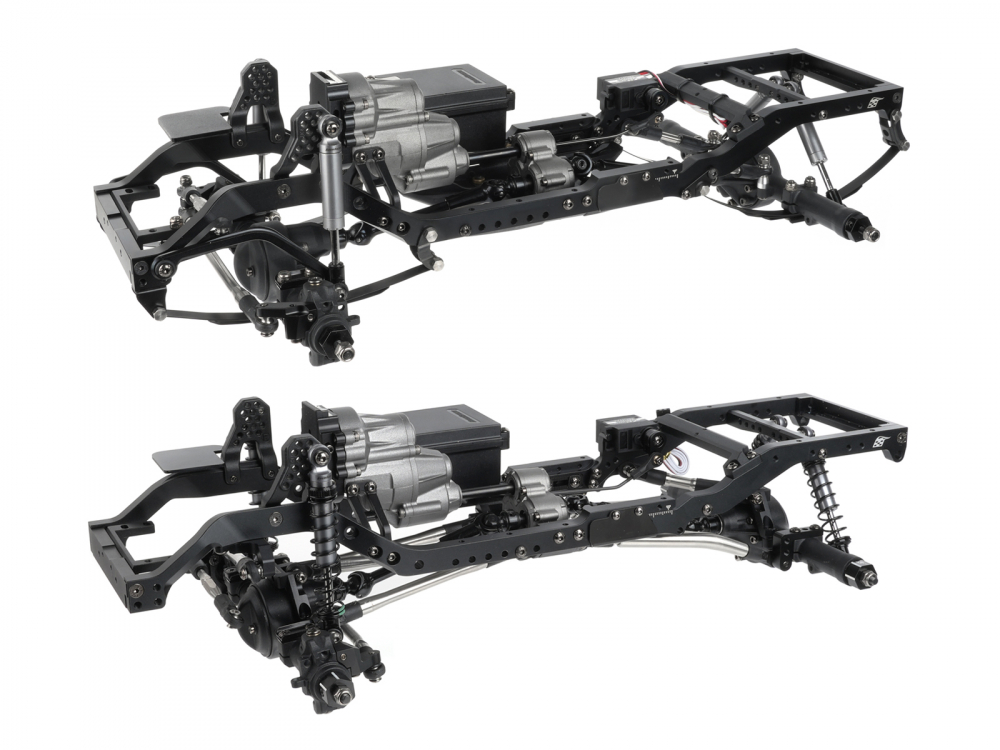

The BRX01 AWB Custom Builder’s Kit is based on our two BRX01 AWB Builder’s Kits, the leafed kit BR8011, and the linked kit, BR8014. Mix, match, and add the accessories you want to create a build that is truly your own.

You get to choose:

  • Base kit
    • Full Link
    • Full leaf

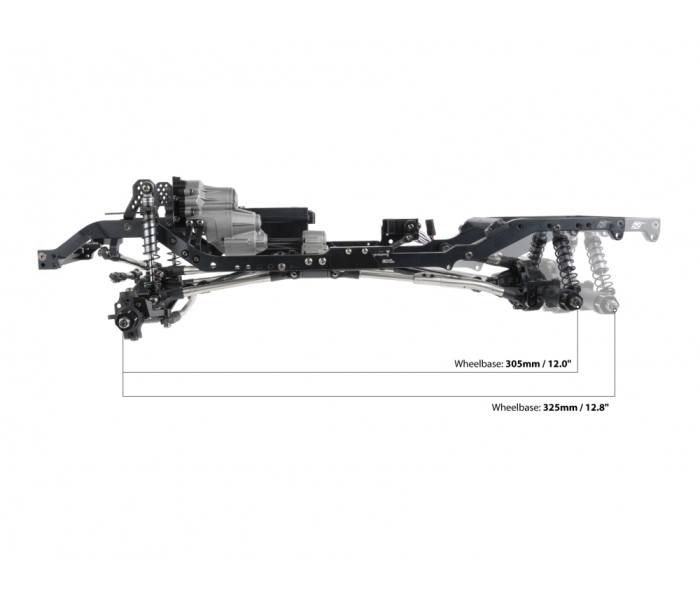

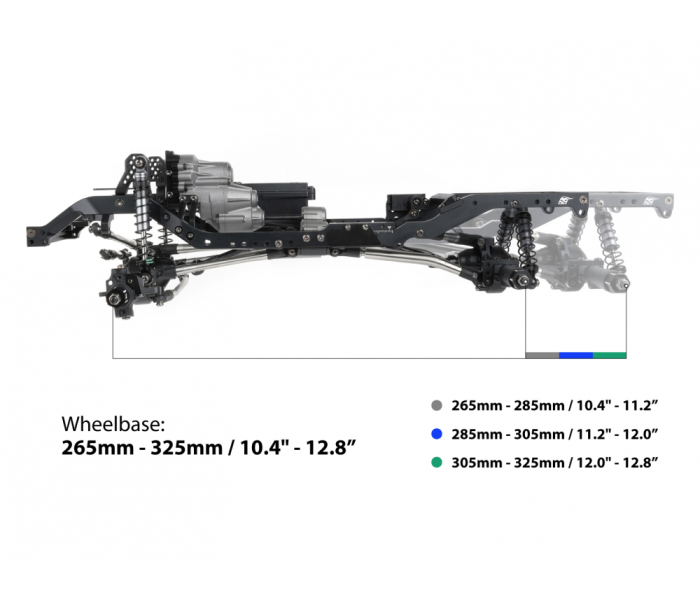

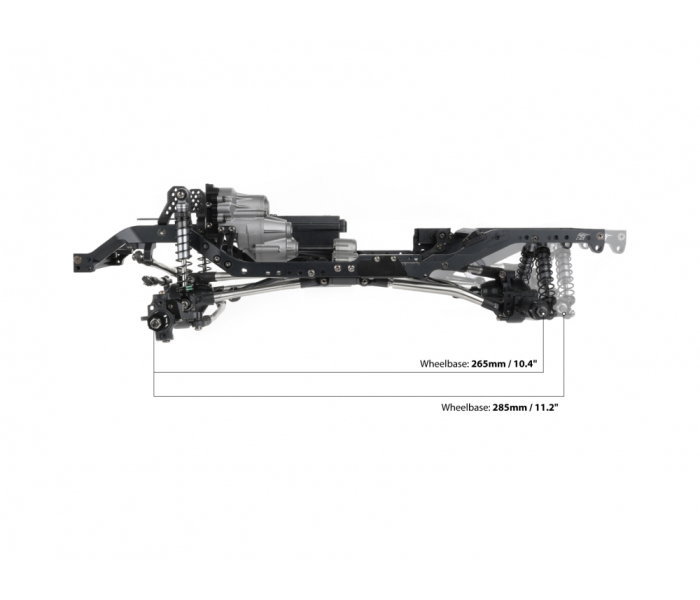

  • Wheelbase

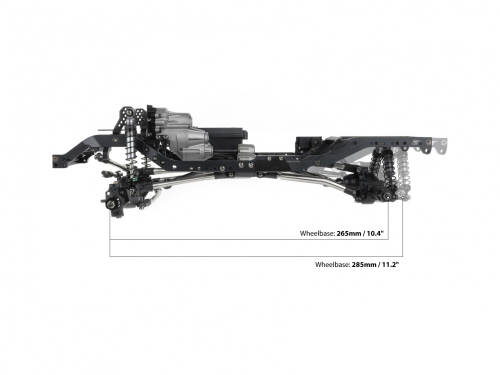

    • 265-285mm / 10.4-11.2 in

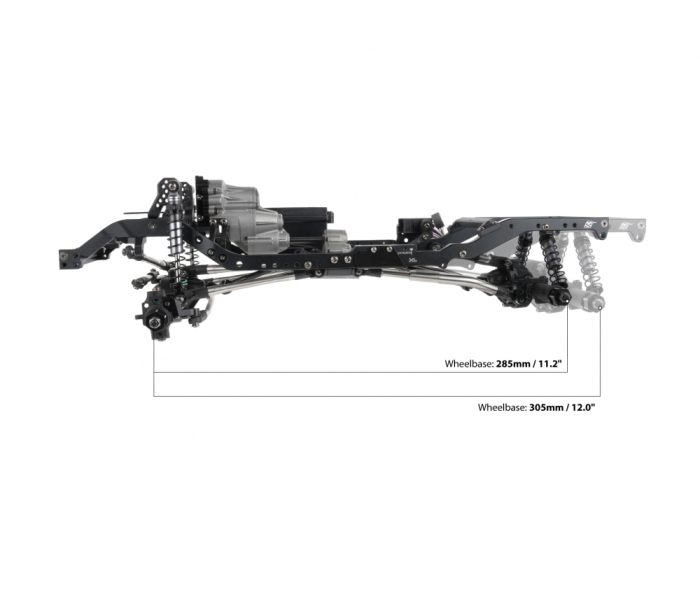

    • 285-305mm / 11.2-12.0 in
    • 305-325mm / 12.0-12.8 in
  •  Axle
    • Straight axles
    • Portal axles
    • Hybrid (mullet)
  • Transfer case type
    • B2X (standard)
    • SWD (2wd/4wd)
    • DIG
  • Transfer case gears
    • Overdrive (32%)
    • Standard
  • Shocks (if Link Chassis)
    • Big Bore coilover
    • Scale coilover

This custom truck is suitable for builders of all experience levels. Even if you are new to crawling or assembling your first custom truck, this build is designed to be approachable and rewarding.

Chassis Features:
  • Drive System: Full-Time Shaft Driven 4WD

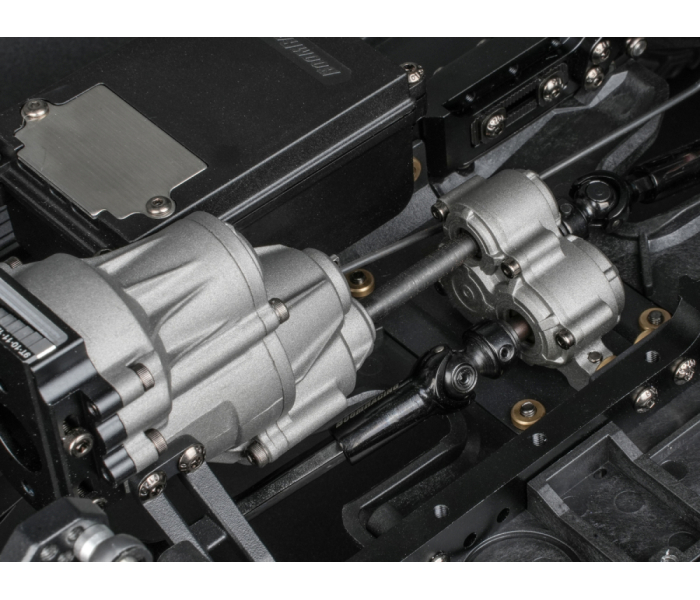

  • Transmission: BCF2™ with Hi/Lo 2-speed gears

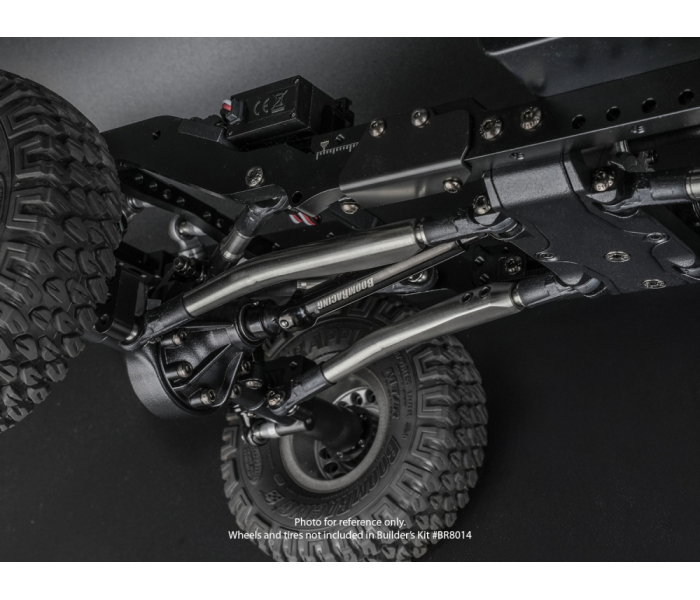

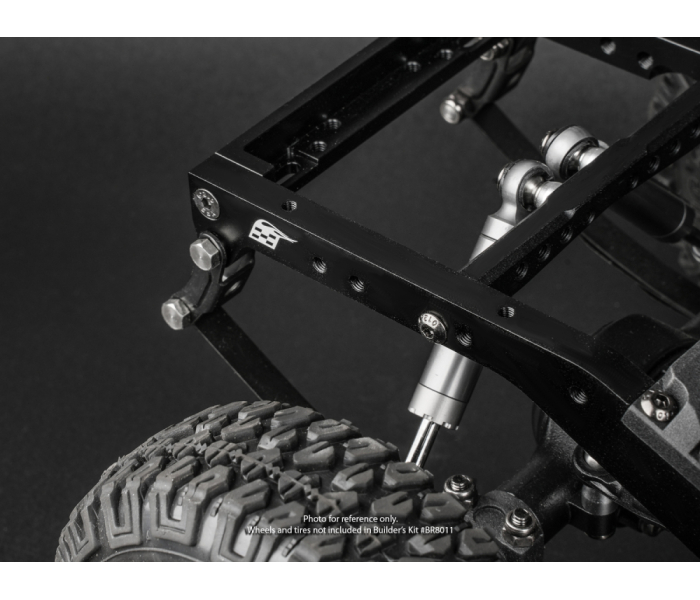

  • Suspension: Full link or full leaf
  • KUDU™ Coilover Shocks
  • Chassis Rails: 7mm Billet Aluminum Adjustable (20mm range)
  • Drivelines: KUDU™ Heavy-Duty Front & Rear Steel CVD Center Drive Shafts
  • Drivetrain Gears: Machined HD Steel
  • Front Axle Gears: High-pinion AR44 heavy-duty triangulated helical cut 30/8T steel gears
  • Rear Axle Gears: Reversed high-pinion AR44 heavy-duty triangulated helical cut 30/8T steel gears

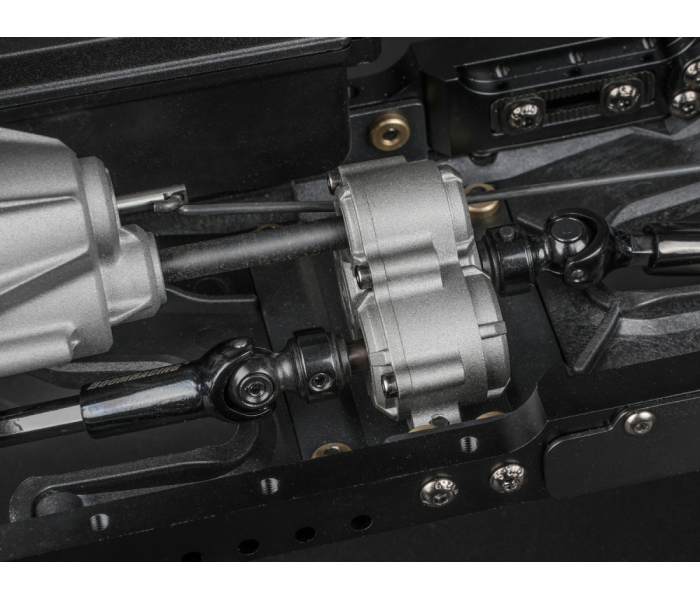

  • Transmission to T-Case: HD High-Efficiency Steel Output Shaft
  • Rails:

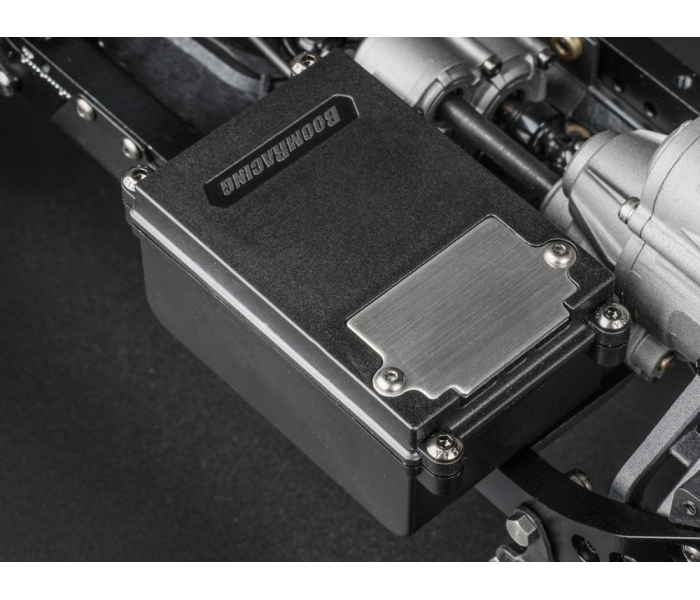

  • ESC Plate: Forward (Aluminum)
  • Servo Position: Front of motor

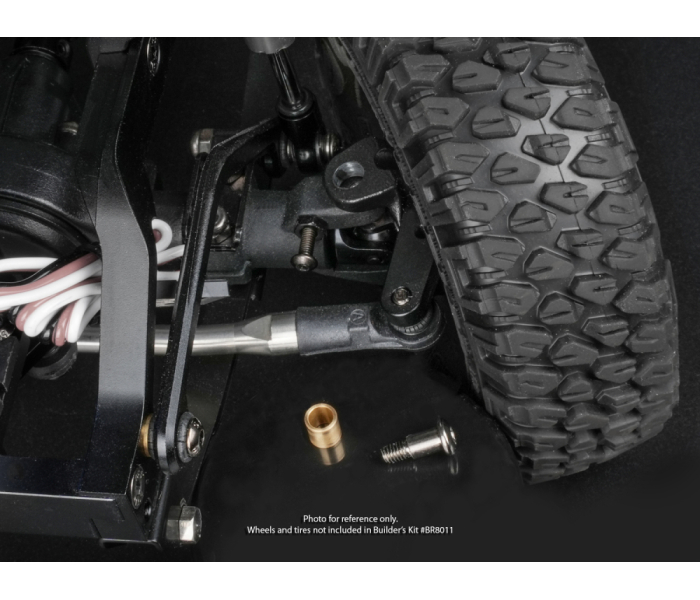

  • Steering: Chassis-Mounted Servo
  • Wheel Hex: Aluminum 8mm


Chassis Specifications:

  • Motor Size: 540 / 550 (not included)
  • Gear Pitch: 12T 32P Pinion / Spur, 48P T-Case

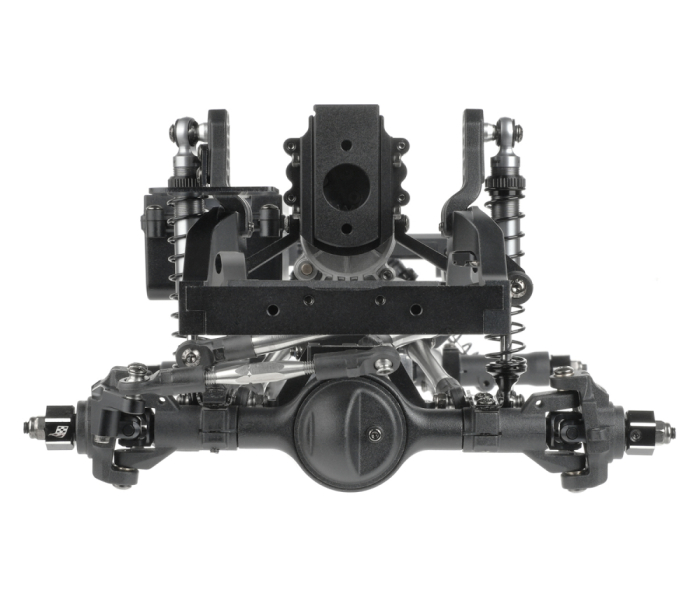

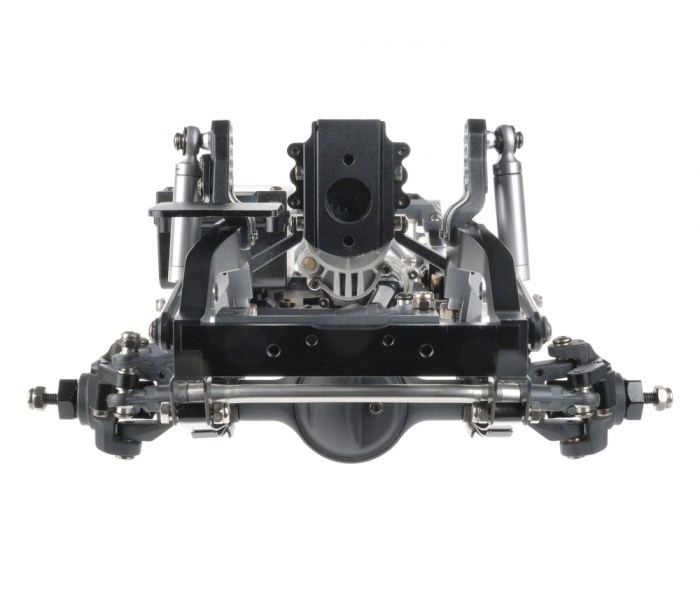

Scale PHAT Axle choices:
  • Front:
    • BRX70 straight 148.5mm pin-to-pin
    • BRX80 straight 162mm pin-to-pin
    • BRX90 straight 176mm pin-to-pin
    • BRX70 portal 160.4mm pin-to-pin
    • BRX80 portal 173.5mm pin-to-pin
    • BRX90 portal 188mm pin-to-pin
  • Rear:
    • BRX70 straight 146mm pin-to-pin
    • BRX80 straight 162mm pin-to-pin
    • BRX90 straight 176mm pin-to-pin
    • BRX70 portal 160.4mm pin-to-pin
    • BRX80 portal 173.5mm pin-to-pin
    • BRX90 portal 188mm pin-to-pin
