SWD (Selective RWD/4WD) Transfer Case Set for BRX02 88

USD $109.00

Part #: BRX02335


LOADING IMAGES

SWD (Selective RWD/4WD) Transfer Case Set for BRX02 88

USD $109.00

Part #: BRX02335

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Transfer BoxBRX02 88 Optional PartsBRX02 88 Parts

PRODUCT DESCRIPTION

Product Resources
instruction-manual---swd-transfer-case-for-brx02-88-copy_1701419027.pdf

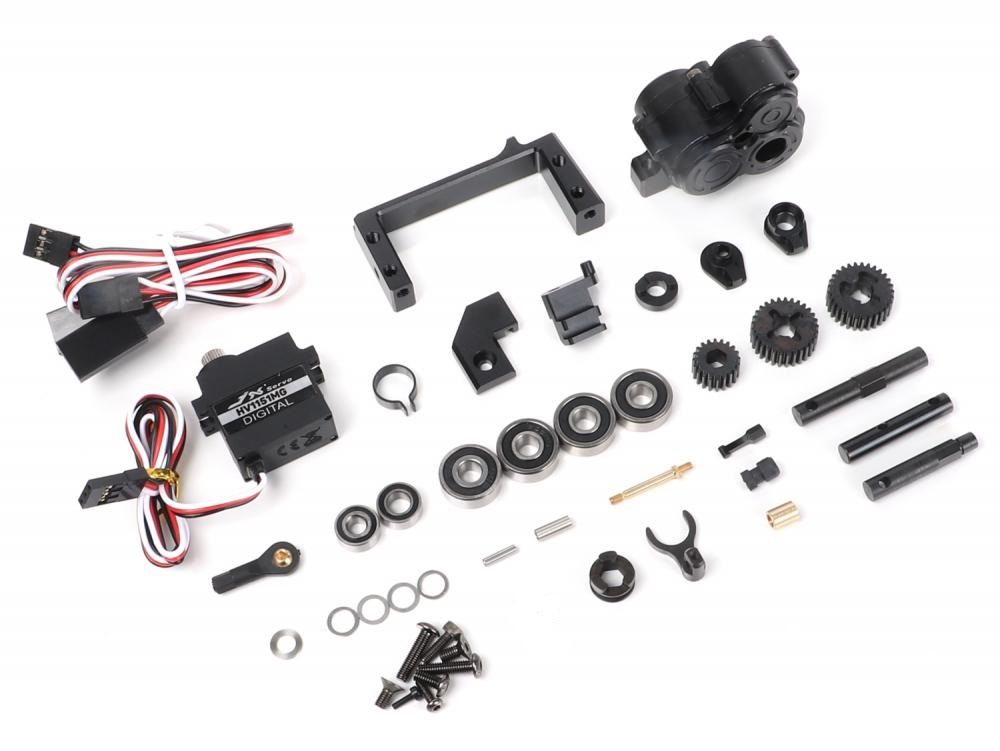

This is a complete SWD (Selective RWD/4WD) Transfer Case Set with JX mini servo and aluminum mounts for the BRX02 88 chassis.

Switch between 2WD (rear-wheel-drive) and 4WD of your BRX02 88 chassis with this all-new SWD (Selective RWD/4WD) Transfer Case Kit.

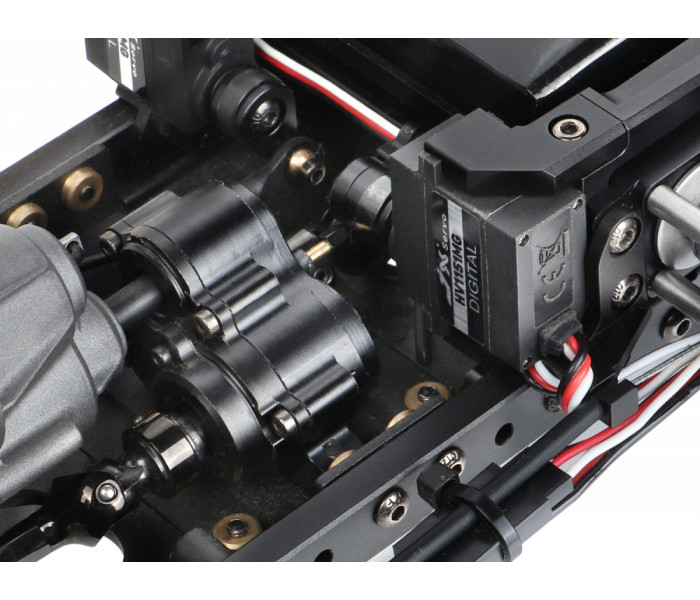

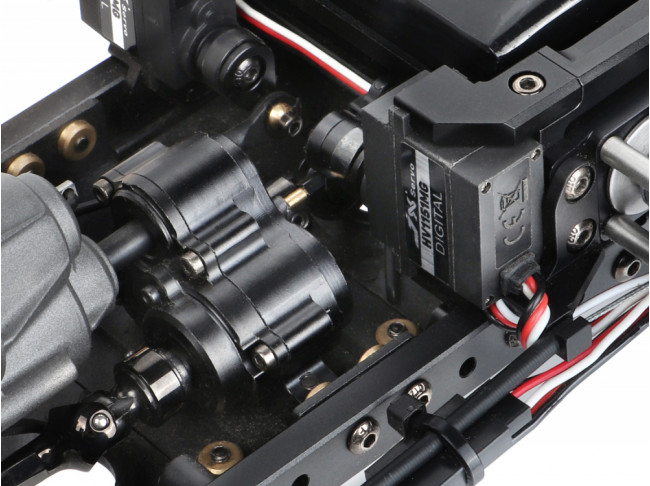

To set up the SWD T-Case, replace the stock transfer case with the SWD T-Case and use the provided JX mini servo and mini servo mount.

This SWD T-Case will fit the optional Overdrive HD Gear Set (33T, 25T, 16T) #BRLC70201-GEAR, which adds 32% overdrive to the front wheels.

Features:

  • Realistic 2WD/4WD fun just like your 1:1 off-roader
  • Heavy-duty steel gear set
  • Billet aluminum transfer case
  • Full rubber-sealed ball bearings
  • Keeps the original anti-torque twist feature (counter-rotating output shafts)
  • JX high voltage mini servo included
  • Aluminum mounts included for installation

Mini Servo Specifications:
  • Brand: JX Servo
  • Model: JX/PDI-HV1151MG
  • Working voltage: 6V~8.4V
  • Working temperature: -20C°~ +60C°
  • Dead band: 4usec
  • Motor type: Core Motor
  • Signal booster type: Digital
  • Gear material: Metal gear
  • Operating Speed: 0.12s/60deg (6.0V) | 0.10s/60deg (8.4V)
  • Stall Torque: 3.5kg/cm (6.0V) | 4.5kg/cm (8.4V)
  • Idle Current: 150mA (6.0V) | 180mA (8.4V)
  • Load Current: 260mA (6.0V) | 340mA (8.4V)
  • Size: 23.2 x 12.5 x 25.6mm
  • Weight: 15g
  • Tooth Count: 25
  • Wire length: 310mm JR plug
  • Black: Negative Red: Positive White: Signal

Fits:
  • BRX02 88

Note: This does not fit BRX01, BRX02 109 or BRX02.

Optional:
  • Overdrive HD Gear Set for BRX T-Case (33T, 25T, 16T) #BRLC70201-GEAR
