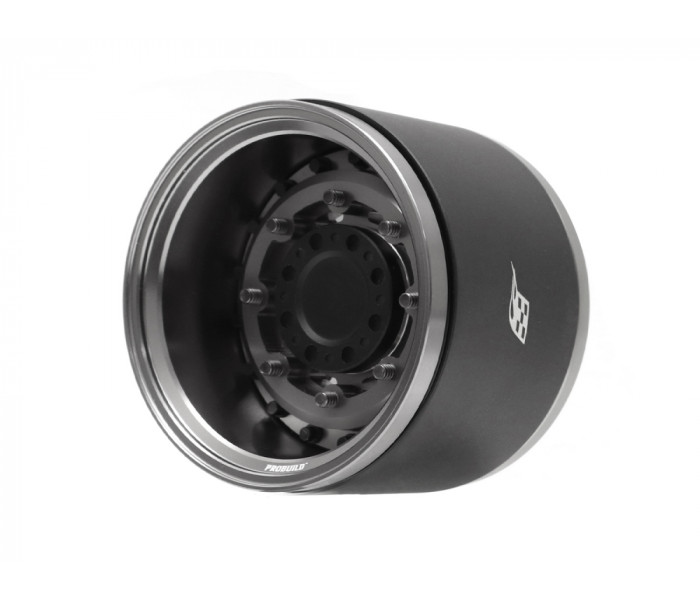

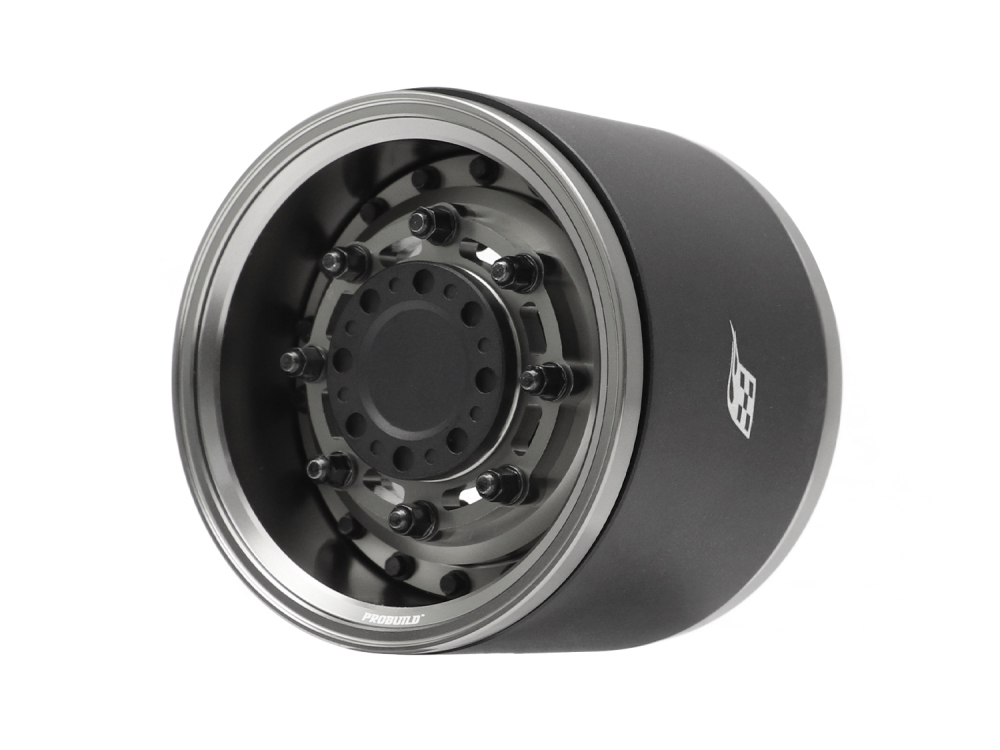

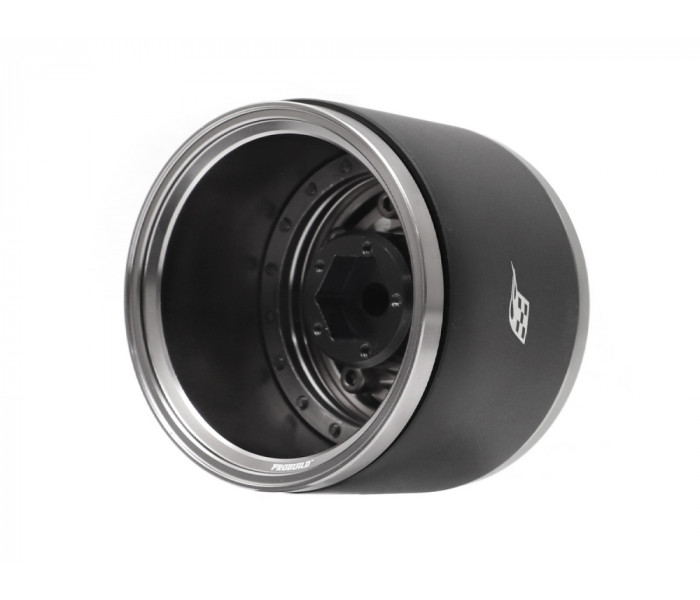

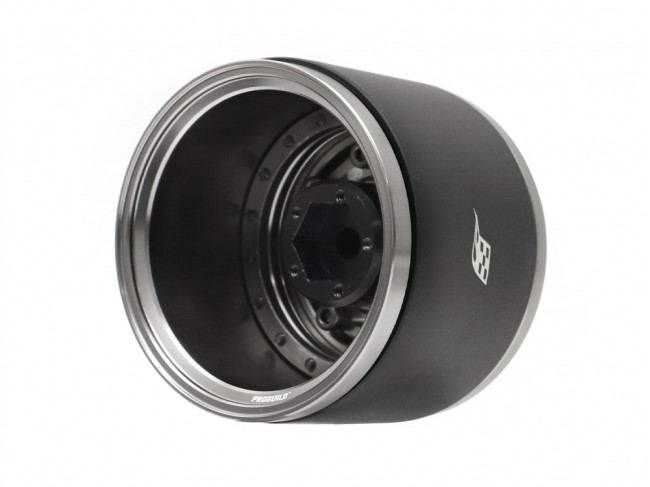

Boom Racing's most innovative and advanced beadlock wheel to date, here are two ProBuild 1.9" COMBAT (2-Piece) Adjustable Offset Aluminum Beadlock Wheels. These wheels from Boom Racing feature a patented design that makes installation and setup a breeze.
With our latest two-piece faceplate design, you can customize your wheels even more while increasing the adjustability settings for offset. These wheels use the XT5 hub system and can be used with any ProBuild parts, except for XT6 hubs.
- Size: 1.9"
- Width: Extra Wide
- Barrel Color: Gun Metal
- Barrel Material: Aluminum
- Center Ring Material: Aluminum
- Faceplate Style: COMBAT (2-Piece)
- Faceplate Color: Gun Metal
- Faceplate Material: Aluminum
- Outer Hardware: Scale Hex 12.9 Black + Cap Head 12.9 Black
- Bolt Pattern: 5-Lug
- Center Cap: COMBAT
- Center Cap Color: Matte Black
- Center Cap Hardware: Mag Seat Black + Cap Head 12.9 Black
- Hub Size: XT504 V2 (4mm Offset)
- Hub Hardware: Cap Head 12.9 Black
- Lock Ring: Black
Build your wheels precisely how you want with Boom Racing's patented ProBuild Wheels.
The idea behind PROBUILD was to find a way to make a fully customizable and adjustable wheel with multiple setup options. Today that sounds smart, but back when we started, most people thought we were crazy. That’s alright, everything has its time!
Quality off-road wheels are not always affordable. Most of us save our money to get a nice set. Deciding on the proper set of wheels can be a scary and expensive learning lesson. Our proprietary customizable design completely removes any fear of getting another set of wheels that are “almost right.” We considered all of the desirable wheel features - style, color, offset, material, total width, weight, hub size, hardware styling, etc., and provide the options to adjust the wheel to how you like.
What makes PROBUILD probuild?
- High changeability, unlimited possibilities
- Built-in offset options
- Revolutionary and cutting-edge designs
- Engineered to the exact specifications of world-class drivers
With unlimited combinations of colors, faceplates, multiple offset options, etc., ProBuild wheels is a game-changing design for building and matching custom rigs. No longer are we stuck with a complete set of wheels that remain the same for too long.
- Diameter: 1.9"
- Width: 41.35mm (1.628")
- Inner Wheel Clearance: 45mm (1.771")
- Weight (per wheel):
- Fully Assembled: 103g
- Without Hub and Hardware: 91g
- Center Ring: 35g
- Barrels: 29g

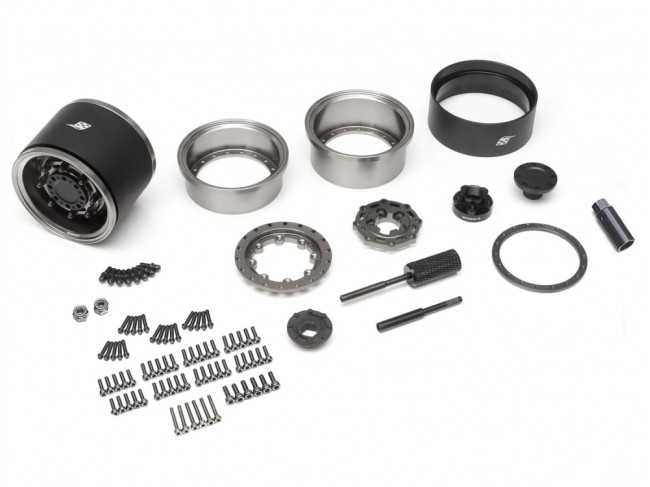

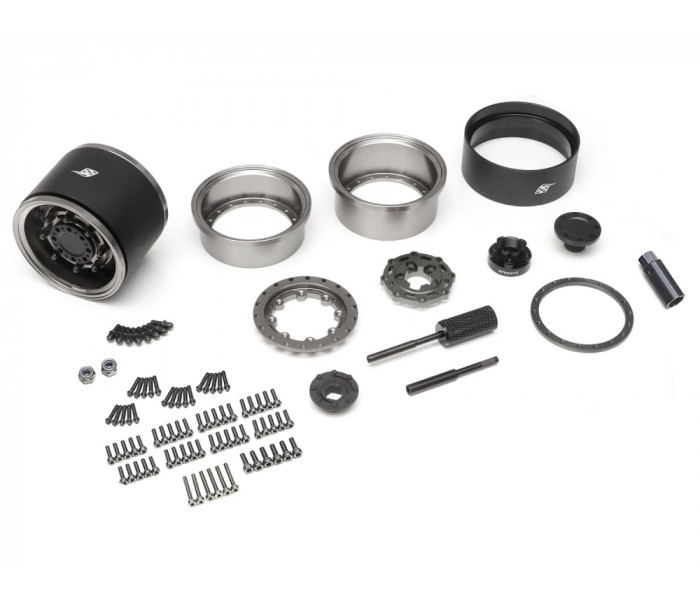

- 2x Alum 7.5mm Barrel #BRPROB-01
- 2x Alum 15mm Barrel #BRPROB-02
- 2x Alum 21.5mm Beadlock Center Ring #BRPROB-03MBK
- 2x Steel Lock Ring #BRPROB-05
- 2x Aluminum COMBAT (2-Piece) Faceplate #BRPBF020
- 2x Aluminum COMBAT Center Wheel Cap #BRPB-COMBAT
- 2x XT504 V2 Wheel Hub Adapter #BRXT504V2
- 16x Mag Seat Lug Nut M2.5x6mm Scale Screws #BRPROB-09
- 16x M2.5x8 Socket Cap Screw #BRASCH2508
- 40x M2x9 Scale Hex Bolt Screw #BRPROB-06
- 40x M2x8mm 12.9 Grade Socket Cap Screw for Lock Ring #BRPROB-07BK
- 10x M2x10mm 12.9 Grade Socket Cap Screw for Hub #BRASCH2010
- 6x M2x14 12.9 Grade Socket Cap Pilot Screw #BRASCH2014
- 2x M4 Non-Flanged Nylon Lock Nut #BRASNUTM4
- 1x 7mm Thin-Walled Nut Driver Adapter #BRT10045
- 1x 2mm Scale Socket Driver Tip for M2 Scale Hex Bolt Screw
- 1x 3mm Scale Socket Driver Tip for M2.5 Scale Mag Seat Lug Nut
- 1x Driver Handle for Scale Socket Driver Tip
- 1x ProBuild Nylon Center Wheel Cap Tool for COMBAT faceplate #BRPROB-22
- 1x Decal Sheet

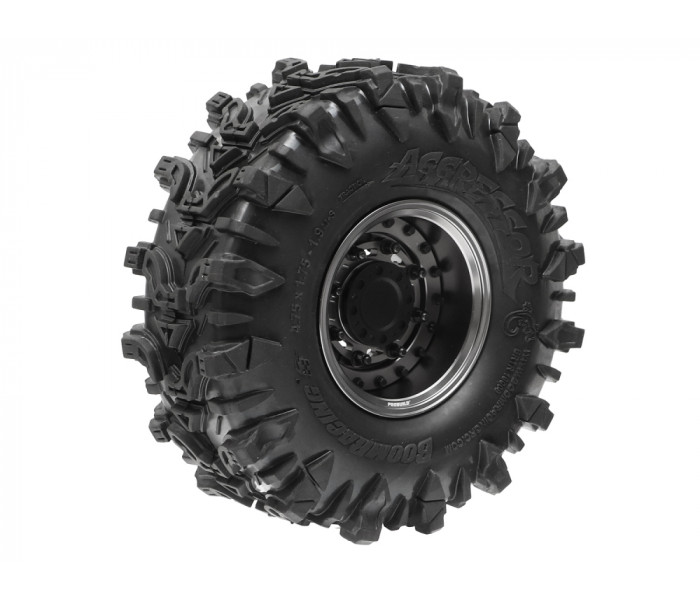

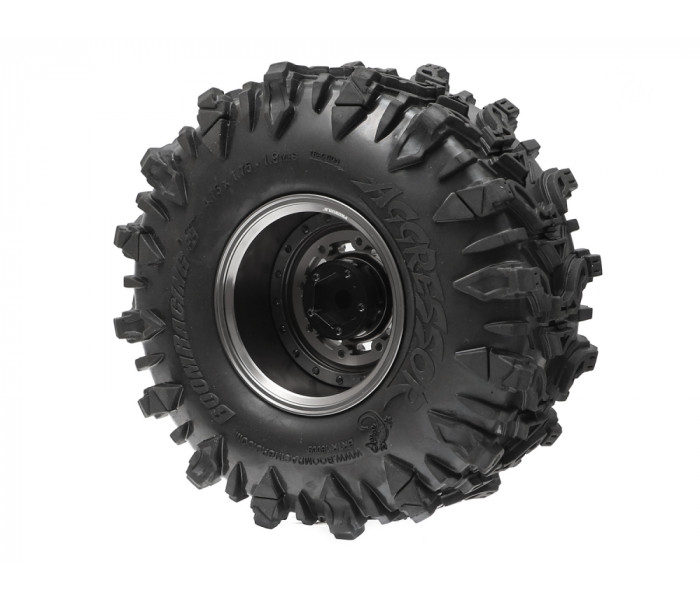

- 1.9" Crawler Tires
- Clears TRX4 and SCX10.3 portal axles
- Wheel shafts using M4 wheel nuts (XT5 V2 hub fits M4 nut. XT6 V2 hub fits M4 and M5 nuts)
Optional Wheel Hubs:
- XT500V2 - 0mm Pin Alum Offset #BRXT500V2
- XT504V2 - 4mm Alum Offset #BRXT504V2 (Included)
- XT508V2 - 8mm Alum Offset #BRXT508V2
- XT512 - 12mm Alum Offset #BRXT512
- XT516V2 16mm Alum Offset #BRXT516V2
